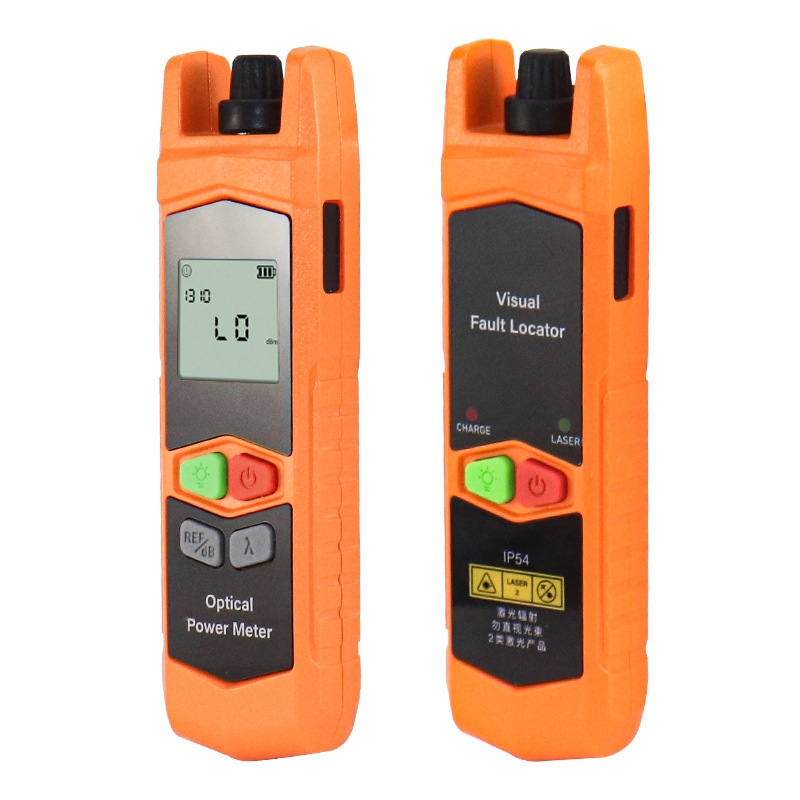

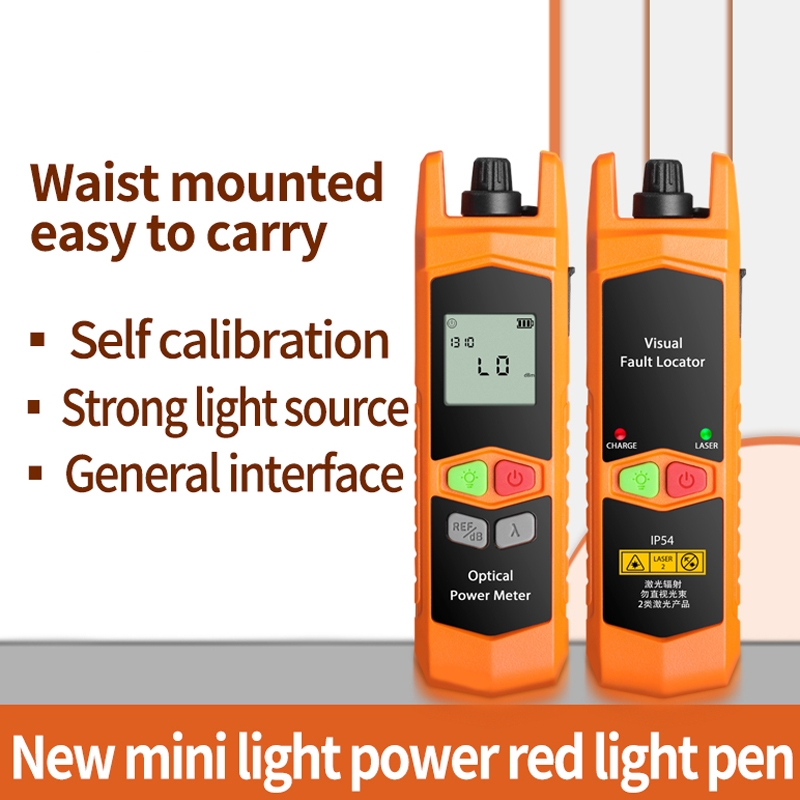

2-in-1 10-30mW Fiber Optic Red Light Pen + Optical Power Meter (-70+6dBm) Set

Product Description

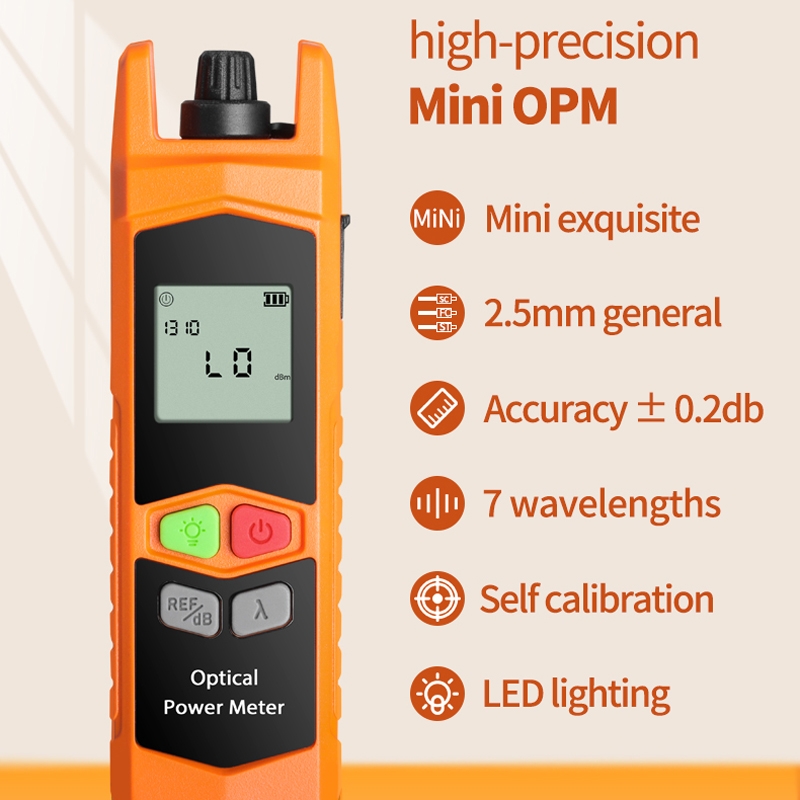

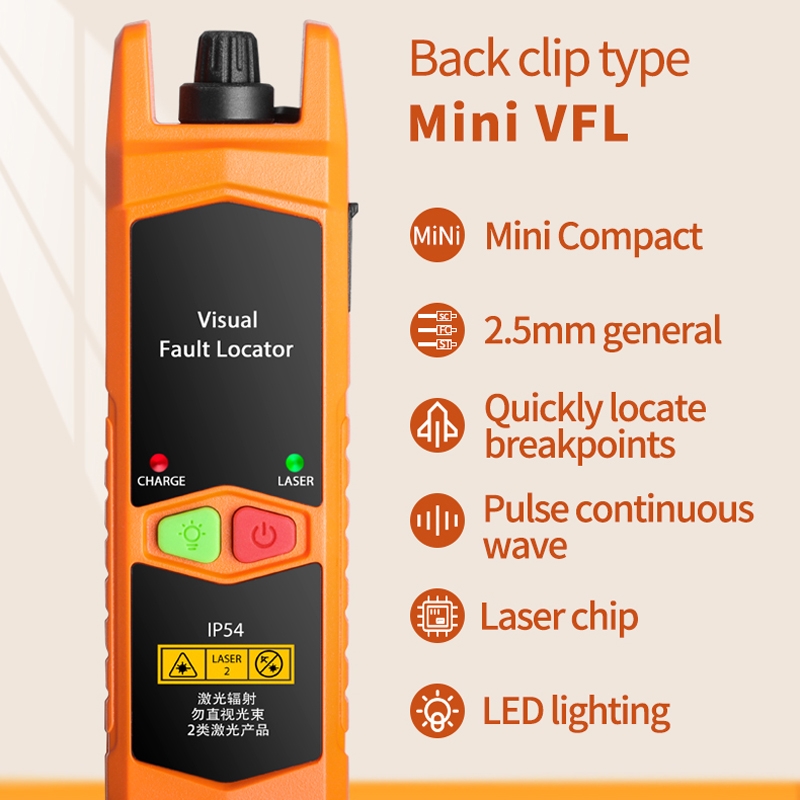

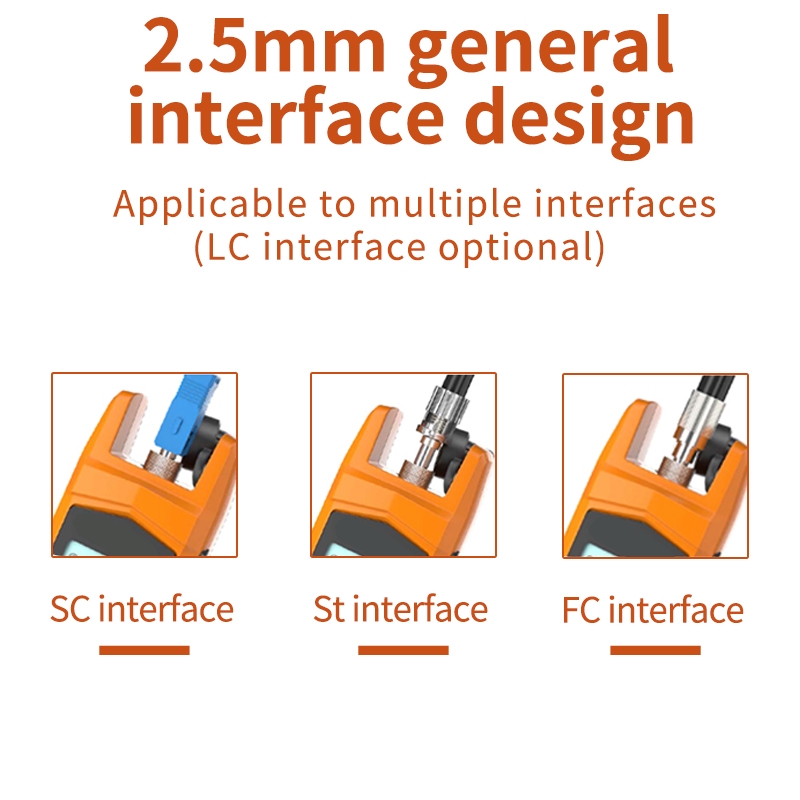

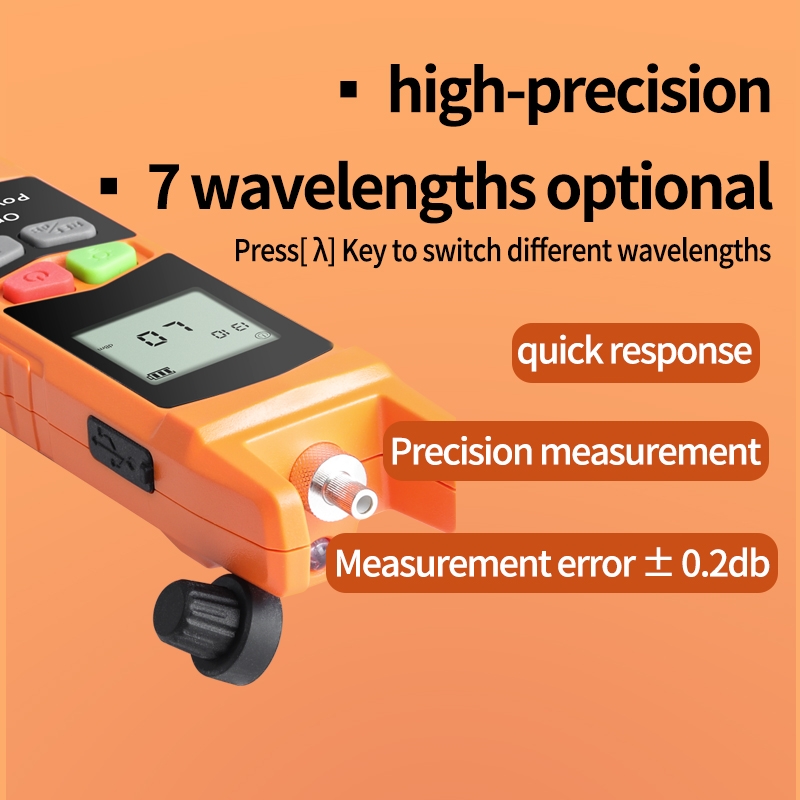

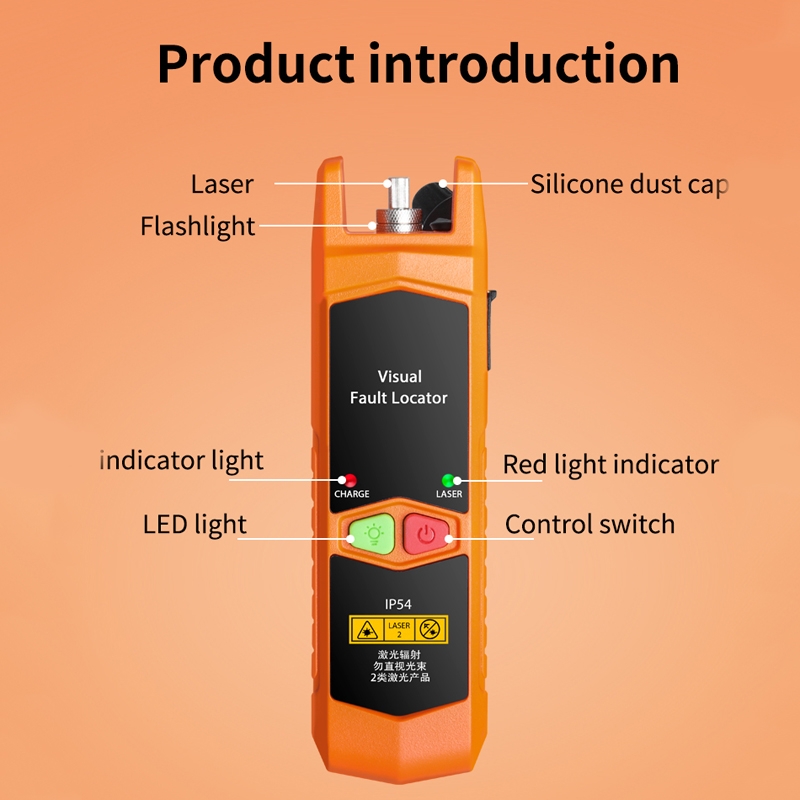

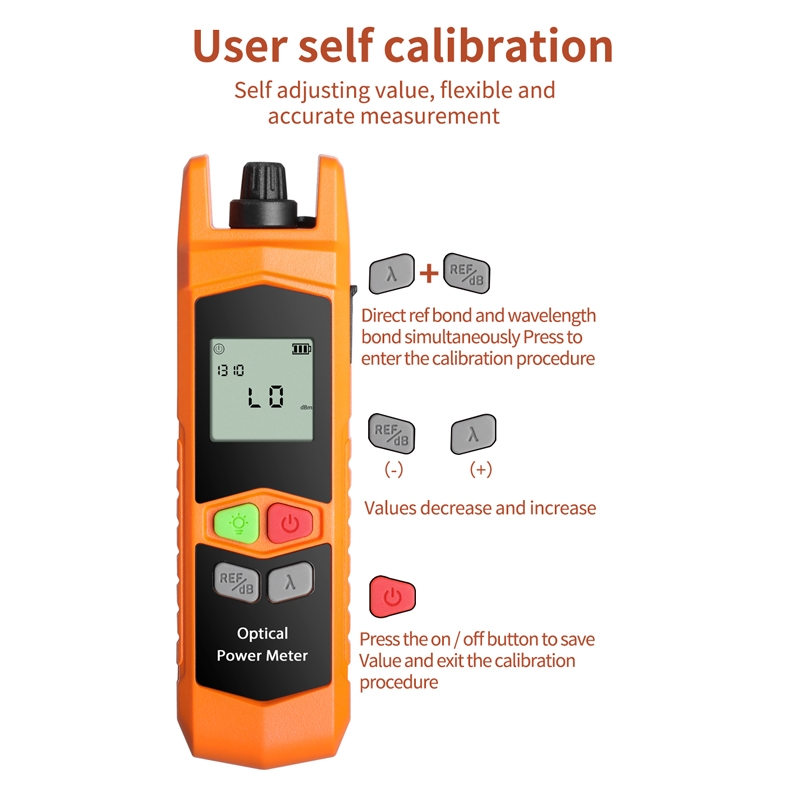

Optical Power Meter: 1. Mini and exquisite: the body design conforms to the requirements of ergonomics, and the size is small, easy to store in the pocket, clip on the clothes, and carry it with you 2. 2.5mm universal interface design, suitable for various interfaces such as SC/ST/FC interface 3. High precision measurement, fast response, measurement error +/-0.2dB 4. 7 wavelengths, 850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm 5. User self-calibration and adjustment value, flexible and accurate measurement 6. LED lighting, easy to check the line construction in the dark environment, making the work more convenient 7. Probe type: InGaAs 8. Power measurement range: -70~+10dBm/-50~+26dBm 9. Uncertainty: less than 0.2dB 10. Display resolution: 0.01dB 11. Working temperature: -10~+60 degrees Celsius 12. Storage temperature: -25~+70 degrees Celsius 13. Power working time: 20 hours (No. 7 AAA 1.5V battery × 2, delivery does not include batteries) 14. Size/weight: 127×36.5×28mm/61g Red light fault detector: 1. Mini compact, high-quality ceramic ferrule, LED lighting 2. 2.5mm universal interface design, suitable for various interfaces such as SC/ST/FC interface 3. Wavelength range: 650nm red laser head 4. Power range: 10/20/30mw 5. Test distance: 5-8km/12-15km/20-25km 6. Laser type: LD 7. Modulation frequency: CW/2Hz 8. Power supply: 2 x AAA batteries (batteries not included) 9. Dimensions: 127 x 36.5 x 28mm 10. Working temperature: 61g

Specifications

SKU

TBD06040006

Category

Computer & Networking › Optical Series › Fiber Optic Test Pen

Weight

0.304 kg

Delivery

Standard delivery
