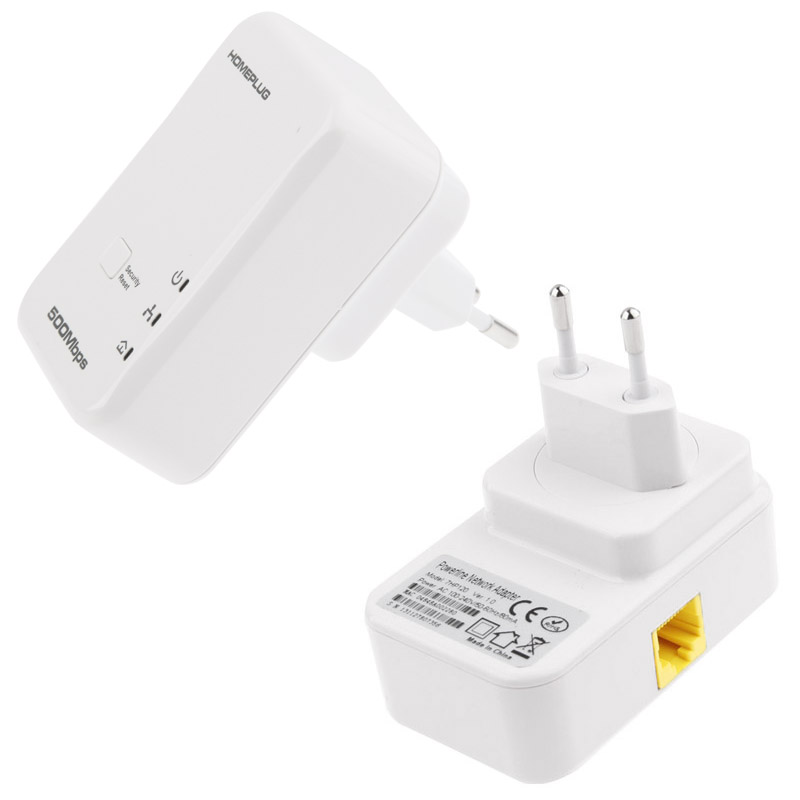

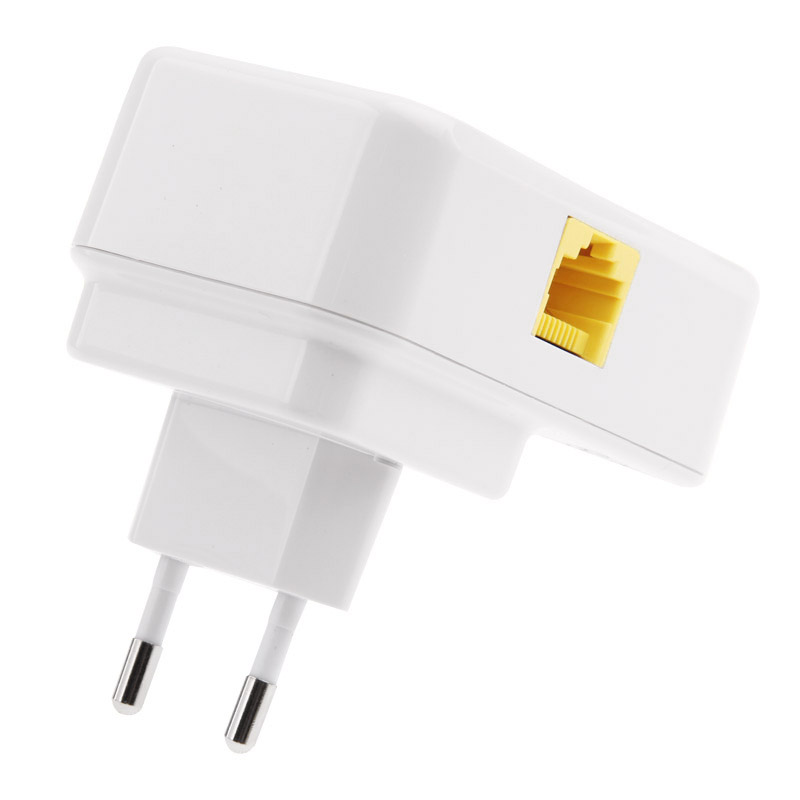

2 PCS 500Mbps Powerline Network Mini Homeplug AV Ethernet Bridge, 7HP150, EU Plug(White)

Product Description

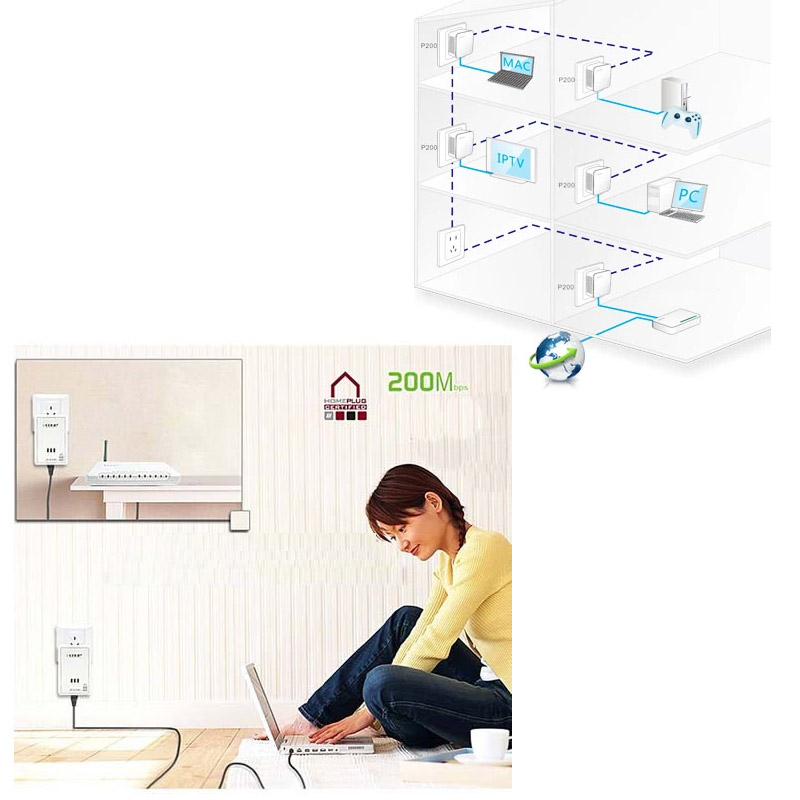

1) Co-exists with HomePlug 1.0 (14/85mbps) 2) Stand-lone unit attaches directly to Broadband device and home power line network for seamless integration 3) Optimized for HD/SD cable, satellite and IPTV installations, home multimedia content and storage, multi-room DVR networking, online or networked console and PC video game connections, and much more 4) Model: 7HP150 5) Standards: Homeplug AV IEEE802.3 / IEEE802.3u 6) Network Interface: -One RJ-45 (10/100Base-T Ethernet) -One 500Mbps power line port supporting co-existence with HomePlug 1.0 (14/85Mbps) 7) Security: 128-bit AES link encryption with key management 8) Data PHY Rate: 500 Mbps over Power line and 10/100Mbps over Ethernet 9) Modulation type: OFDM symbol modulation on line synchronization 1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO carrier modulation 10) Frequency Band: 2 ~ 28 MHz 11) Additional Protocols: Mix of TDMA and CSMA/CA channel access scheme, co device generates a periodic beacon carrier for channel access scheme 12) Working Range: Estimated range of 300 meters in wall power lines 13) Cabling 100Base-T Cat. 5 UTP cable 14) Software Utility : Device detect/diagnostic, NEK password setup for local and remote device Windows 98 SE, ME, 2000, NT, XP, Vista, and 7 for initial setup (optional) 15) Function: Online Music / watch / game / transfer / video chat / mailer etc… 16) Power Connector: Embedded US 17) Power Input: 100 ~ 240V @ 50/60Hz internal 18) Working temperature: 0-40°C

Specifications

SKU

S-PC-0843

Category

Computer & Networking › Network Adapters › Powerline Network Adapters

Weight

0.397 kg

Delivery

Standard delivery
