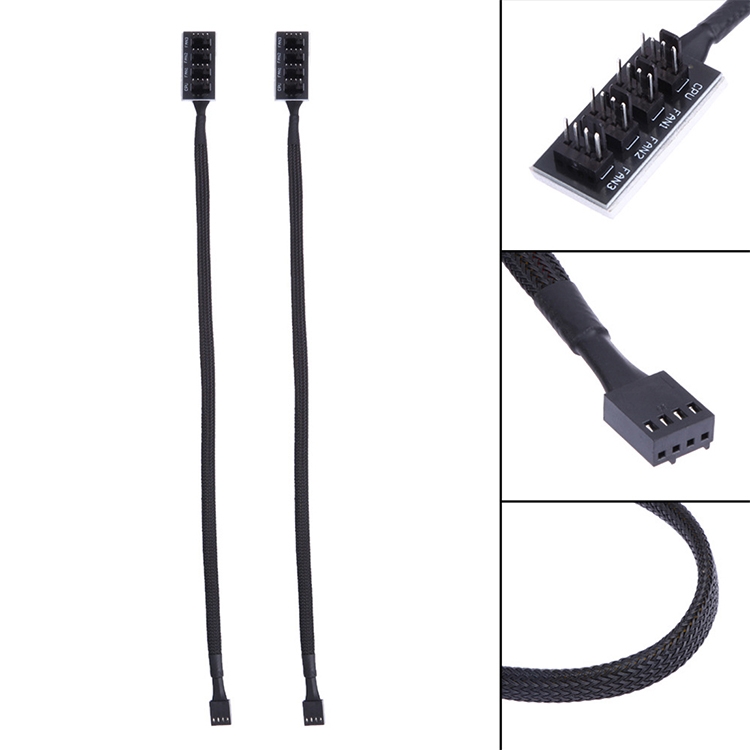

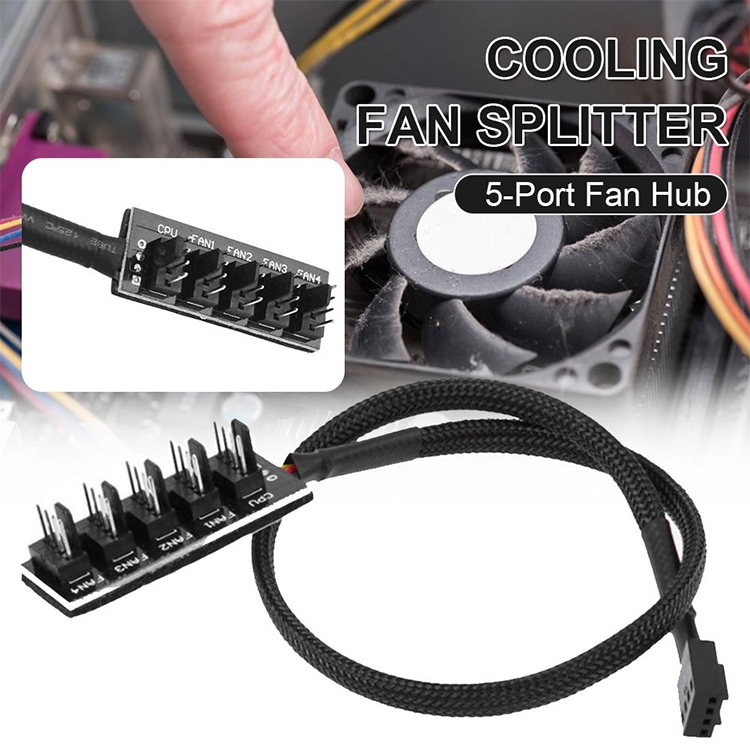

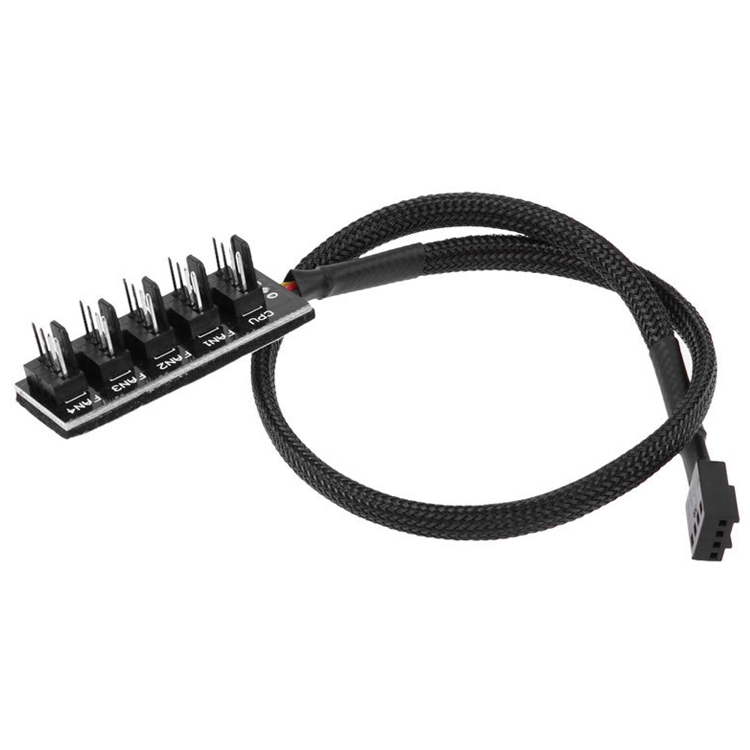

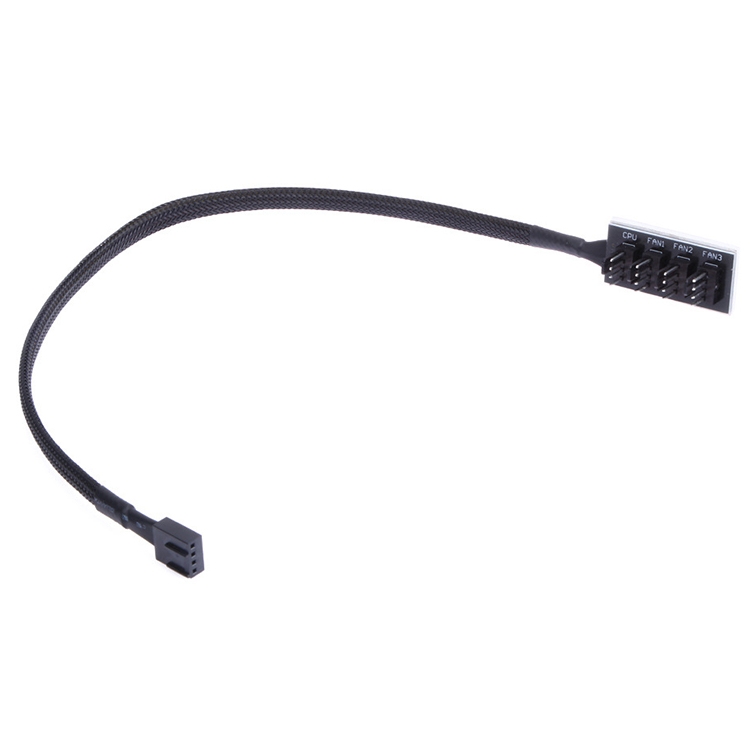

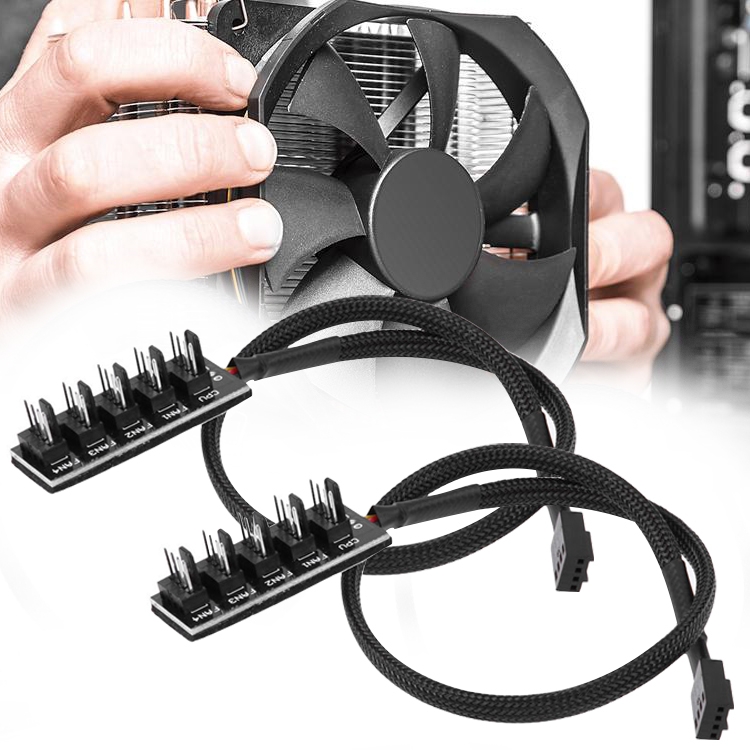

2 PCS Computer Fan PWM Hub Computer Chassis Fan Hub(A Drag Five)

Product Description

1. Size: 5cm long and 1.8cm wide 2. Wire length: 40cm nylon net 3. Number of expansions: 4/5 4. Wire model: 1007 22AWG 5. Insulation material: PVC insulation 6. Conductor specification: 17x0.12TS 7. Conductor material: tinned copper 8. Wire outer diameter: OD1.4mmx4 9. Rated temperature: 80 degrees Celsius 10. Product weight: 17 grams 11. Product interface: 4Pin interface of computer motherboard 12. Product function: Five/four computer fans share one 4Pin interface 13. Packing method: pearl film bag 14. Extend the 4-pin to 3-pin/4-pin interface of the fan to solve the problem of insufficient interface on the main board and centralize the processing of fan cables. 15. The pwm interface connects to the motherboard CPU fan interface, the first CPU fan dedicated interface. The FAN1/FAN2/FAN3 interface is a pwm conventional fan interface.

Specifications

SKU

TBD076777501A

Category

Computer & Networking › USB Hubs › USB 3.0 HUB

Weight

0.064 kg

Delivery

Standard delivery
