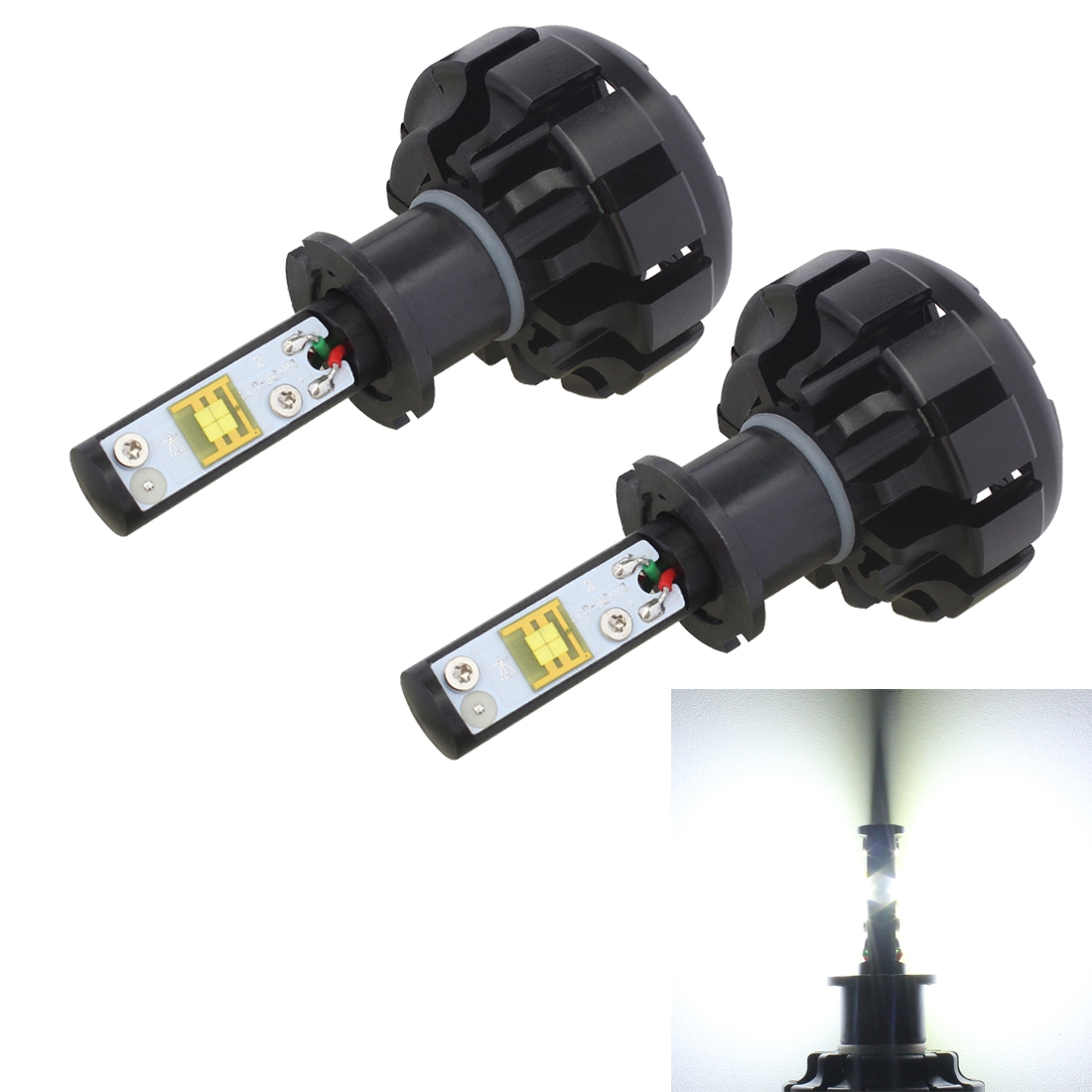

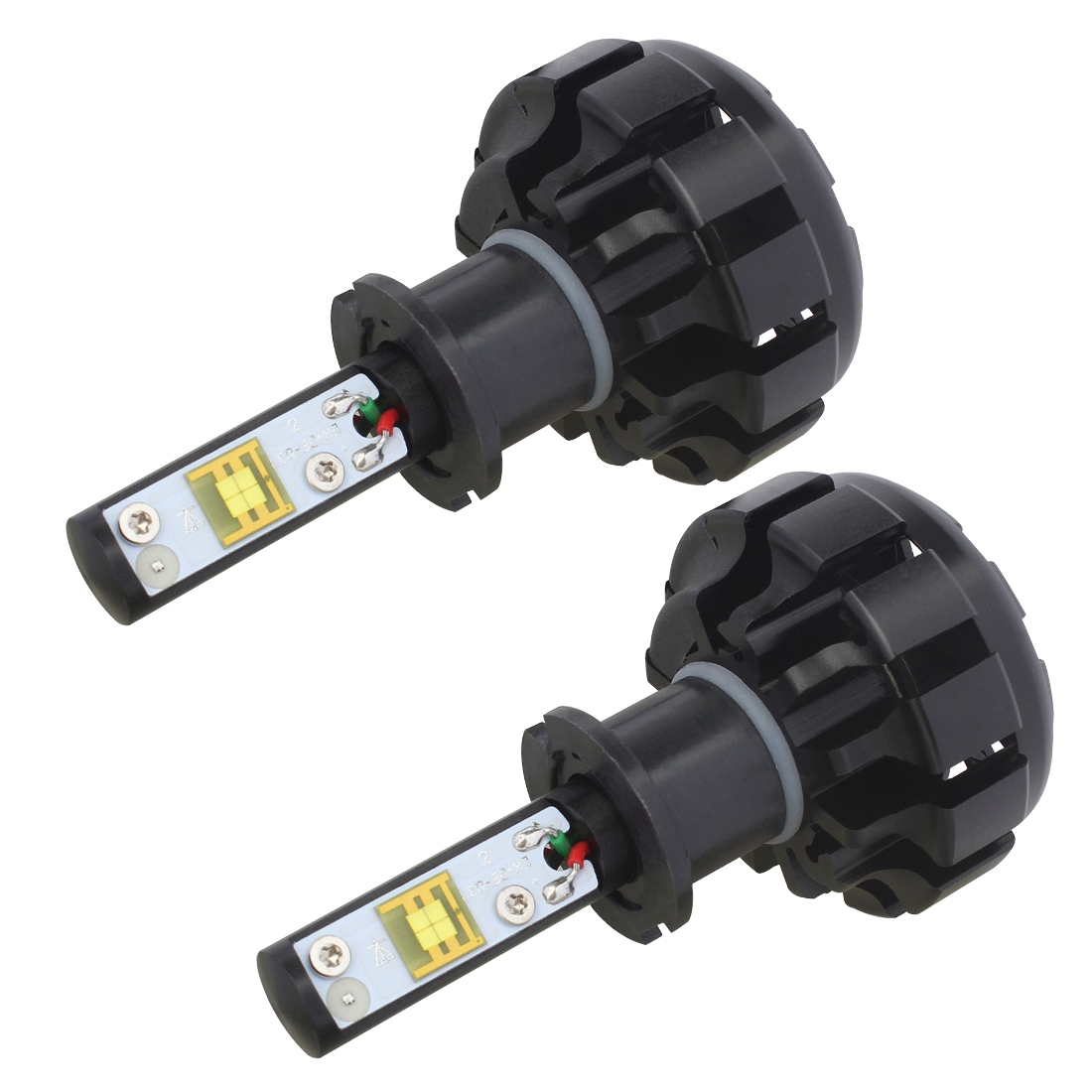

2 PCS MZ H3 30W 3600lm 6000K 2 LED Lamps Waterproof Car LED Headlight, DC 9-30V(White Light)

Product Description

Features: 1. High power:top of Cree LED, 60w per pair 2. High luminous efficacy Flux: Up to 7200lms per set 3. Wide-range voltage, constant current control, anti-interference circuit design 4. Super brightness 200% brighter than your stock Halogen headlights 5. Low power consumption 6. Long range: 6000K color temperature and 200m light range 7. Easy installation: plug and play 8. Long operation life: Up to 50,000 hours Service Life. 9. Three Years Warranty Installation Guide 1. Led headlight kit installations start with preparation. You have to make sure the vehicle is off the battery is disconnected, and the engine is cooled down. This is will ensure your safety. 2. Now we can move to the actual installation. If you have a single low beam kit, locate your low beam dust cover on the back of your headlight assembly. Remove the cover by twisting it counter clock wise. This should unscrew the dust cover giving you access to the bulb. Make sure you unplug the bulb from the wiring harness before you attempt to remove it. .Now you can continue to place the LED bulb in place of the halogen bulb you just removed, just make sure you do not touch the glass part of the bulb. Customers can contact with us for installation detail for any bulbs size like 9007/9004 80W installation with more complicated steps. 3. Installing the ballast/driver. First thing is to find a good location to place the ballast, somewhere close enough to able to reach the bulb with the wiring plugs. Once you have the ballast secured then you can proceed to plug the wiring to the bulb, and plug the old harness to the ballast. 4. In Led headlight kit installation is to double check all the wiring plugs to make sure everything snapped into place correctly. Also double check to make sure that the ballast/driver is securely attached to the vehicle. Now you can reconnect your battery and test out your new LED upgrade.

Specifications

SKU

CMS1504WL

Category

In Car › External Lights › LED Headlamps

Weight

0.4 kg

Delivery

Standard delivery
