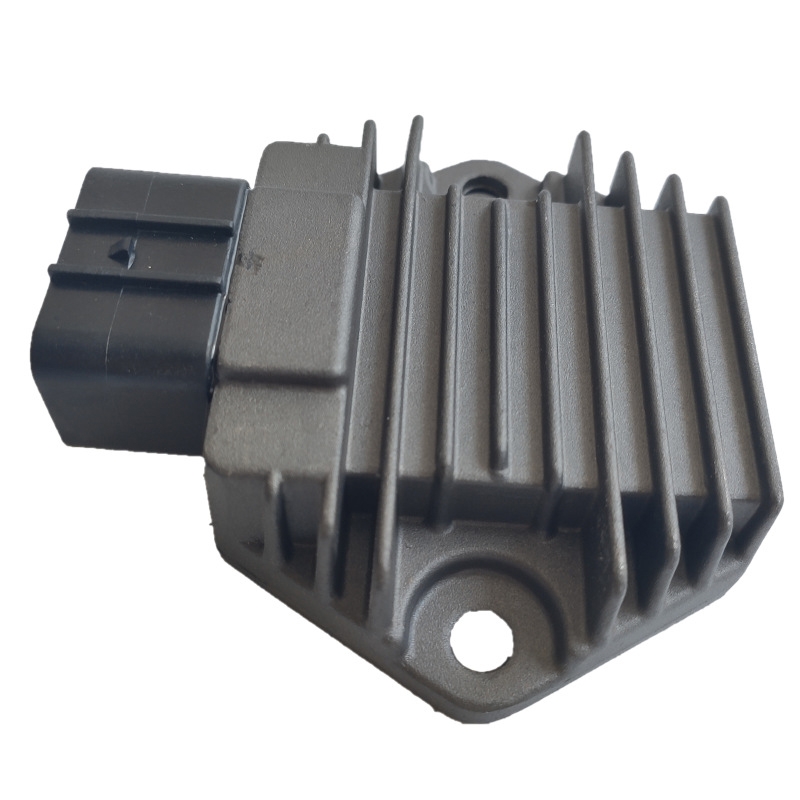

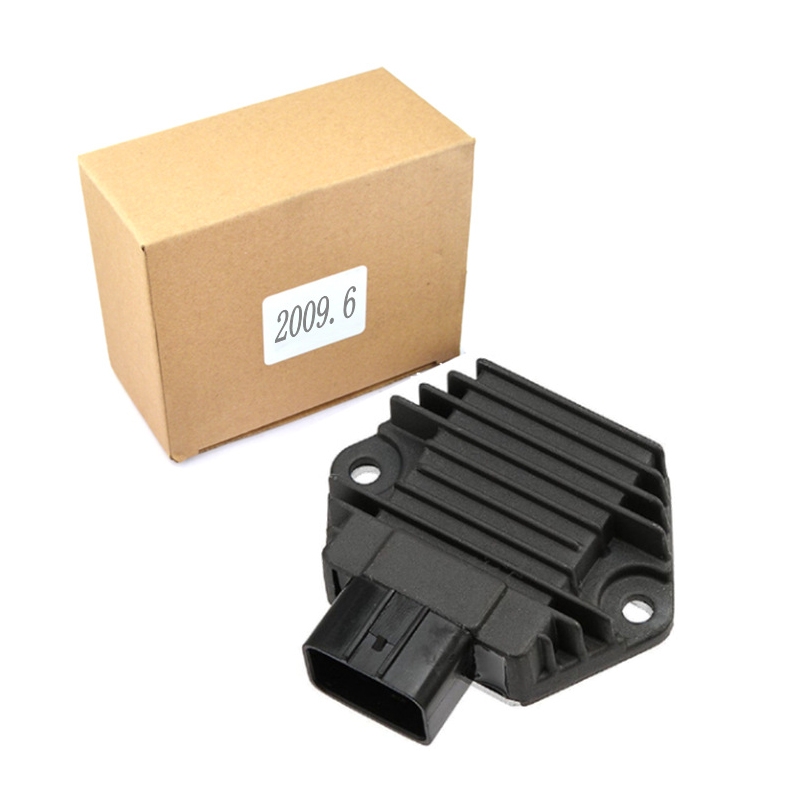

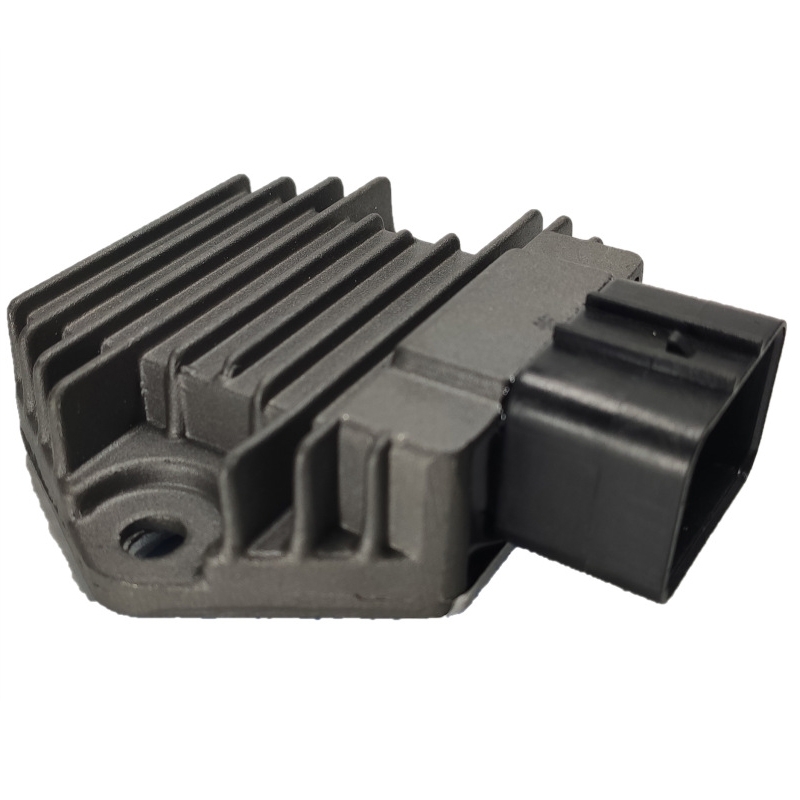

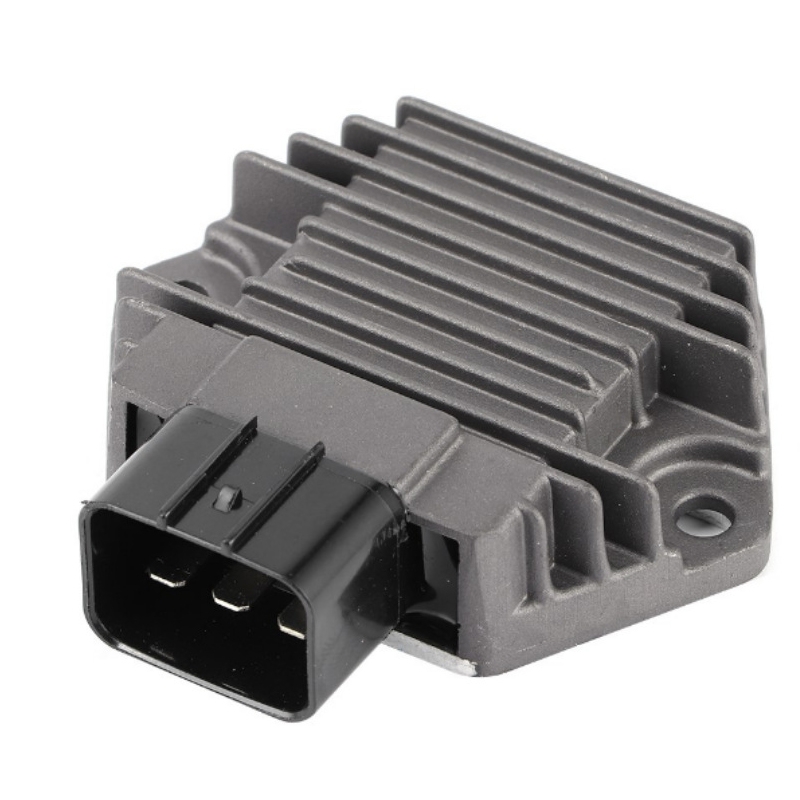

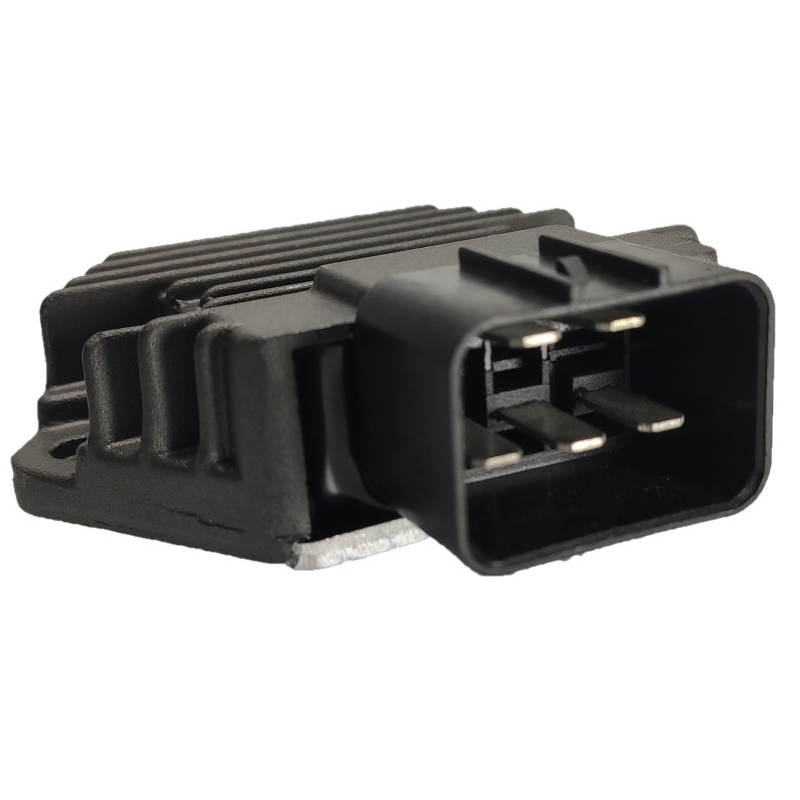

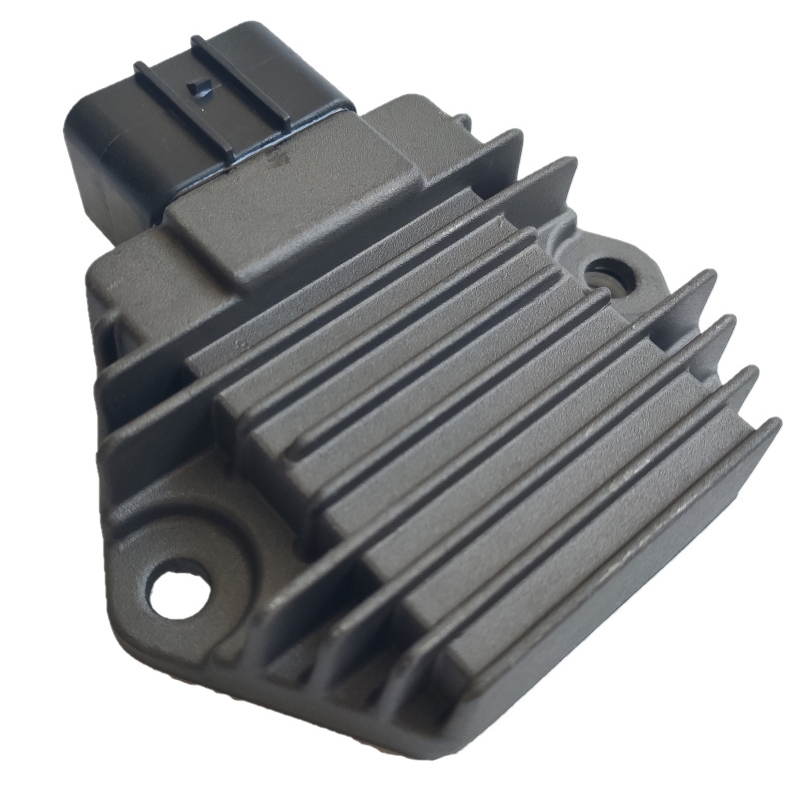

2009.6 Motorcycle Rectifier For Honda TRX350 TRX400 TRX450S VT750

Product Description

1. Weight: 160G 2. Output voltage: 14.5V 3. Output current: 50A 4. Heat dissipation material: aluminum heat dissipation shell 5. Applicable battery: 12V Applicable models: 2447 For Honda CB 300 2013 2015 31600-HP6-A01 For Honda CBF 250 2004 2007 31600-KPF-961 For Honda CBX Twister 250 Hasta 2016 31600-KPF-961 For Honda CRF AC 230 2008 2009 31600-HN5-M40 For Honda CRF R 450 2009 2012 31600-MEN-A31 For Honda CRF R 250 2010 2012 31600-MEN-A31 For Honda NX Falcon 400 s 2014 31600-HP6-A01 For Honda VT Shadow 750 2004 2009 31600-HN5-671 For Honda VT Shadow 700 2004 2009 31600-HP6-A01 For Honda XLV Transalp 650 2001 2007 31600-HN5-671 For Honda XR Tornado 250 31600-KPF-961 For Honda XRE 300 s 2013 31600-HP6-A01 For Reemplazo Shin Ngen SH683CA Installation precautions: 1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier 2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved. 3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame 4. No other wires should be pressed between the rectifier and the frame 5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.   TRX

Specifications

SKU

TBD05500748

Category

In Car › Replacement Parts › Voltage Stabilizer

Weight

0.204 kg

Delivery

Standard delivery
