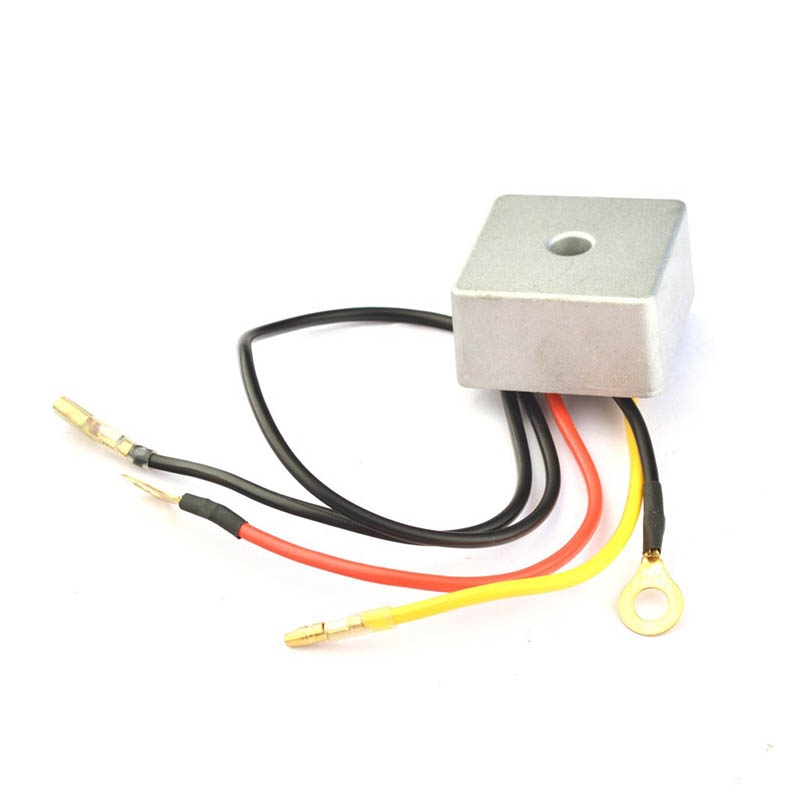

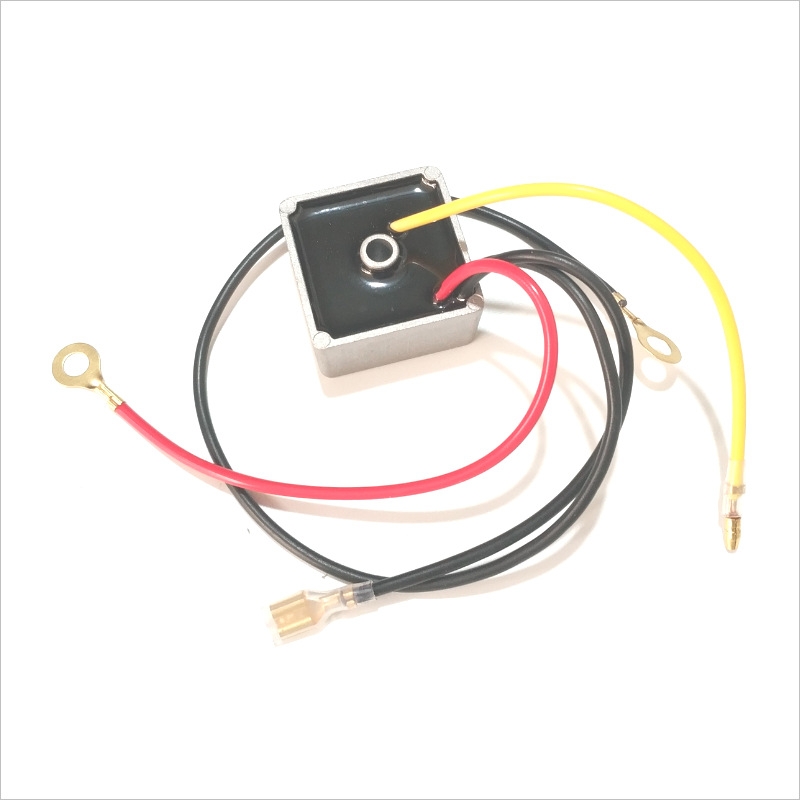

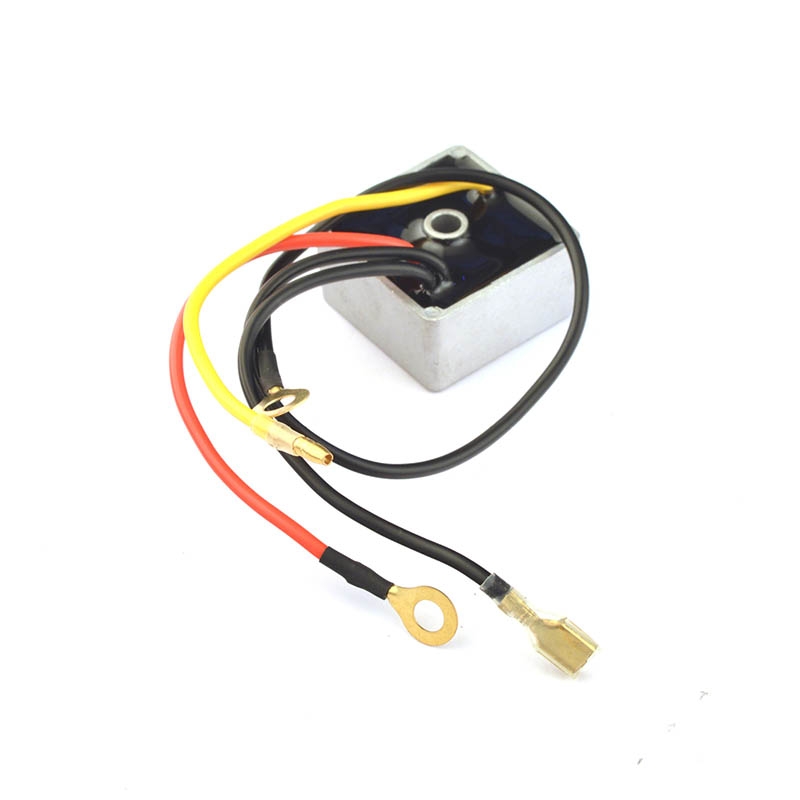

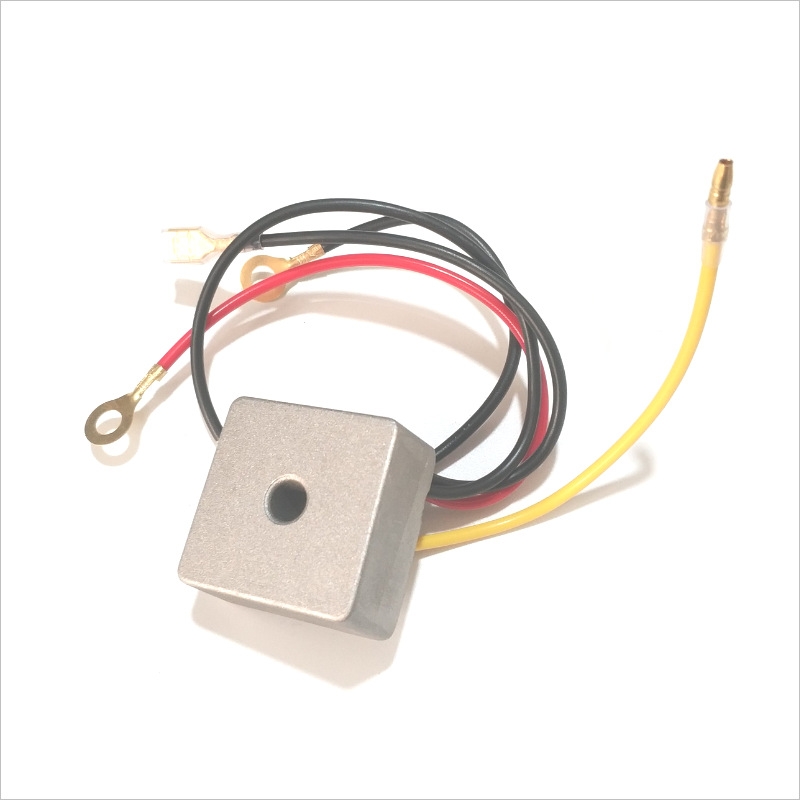

2020A.1.2 Golf Cart Rectifier 1015777 102711201 Club Car

Product Description

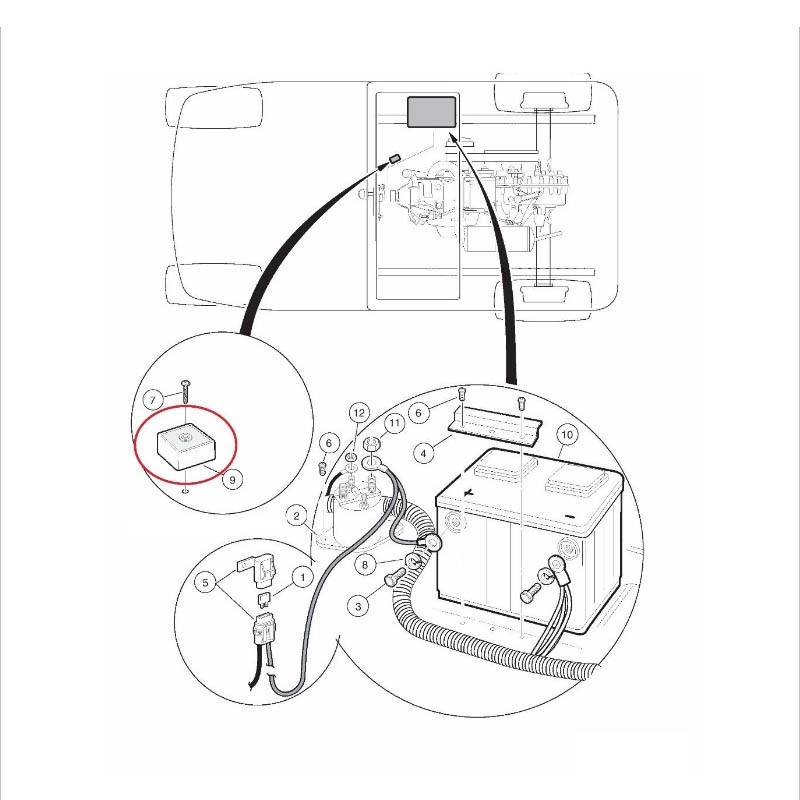

1. Weight: 85g 2. Wire length: 1530CM 3. Output voltage: 8+/-0.5V Installation Precautions: 1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier 2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved. 3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame 4. Do not press other wires between the rectifier and the frame 5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burned out Applicable models: For 1015777, 1027112-01, 102711201, CO 74510-85, 74510-85A, 74510-96 For golf cart rectifier SKU 6355 SKU435-199 For 2014 Club Car Carryall 1500 2WD Fleet Gas For 2014 Club Car Carryall 300 Turf Fleet Gas For 2014 Club Car Carryall 500 Turf Fleet Gas For 2014 Club Car Carryall 550 Turf Fleet Gas For 2014 Club Car Carryall 700 Turf Fleet Gas

Specifications

SKU

TBD05446538

Category

In Car › Replacement Parts › Voltage Stabilizer

Weight

0.095 kg
