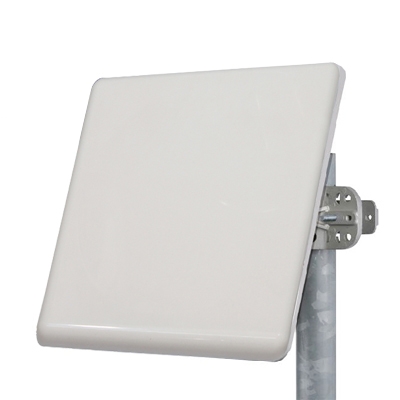

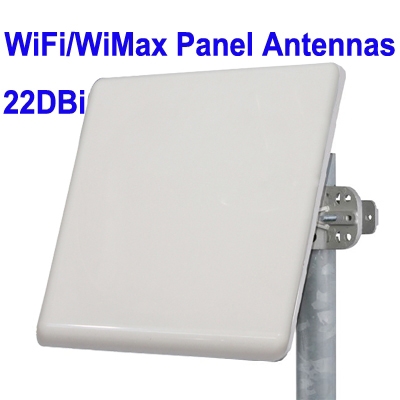

22dbi WiFi/ WiMax Panel Antennas

Product Description

* Electrical Specifications 1) Frequency Range: 5470-5725MHz 2) VSWR: ≤2.0 3) Input Impedance: 50Ω 4) Gain: 22dBi 5) Polarization: Vertical or Horizontal 6) Horizontal Plane HP: 8 degree±1 degree 7) Vertical Plane HP: 8 degree±1 degree 8) Beam Electrical Down tilt: 0degree 9) Front to Back Ratio:≥30dB 10) Maximum Input Power: 20W 11) Connector Type: N Female 12) Intermodulation IM3: ≤-107dBm 13) Lightning Protection: DC ground * Mechanical Specifications 1) Dimension :306mm×306mm×20mm 2) Weight: 1.5kg 3) Rated Wind Velocity: 210km/h 4) Radome material: UV protected ABS 5) Diameter of installation pole: φ30φ54mm 6) Working Temperature: -40~+60

Specifications

SKU

S-PC-1820

Category

Computer & Networking › Wifi Antenna › N Antenna

Weight

0.01 kg

Delivery

Standard delivery
