23.5MHz-6000MHz Button-operated RF Signal Generator With OLED Screen Display HMC833(6G)

Product Description

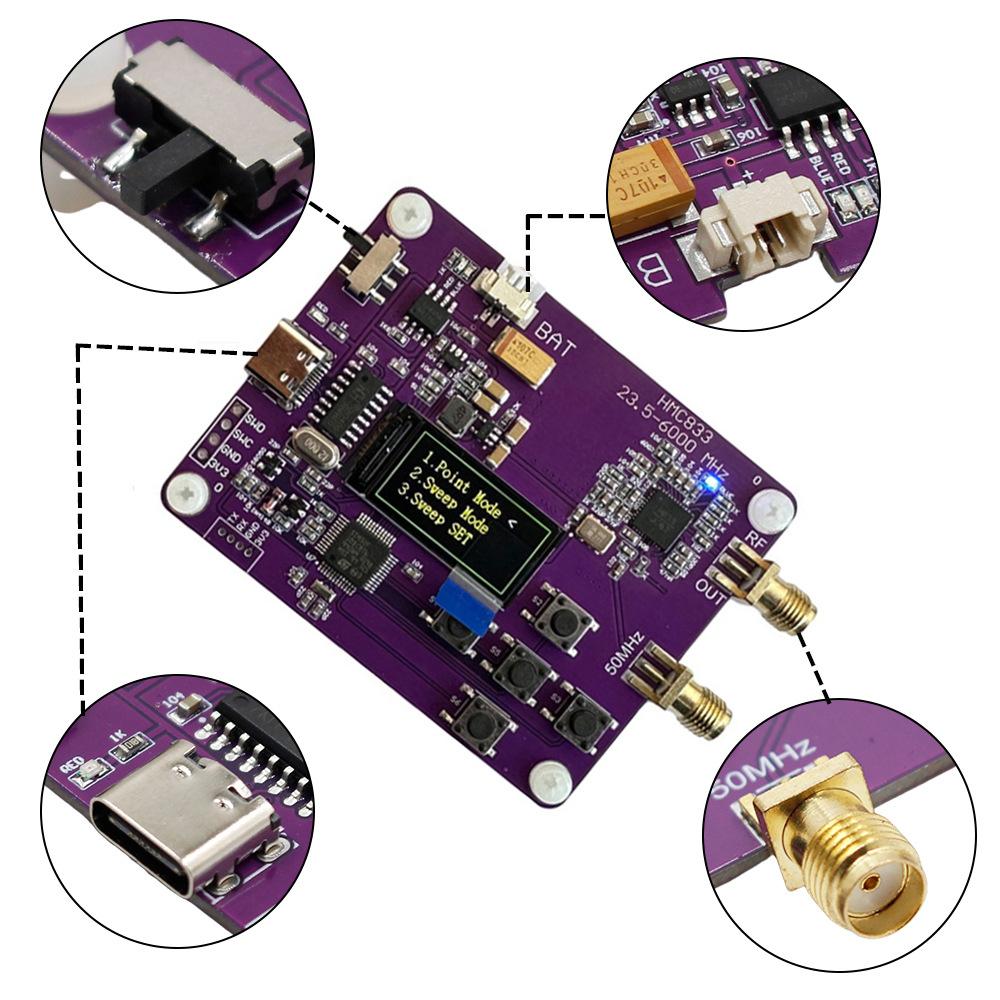

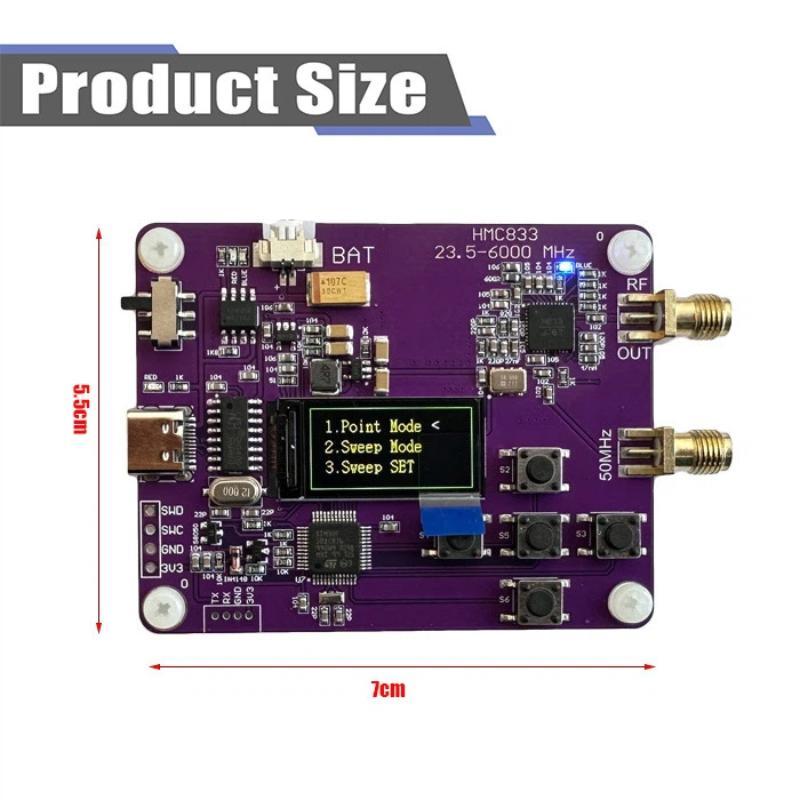

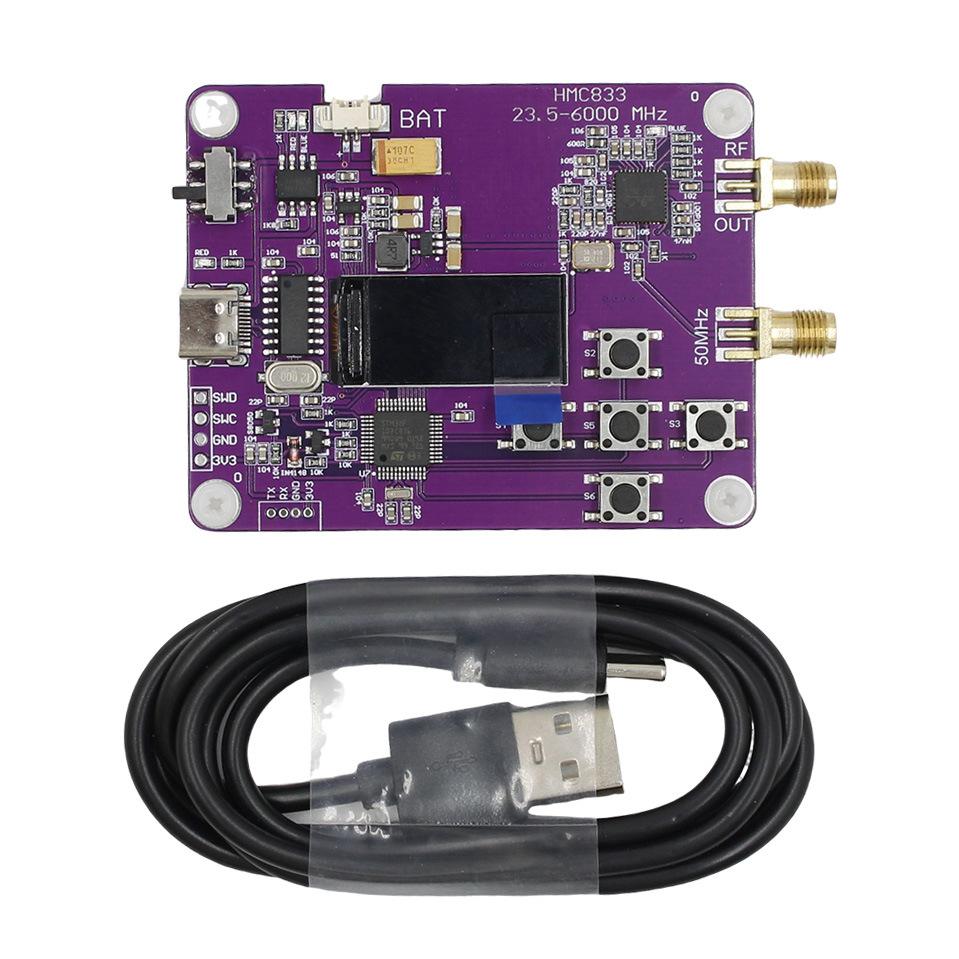

1. Power supply: Type-C interface power supply; 3.7V lithium battery power supply 2. Frequency range: 23.5MHz-6000MHz 3. Output power: 5dBm, three adjustable levels 4. Control method: button control, serial port command control 5. Features: 0.96-inch OLED display, integrated lithium battery charging circuit, supports 3.7V lithium batteries 6. Product dimensions: 80x55x10mm 7. Weight: 40g 8. Package contents: one main unit, one Type-C cable Instructions for Use: 1. Plug in the Type-C power cable or lithium battery and turn on the power switch. 2. There will be a two-second wait on the power-on screen. Press any key to enter the settings interface. 3. There are three functions: - Point Mode: Fixed frequency output; change the frequency and output power using the buttons. - Sweep Mode: Sweep output, allows setting start frequency, stop frequency, and two sweep modes: single sweep and cyclic sweep. - Sweep Set: Sets the sweep step frequency and the interval between adjacent frequency points. 4. This product has an automatic power-off save function; it will automatically execute the work content before the power outage upon power-on, eliminating the need for repeated settings.

Specifications

SKU

TBD0606770301A

Category

Consumer Electronics › Arduino & SCM Supplies › Transmitters & Receivers Module

Weight

0.064 kg
