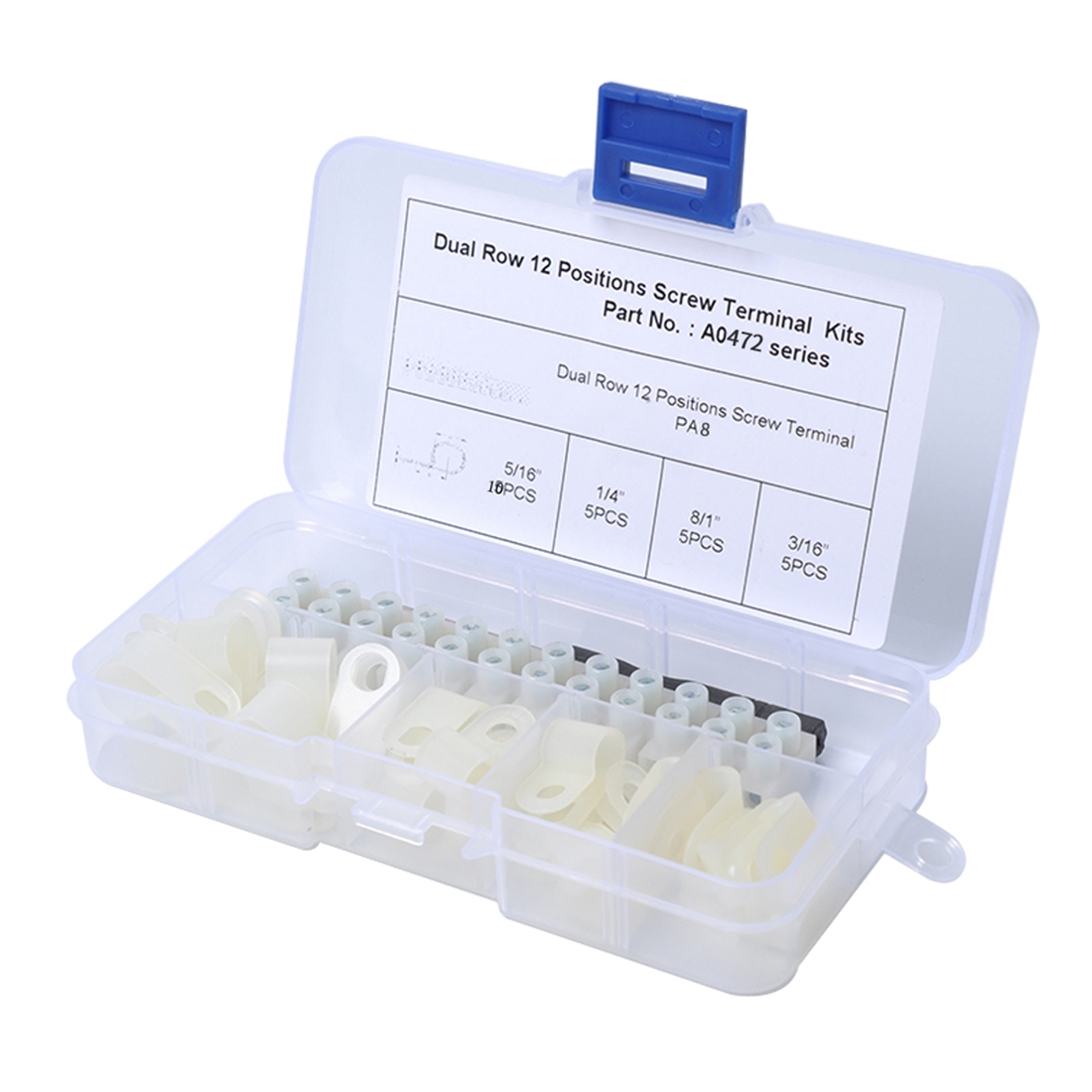

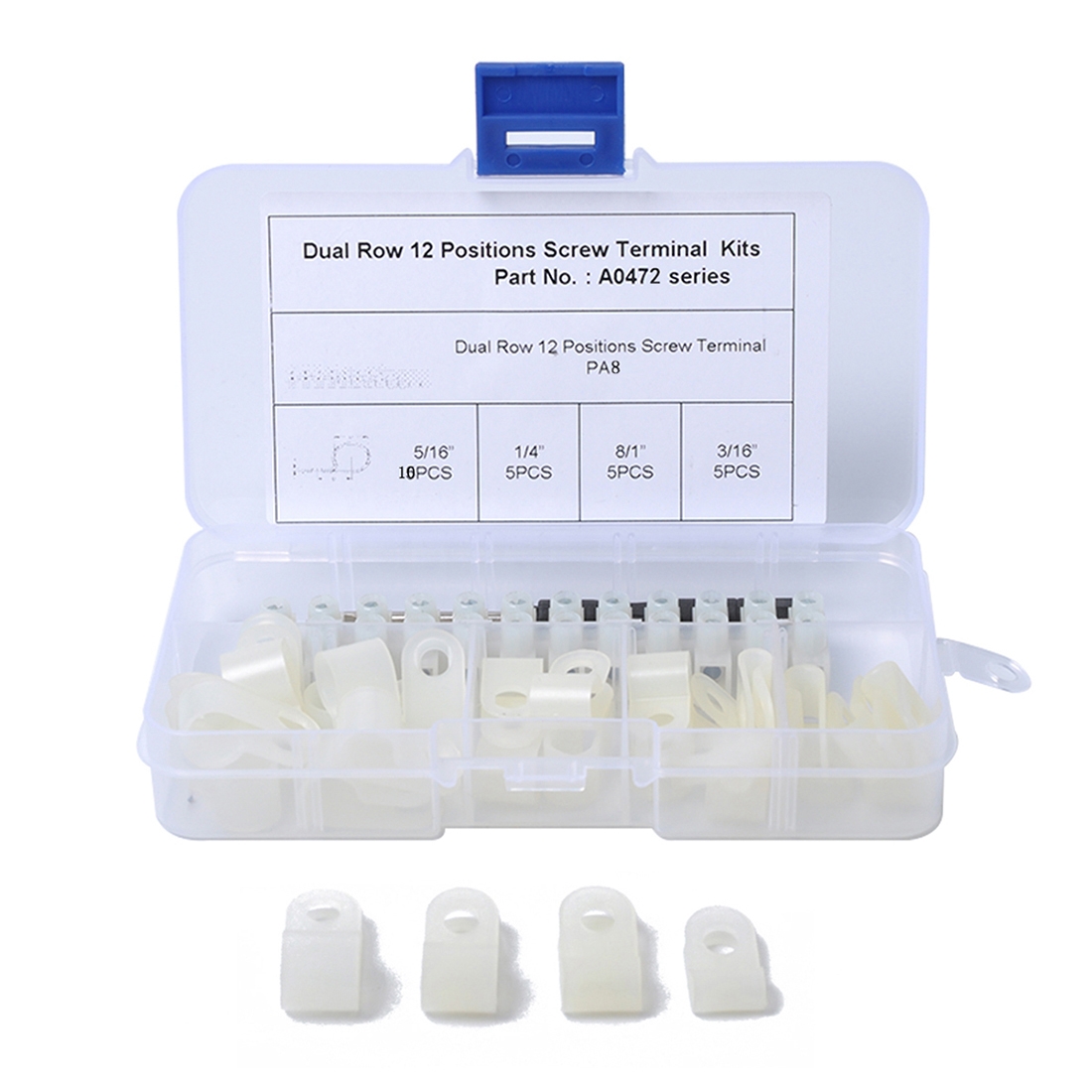

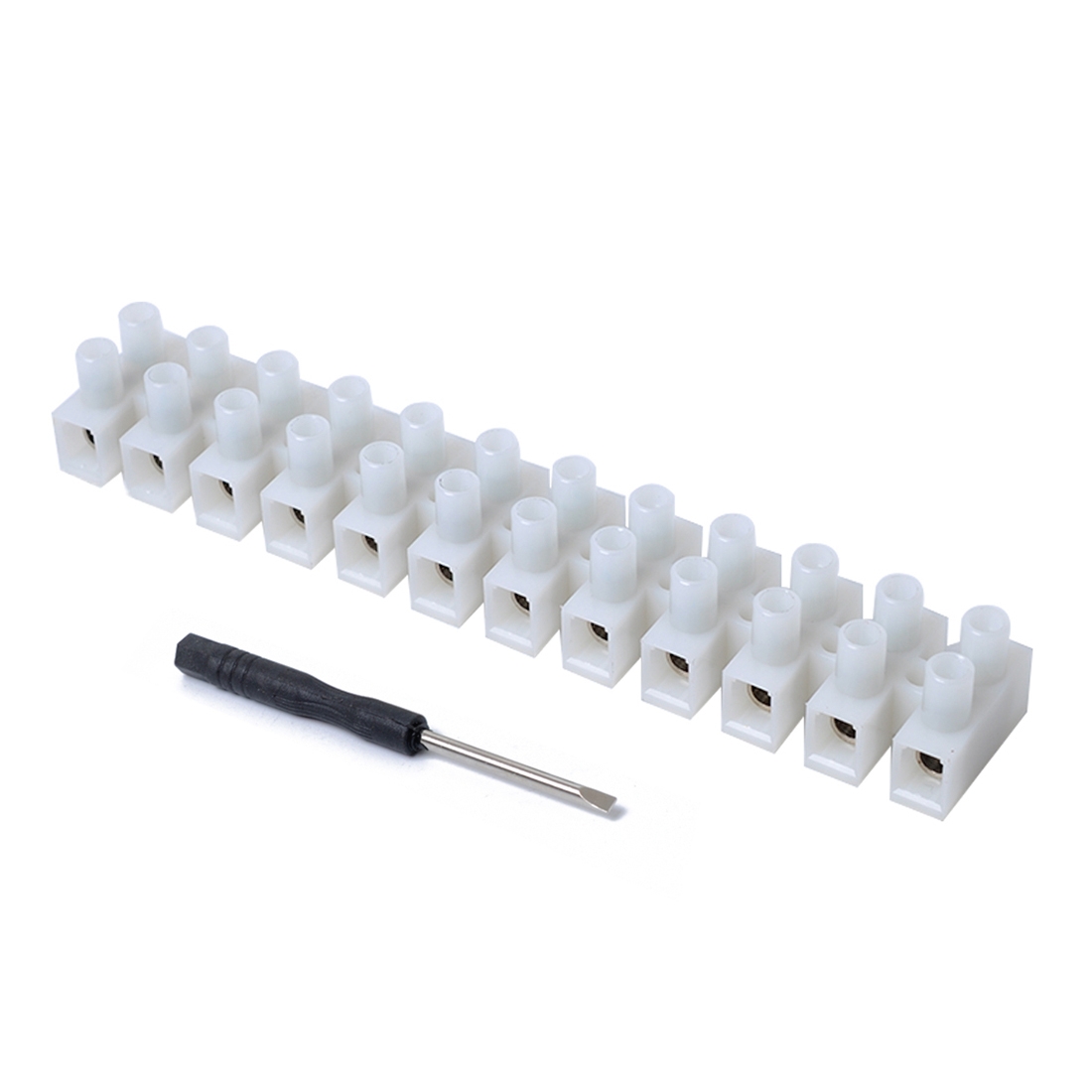

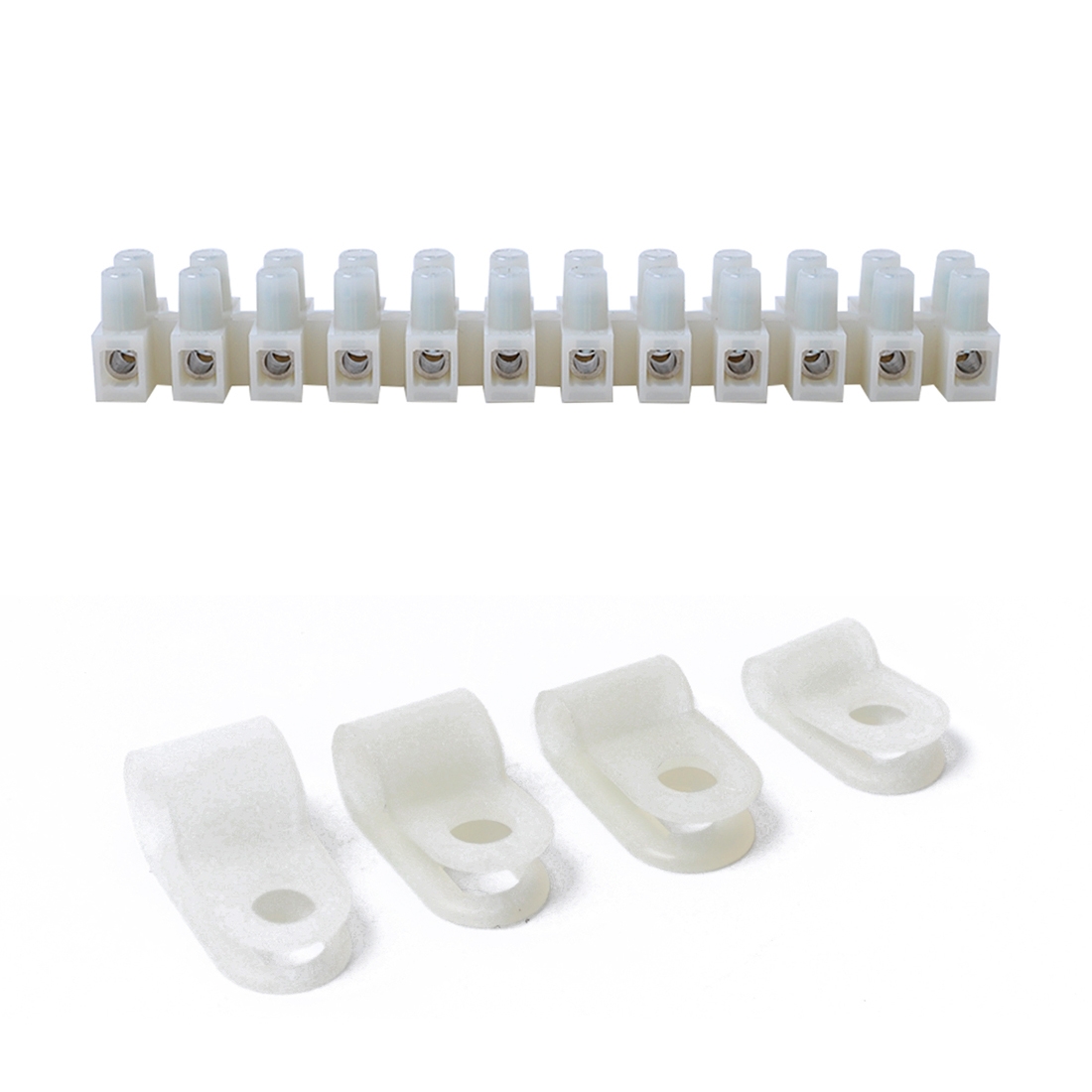

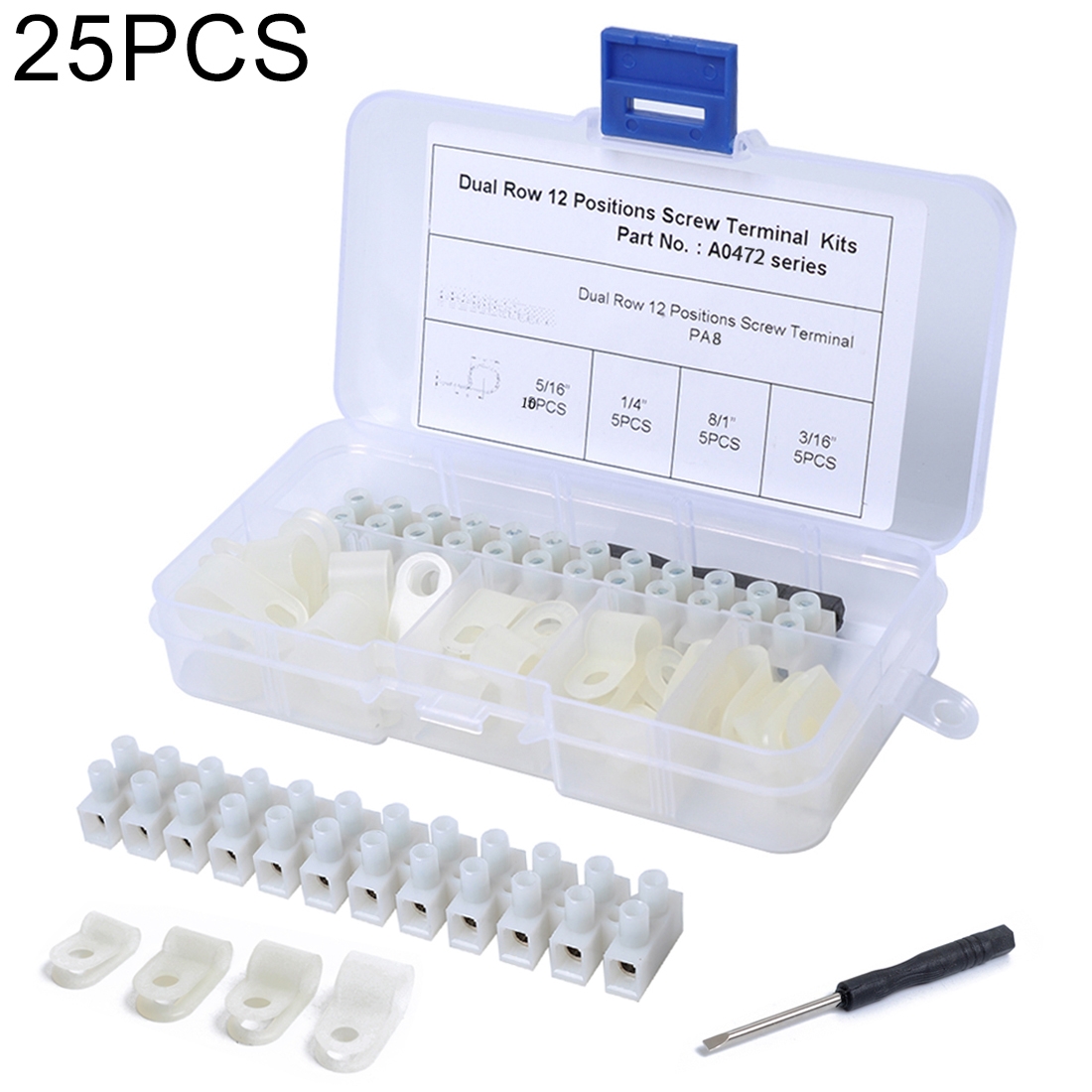

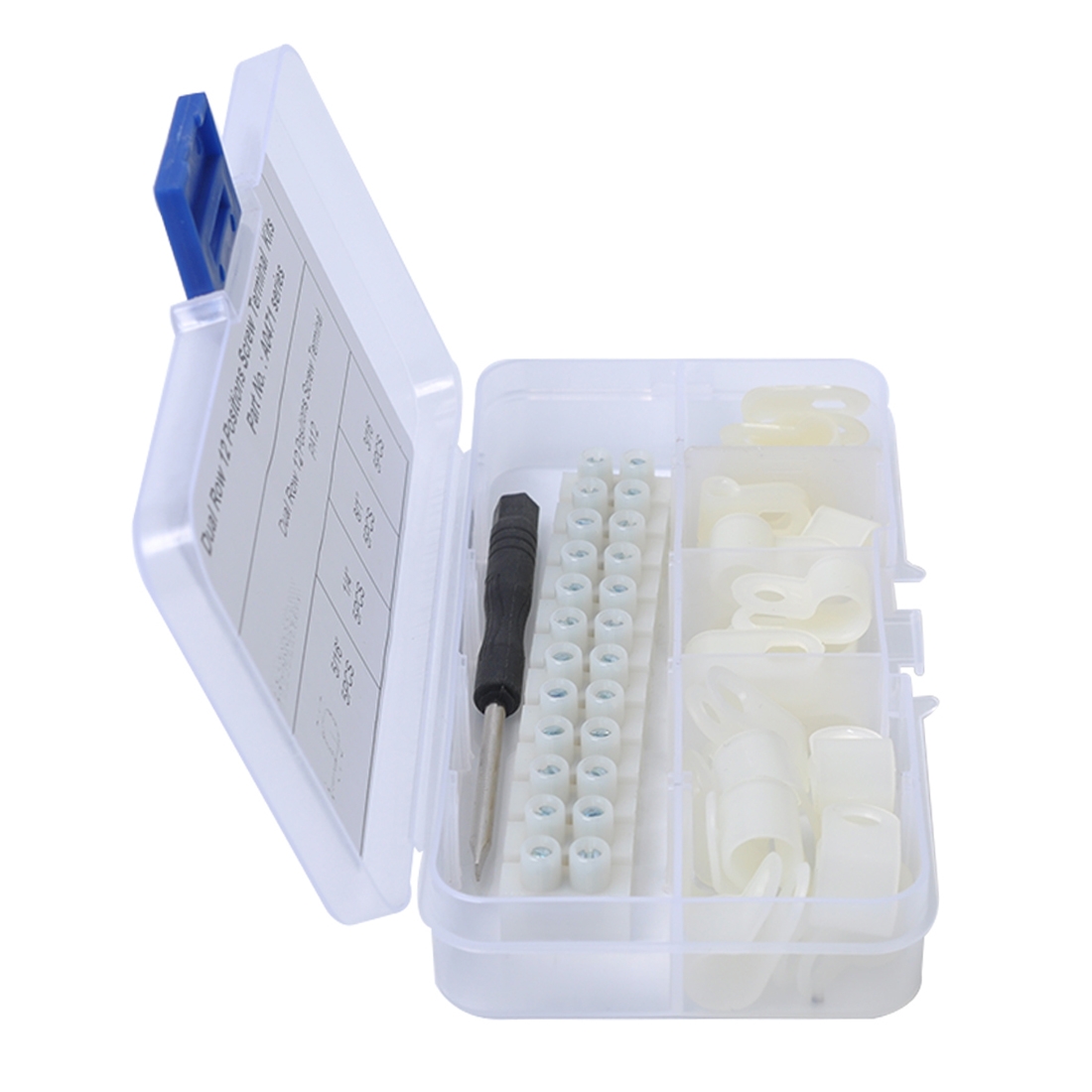

25 PCS 300V 20A PA8 12 Position Barrier Screw Terminal Block Wire Dual Row Connector Strip with R Type Line Clamp

Product Description

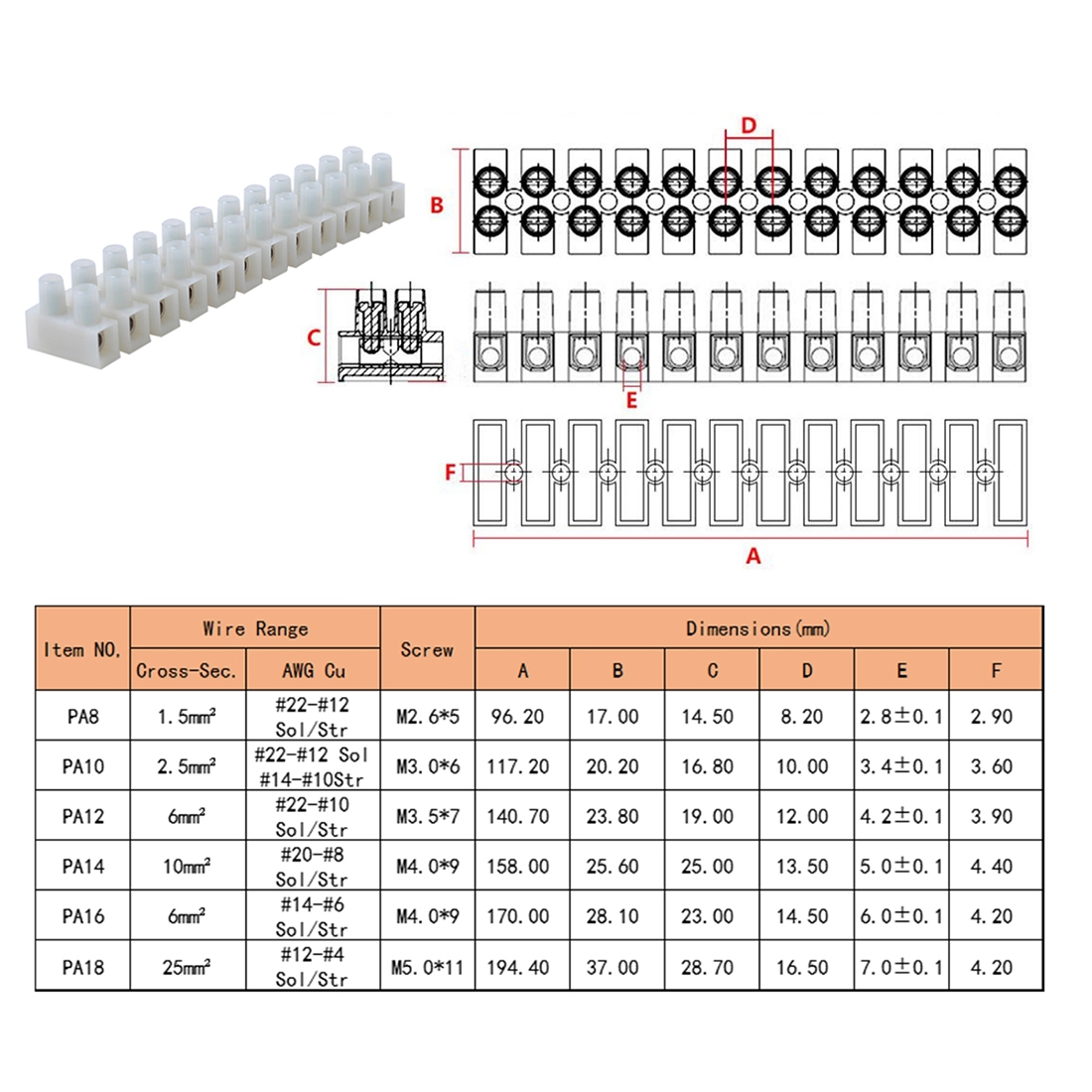

1. Each pair of terminals is insulated from the next, prevent circuit in disorder. 2. The set screws secure wires reliable contact and help prevent accidental contact with the terminals. 3. Used for wires connecting of Cars, Boats, RV, home appliances, electronic circuits, machines, etc. 4. Terminal item: PA8 5. Poles: 12P 6. Ambient temperature: 105 Celsius degree (UL); -30 Celsius degree to T110 Celsius degree; T140 Celsius degree (IEC) 7. Approvals & Ratings: PA8 450V 17.5A 1.5 square millimeter; 300V 20A #22-#12 8. Screw: PA8 M2.6x5 9. Wire Range: PA8 1.5 square millimeter/#22-#12 Sol/Str 10.Packaged: 1 x PA8 Terminal Block Kit(with R Type Line Clamp and screwdriver)

Specifications

SKU

CMS6053

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.079 kg

Delivery

Standard delivery
