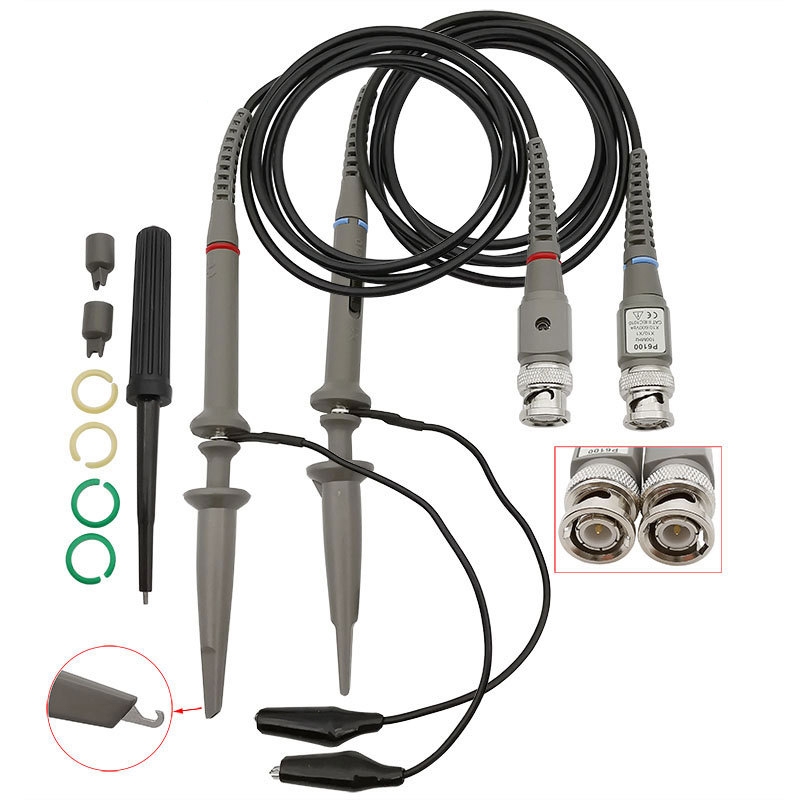

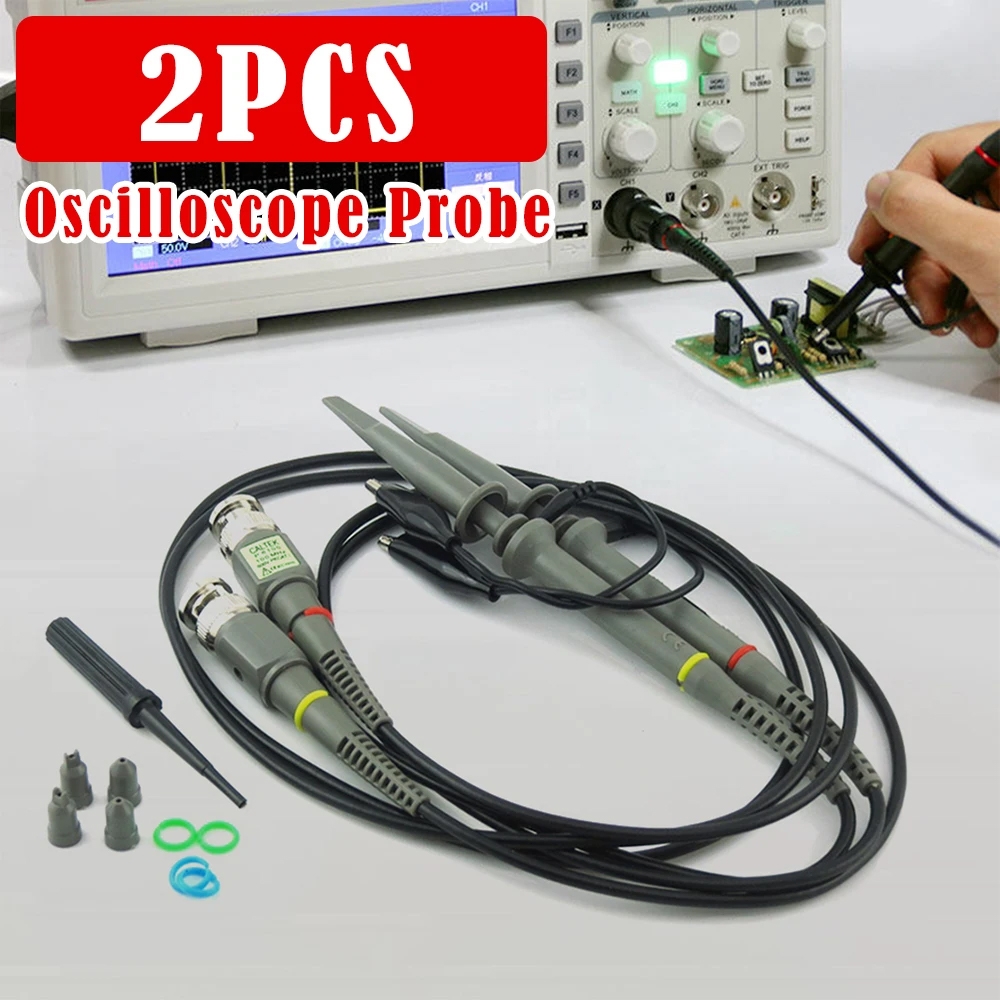

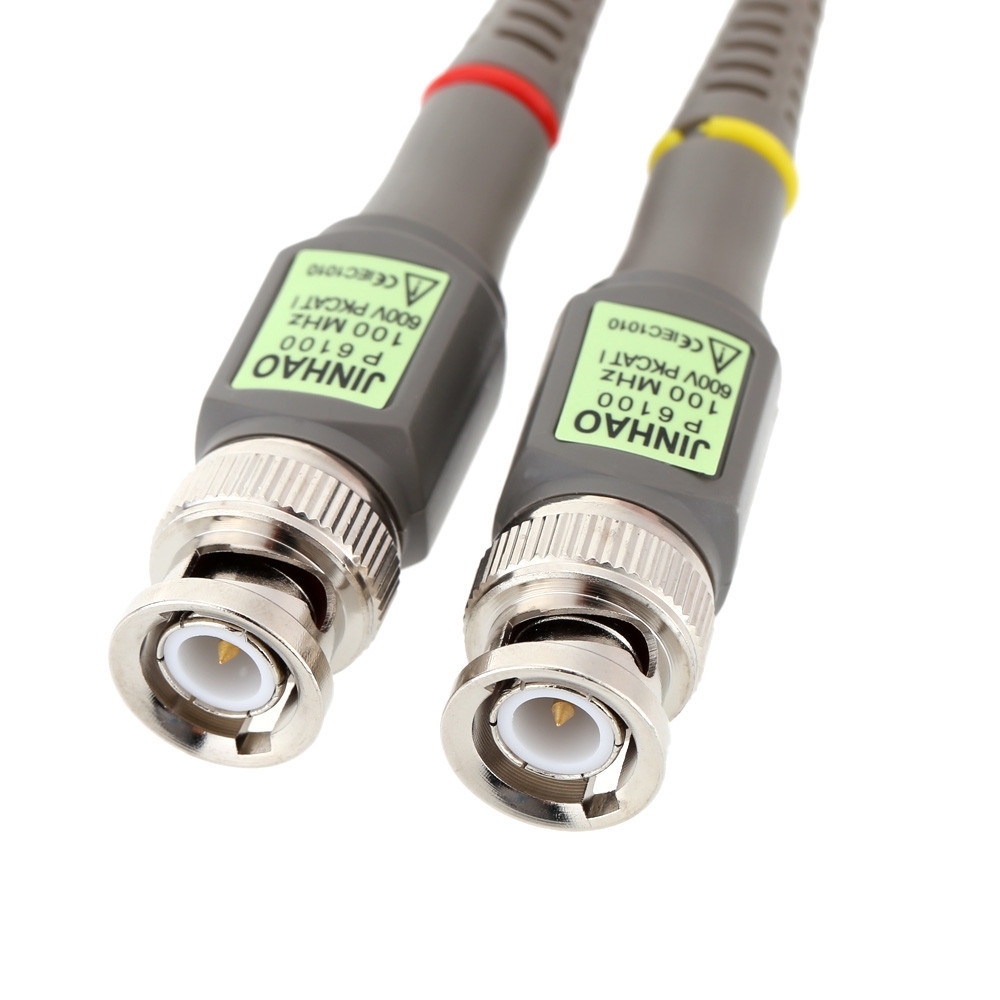

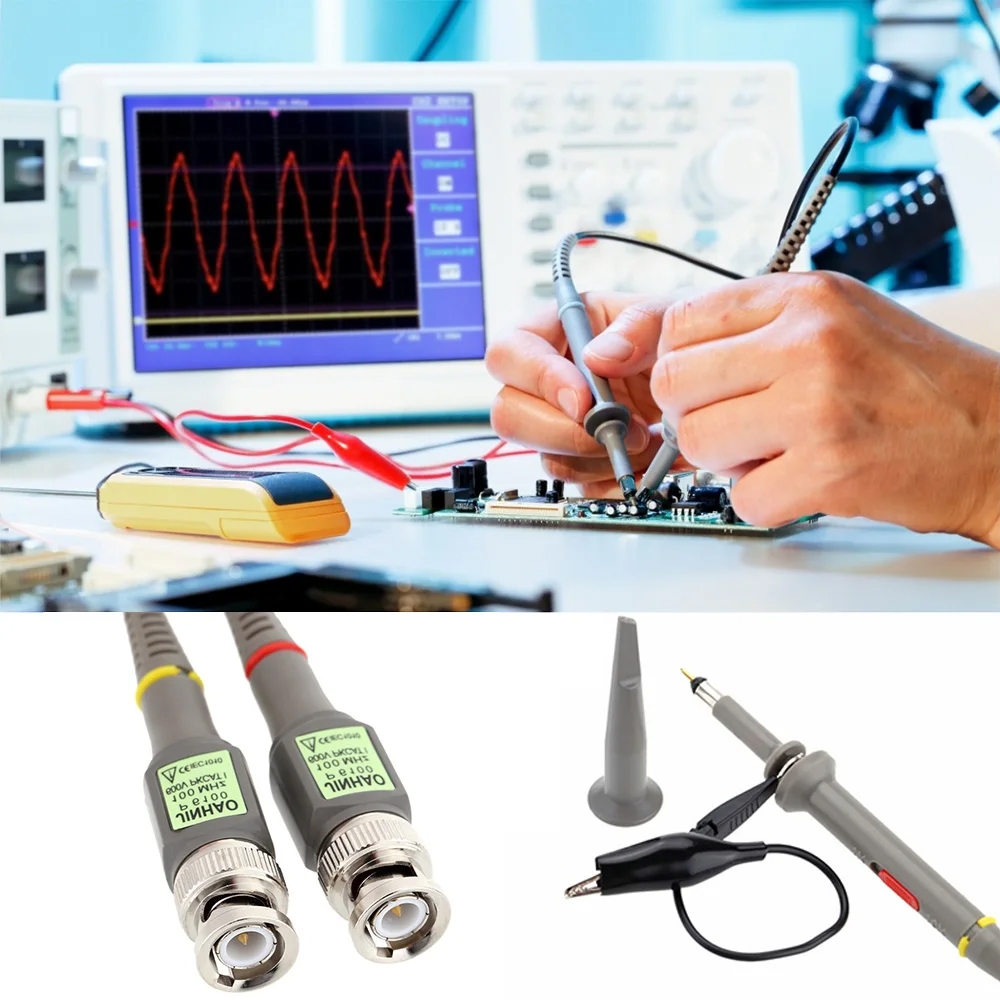

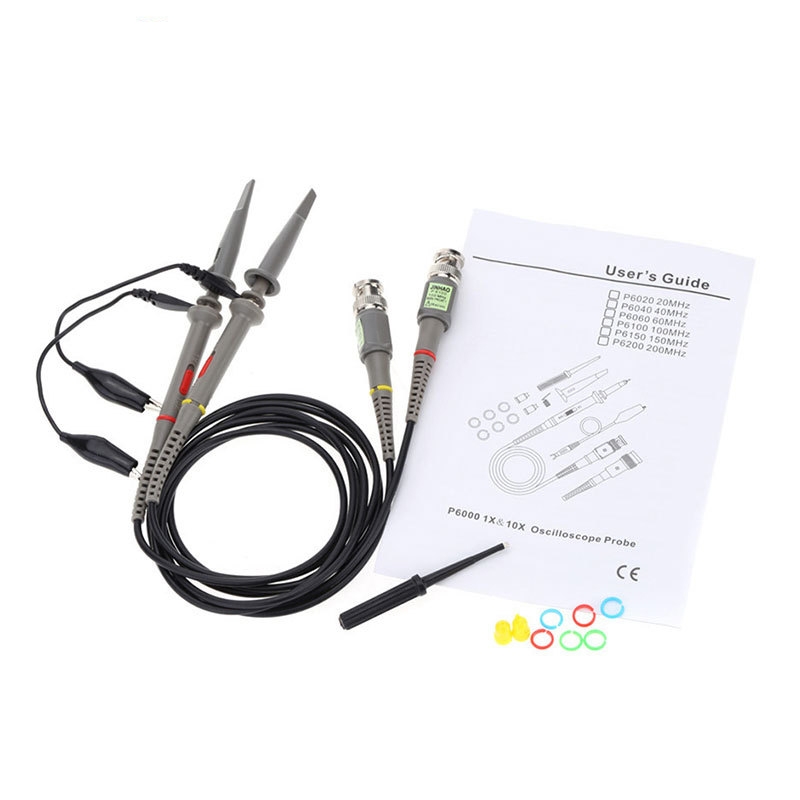

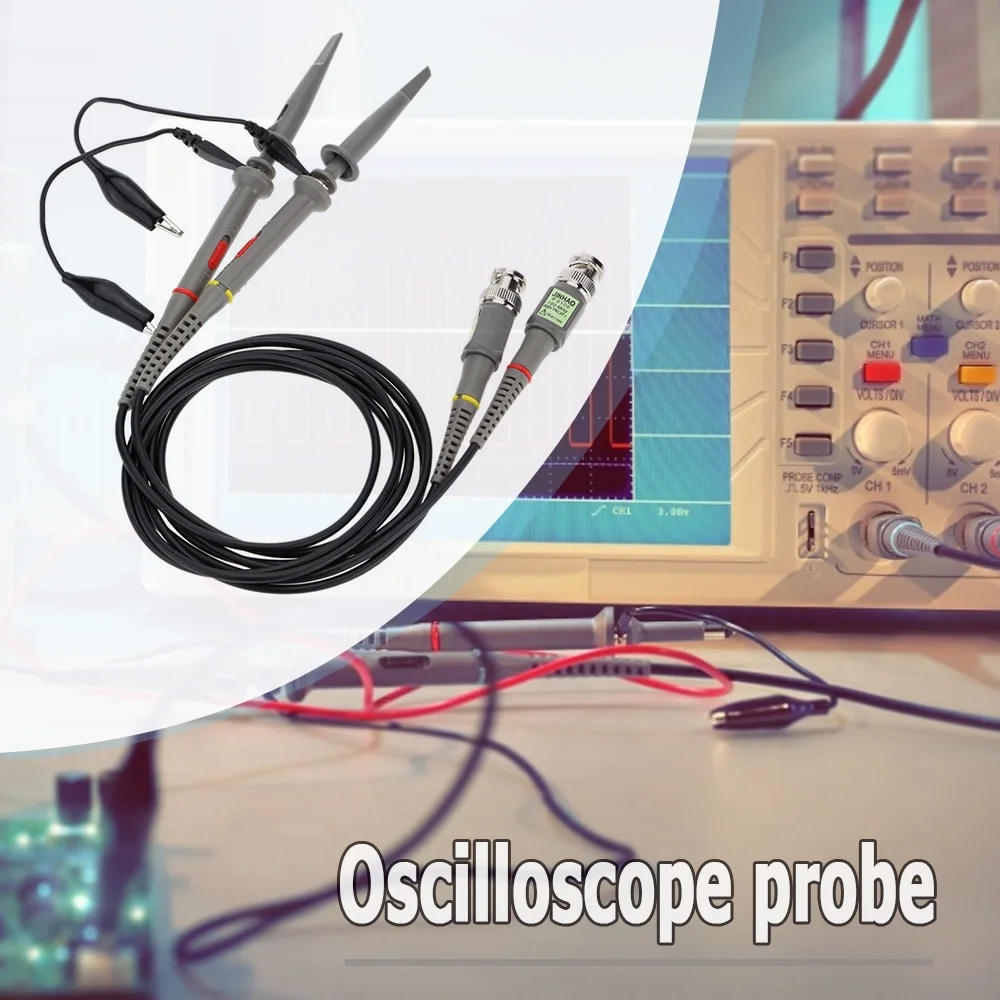

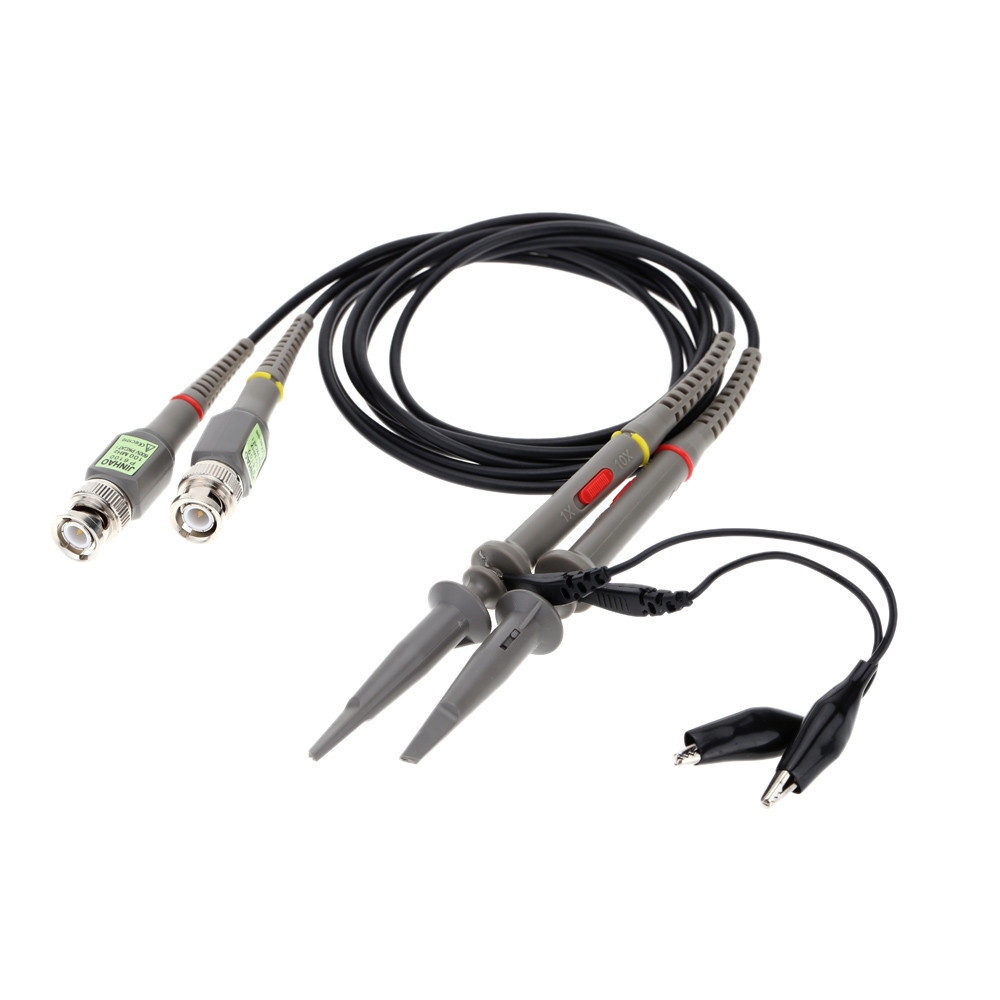

2pcs P6100 Oscilloscope Probe DC-100MHz BNC Connectors Scope Clip Probe

Product Description

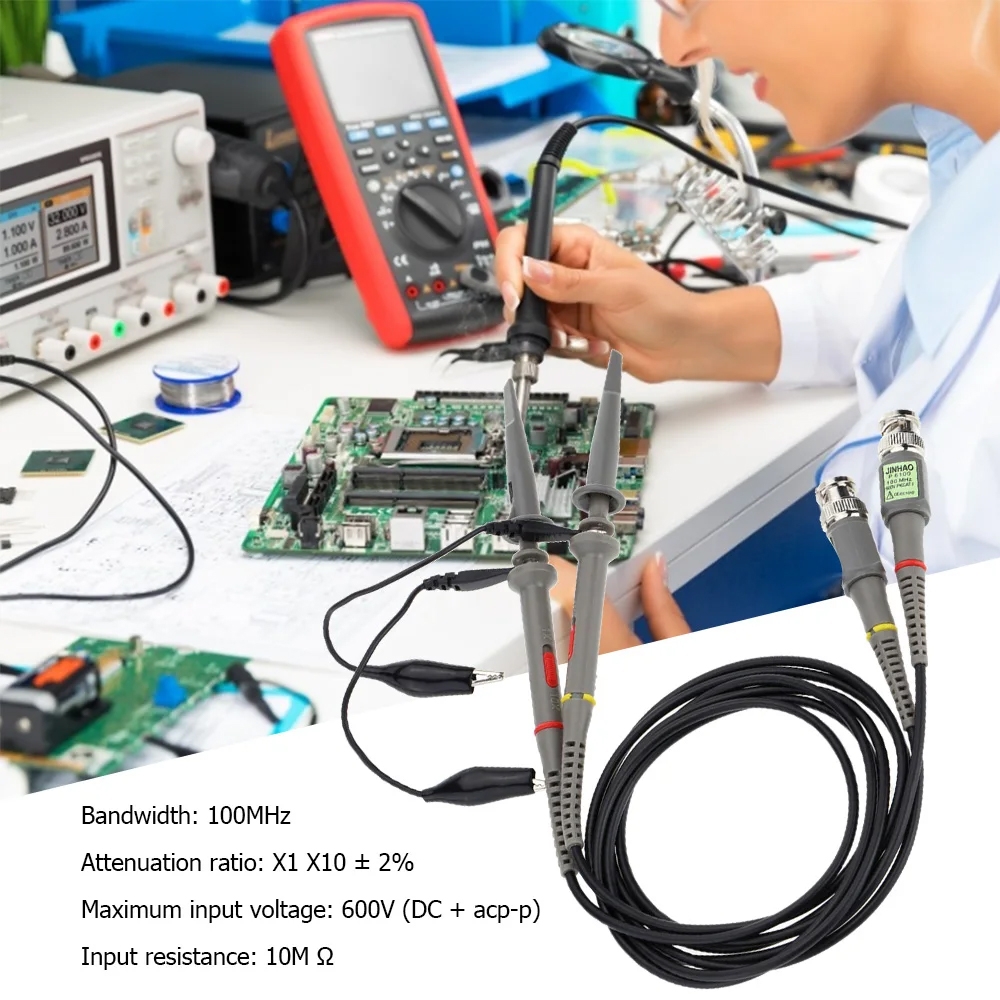

1. Model: P6100 2. Attenuation: X1; X10 3. Input resistance: 1X: 1MΩ+/-2%; 10X: 10MΩ+/-2% 4. Input capacitance: 1X: 85pF ~ 115pF; 10X: 18.5pF ~ 22.5pF 5. Compensation range: 10pF-30pF 6. Rise time: less than 3.5ns 7. Operating voltage: 1X: less than 200VDC + AC peak 10X: less than 600VDC + AC peak Operating 8. Temperature: -10~+50 degrees Celsius 9. Non-working: - 20~+75 degrees Celsius 10. Humidity: less than or equal to 85% (RH) 11. Length: 120cm

Specifications

SKU

TBD06032198

Category

Consumer Electronics › Test Equipment › Other Tester Tool

Weight

0.129 kg
