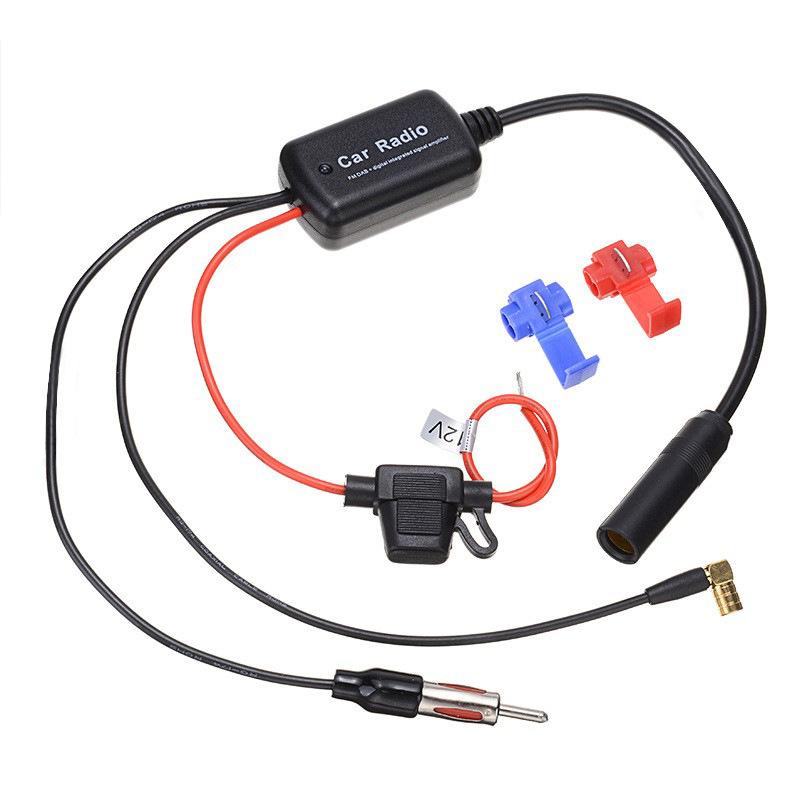

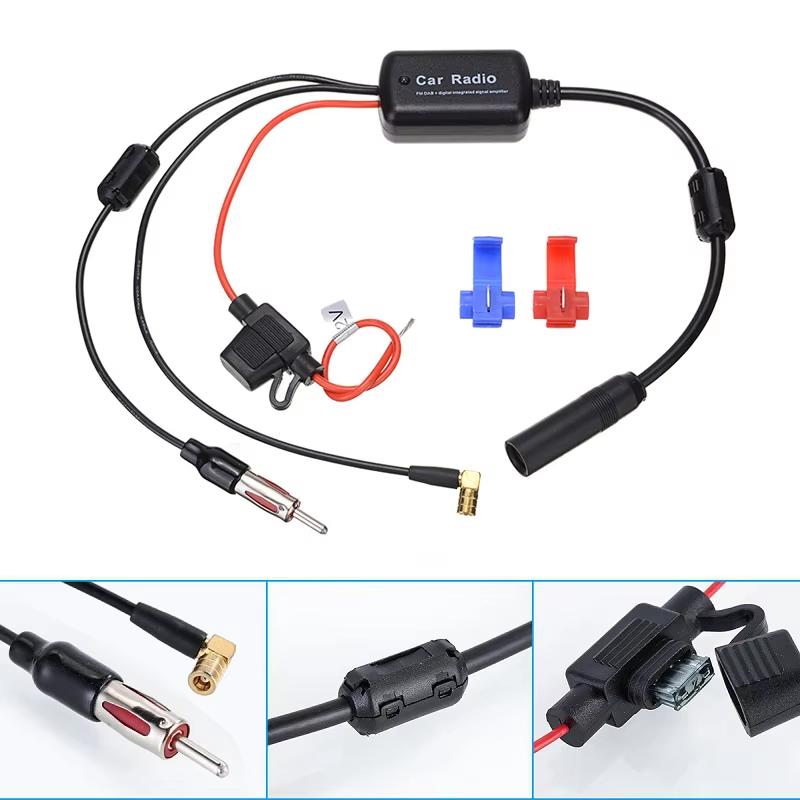

3 In 1 Car Radio FM/AM/DAB Antenna Signal Amplifier

Product Description

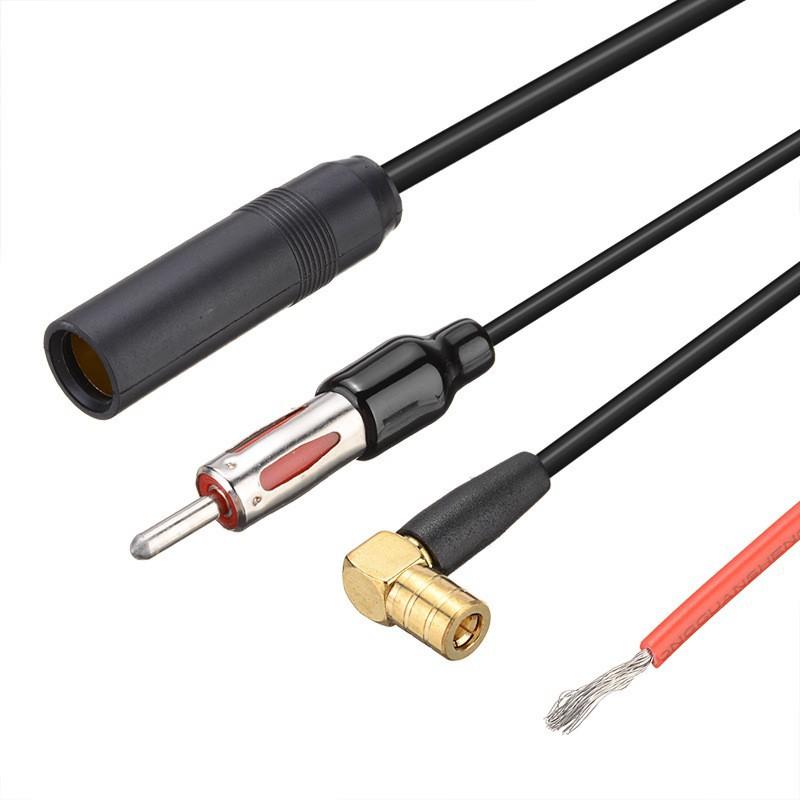

Product Features: 1. Adopt low-noise MMIC device design, more stable operation and higher sensitivity 2. Adopt low insertion loss dedicated IC design, plug in in direct state 3. Support FM and DAB+ digital radio signal amplification function 4. Signal output: FM male connector Parameters: 1. Frequency range: 88-108MHz 170-240MHz 2. Gain during amplification: 22±3dB 3. Output impedance: 75 ohms 4. Standing wave ratio: 2.5 5. Noise figure: 6dB 6. Output level: 108dBμv 7. Working voltage: DC+12~24V 8. Working current: 70mA

Specifications

SKU

TBD06059951

Category

In Car › Replacement Parts › Car Amplifiers

Weight

0.084 kg

Delivery

Standard delivery
