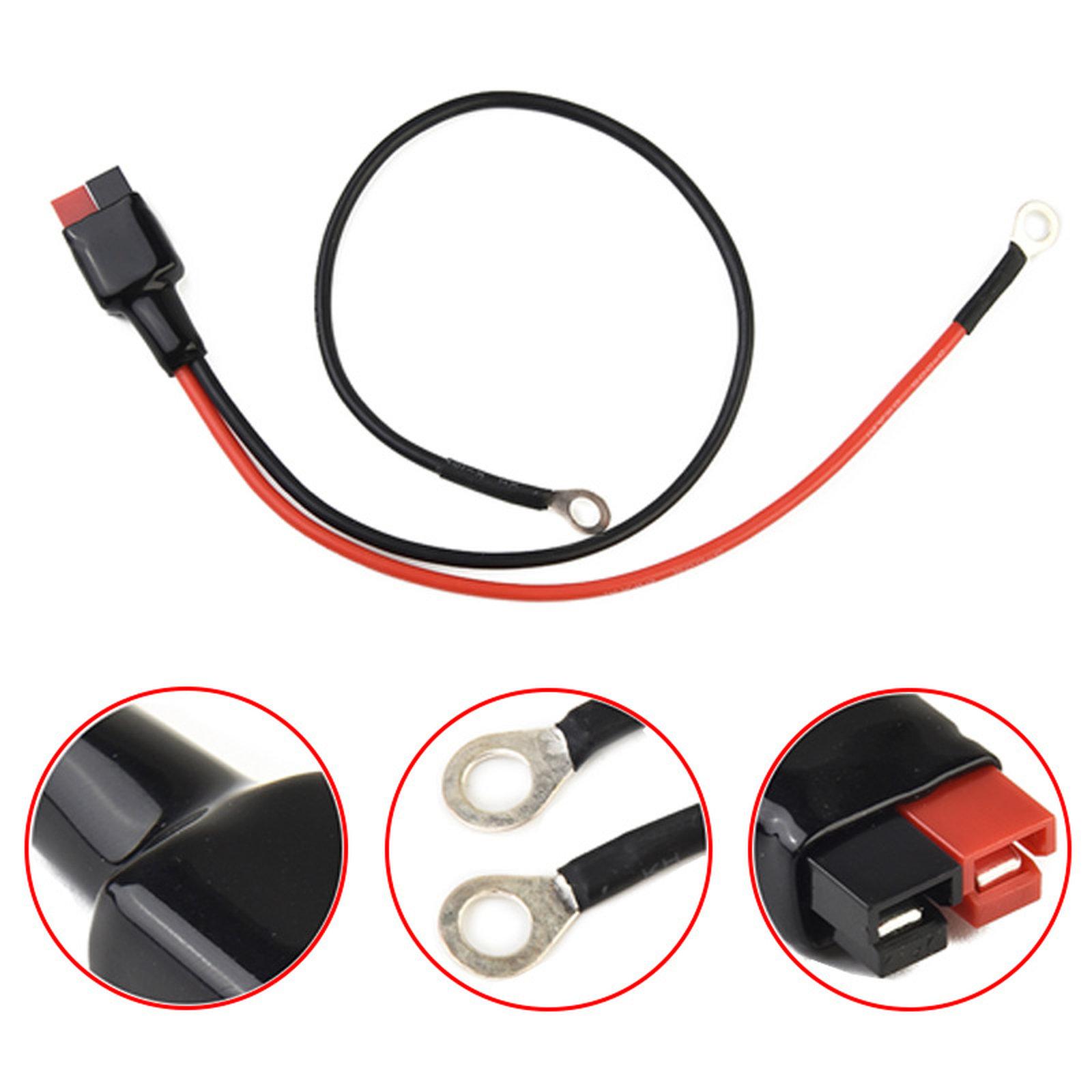

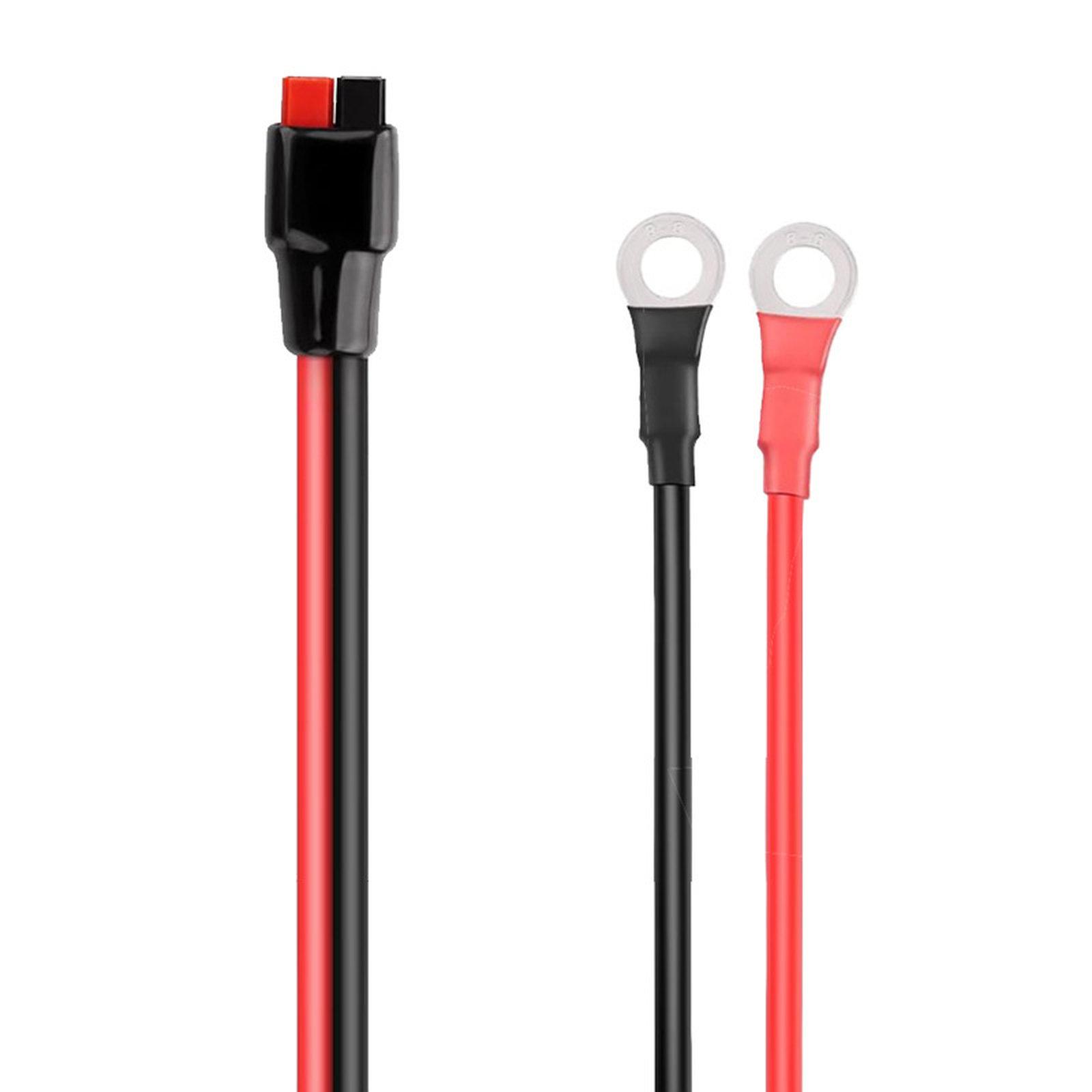

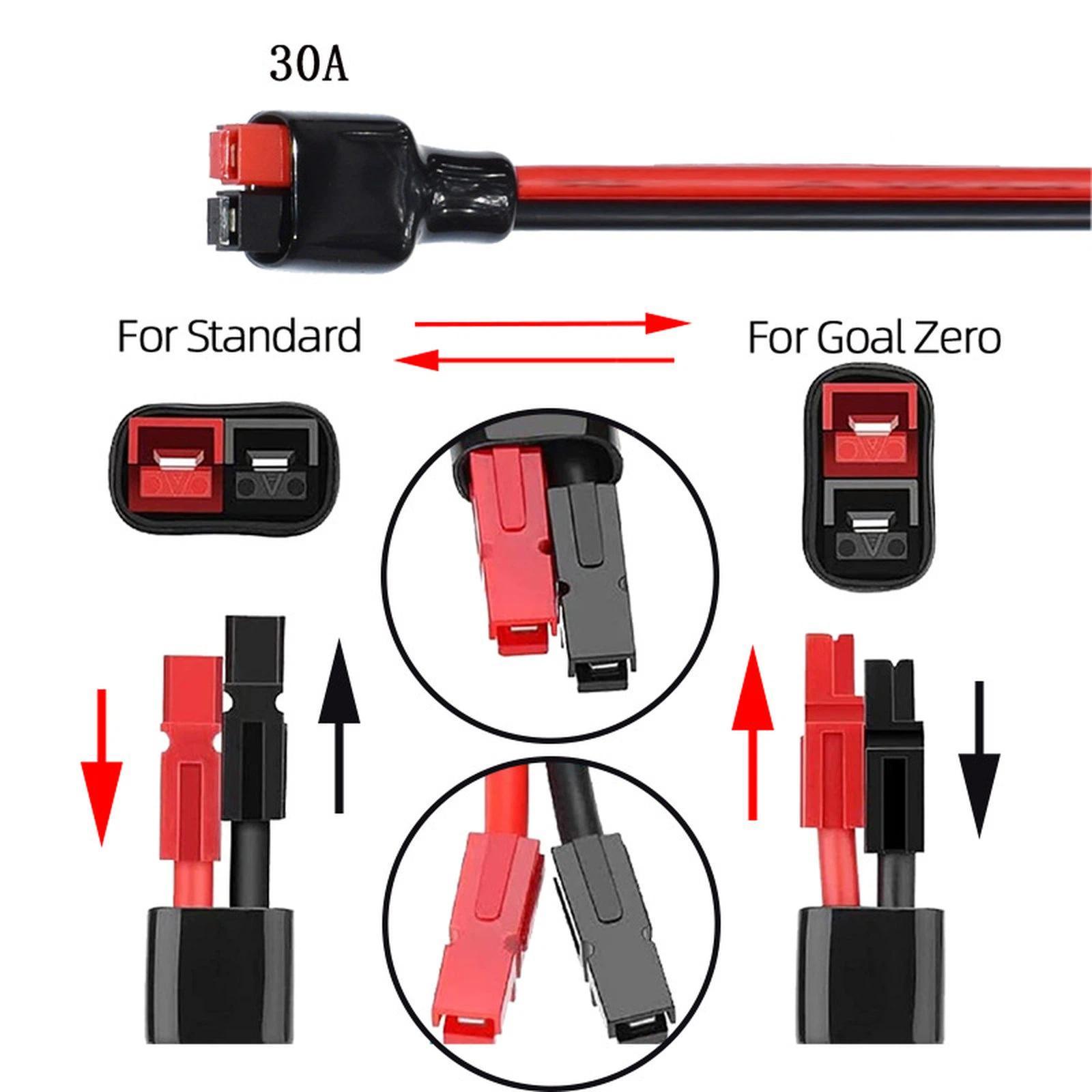

30A Connector Plug To O-type Terminal Power Charging Plug Connection Cable, Length: 40cm

Product Description

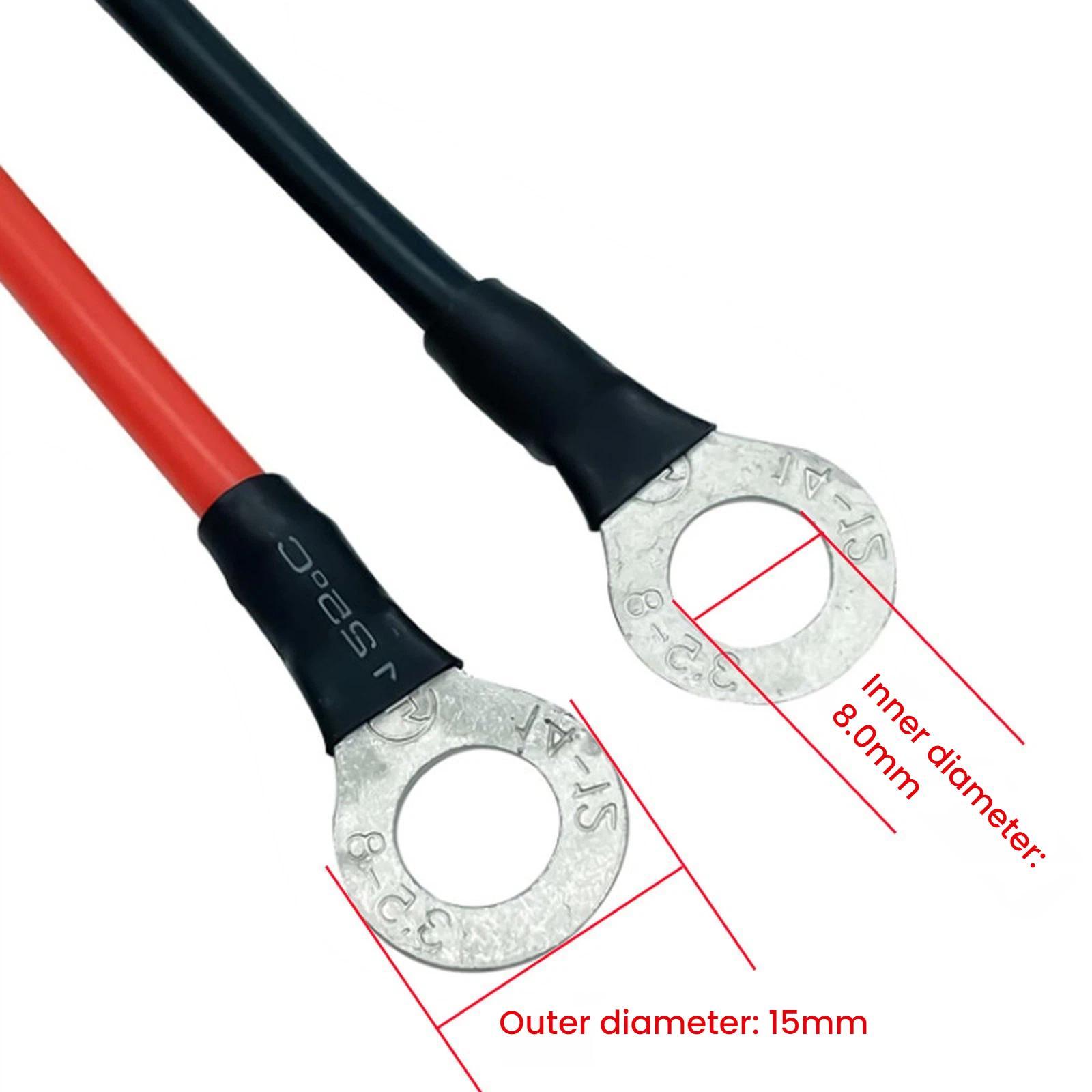

1. Wire gauge/diameter: 1015 12AWG 2. Rated power: 360W 3. Rated voltage: 36V 4. Rated current: 30A 5. O-type terminal inner diameter: 8.0mm 6. O-type terminal outer diameter: 15mm 7. The outer casing has an injection-molded protective sleeve for easy insertion and removal and a secure connection. 8. The other end has two metal O-type ring terminals (M8 specification, 8mm inner diameter), which are wrapped with heat-shrink tubing for insulation protection. 9. Uses red and black bicolor parallel wiring; red represents positive and black represents negative, facilitating quick polarity identification and preventing reverse connection.

Specifications

SKU

TBD0607193202

Category

In Car › Replacement Parts › DIY Cables

Weight

0.045 kg

Delivery

Standard delivery
