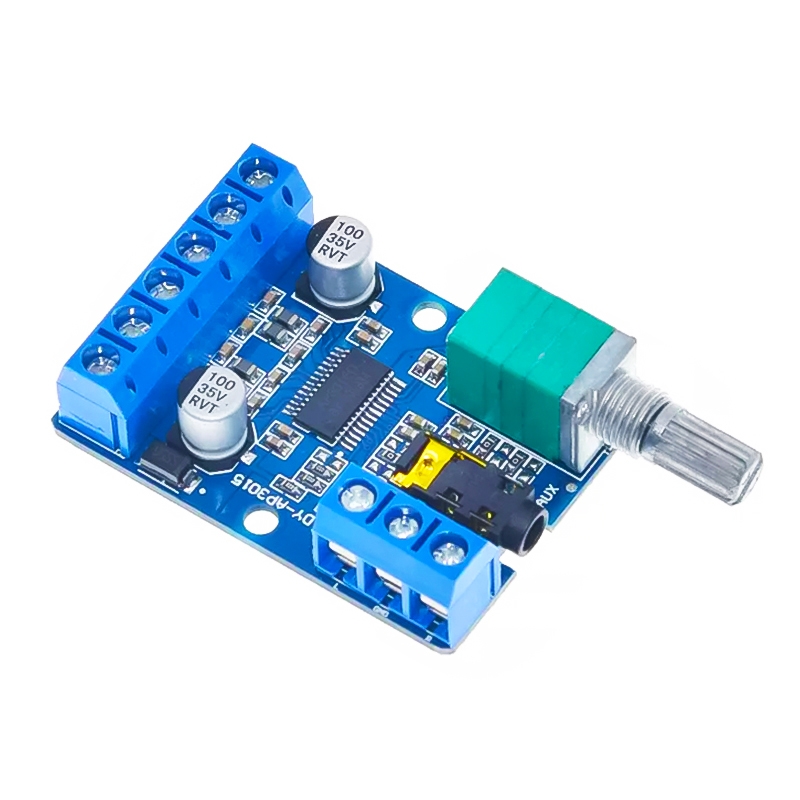

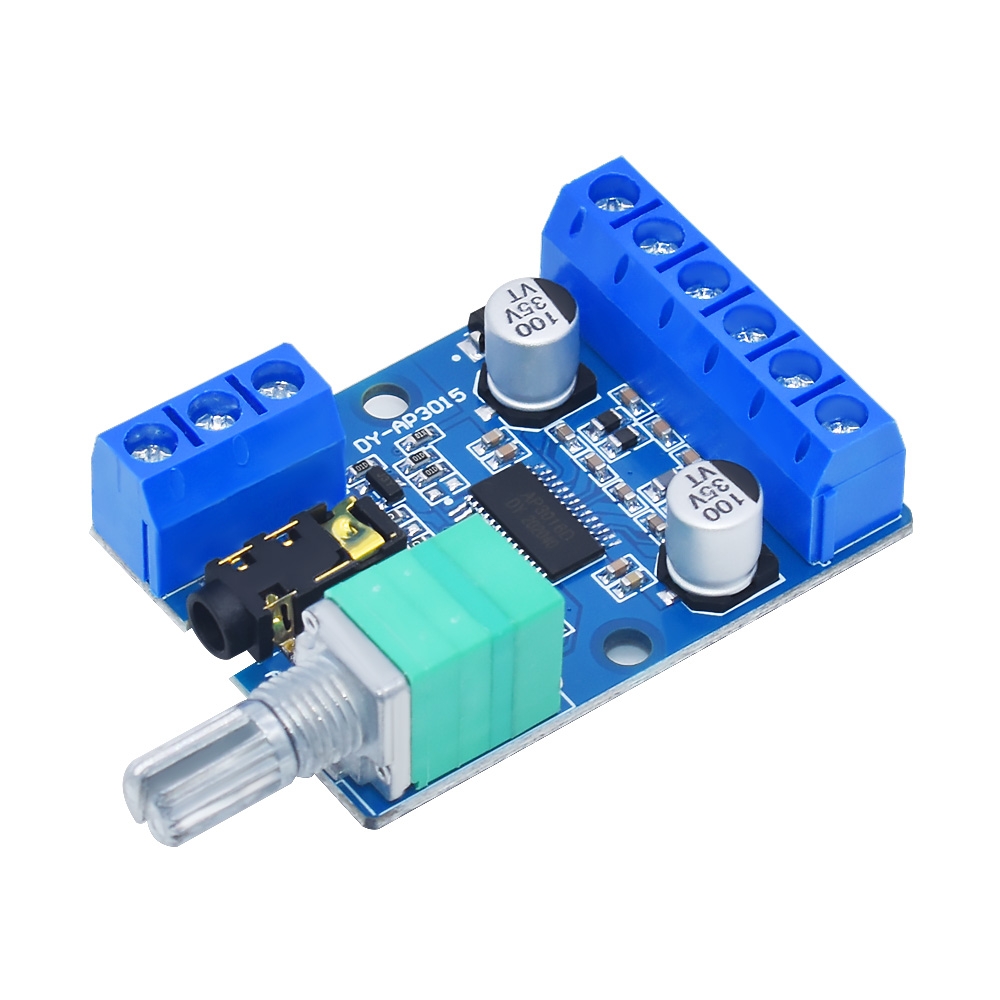

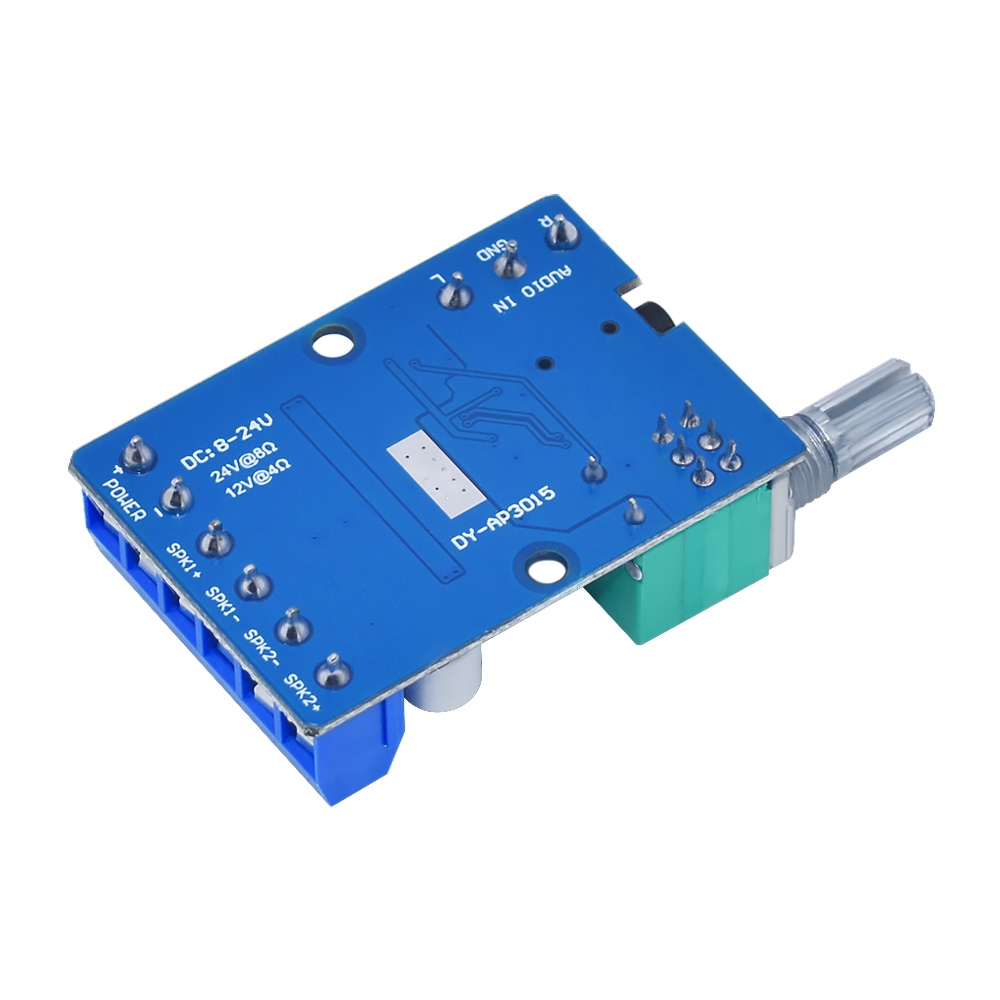

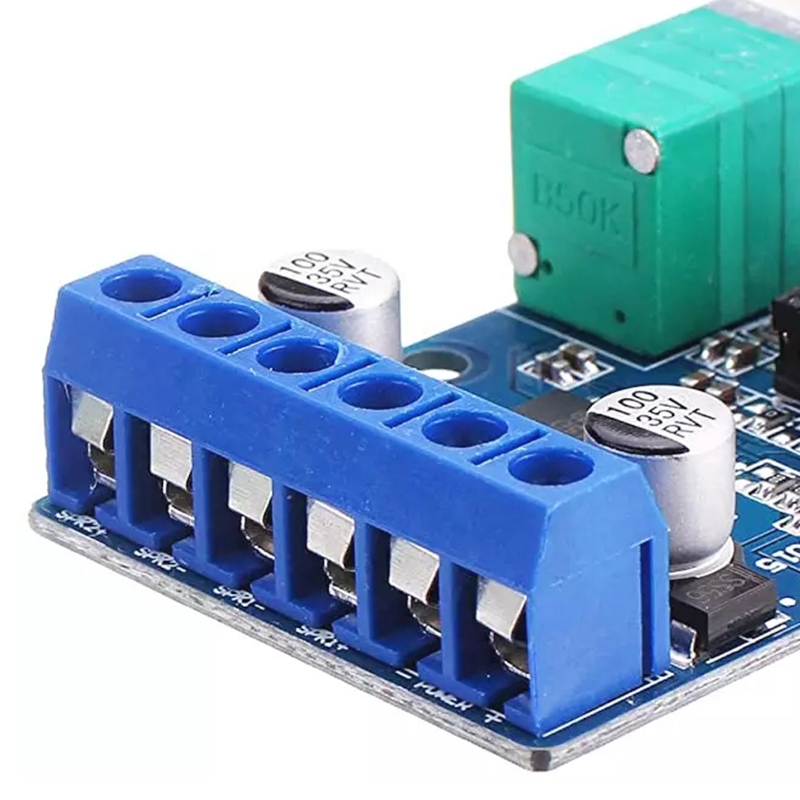

30Wx2 High-Power Stereo Digital Amplifier Board 12V/24V Power Supply DIY Power Amplification Module

Product Description

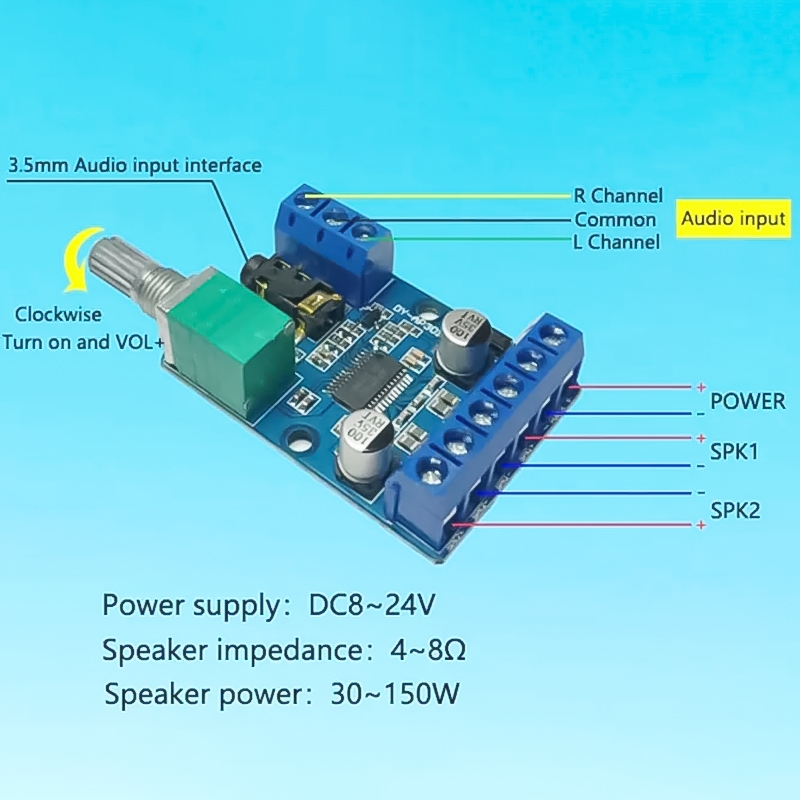

1. Operating voltage: DC 8~24V 2. Operating mode: class D (PMW modulation) 3. Number of channels: ctereo (dual channel) 4. Maximum output power: 18Wx@12V 4 Ohm 10Wx@12V 8 Ohm 15Wx@16V 8 Ohm 20Wx@20V 8 Ohm 30Wx@24V 8 Ohm 5. Adapted speakers(30W~150W): 4 ohms (8-12V power supply) 8 ohm (8-24V power supply) 6. Module protection mechanism: power reverse connection protection, short circuit protection, self-recovery overheating protection

Specifications

SKU

DIY0571

Category

Consumer Electronics › DIY Parts & Components › Breadboard / Amplifier Board

Weight

0.033 kg

Delivery

Standard delivery
