3G SDI to AV Converter / Audio Scaler, Support convert SD-SDI, HD-SDI, 3G-SDI Signal to Be Shown on Normal TV

Product Description

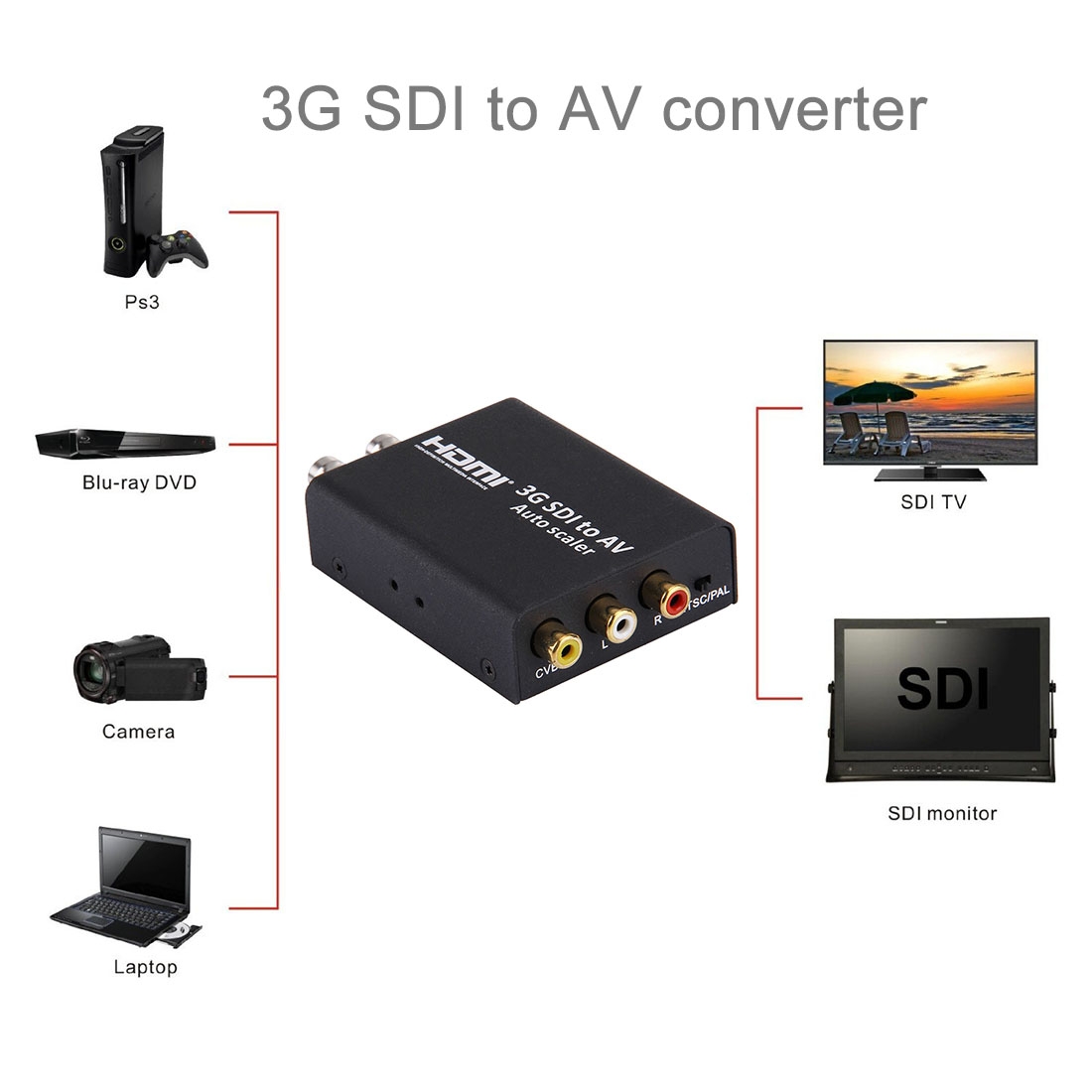

Introduction This SDI to AV(CVBS) converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on normal TV while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss, and thereby expensive monitor can be replaced by normal TV. It also support L/R analog audio output and can be connected to sound system to get perfect music. Features 1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s 2. Equalized and re-clocked loop output 3. Auto video mode detection (3G/HD/SD) 4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit 5. Connect with other units to extend your signal over long distances 6. Simultaneously display SDI and AV signals 7. 2CH analog audio output 8. Supports signal transmission distances up to 300M for SD signals, 200M for HD signals and 100M for 3G signals 9. Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable

Specifications

SKU

HDMI0071

Category

Computer & Networking › SDI Series › Video Converter

Weight

0.391 kg

Delivery

Standard delivery
