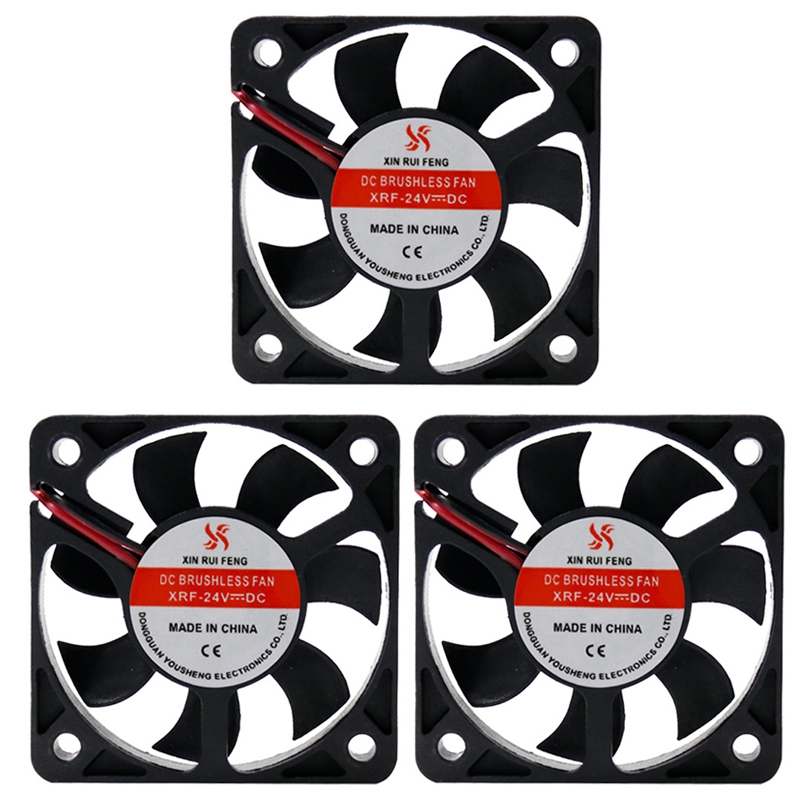

3pcs XIN RUI FENG 12V Oil Bearing 5cm Silent DC Cooling Fan

Product Description

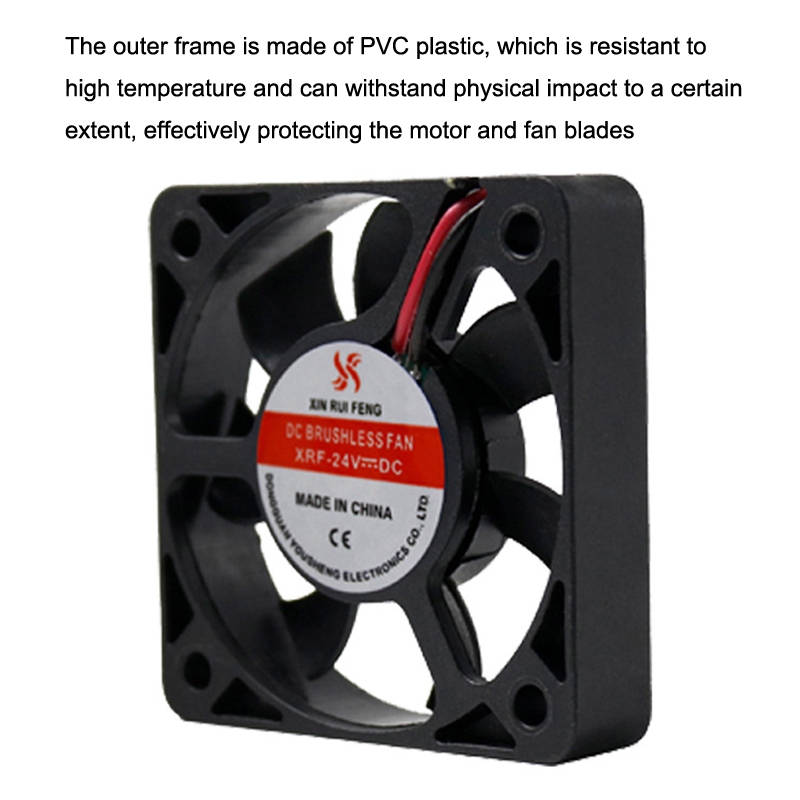

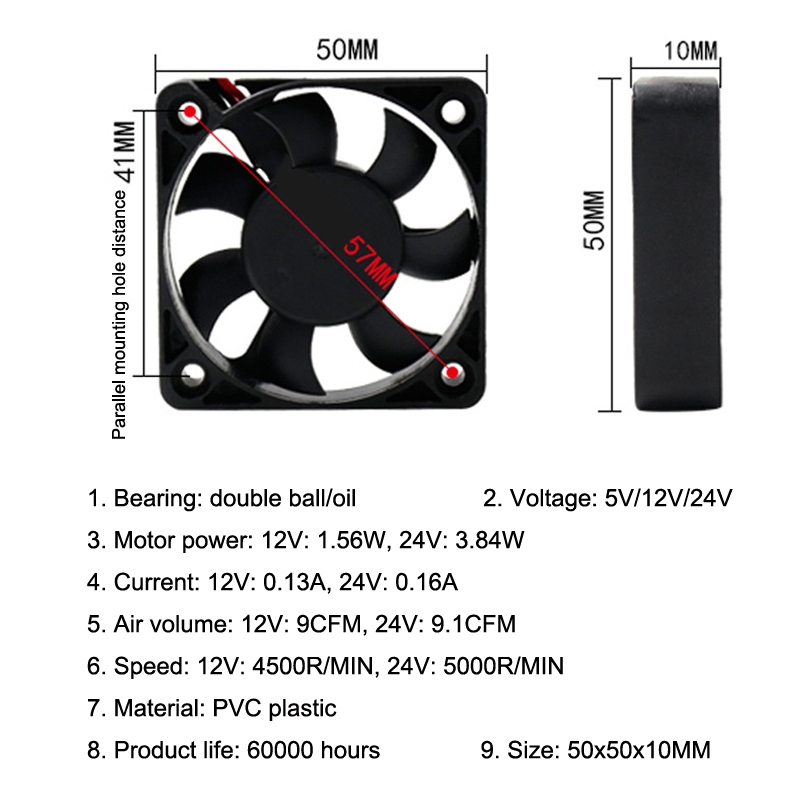

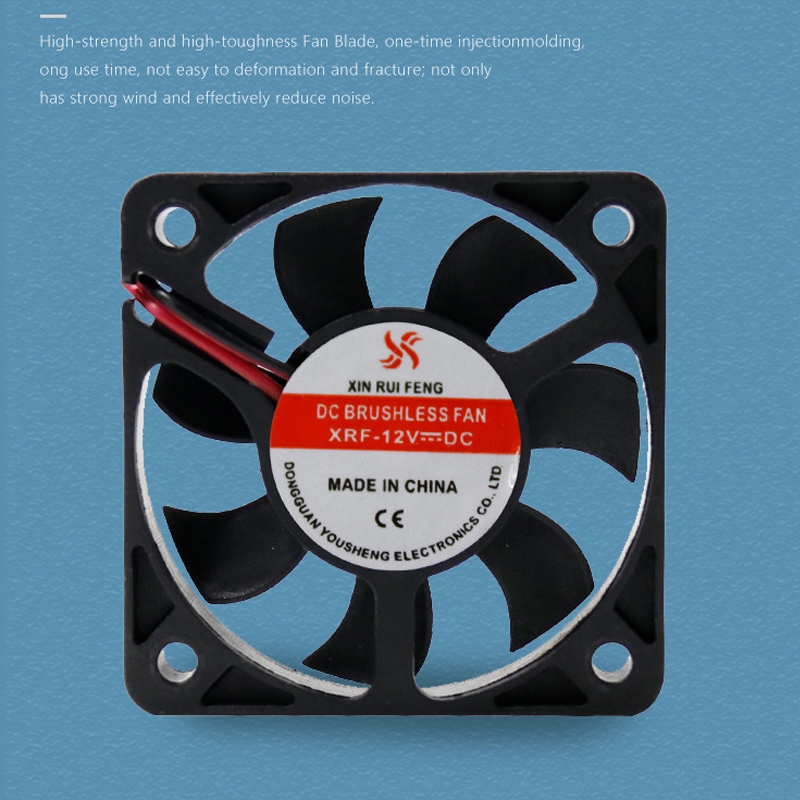

1. All-copper movement, strong air flow, durable, high speed stability 2. Pure copper wire movement, high temperature resistance, stable operation and long life 3. High-strength and thickened fan blades. The fan blades adopt a one-time injection molding process, which is not easy to deform and break. The unique design of the fan blades makes the contact area larger, the air volume is larger, and the heat dissipation effect is good. 4. The outer frame is made of PVC plastic, which is resistant to high temperature and can withstand physical impact to a certain extent, effectively protecting the motor and fan blades 5. Scope of application: heat dissipation of mechanical equipment 6. Applicable temperature: -10 to 60 degrees Celsius 7. Bearing: double ball/oil 8. Motor power: 12V: 1.56W, 24V: 3.84W 9. Voltage: 5V/12V/24V 10. Current: 12V: 0.13A, 24V: 0.16A 11. Air volume: 12V: 9CFM, 24V: 9.1CFM 12. Speed: 12V: 4500R/MIN, 24V: 5000R/MIN 13. Material: PVC plastic 14. Product life: 60000 hours 15. Size: 50x50x10MM Difference: - Ball bearing: the model is generally indicated by B; there are several tiny steel balls in the bearing that rotate around the axis in the form of rolling friction, so the friction force is small and there is no oil leakage. Features: long life, suitable for high speed fans - Oil bearing: the model is generally indicated by S; it adopts a sliding friction sleeve, and the shaft of the fan blade uses lubricating oil in the sleeve as a lubricant and a drag reducer. Features: Resistance to external impact, low noise

Specifications

SKU

TBD0603578502

Category

Computer & Networking › Computer Components › Fan Cooling

Weight

0.254 kg

Delivery

Standard delivery
