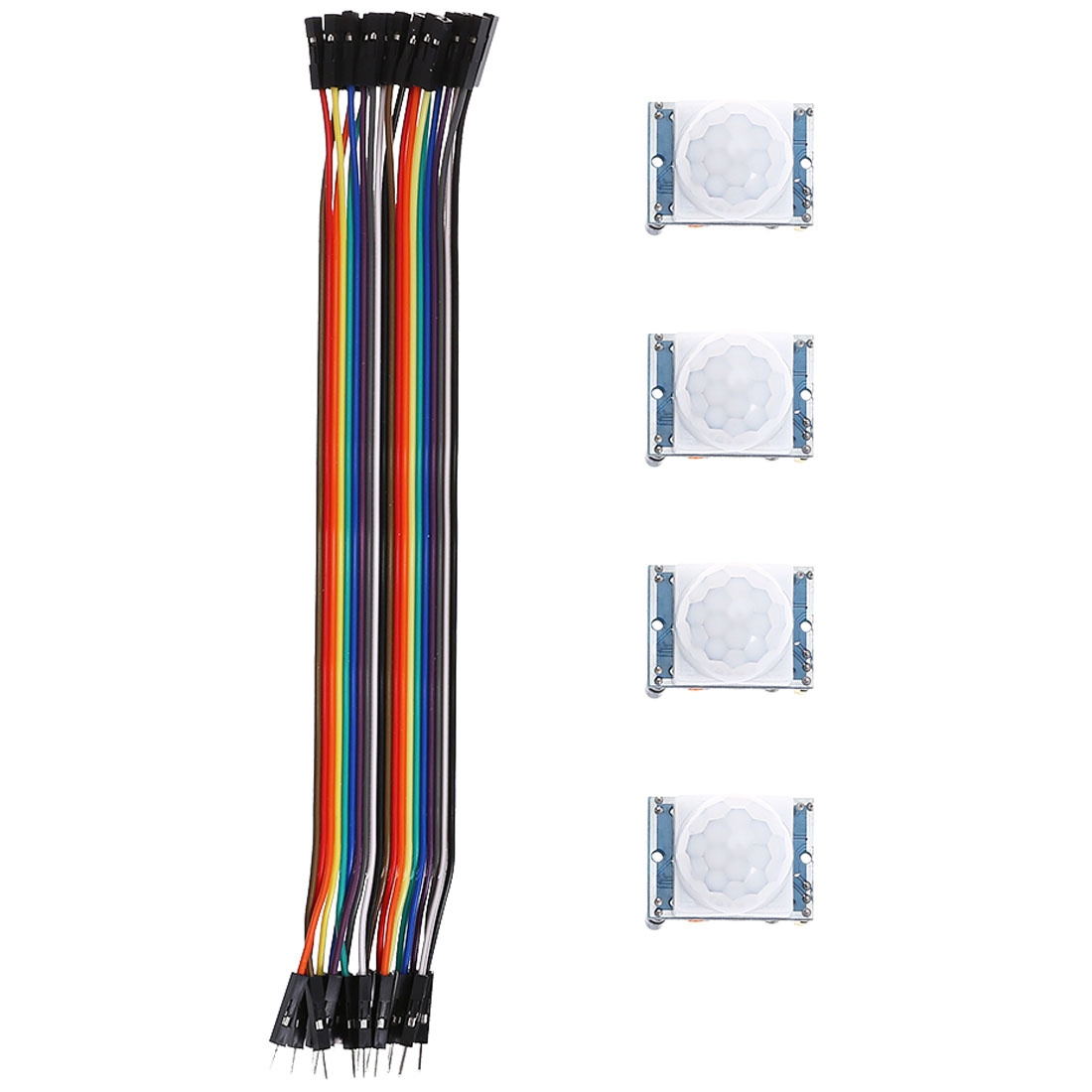

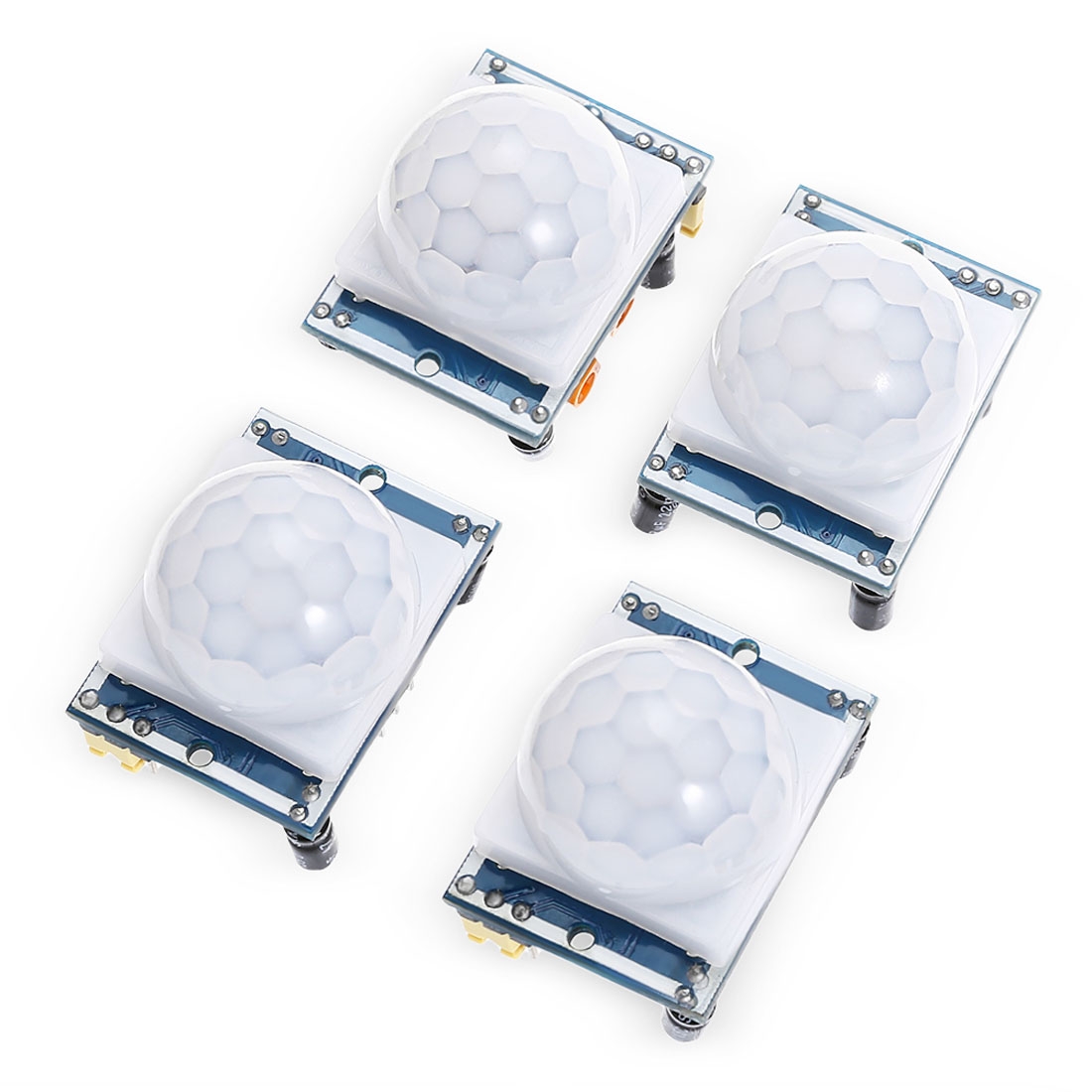

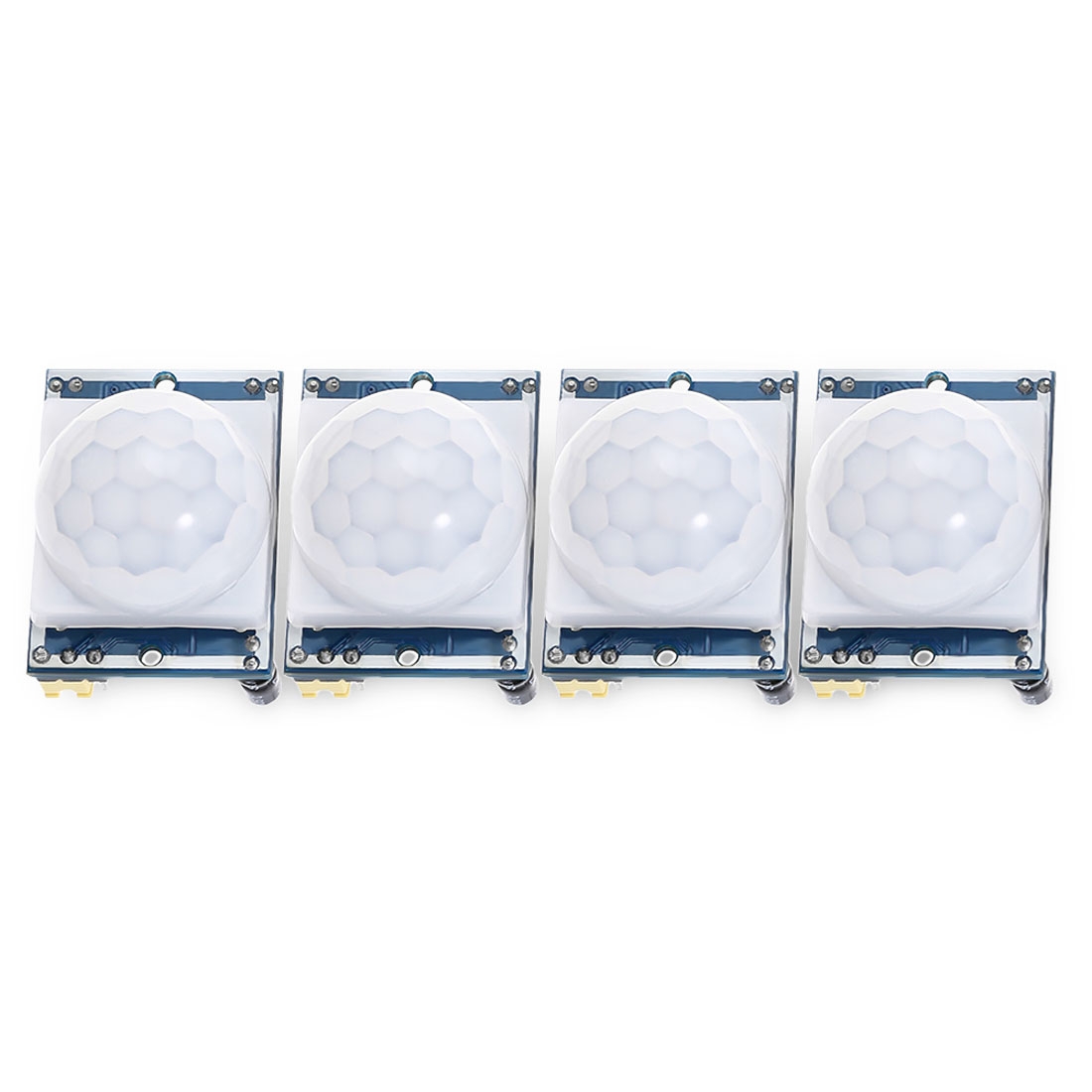

4 PCS LDTR - WG0071 PIR Motion Sensor Detector Module, Compatible with Arduino / Pyroelectric Infrared

Product Description

1. A product for Arduino that works with official Arduino boards 2. On-board 3.3V LDO regulator circuit 3. Operating voltage: DC 5V - 12V 4. Output current: 5mA (max) 5. Static power consumption: 65uA 6. Delay time: adjustable (0.5s - 600s) 7. Trigger mode: re-trigger (default) 8. Detecting range: less than 120 degrees taper angle within 7 meters 9. Appropriate for automatic lighting, smart home, DIY projects, etc. 10. The module will output high when it detects the movement of the human or animal otherwise it will output low

Specifications

SKU

DIY9901

Category

Consumer Electronics › Arduino & SCM Supplies › Sensor Module

Weight

0.072 kg

Delivery

Standard delivery
