40 PCS AWG T2 Copper Heavy-duty Cold-pressed Wire Terminals 8 x 1/4 & 6 x 1/4 with Heat Shrinkable Tube

Product Description

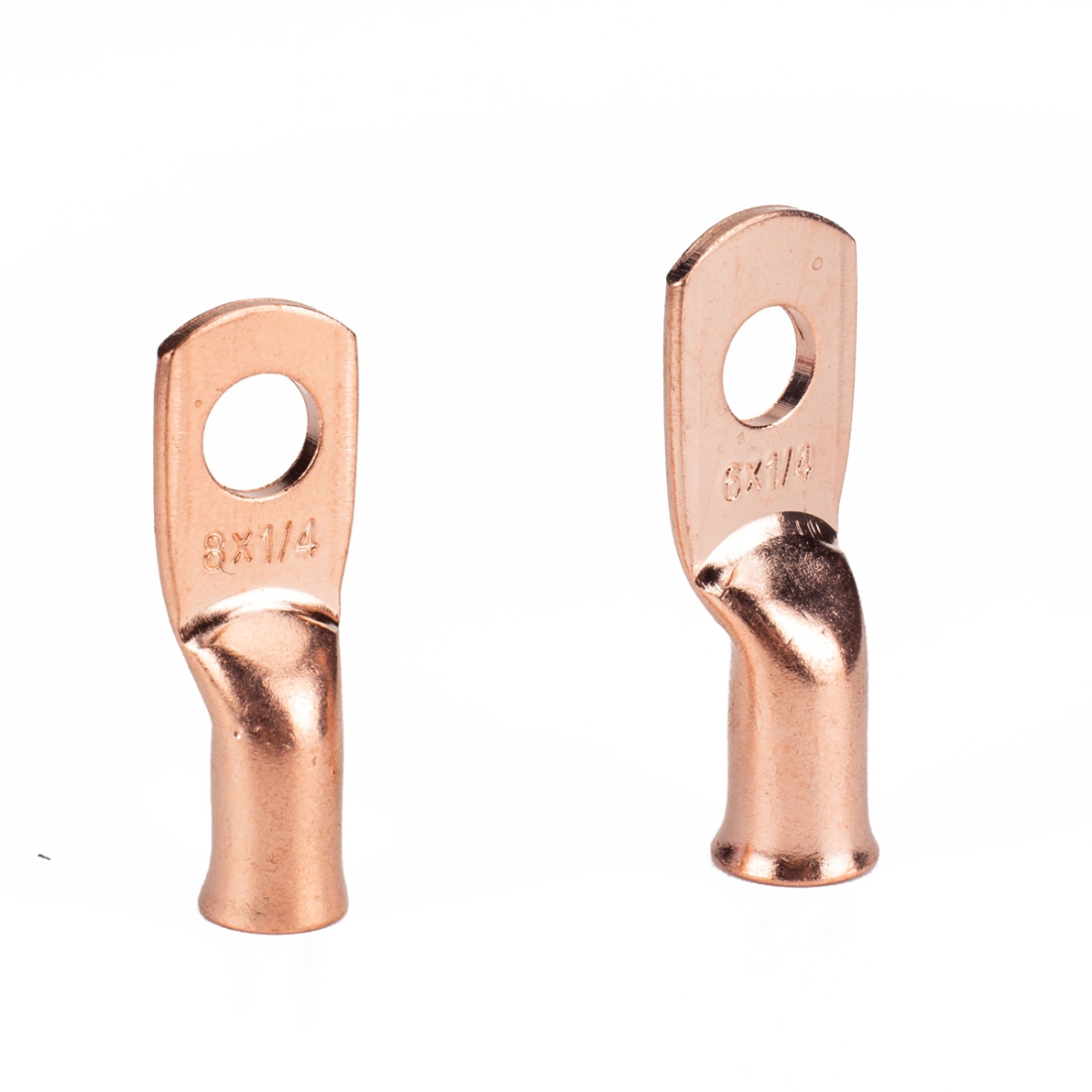

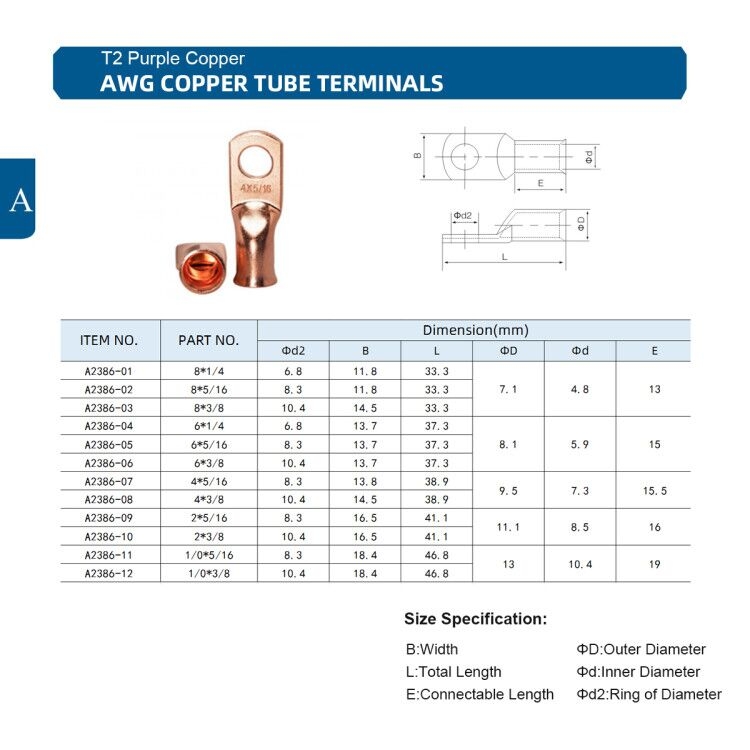

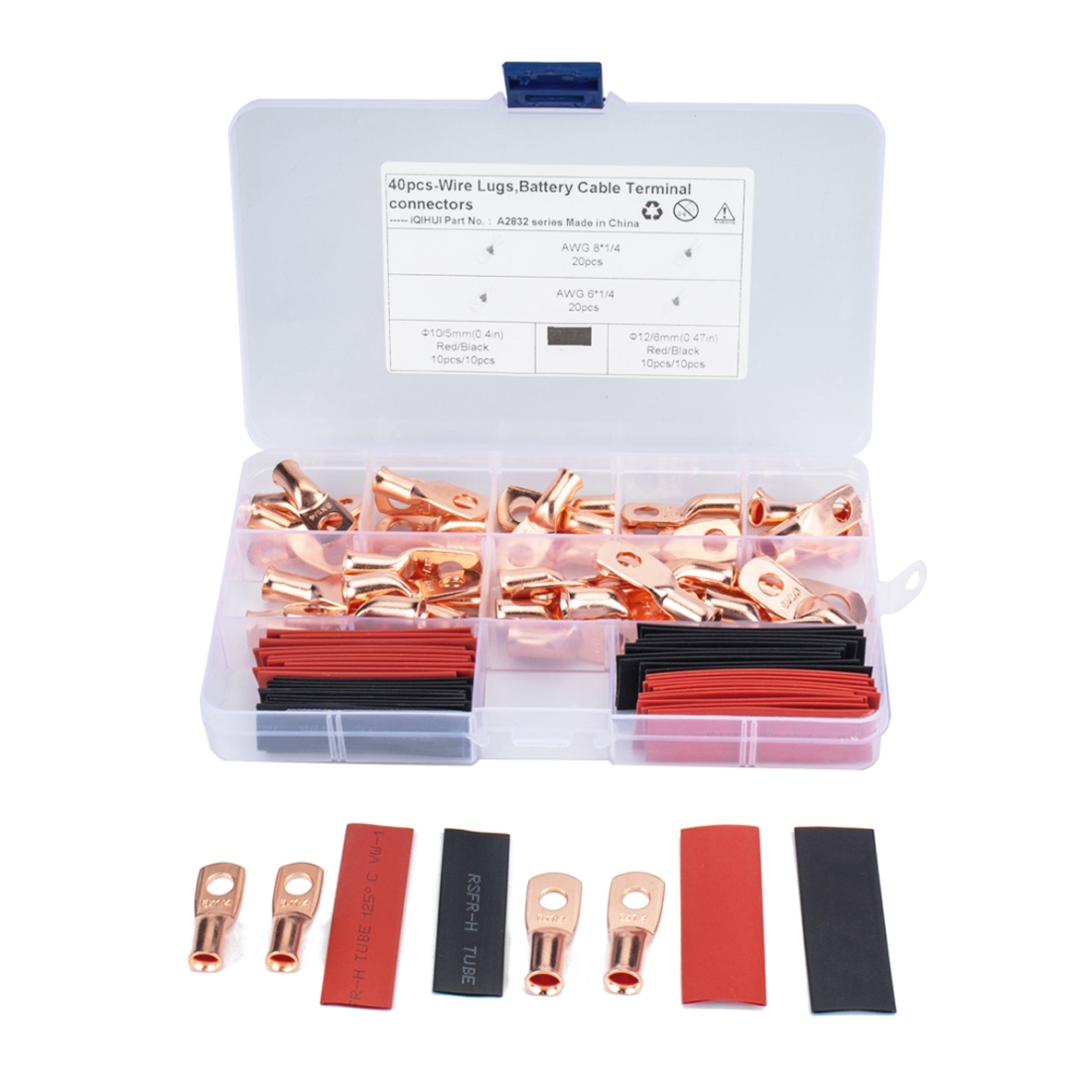

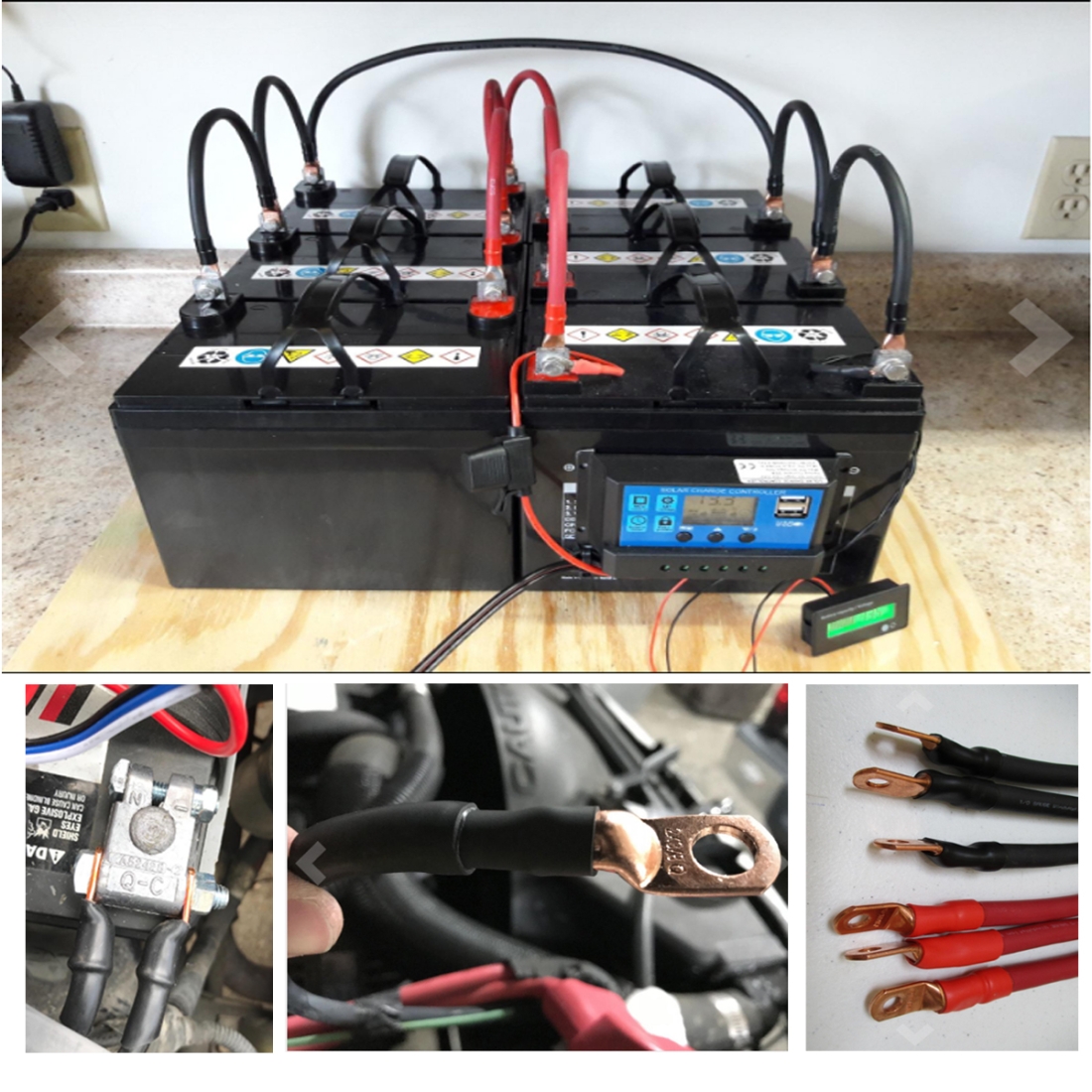

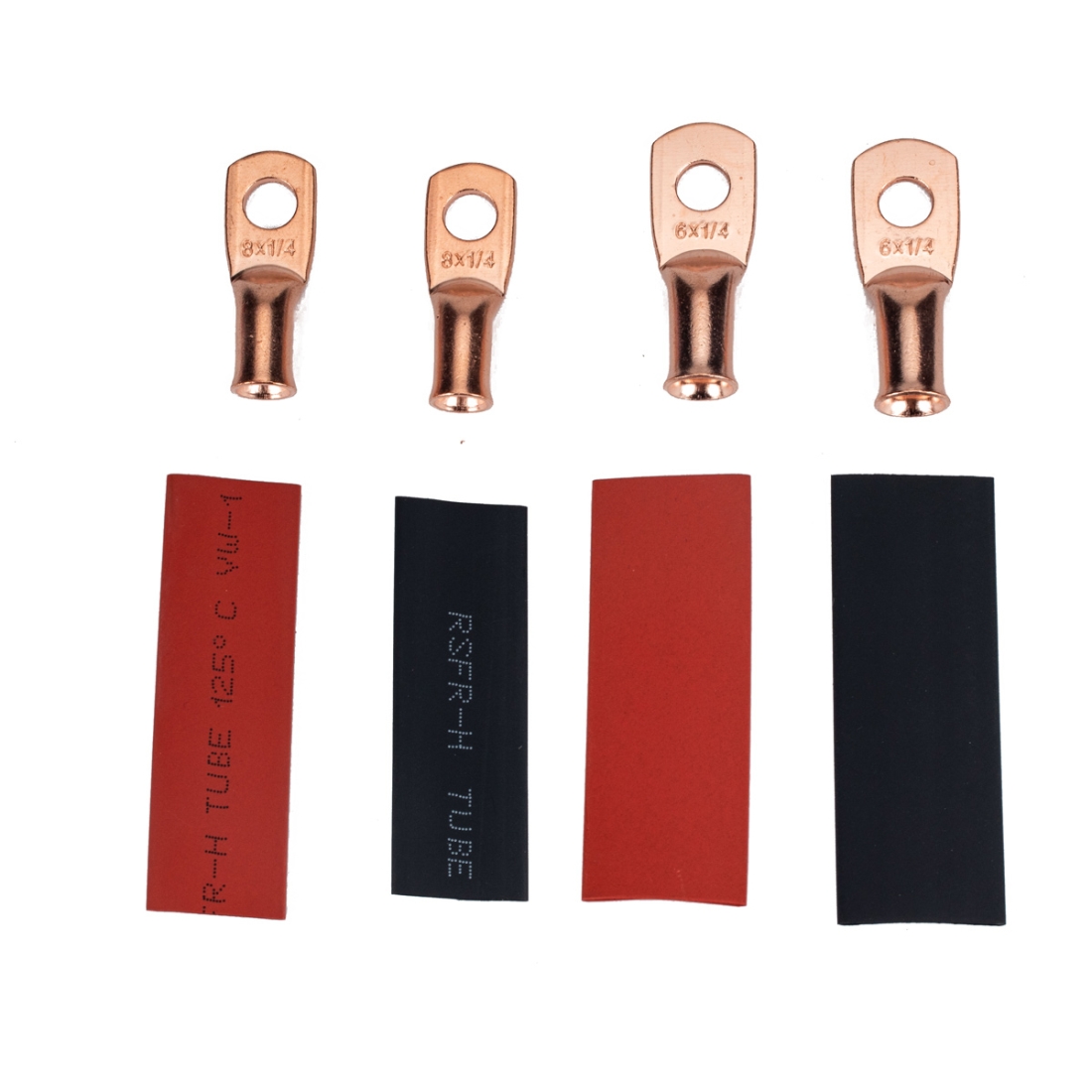

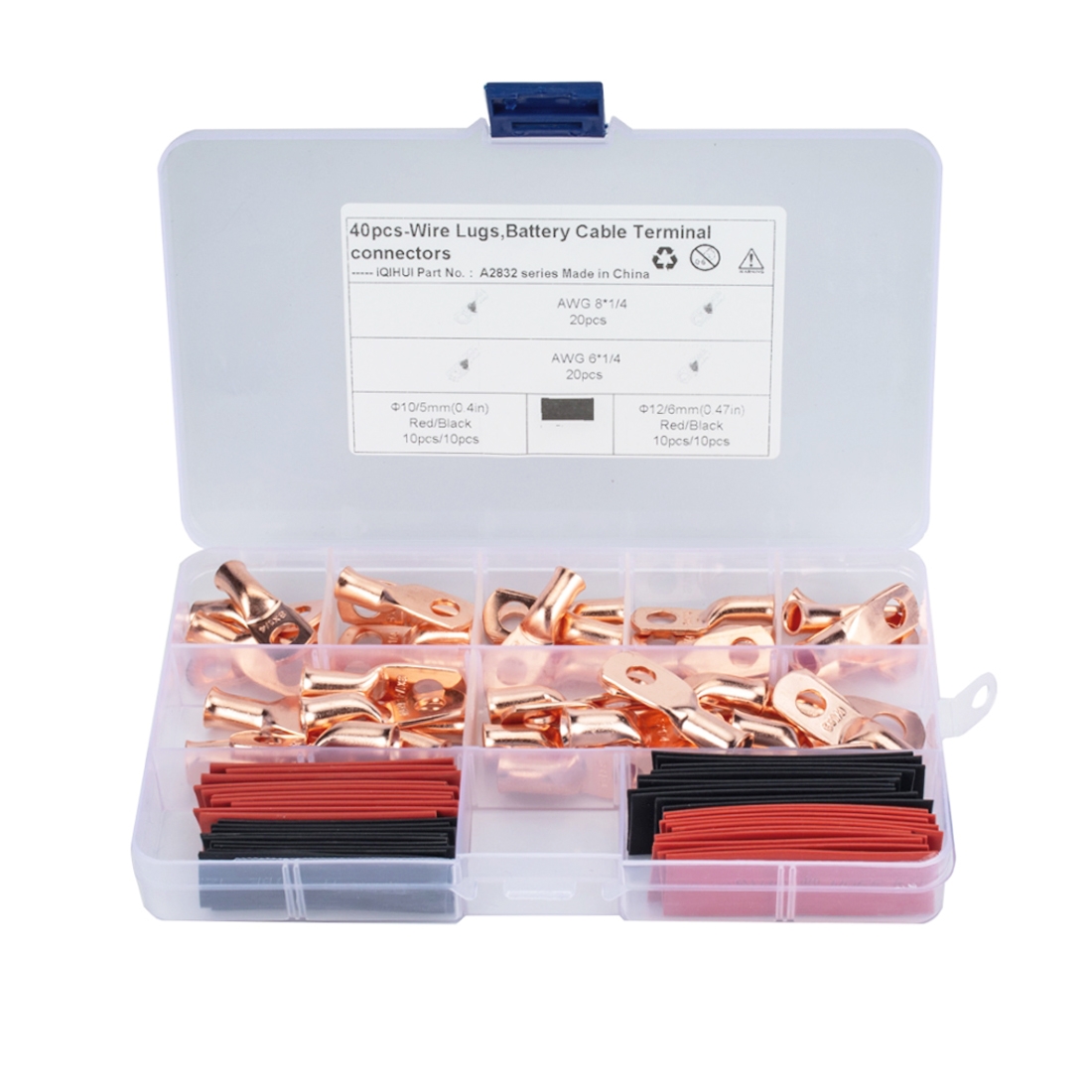

1. Use high-quality material copper, good conductivity, safety, simple wiring, convenient operation, wide range of applications. 2. Function: It is used to connect the wire and cable to the electrical equipment. 3. Features: Working temperature -55-150 degree Celsius. 4. Scope of application: Widely used in military industry / aerospace, household appliances, lighting electronics, automotive electronics, ships, marine, etc. 5. Product material: T2 copper 6. Product attributes: AWG American regulatory series 7. Product specifications: 8 x 1/4 terminals: product length 33.3MM, fixed aperture 6.8MM, wiring aperture 4.8MM 6 x 1/4 terminals: product length 37.3MM, fixed aperture 6.8MM, wiring aperture 5.9MM Heat shrinkable tube: diameter: 10MM (2: 1 shrink ratio) Heat shrinkable tube: diameter: 12MM (2: 1 shrink ratio) 8. Matters needing attention: (1). The connecting wire should be stripped first; (2). The cable should be inserted into the bottom of the terminal wiring hole and fixed with special crimping pliers. 9. Product composition: 8 x 1/4 terminal-20 PCS 6 x 1/4 terminal-20 PCS Heat shrinkable tube: Red diameter 10mm-10 PCS Black diameter 10mm-10 PCS Red diameter 12mm-10 PCS Black diameter 12mm-10 PCS

Specifications

SKU

CRP9366

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.333 kg

Delivery

Standard delivery
