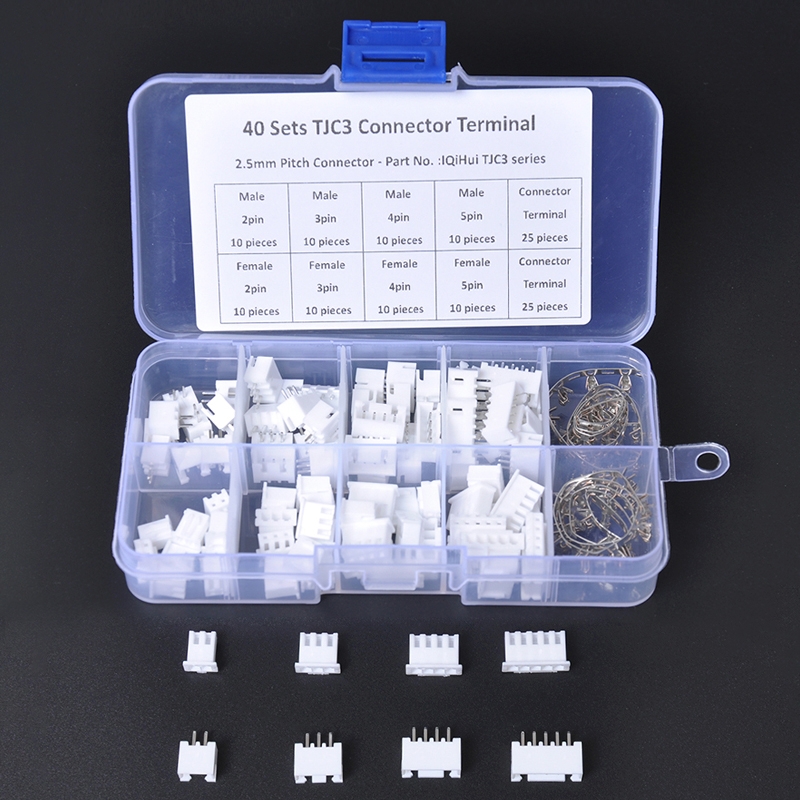

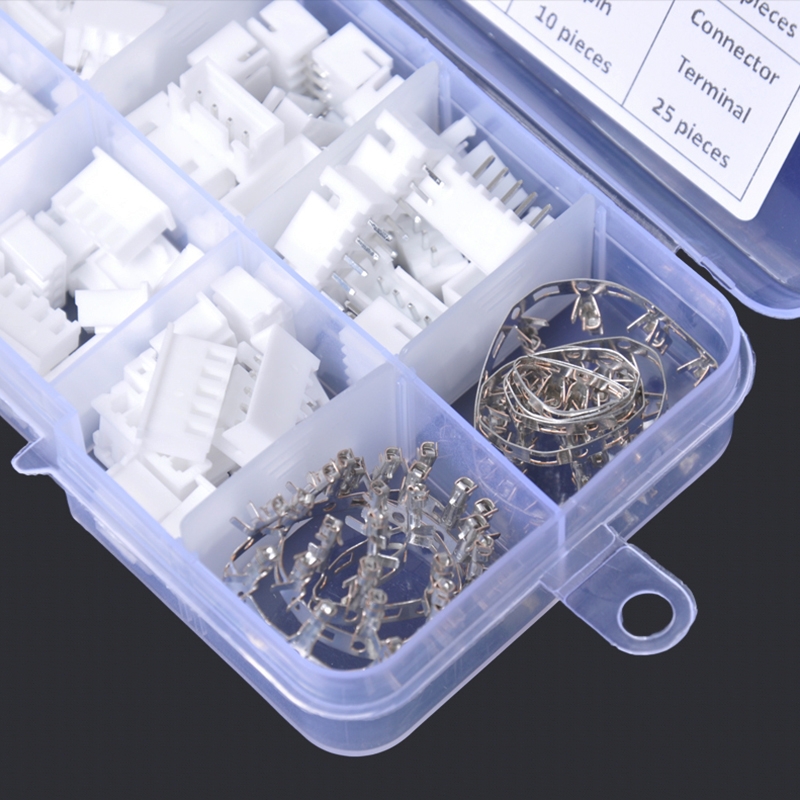

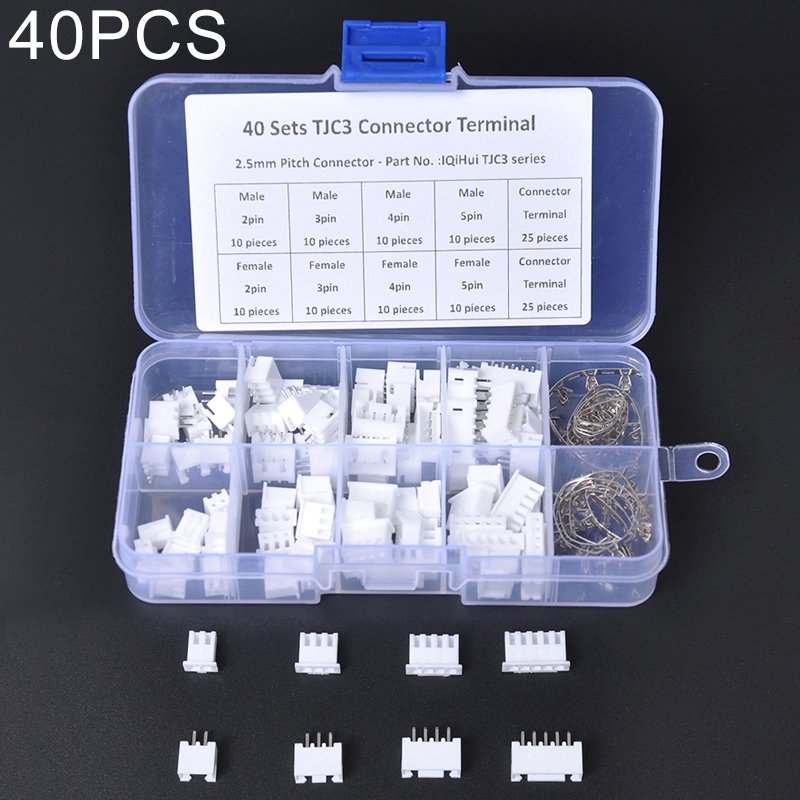

40 Sets TJC3 2.5mm XH 2P 3P 4P 5Pin Male Female Housing Connector with Crimps

Product Description

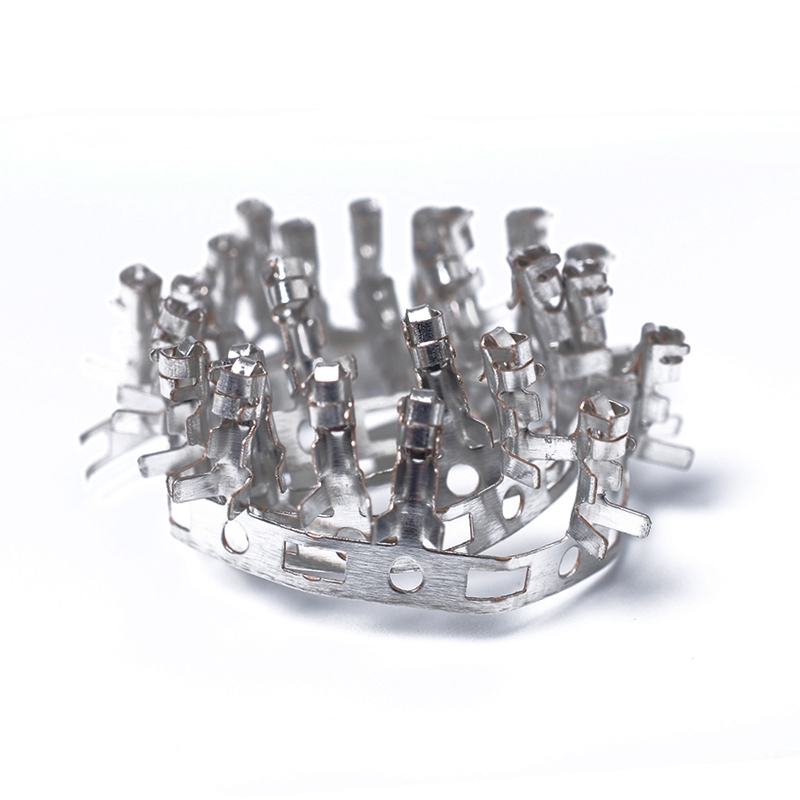

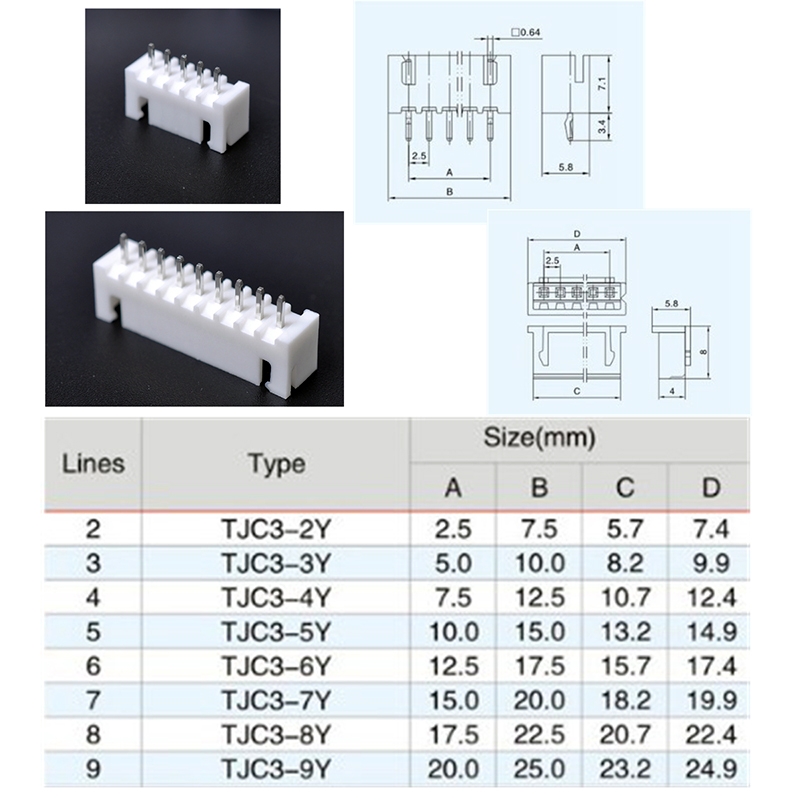

1. Pitch: 2.5mm 2. Rated voltage: 250V AC,DC 3. Rated current: 3A AC,DC 4. Contact resistance: 10M Ohm max 5. Insulation resistance: 1000M Ohm min 6. Withstanding Voltage: 1000V AC/minute 7. Ambient temperature: -25 ~ +85 Celsius degree 8. Wire Range : AWG#28~#22 9. Material: Housing: Nylon UL94-V0(2) Terminal: Phosphor bronze, Tin plated Package: 2pin = 10 sets 3pin = 10 sets 4pin = 10 sets 5pin = 10 sets Pin Connector Terminal :50 pcs

Specifications

SKU

CMS6027

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.069 kg

Delivery

Standard delivery
