44 PCS AWG T2 Copper Heavy-duty Cold-pressed Wire Terminals with Heat Shrinkable Tube

Product Description

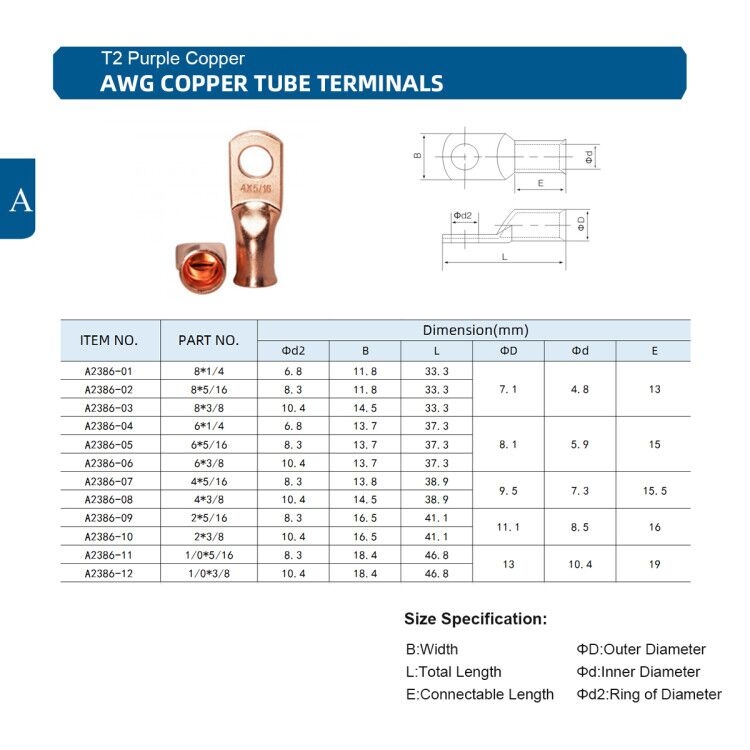

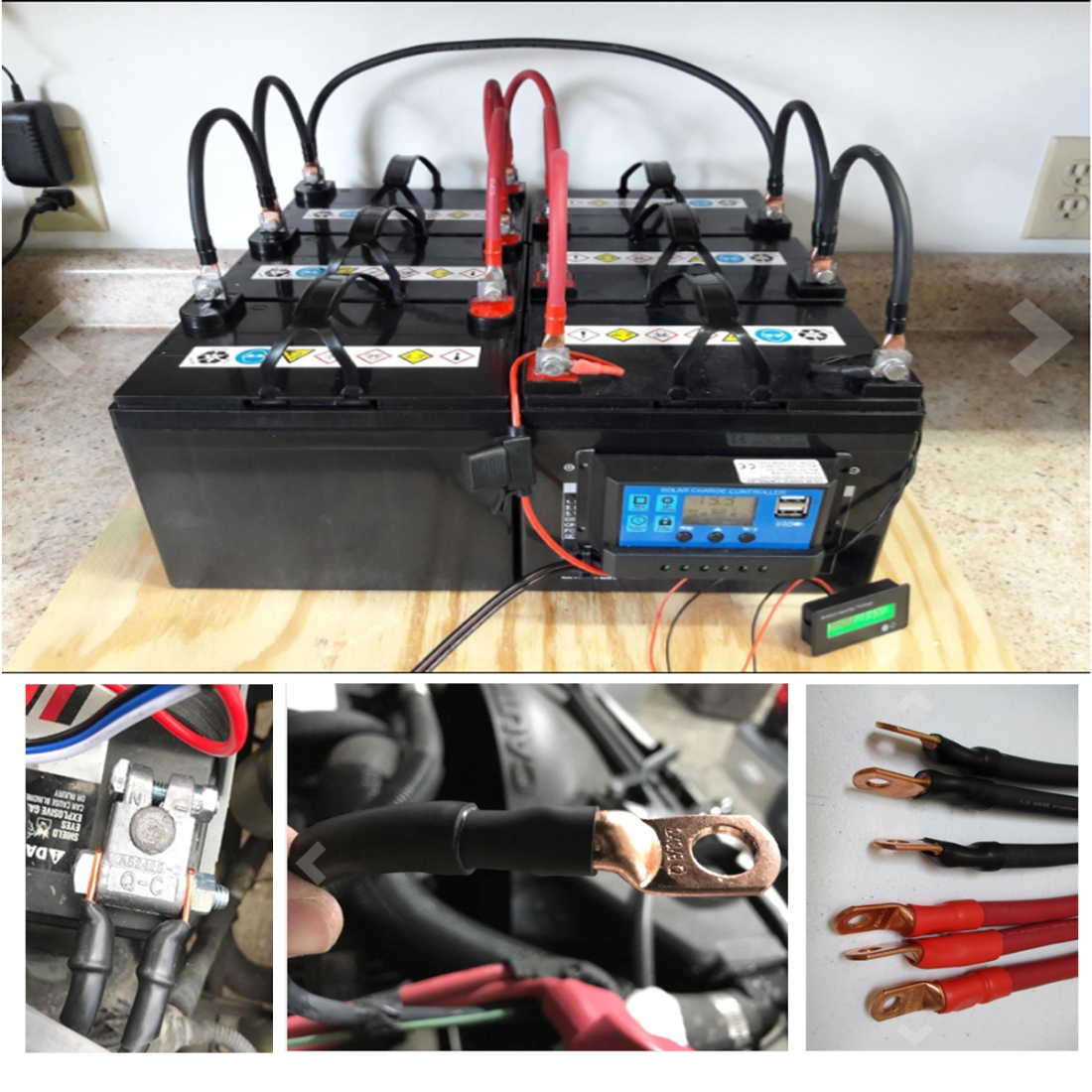

1. Use high-quality material copper, good conductivity, safety, simple wiring, convenient operation, wide range of applications. 2. Function: It is used to connect the wire and cable to the electrical equipment. 3. Features: Working temperature -55-150 degree Celsius. 4. Scope of application: Widely used in military industry / aerospace, household appliances, lighting electronics, automotive electronics, ships, marine, etc. 5. Product material: T2 copper 6. Product attributes: AWG American regulatory series 7. Product specifications: Terminal 8 x 5 / 16-length 33.3MM, fixed aperture 8.3MM, wiring aperture 4.8MM Terminal 6 x 5 / 16-length 37.3MM, fixed aperture 8.3MM, wiring aperture 5.9MM Terminal 4 x 5 / 16-length 38.9MM, fixed aperture 8.3MM, wiring aperture 7.3MM Terminal 2 x 5 / 16-length 41.1MM, fixed aperture 8.3MM, wiring aperture 8.5MM Terminal 1/0 x 5 / 16-length 46.8MM, fixed aperture 8.3MM, wiring aperture 10.5MM Heat shrinkable tube: diameter 10MM / 12MM / 14MM / 16MM (2: 1 shrink ratio) 8. Matters needing attention: (1). The connecting wire should be stripped first; (2). The cable should be inserted into the bottom of the terminal wiring hole and fixed with special crimping pliers. 9. Product composition: Terminal: AWG 8 x 5 / 16-12 PCS AWG 6 x 5 / 16-10 PCS AWG 4 x 5 / 16-10 PCS AWG 2 x 5 / 16- 6 PCS AWG 1/0 x 5 / 16-6 PCS Heat shrinkable tube: Red diameter 10mm-6 PCS Black diameter 10mm-6 PCS Red diameter 12mm-5 PCS Black diameter 12mm-5 PCS Red diameter 14mm-5 PCS Black diameter 14mm-5 PCS Red diameter 16mm-6 PCS Black diameter 16mm-6 PCS

Specifications

SKU

CRP9365

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.518 kg

Delivery

Standard delivery
