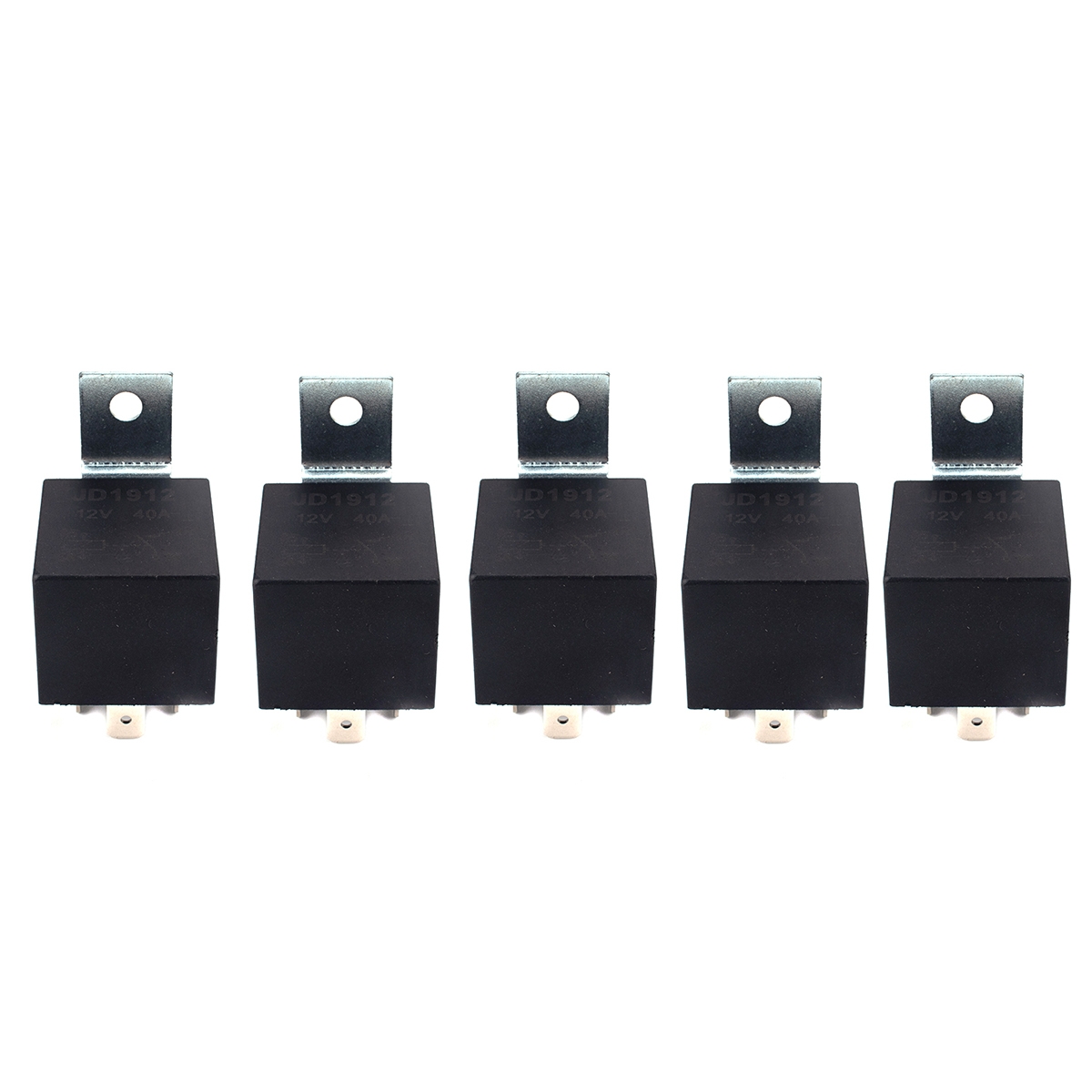

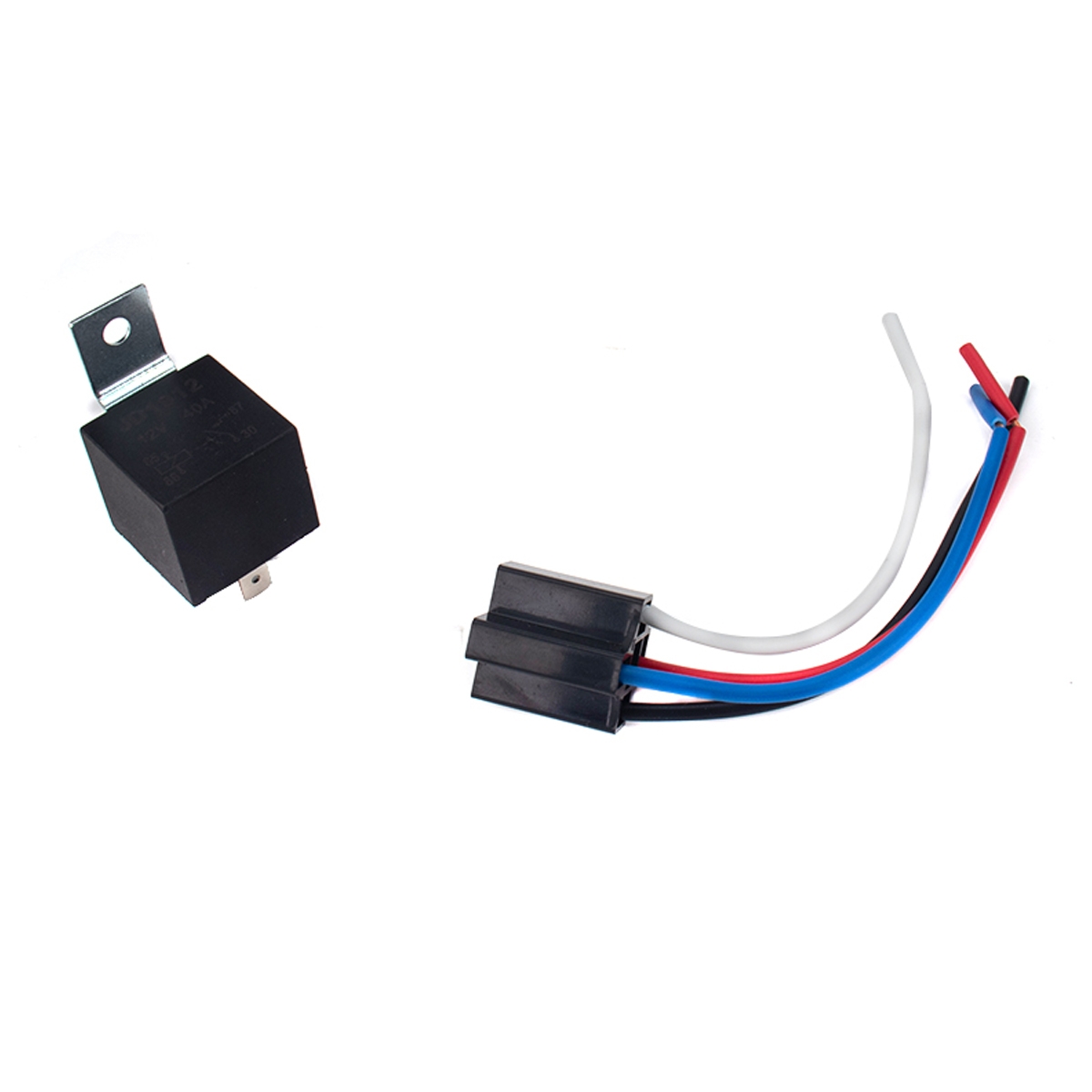

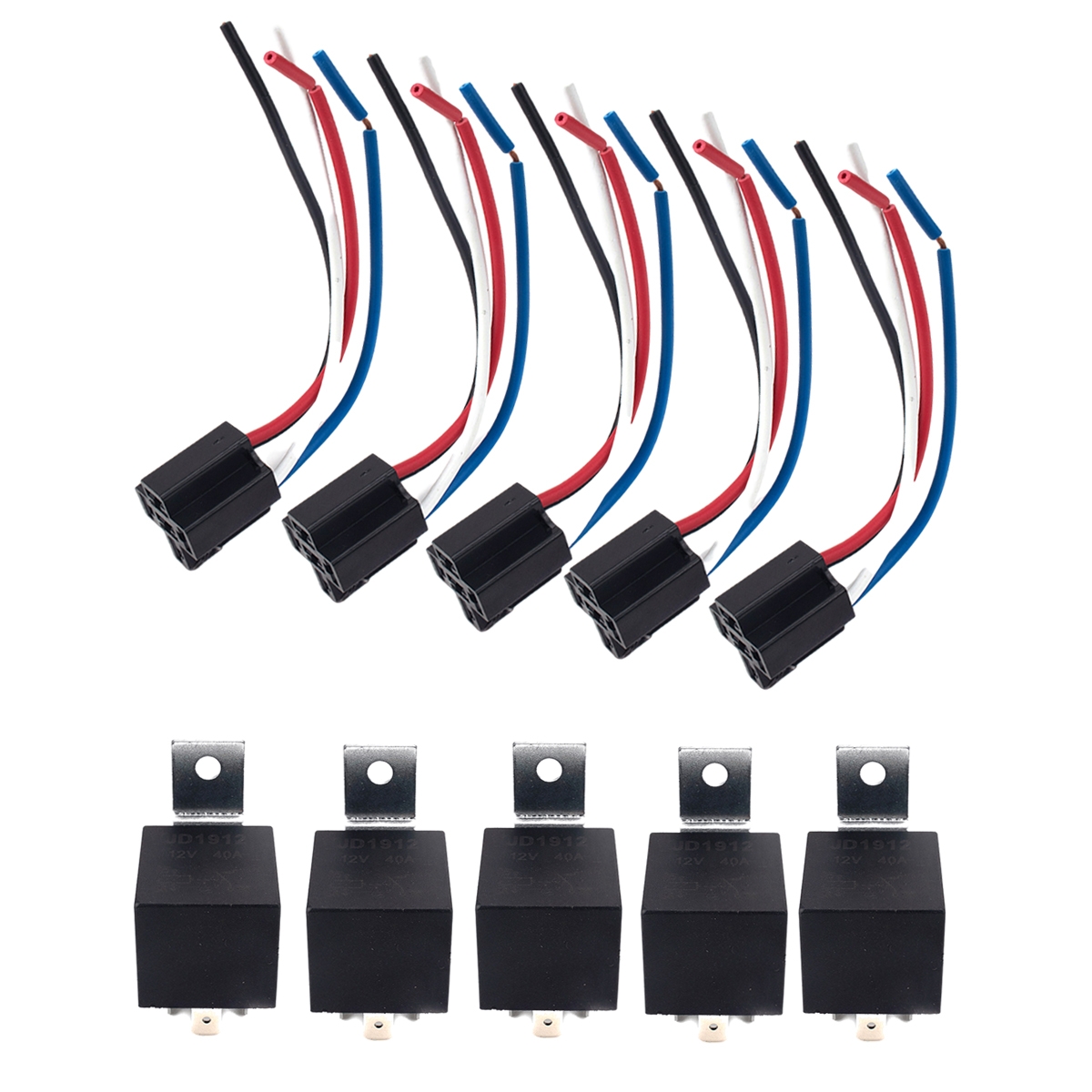

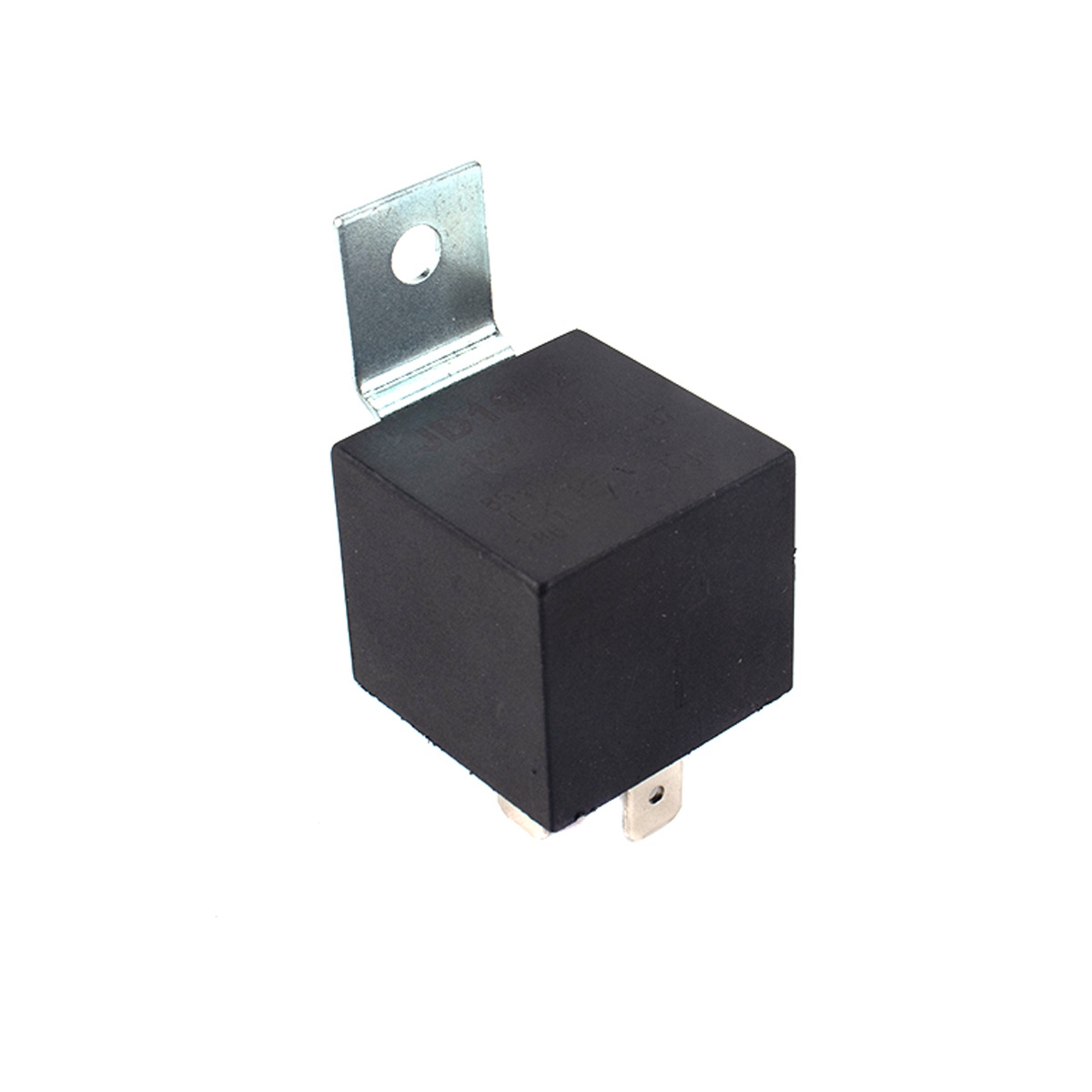

5 Pairs 12V Car Relay with Plum-shaped Waterproof Flame-retardant Socket

Product Description

1. Large capacity, can switch 40 amps of current; silver alloy contacts have stronger conductivity and longer service life; all-copper coils and all-copper electromagnetic coils, which are more reliable and accurate. 2. Mainly plays the role of circuit conversion, automatic adjustment and safety protection 3. Scope of application: Applicable to most automotive, marine and off-road wiring projects and repairs. 4. Material: plastic + rubber + copper wire 5. Relay Description: Voltage: 12V Operating temperature: -40a?? to+125a?? Contact capacity: 1a 40A 14VDC Coil power: 1.7 (W) Contact resistance: less than or equal to 50m ohms Insulation resistance: greater than or equal to 1,00M ohms Product life (times): electrical 1*100000/mechanical 1*10000000 Dielectric withstand voltage: 500VAC between open contacts/500VAC between coil contacts Ambient temperature: -40~+125 degrees Celsius Protection features: waterproof sealed type 6. Insert description: 85-ground 30 VDC 86-trigger 87-output N/O 7. Flame retardant socket harness description: 12AWG tinned copper wire: Pin 87 blue 12AWG tinned copper wire: Pin 30 red 16AWG tinned copper wire: Pin 85 black 16AWG tinned copper wire: 86 pin white

Specifications

SKU

EDA0010421

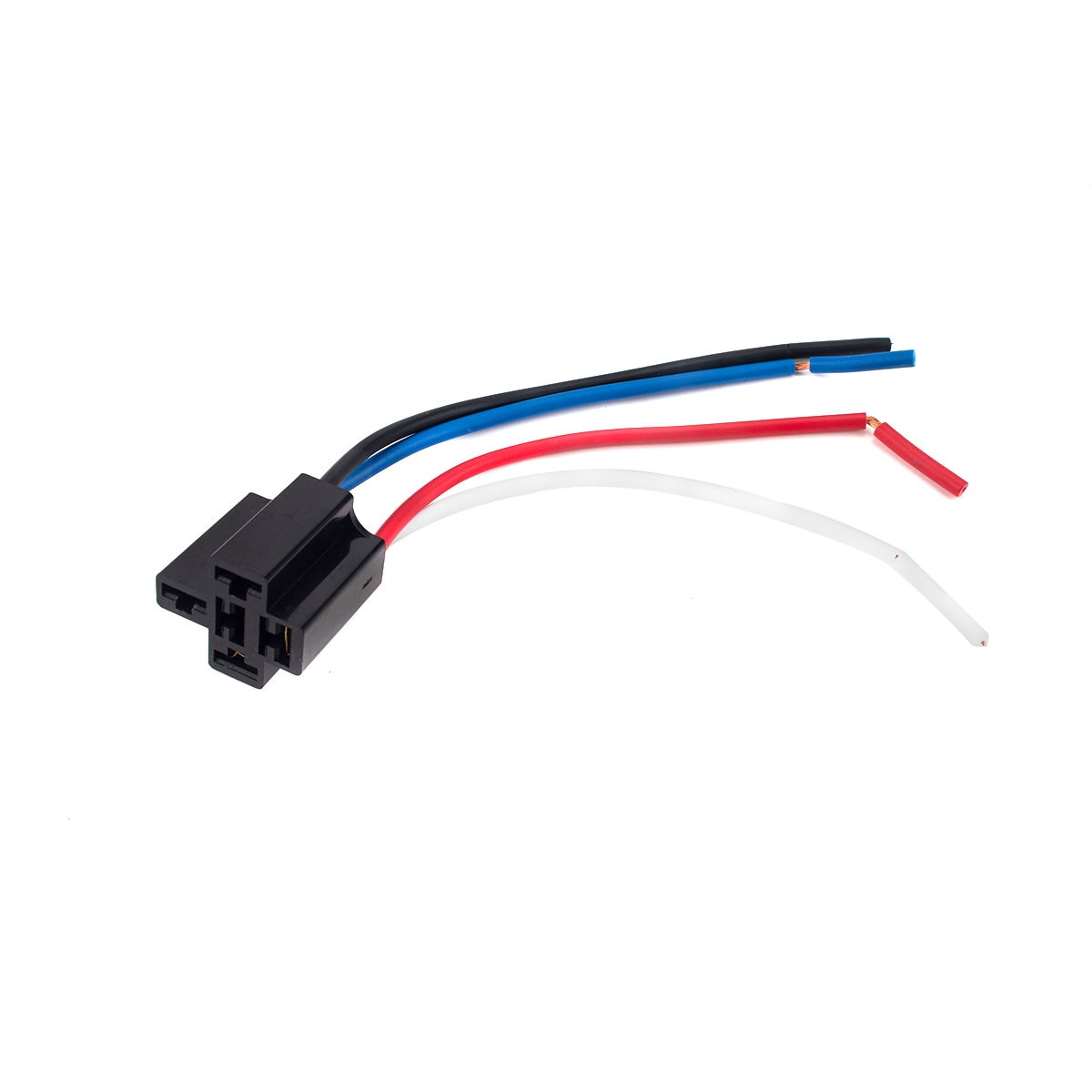

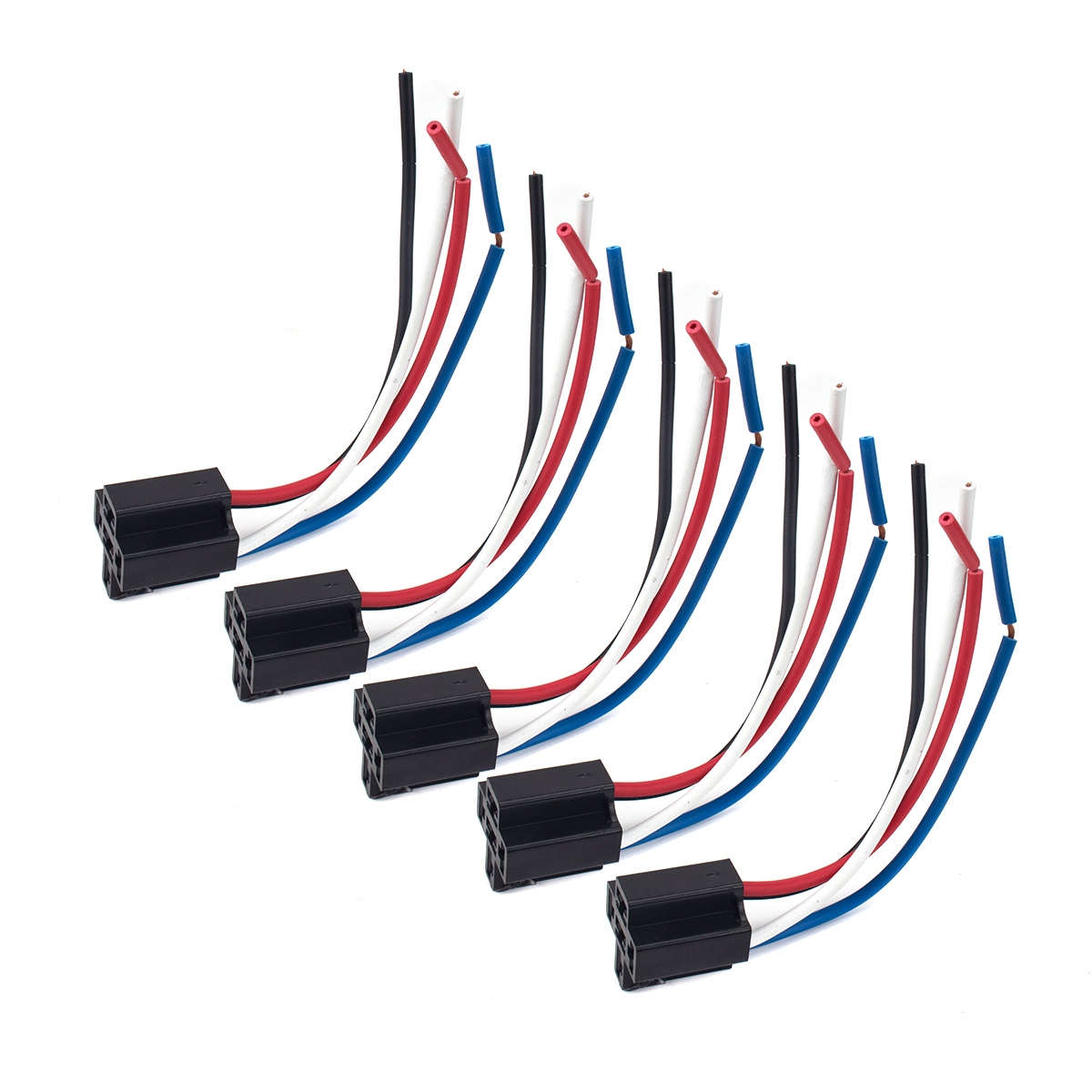

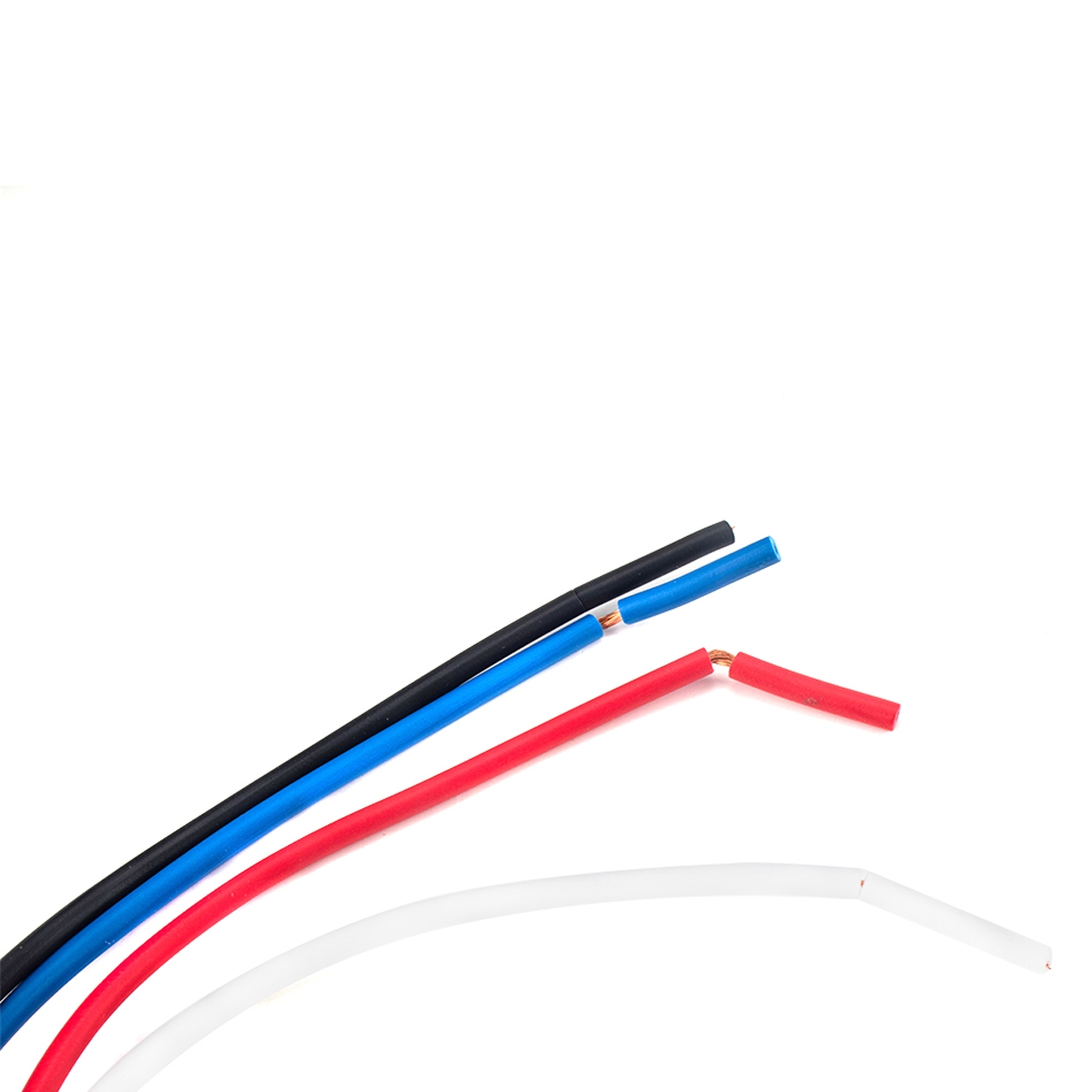

Category

In Car › Replacement Parts › Relays

Weight

0.348 kg

Delivery

Standard delivery
