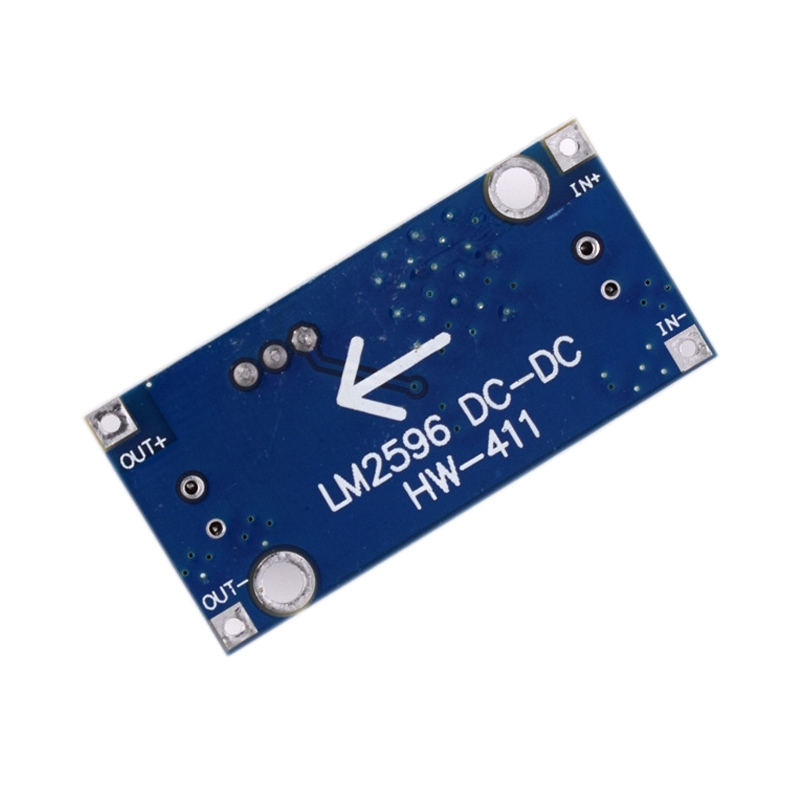

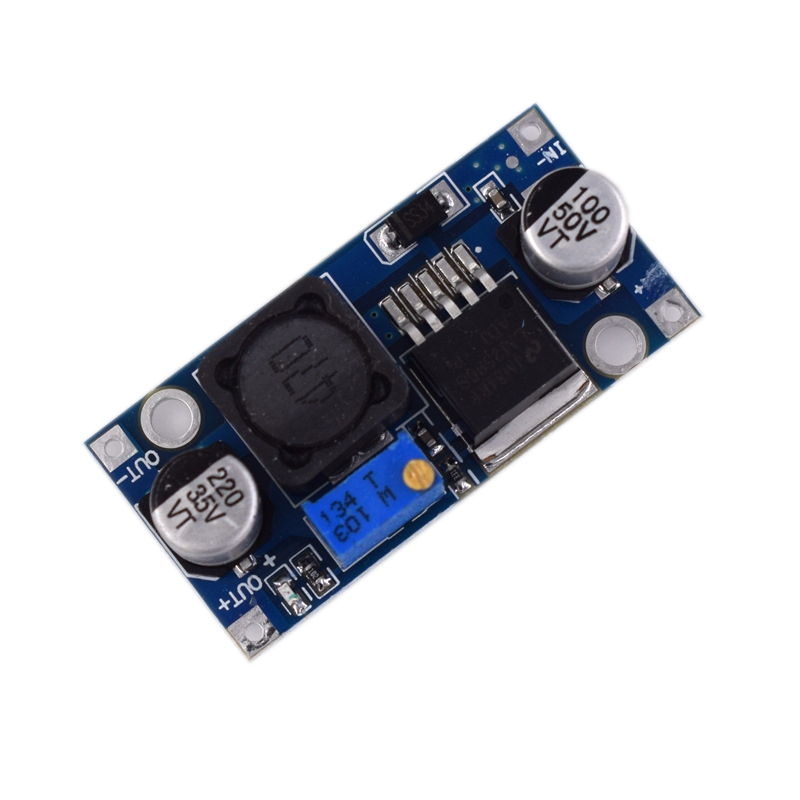

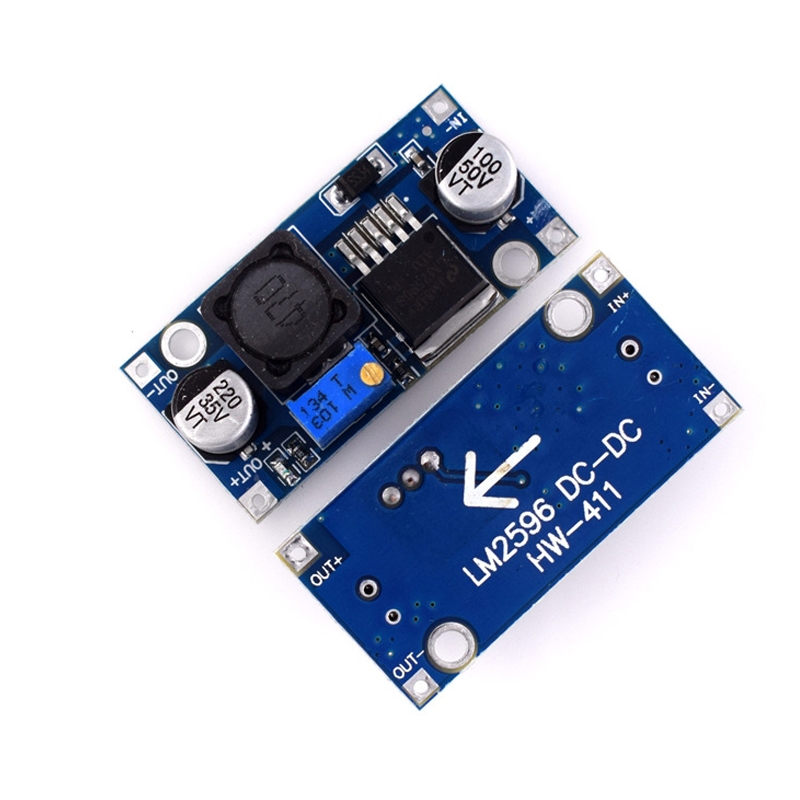

5 PCS LM2596 DC-DC High-Power Step-Down Car Power Module

Product Description

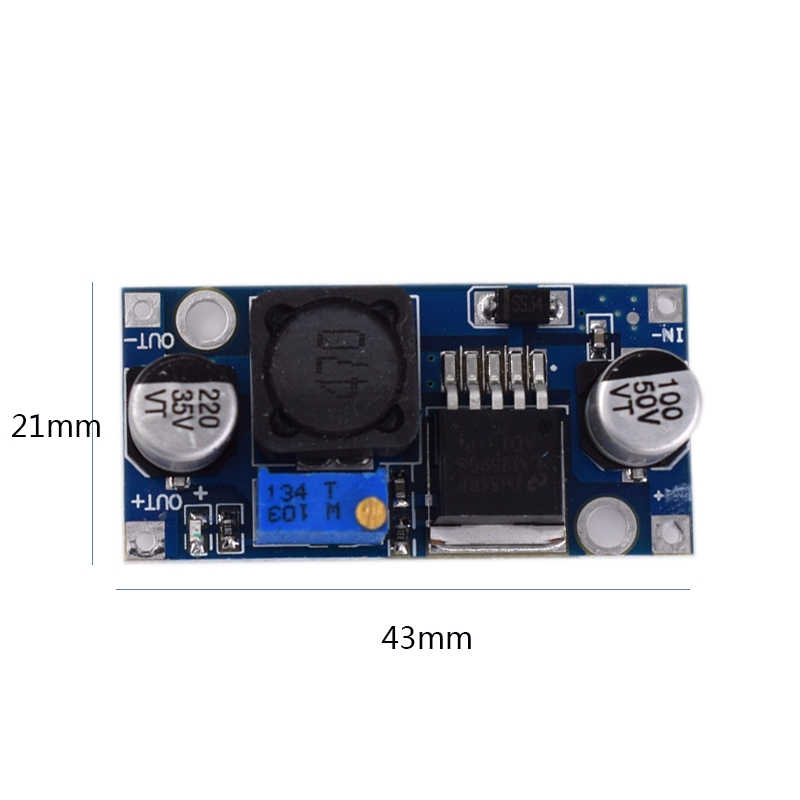

1. Input voltage: DC 3.2~40V 2. Output voltage: 1.25~35V 3. Output current: 3A 4. Output ripple: Less than 30mv 5. Switching frequency: 65Khz 6. Working temperature: -45 to 85 degrees Celsius 7. Size: 43x21x14mm 8. Note: This is a step-down module, and the input voltage needs to be higher than the output voltage. The output current is greater than 2.5A (or the output power is greater than 10W), please add a heat sink to work for a long time

Specifications

SKU

TBD05721578

Category

Consumer Electronics › Electronics Module › Other Accessories

Weight

0.204 kg

Delivery

Standard delivery
