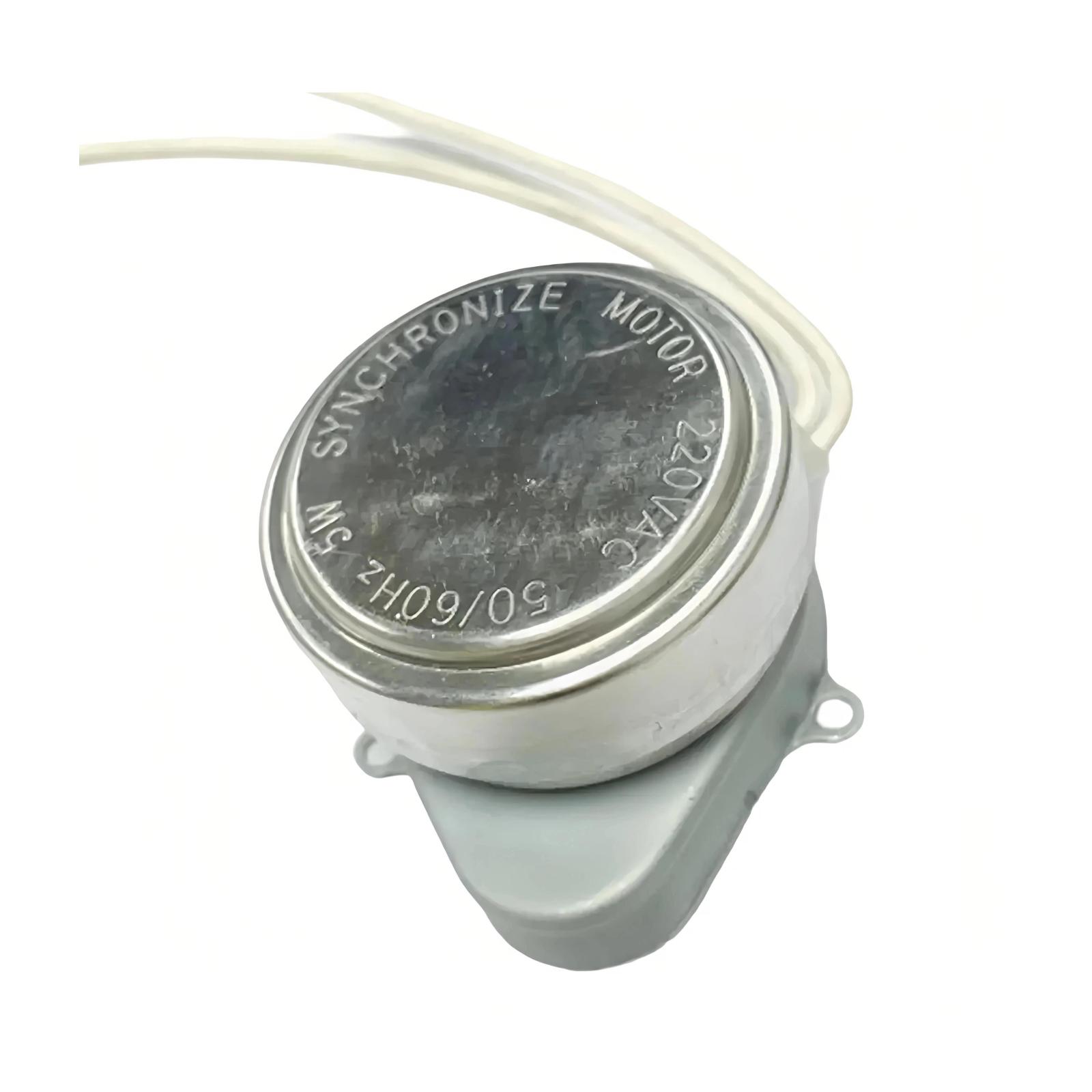

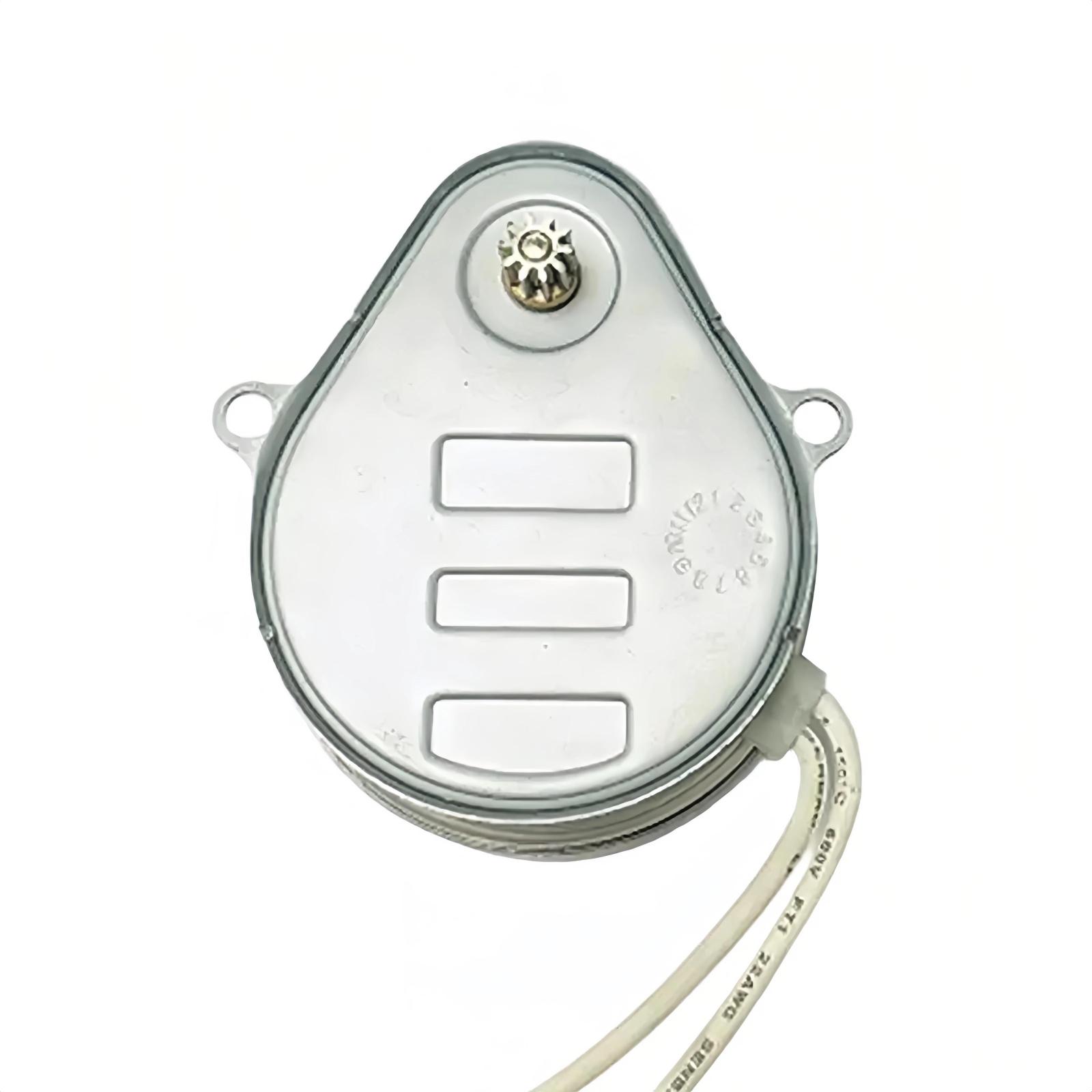

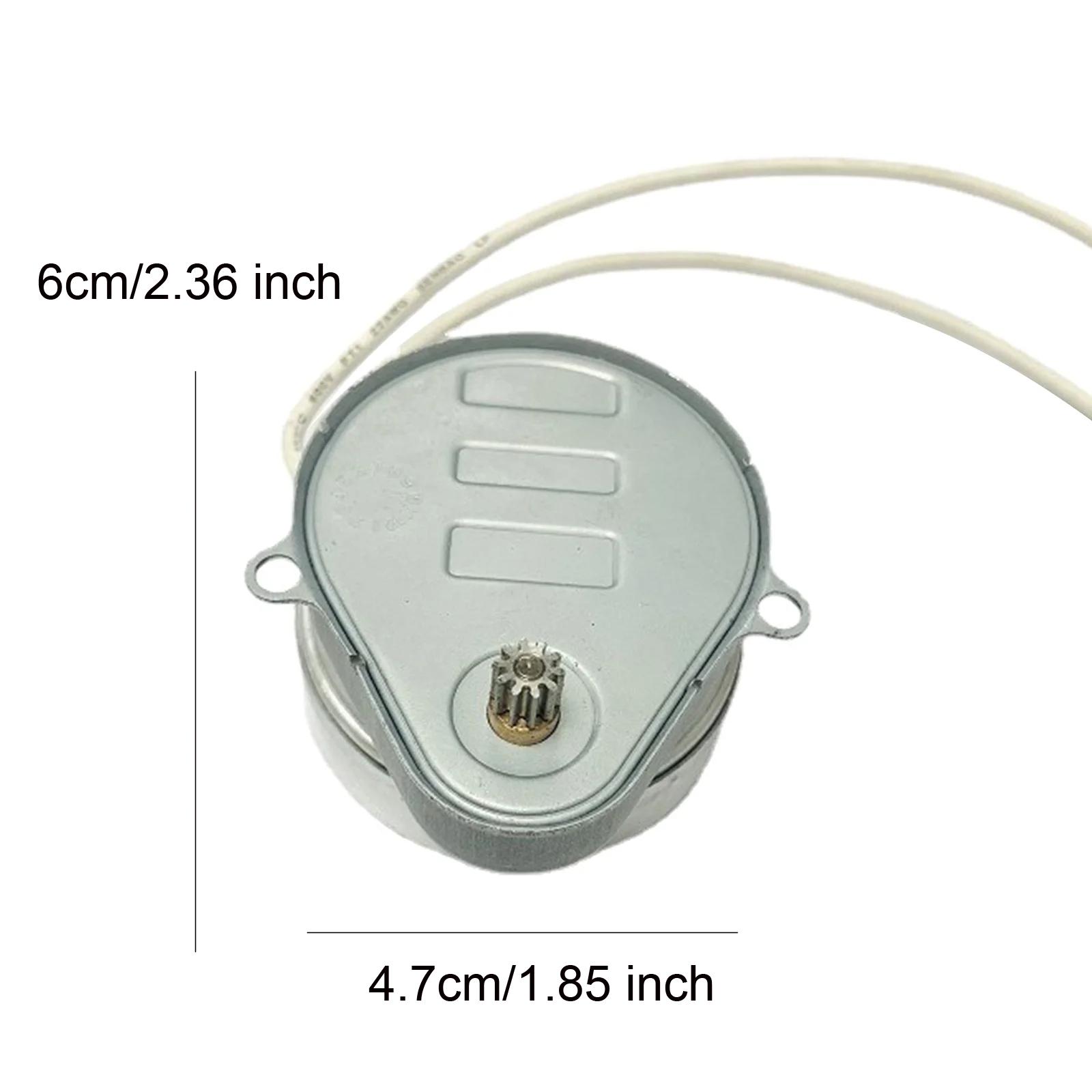

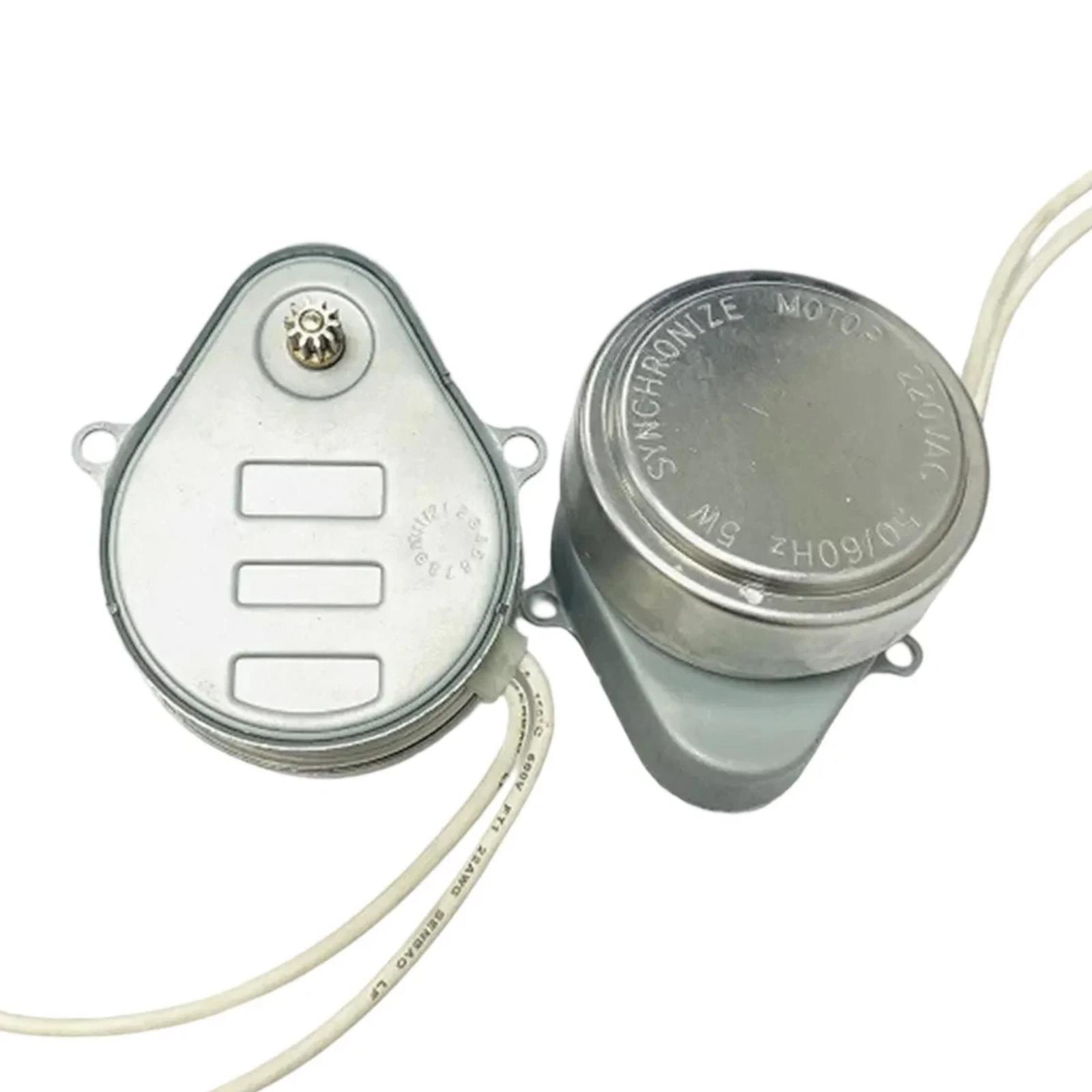

5 RPM Two-Way Valve Actuator Motor Hysteresis Synchronous Motor(AC 24V)

Product Description

1. Applications: electric valves/inverter home appliances/ultra-thin fans/air conditioners/microwave ovens/jewelry and toys/inverter air conditioners/central air conditioning 2. Voltage: AC 220-240V / AC 24V 3. Frequency: 50/60Hz 4. Output power: 3~10W 5. Spindle speed: 1~60 RPM 6. Braking torque: 1 RPM: 320 Kgf-cm 7. Spindle rotation direction: the direction varies depending on the speed, with both forward and reverse rotation options. 8. Insulation withstand voltage: AC 1500V - 1 Min 9. Insulation class: A, B Class 10. Standard wiring: 1007 X AWG#22 X 200 mm 11. Low noise, spring return, long operating life 12. Gear set is a combination of copper and steel gears 13. Long-term locking capability, motor is not easily burned out

Specifications

SKU

TBD0595698801B

Category

Home & Garden › Appliance Parts › Air Conditioner Parts

Weight

0.504 kg
