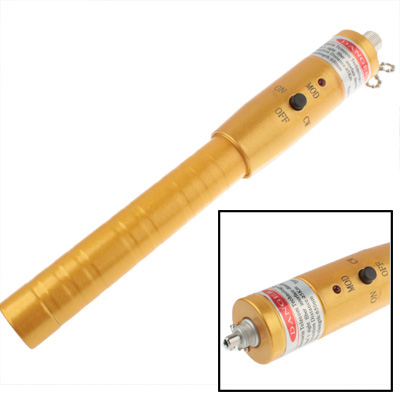

5Km Visual Fault Locator Detector Tester Optical Red Light Test Pen

Product Description

This professional 5Km new visual fault locator fiber optic laser is specially designed for professional personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. And other great functions such as finding the breakpoint, poor connections, bending or cracking in fiber optic cables, finding the faults of OTDR etc. Specifications 1) Central wavelength: 650nm±10nm 2) Emitter type: FP-LD 3) Detection distance: >=5km 4) Optical connector: 2.5mm universal connector 5) Operating mode: both CW and Pulse available 6) Operating temperature: -10~+45 Degrees Celsius 7) Storage temperature: -40~+70 Degrees Celsius 8) Pulse frequency: 2-3Hz 9) Power supply: 2 x AA Alkaline batteries (not included) 1) Size: 18.5x2.4x2.4cm

Specifications

SKU

S-PC-1551A

Category

Computer & Networking › Optical Series › Fiber Optic Test Pen

Weight

0.27 kg

Delivery

Standard delivery
