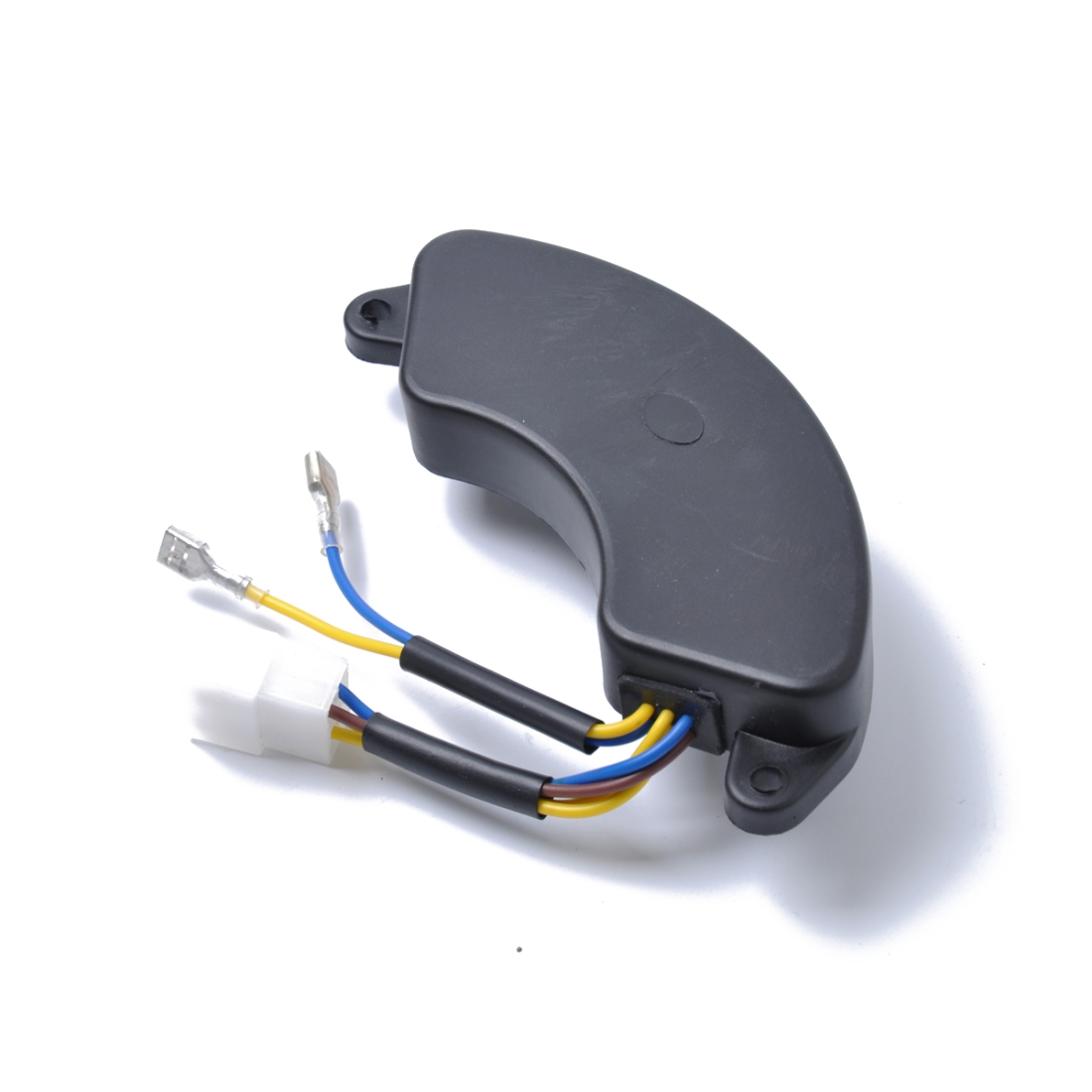

5KW AVR Automatic Voltage Regulator Rectifier for Honda 188F / 190F GX390 Gasoline Generator

Product Description

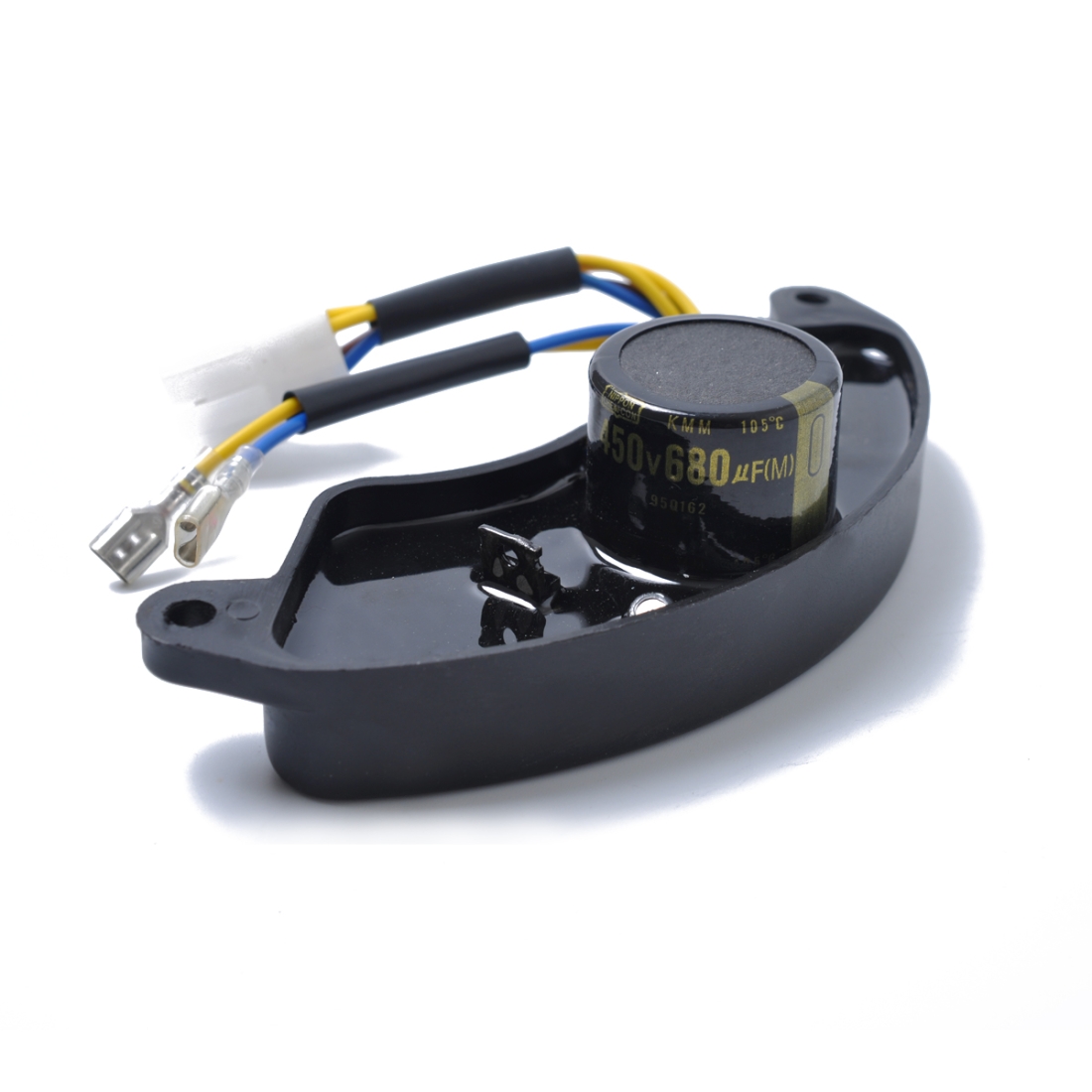

Feature: 1. Stop fluctuation of voltage, automatically maintaining generator output terminal voltage at a set value. 2. Prevent generator from suffering damages of voltage fluctuation or over load. 3. It uses an electromechanical mechanism, or passive or active electronic components. 4. According to the design, which is used to manage one or more AC or DC voltage. 5. In addition to the shunt regulator, the regulator operates through a number of fixed internal comparison of the actual output voltage of the reference voltage. 6. Any differences are used to control the zoom and regulatory elements. Specification: 1. Material: Plastic shell 2. Power: 5KW 3. Starting mode: Electric start 4. Phase: single phase 5. Wire: 4 wires connector + 2 wires 6. Capacitor: 450v 680uF Application: Fits for Honda 188F / 190F GX390 Gasoline Generator. Package: 1 x AVR voltage regulator

Specifications

SKU

CMS9973

Category

Home & Garden › Tools & Industrial & Scientific › Gasoline Generators

Weight

0.231 kg

Delivery

Standard delivery
