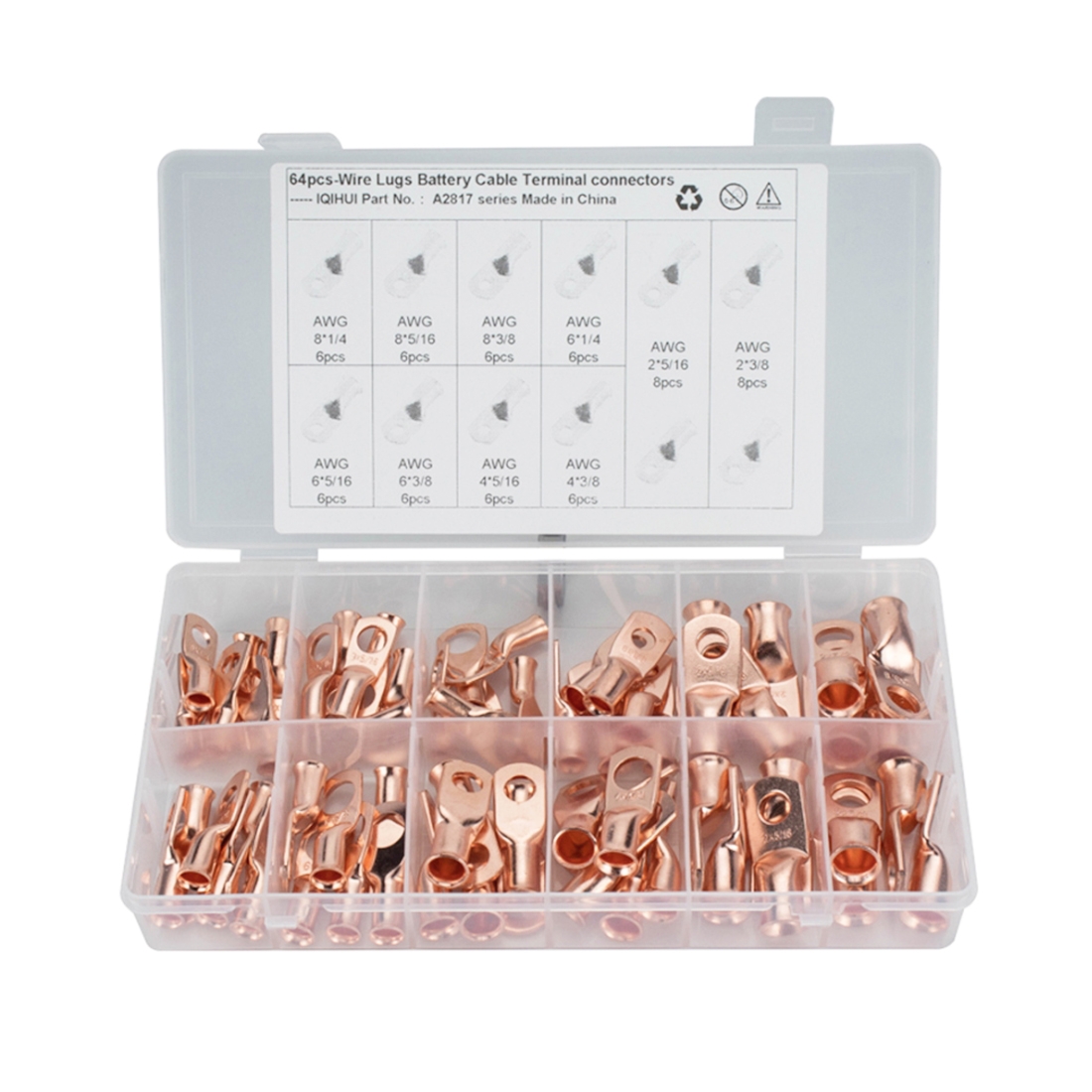

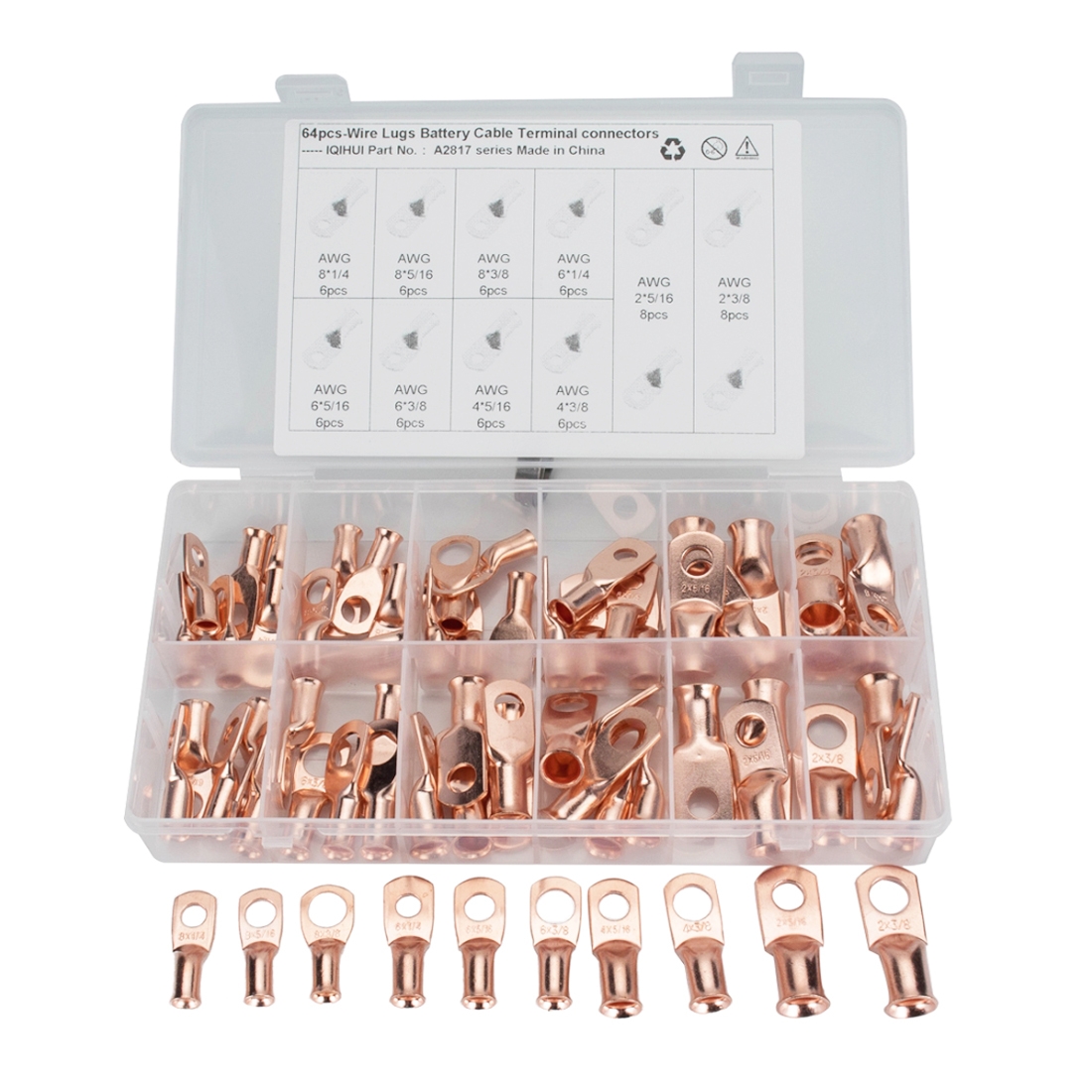

64 PCS Wire Terminals Connector Cable Lugs AWG T2 Copper Heavy-duty Cold-pressed Battery Cable Ends

Product Description

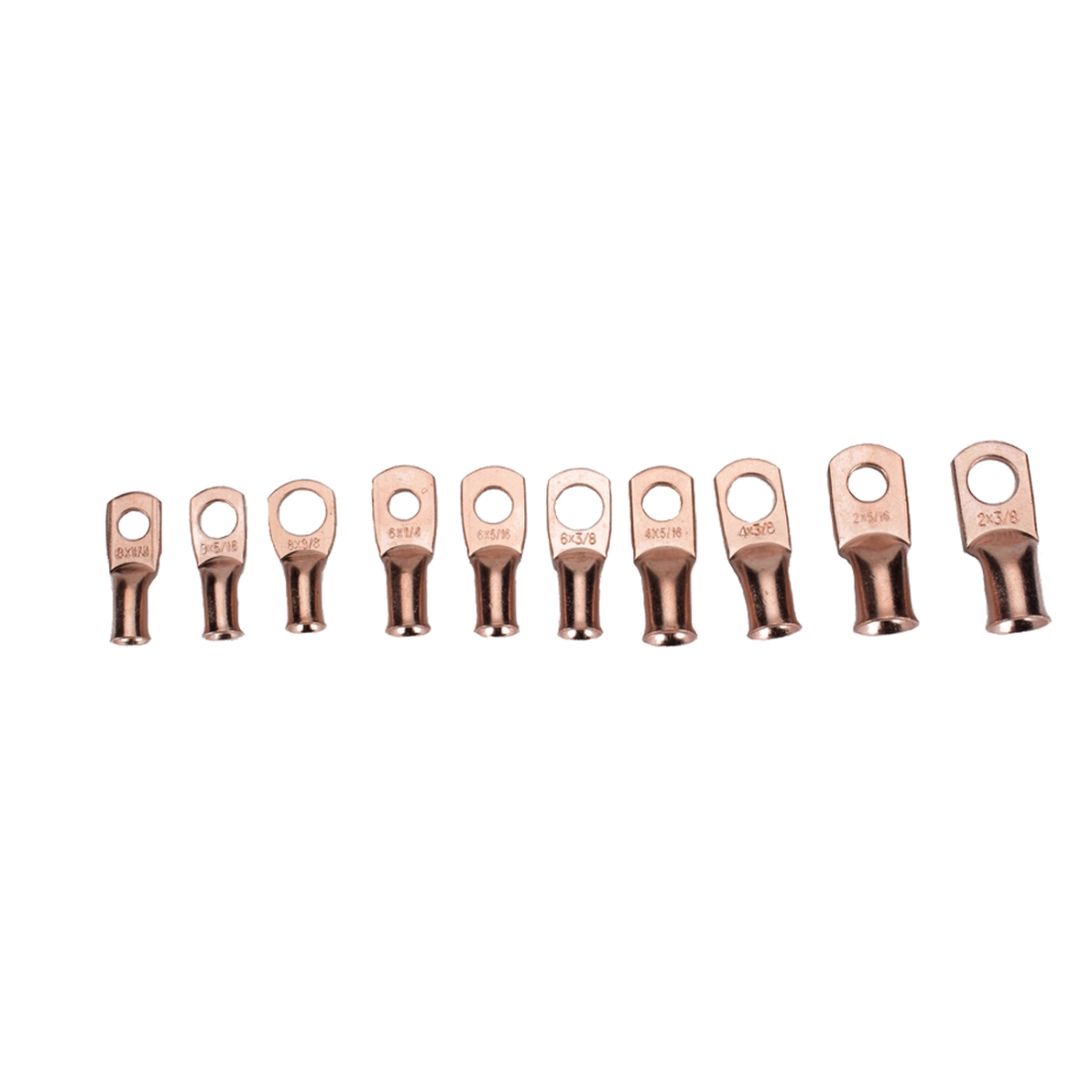

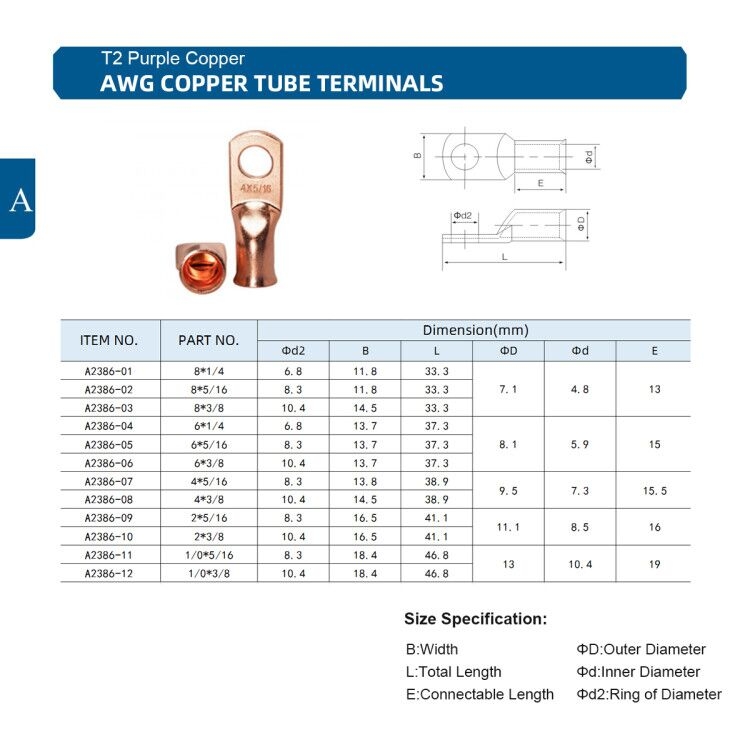

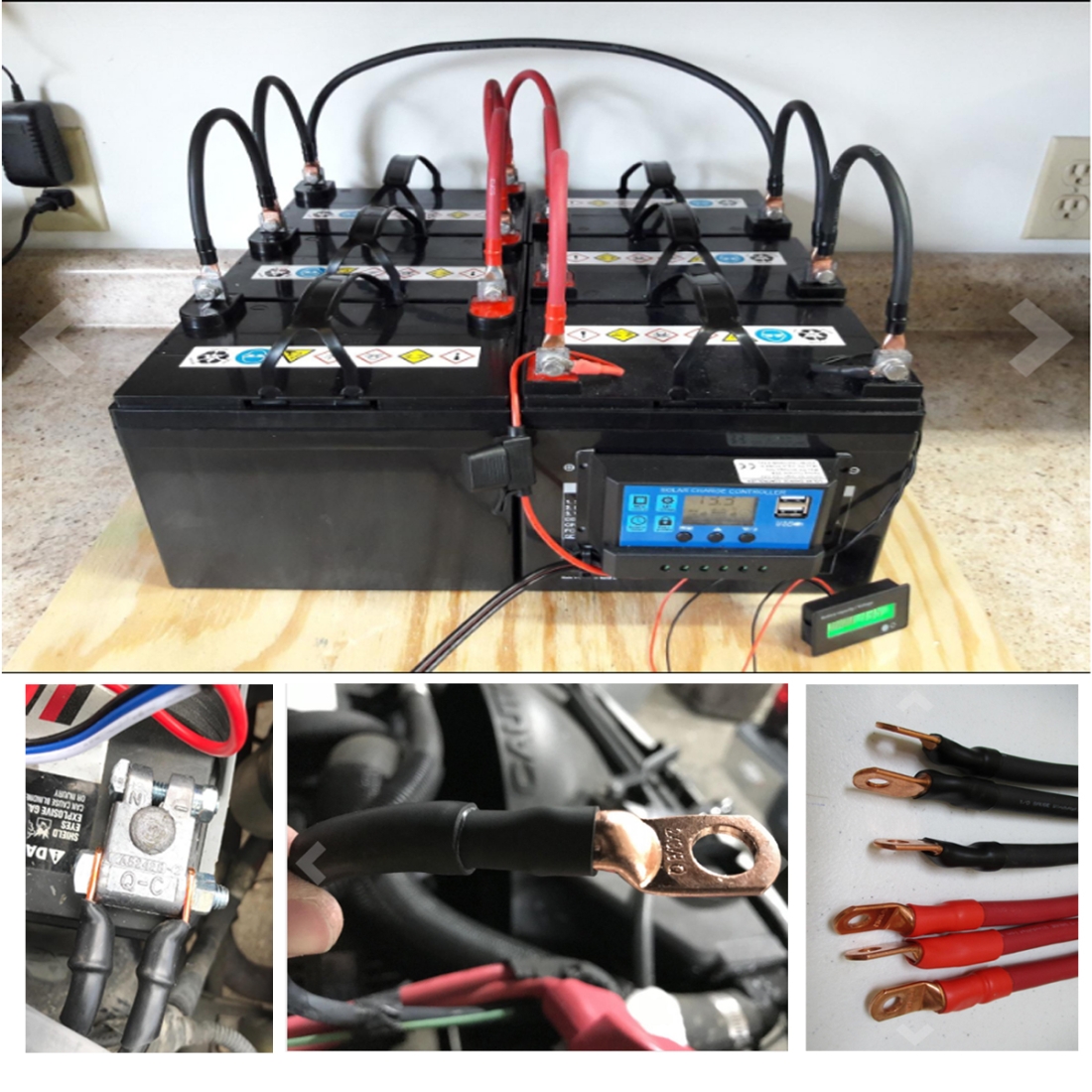

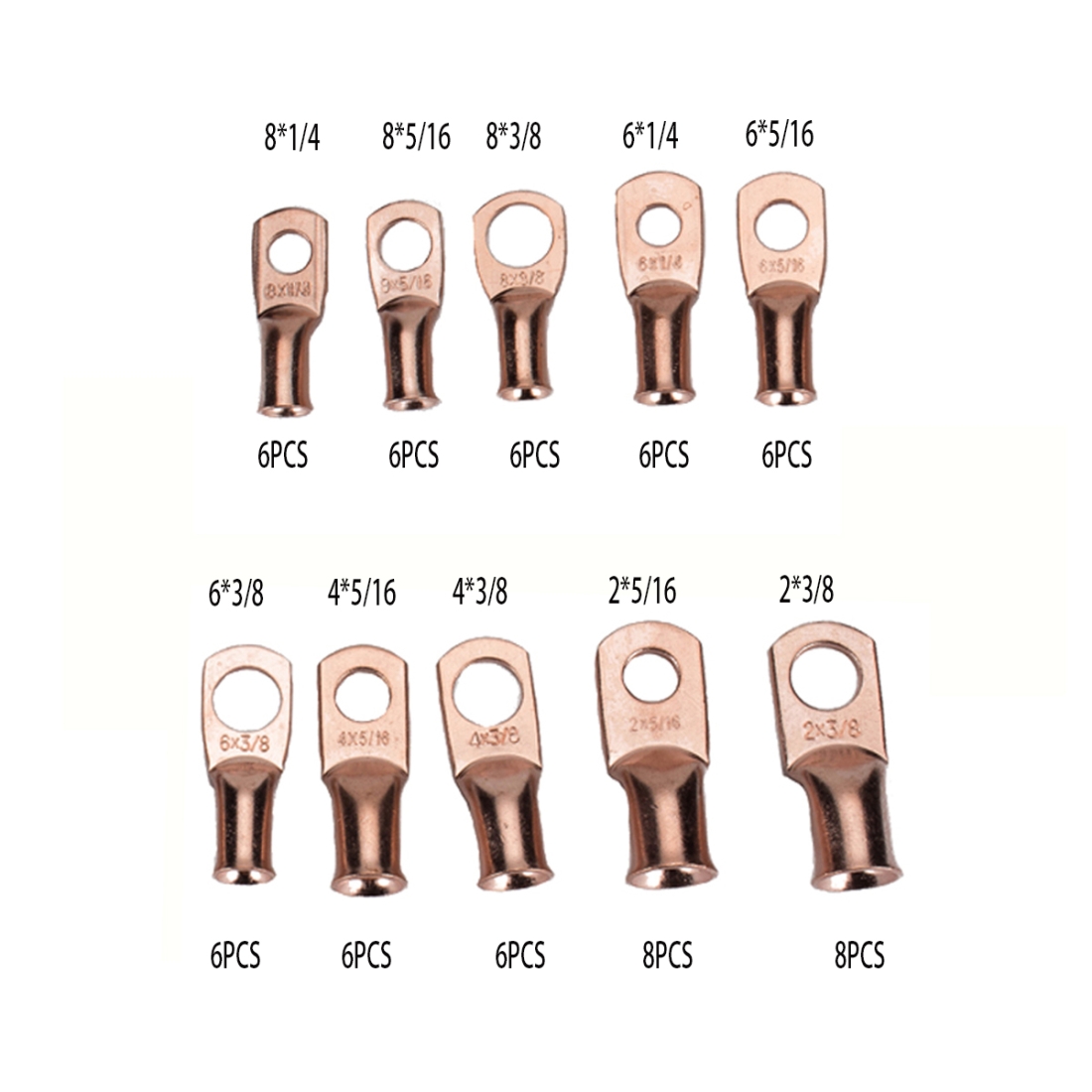

1. Use high-quality material copper, good conductivity, safety, simple wiring, convenient operation, wide range of applications 2. Function: It is used to connect the wire and cable to the electrical equipment. 3. Features: Working temperature -55-150 degree Celsius, after salt spray test 48H, using environmentally friendly fog tin. 4. Scope of application: Widely used in military industry / aerospace, household appliances, lighting electronics, automotive electronics, ships, marine, etc. 5. Product material: T2 copper 6. Product attributes: AWG American regulatory series 7. Product specifications: 8 x 1 / 4-length 33.3MM, fixed aperture 6.8MM, wiring aperture 4.8MM 8 x 5 / 16-length 33.3MM, fixed aperture 8.3MM, wiring aperture 4.8MM 8 x 3 / 8-length 33.3MM, fixed aperture 10.4MM, wiring aperture 4.8MM 6 x 1 / 4-length 37.3MM, fixed aperture 6.8MM, wiring aperture 5.9MM 6 x 5 / 16-length 37.3MM, fixed aperture 8.3MM, wiring aperture 5.9MM 6 x 3 / 8-length 37.3MM, fixed aperture 10.4MM, wiring aperture 5.9MM 4 x 5 / 16-length 38.9MM, fixed aperture 8.3MM, wiring aperture 7.3MM 4 x 3 / 8-length 38.9MM, fixed aperture 10.4MM, wiring aperture 7.3MM 2 x 5 / 16-length 41.1MM, fixed aperture 8.3MM, wiring aperture 8.5MM 2 x 3 / 8-length 41.1MM, fixed aperture 10.4MM, wiring aperture 8.5MM 8. Matters needing attention: (1). The connecting wire should be stripped first; (2). The cable should be inserted into the bottom of the terminal wiring hole and fixed with special crimping pliers. 9. Product composition: AWG 8 x 1/4-6 PCS AWG 8 x 5/16-6 PCS AWG 8 x 3/8-6 PCS AWG 6 x 3/8-6 PCS AWG 6 x 1/4-6 PCS AWG 6 x 5/16-6 PCS AWG 4 x 5/16-6 PCS AWG 4 x 3/8-6 PCS AWG 2 x 5/16-8 PCS AWG 2 x 3/8-8 PCS

Specifications

SKU

CRP9611

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.593 kg

Delivery

Standard delivery
