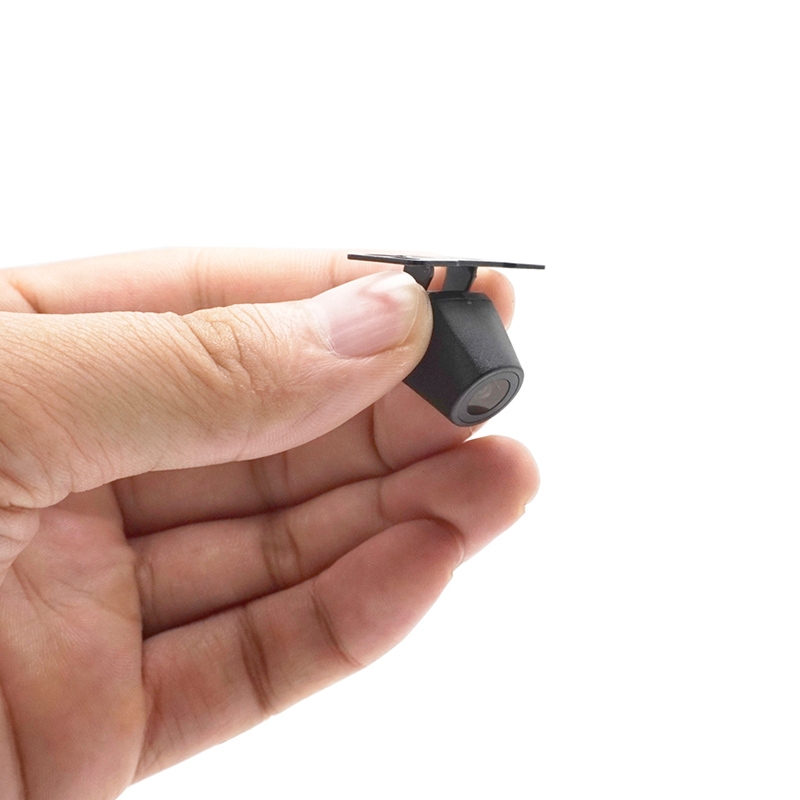

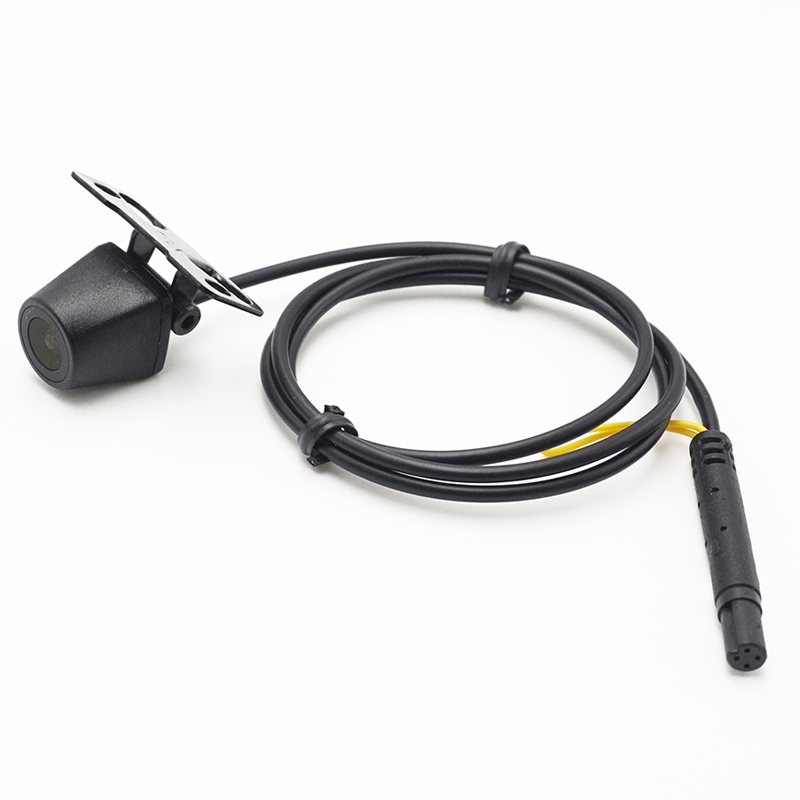

640x480 Pixel Waterproof Car Auto-sensitivity 12mm Mini Plug-in Rear View Backup Reverse Camera

Product Description

1. Image processing chip: 1/4 PC7070 chip 2. Pixel: 640 x 480 3. NTSC system, ruler line can be trimmed 4. Line number: 480TV LINE 5. 170 degree wide angle, 110 degree horizontal angle 6. Photosensitive area: 3.8 mm x 2.9 mm 7. Shutter speed: 1-1 / 12000 8. Gamma: 0.45 9. Low illumination: 0.01 Lux / F = 1.2 (0 Lux with IR on) 10. Video output: 1.0 VP-P, 75 OHM lotus head output, other connectors are optional 11. Working current: 130 mA 12. Working voltage: DC12V 13. Working temperature: -20 ~ 75 degrees Celsius, RH 95% MAX 14. Storage temperature: -40 ~ 80 degrees Celsius RH95% MAX 15. Waterproof rating: IP67 16. Sensitive mode: automatic photosensitive, night vision as color

Specifications

SKU

CAPS6805

Category

In Car › Parking Sensor › Rear View Cameras

Weight

0.17 kg

Delivery

Standard delivery
