868MHz Outdoor Waterproof Extension Antenna For Garage Door Remote Control

Product Description

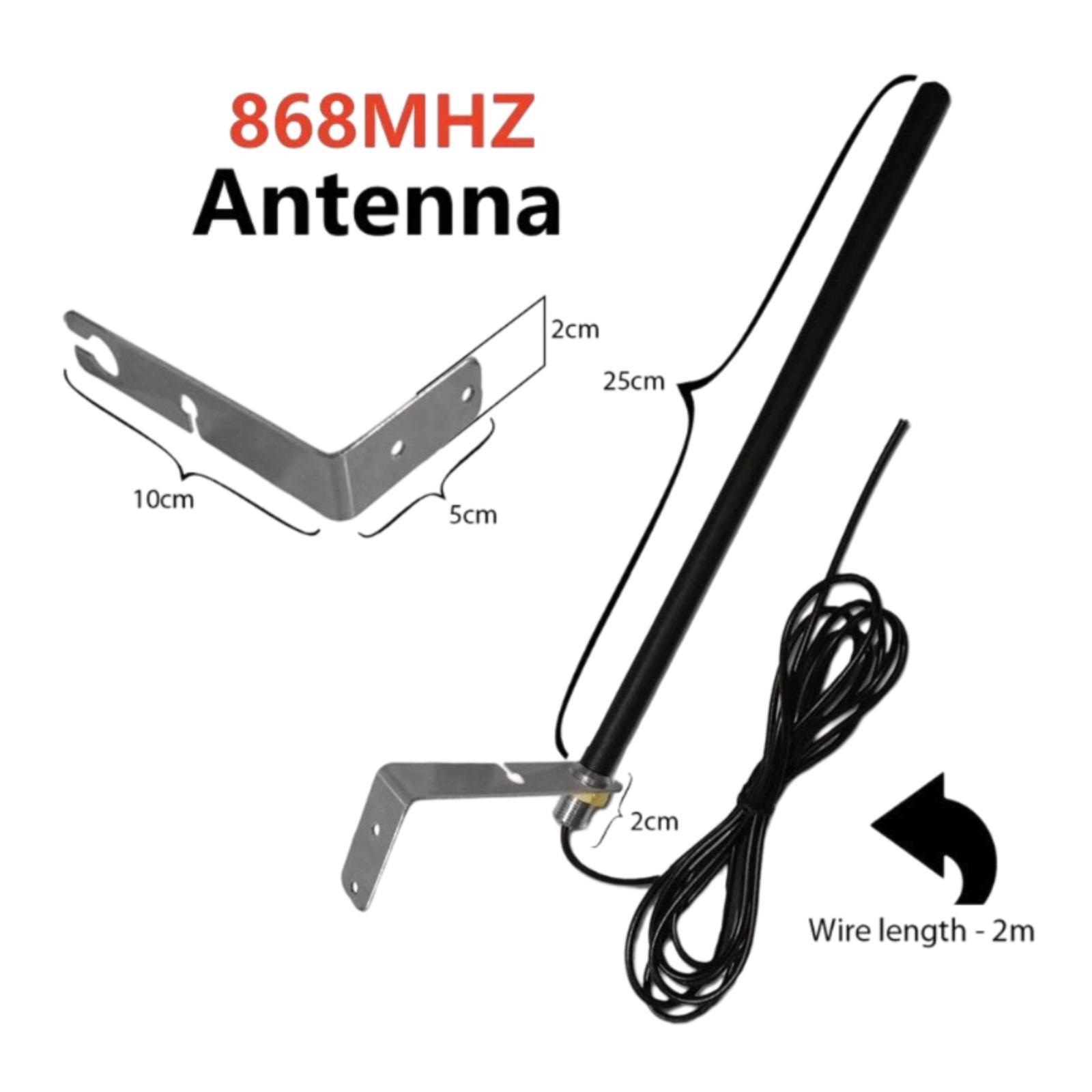

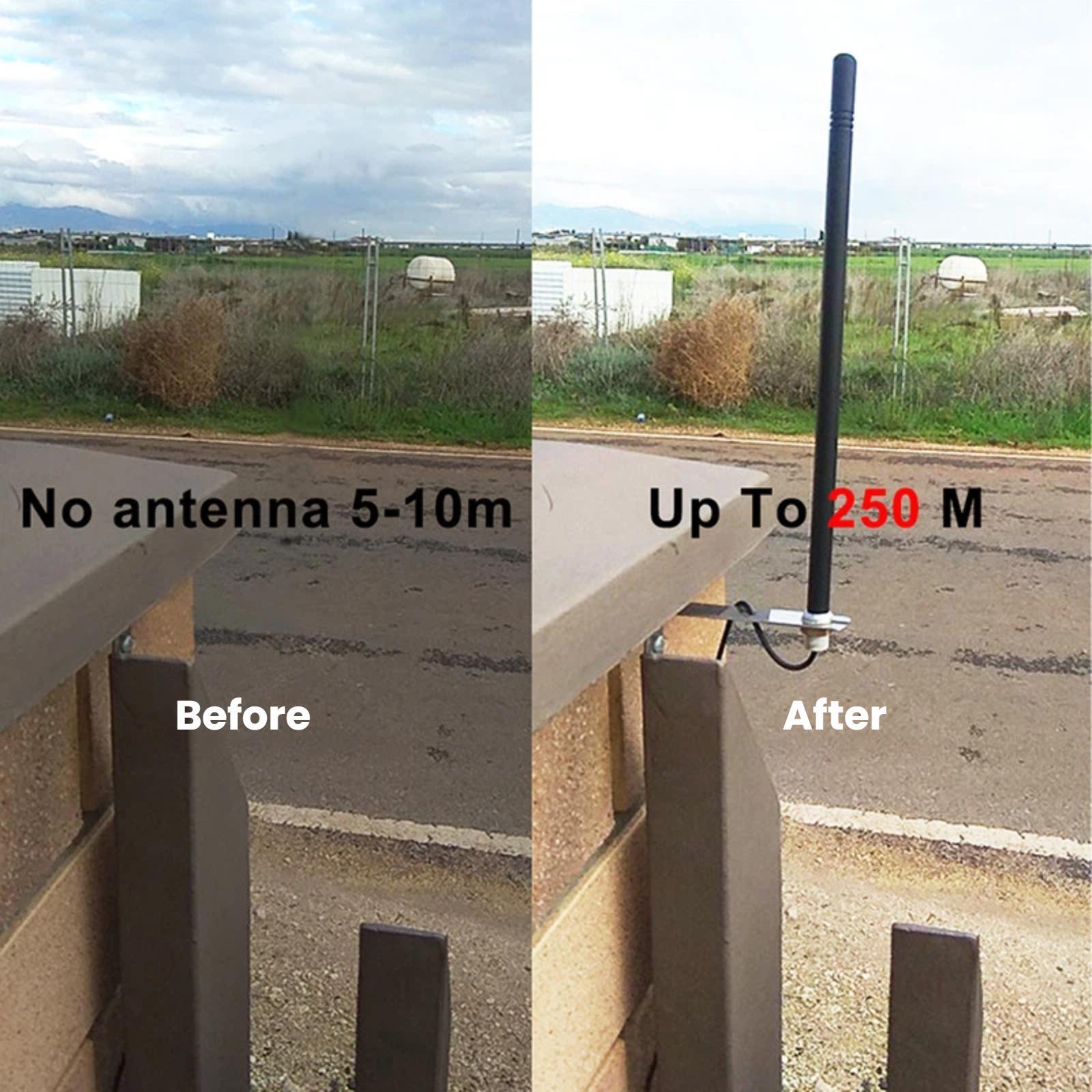

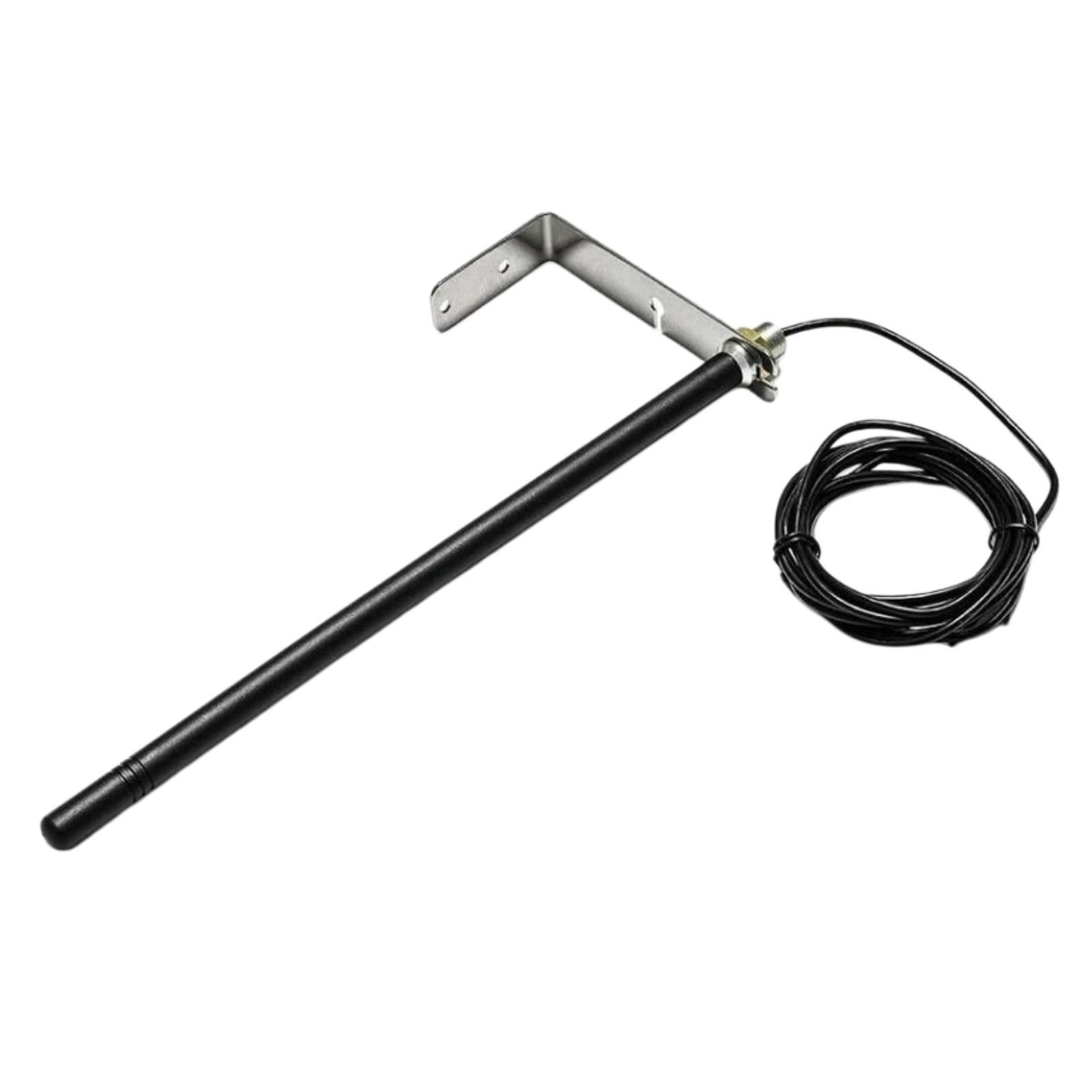

1. Frequency: 868 MHz 2. Bandwidth: 10 MHz 3. VSWR (Voltage Standing Wave Ratio) is less than or equal to 1.5 4. Gain: 3 dBi 5. Maximum input power: 20 W 6. Input impedance: 50 ohms 7. Polarization mode: vertical polarization 8. Antenna length: 250 mm 9. Cable type: RG174 10. Impedance: 50 ohms 11. Installation method: screw fixation (wall-mounted) 12. Wide range of applications: garage doors, electronic doors, gates, sliding doors, automatic doors, rolling shutters, blinds, household appliances/household smart devices, such as lighting systems, alarm systems, access control systems 13. Suitable for extending the range of all 868 MHz remote controllers 14. Materials: ABS, metal 15. Bracket material: stainless steel 16. Cable length: 2 meters

Specifications

SKU

TBD06070627

Category

Security › Security Alarm › Wireless Remote Controller

Weight

0.139 kg

Delivery

Standard delivery
