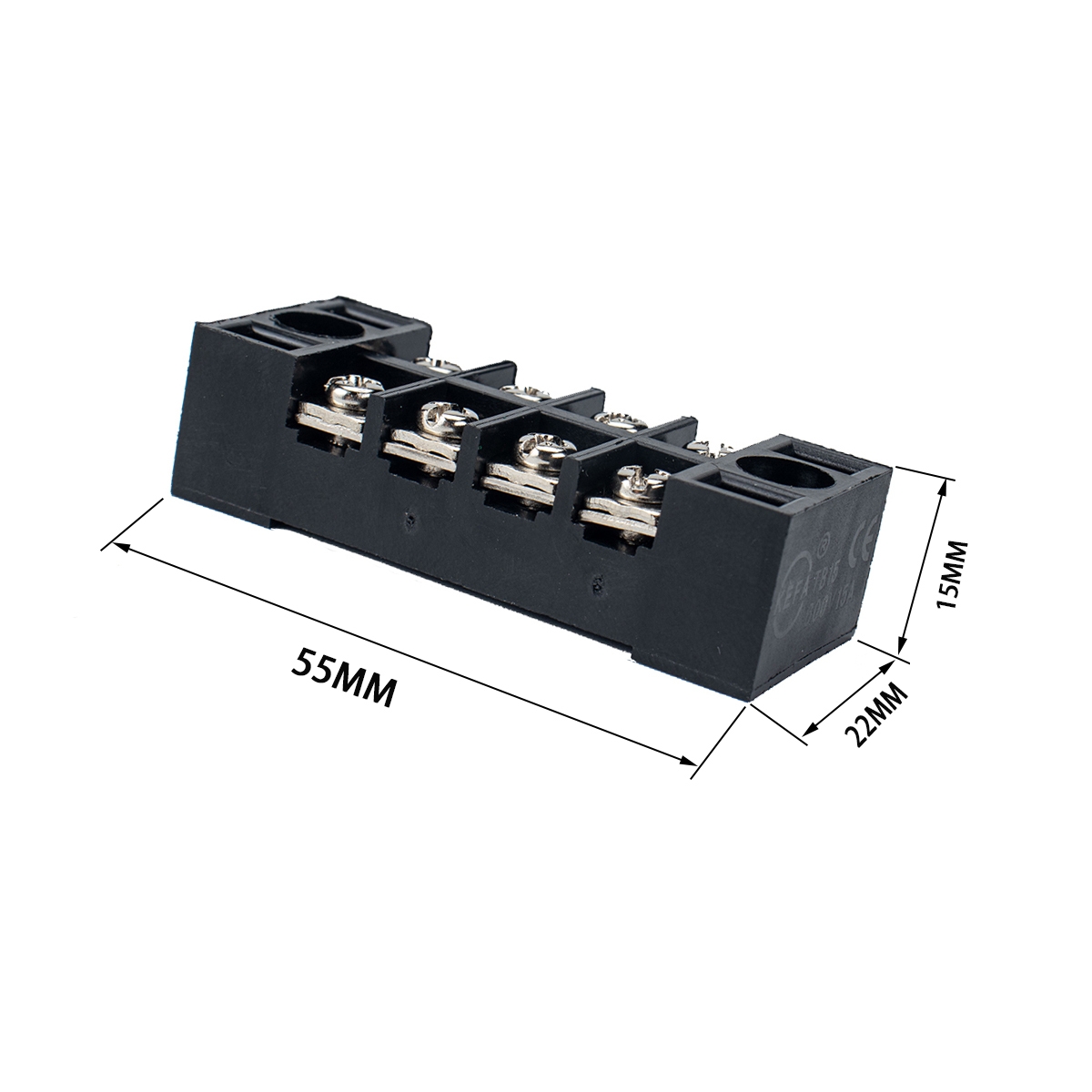

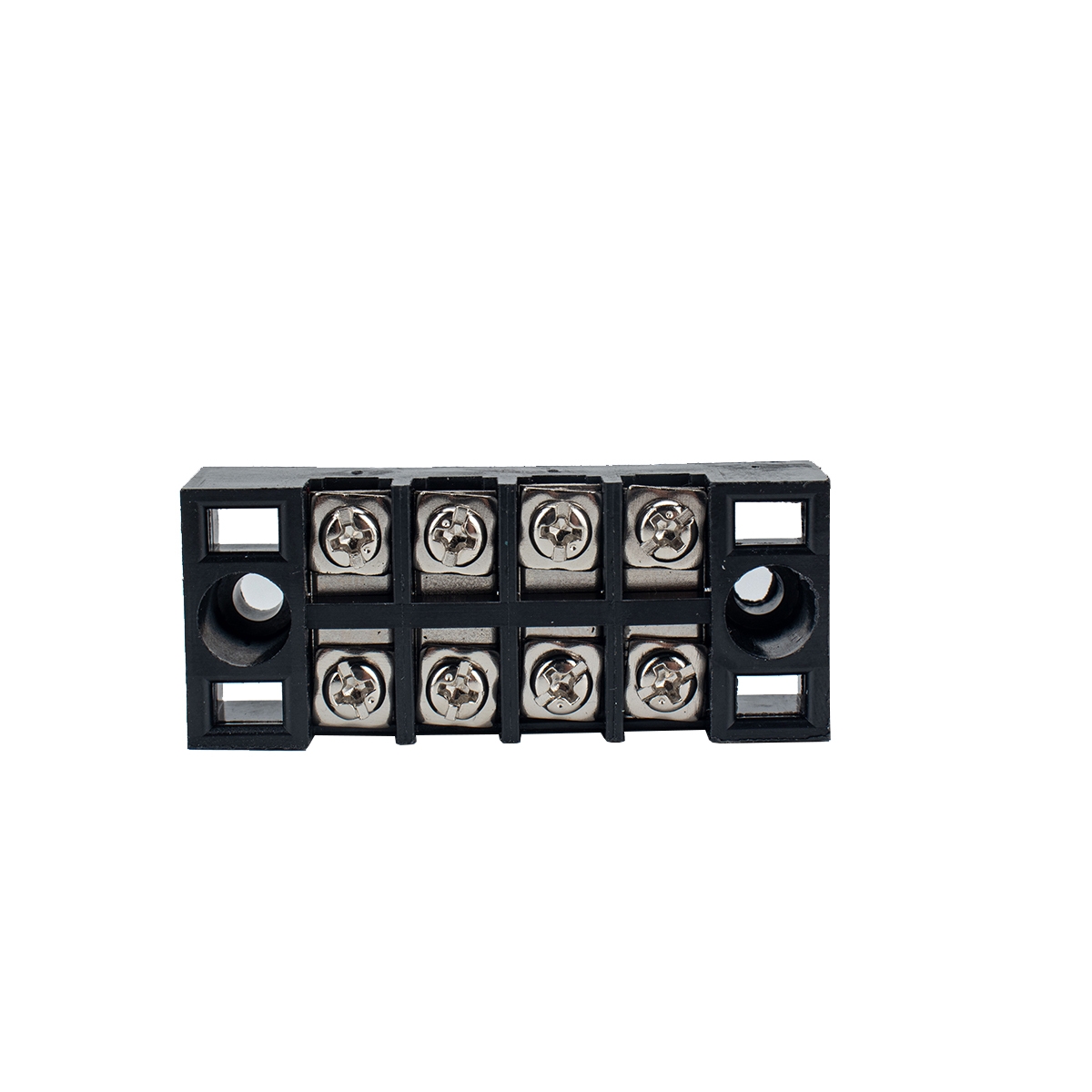

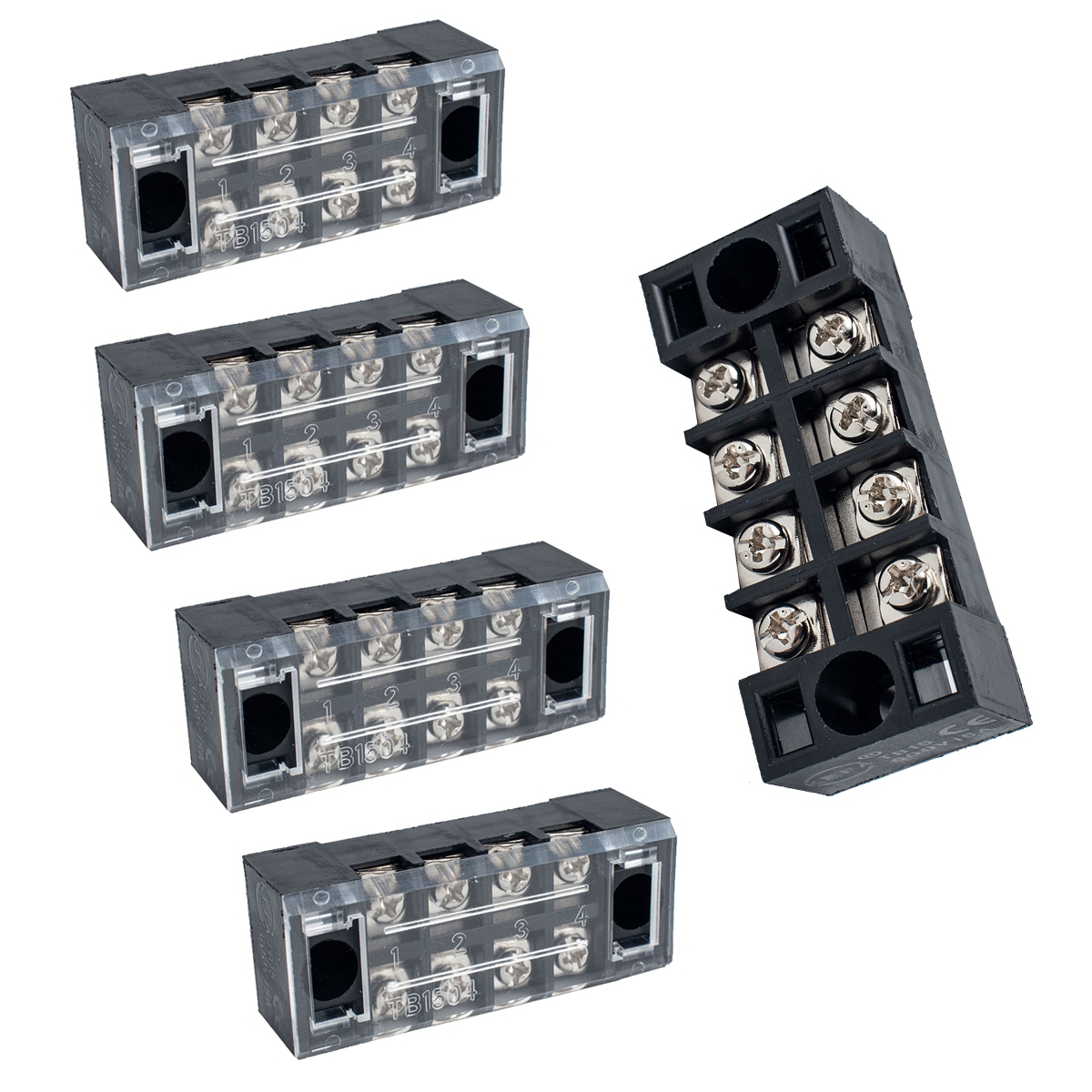

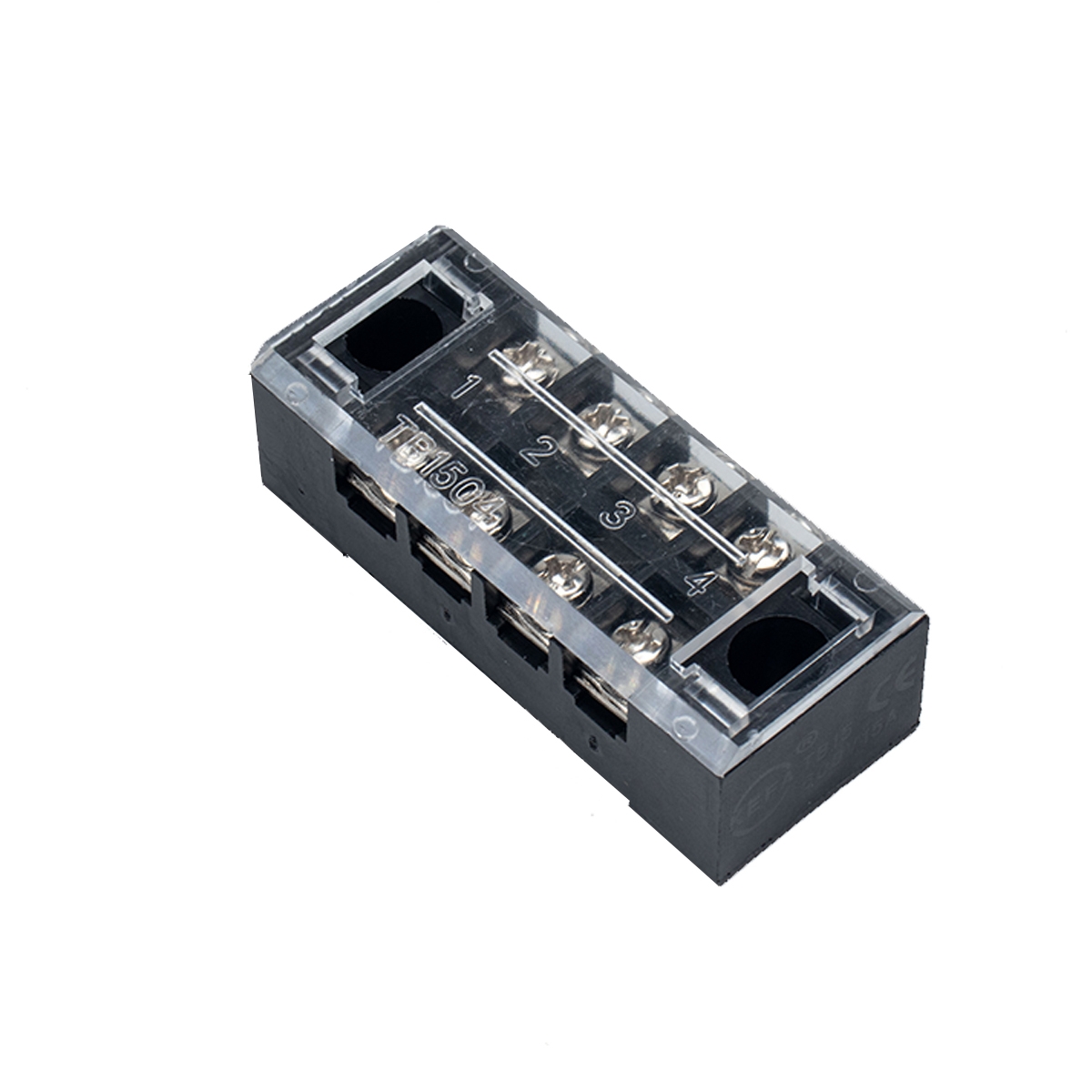

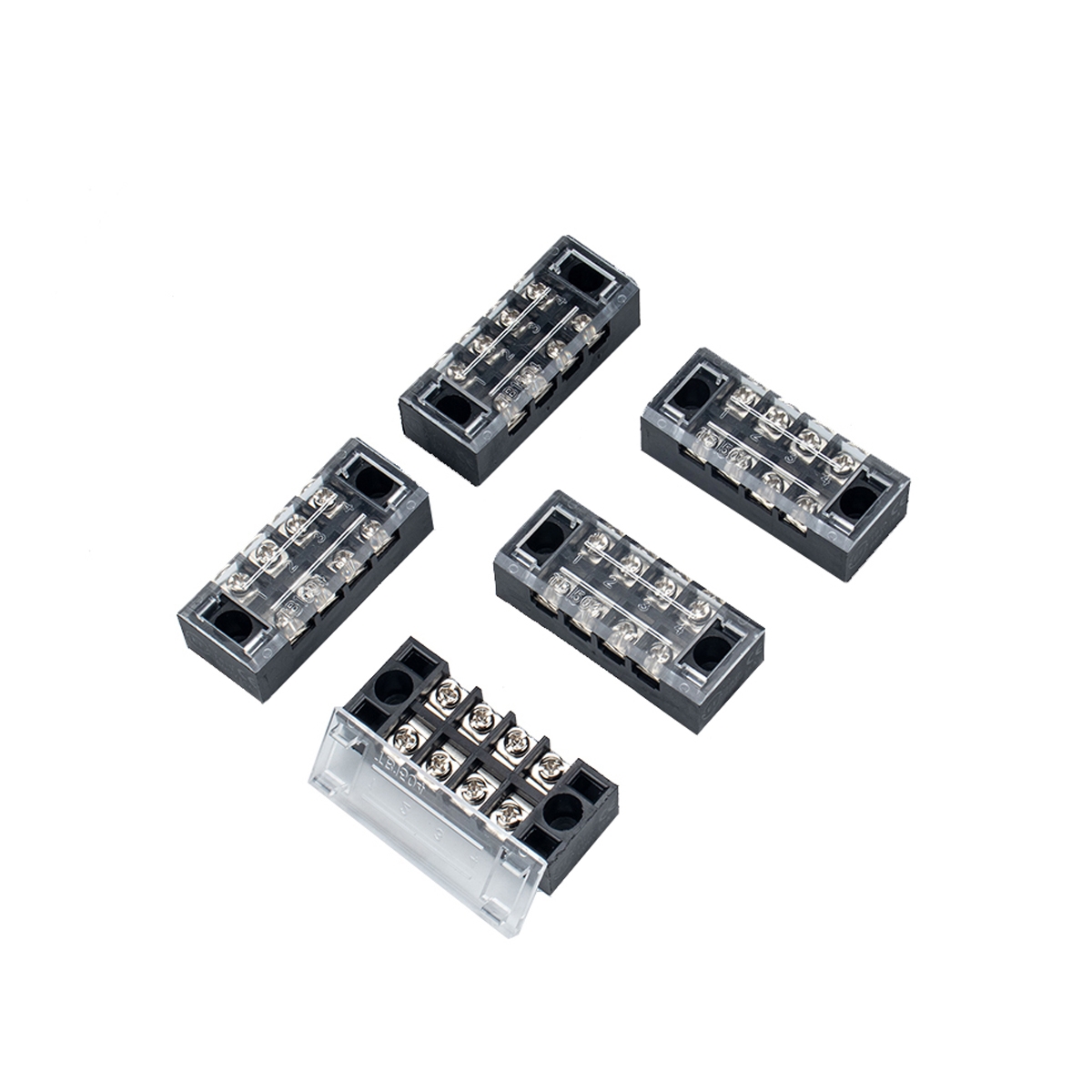

A4000 5 in 1 TB-1504 15A Double Row 4-position Fixed Power Screw Terminal

Product Description

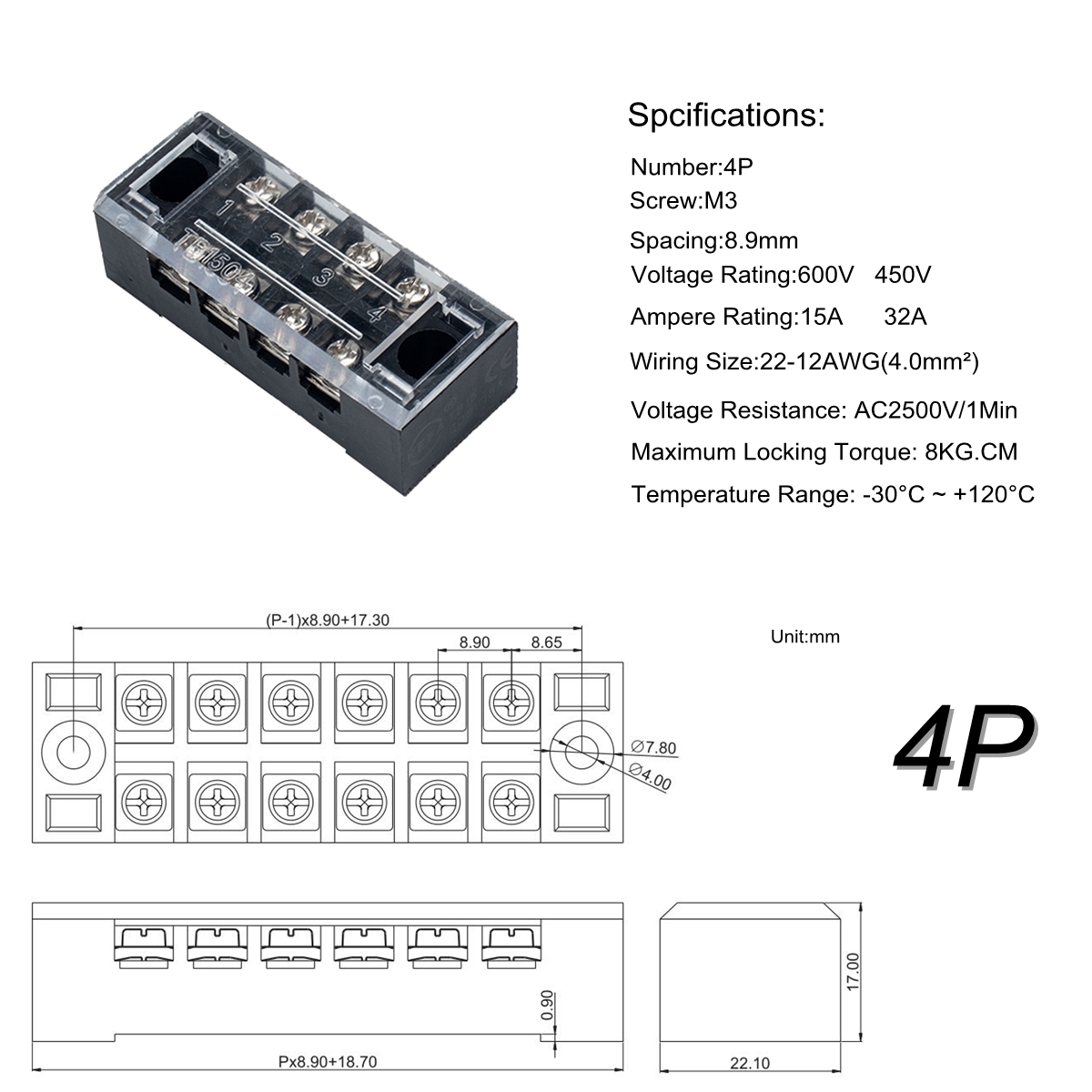

1. The function of the terminal block is to connect the lines inside the electric box equipment and outside the electric box equipment, and play the role of signal (current and voltage) transmission. 2. Make the wiring beautiful, easy to maintain, easy to operate, and easy to install. 3. Scope of application: power distribution box for motorhomes, yachts, electrical appliances, etc. 3. Corrosion resistant, fire retardant and flame retardant. 4. Material: plastic PBT UL94V-0, steel tin plated 5. Specification: 15A 600VAC; 32A 450VAC 6. Withstand voltage: AC2500V / 1Min 7. Use wire warp: 22-12AWG (4.0 square millimeters) 8. Torque (max): 8KG.CM 9. Spacing: 8.9mm (spacing between two screws) 10. Temperature range: -30~+120 degrees Celsius 11. Number of poles: 4P

Specifications

SKU

EDA002473001

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.124 kg

Delivery

Standard delivery
