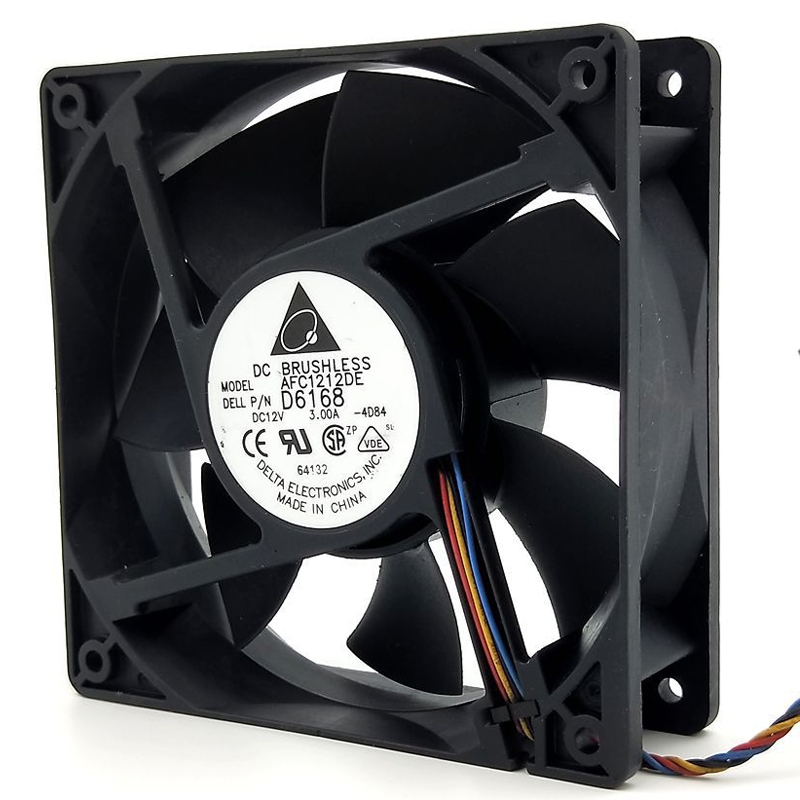

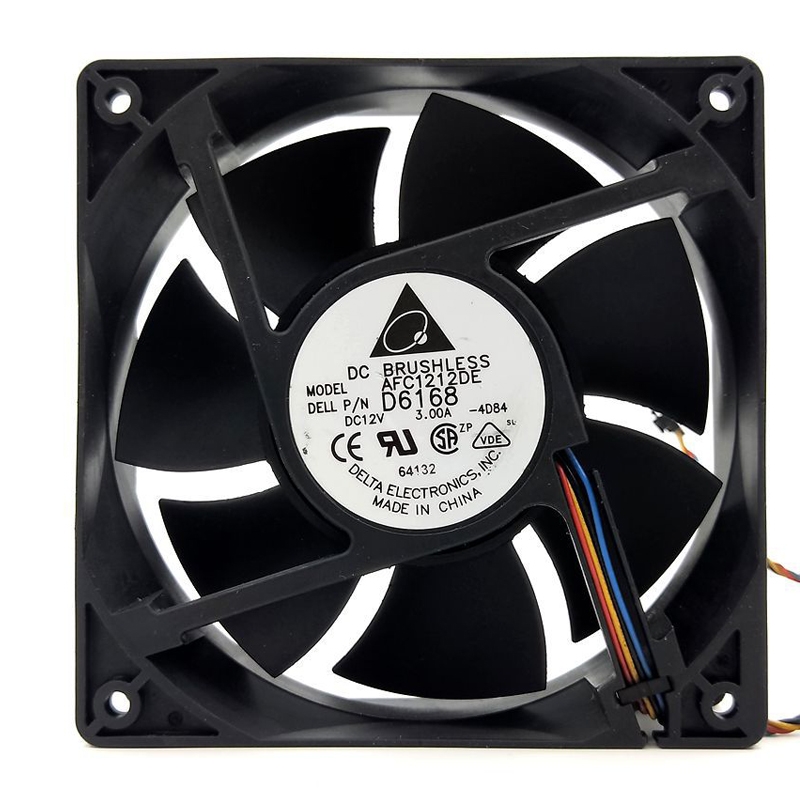

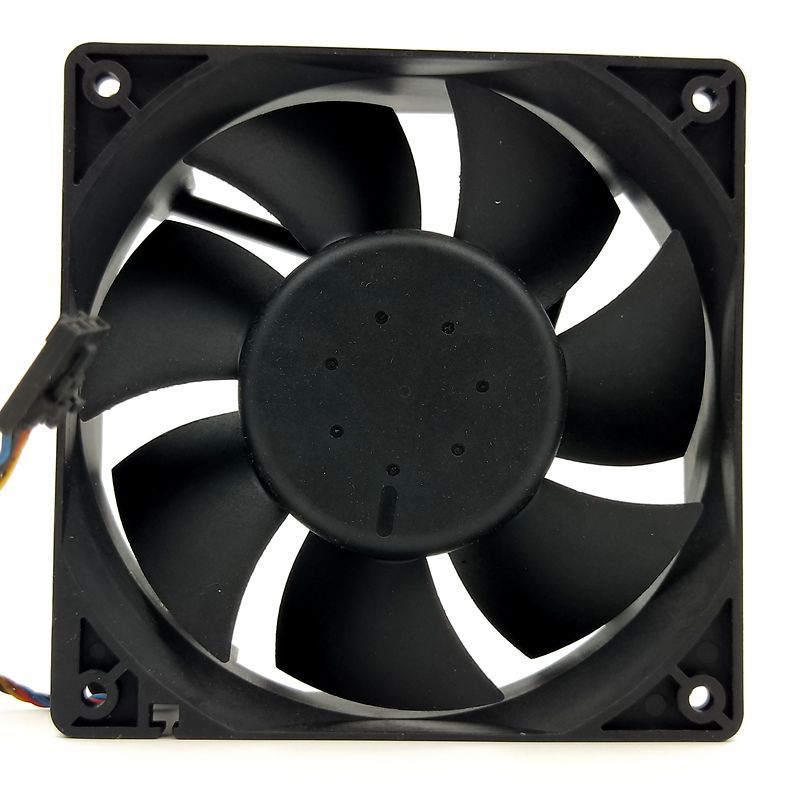

AFC1212DE 12cm 12V 3A Dual Ball Bearing DC Cooling Fan(Black)

Product Description

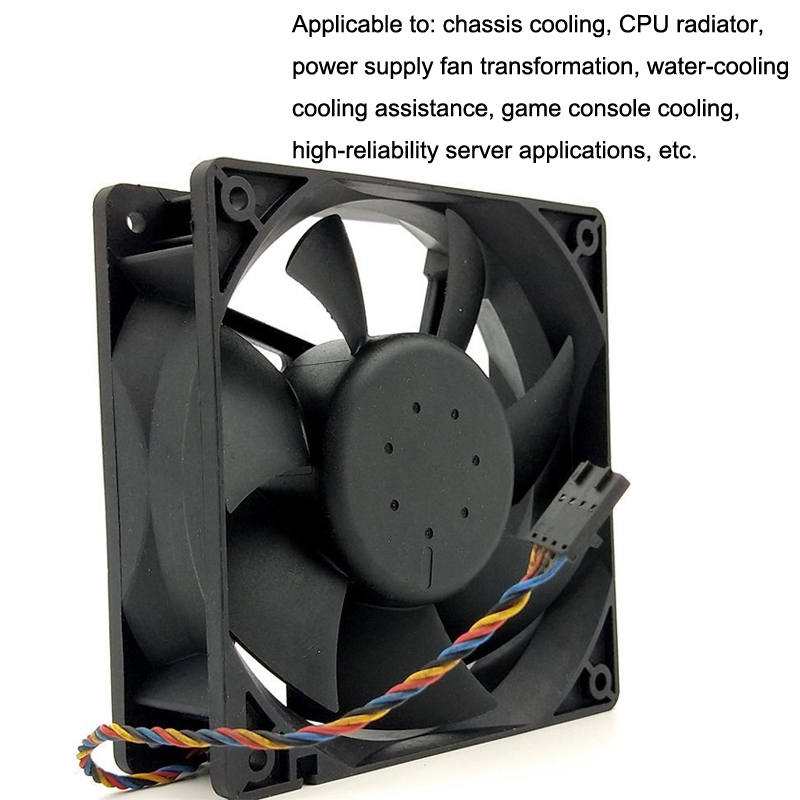

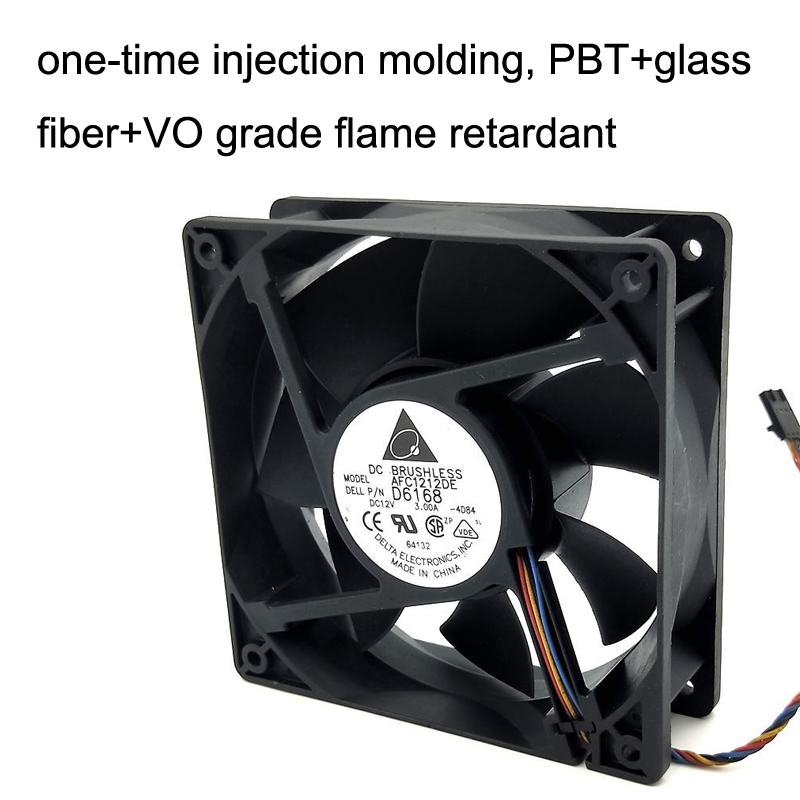

1. Applicable to: chassis heat dissipation, CPU heat sink, power supply fan transformation, water-cooling heat dissipation assistance, game machine heat dissipation, high-reliability server application places, etc. 2. Leads: 4 wires (support PWM) 3. Voltage: DC 12V 4. Current: 3A 5. Speed: 6000RPM 6. Air volume: 154.5CFM 7. Noise: 45.4dB 8. Bearing: high precision double ball bearing 9. Fan frame: one-time injection molding, PBT+glass fiber+VO grade flame retardant 10. Fan blade: one-time injection molding, PBT+glass fiber+VO grade flame retardant 11. Fan rotation: counterclockwise from the direction of the fan blades 12. Operating temperature: -10 degrees celsius to 70 degrees celsius 13. Storage temperature: -40 degrees celsius to 70 degrees celsius 14. Withstanding voltage: sink leakage current 0.5MA 500V/min 15. Insulation resistance: greater than 500 megohms 16. Working life: 80,000 hours at an ambient temperature of 25 degrees celsius

Specifications

SKU

TBD0603581301A

Category

Computer & Networking › Computer Components › Fan Cooling

Weight

0.304 kg

Delivery

Standard delivery
