ANENG 2 In 1 Handheld Color Screen Oscilloscope Digital Multimeter(AOS12)

Product Description

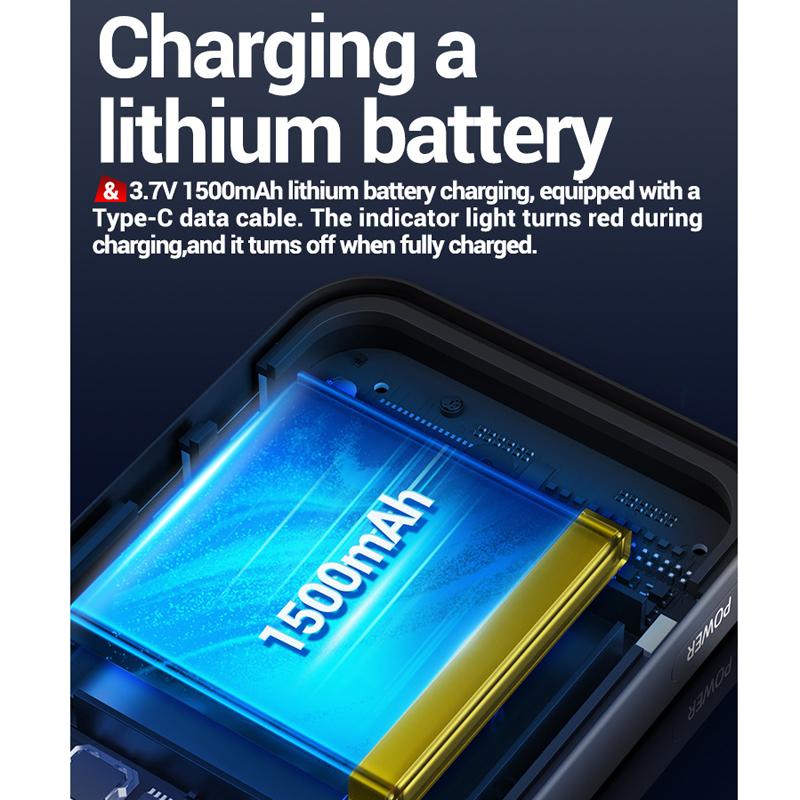

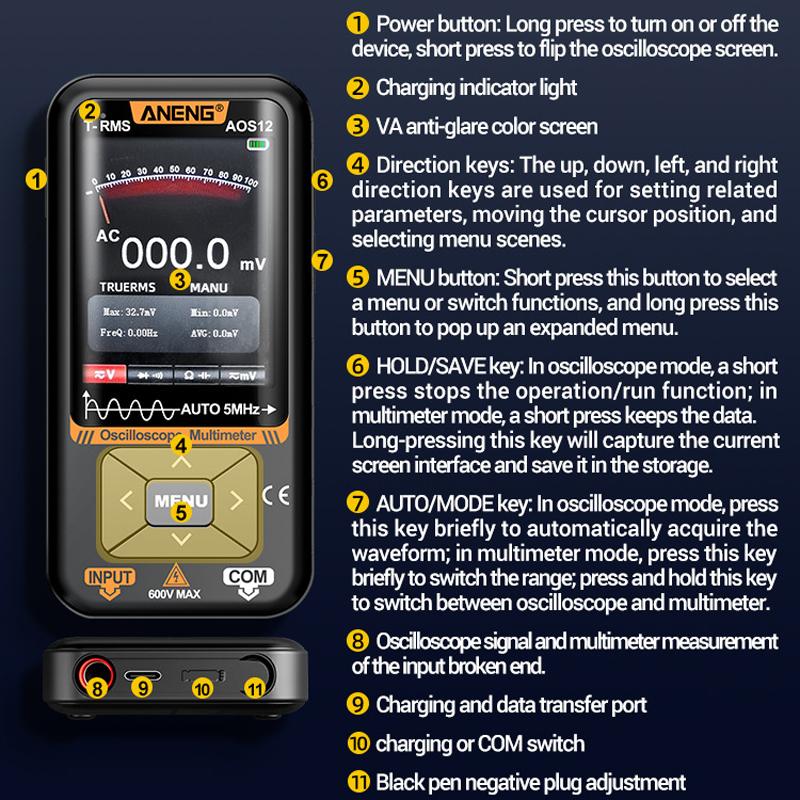

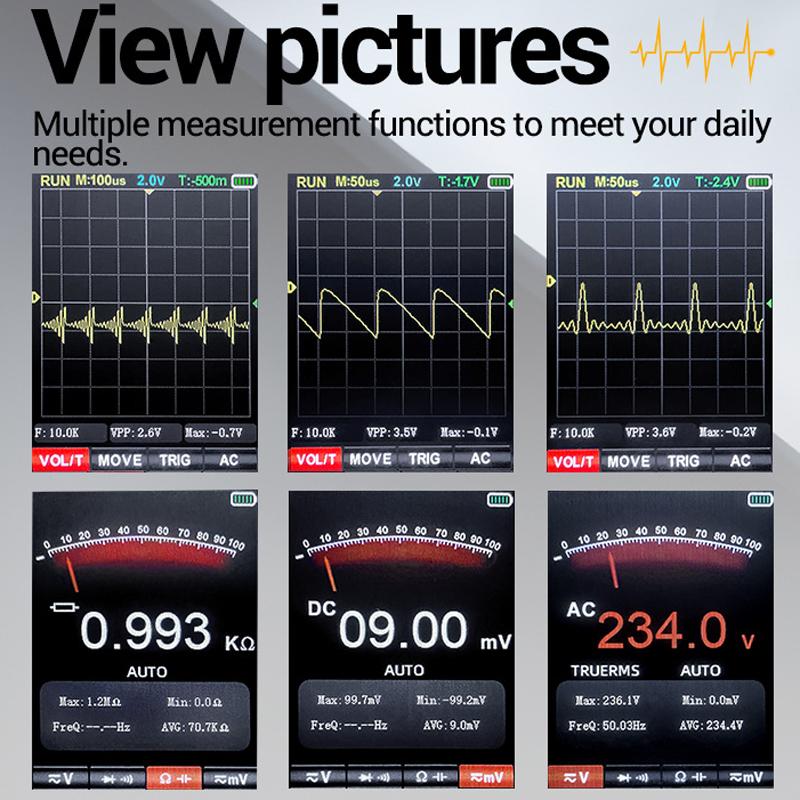

1. Material: ABS+TPE 2. Bandwidth: 5MHz 3. Sampling mode: real-time sampling 4. Real-time sampling rate: 48MSa/s 5. Input coupling: DC, AC 6. Input impedance: 10ΜΩ,@16pf 7. Sampling rate range: 1.5Sa/s-48MSa/s 8. Waveform interpolation: (sinx)x 9. Sweep speed range: 100ns/div-20s/div 10. Time base accuracy: 20ppm 11. Measurement information: frequency, peak-to-peak value, maximum value, minimum value, RMS, duty cycle 12. Waveform storage: about 104 waveforms can be stored 13. DC voltage (V): 999.9mV-600.0V 14. DC voltage (mV): 9.999mV-99.99mV 15. AC voltage (V): 999.9mV-600.0V 16. AC voltage (mV): 9.999mV-99.99mV 17. Resistance: 99.99Ω-99.99ΜΩ 18. Capacitance: 9.999nF-99.99m 19. Language options: Chinese/English 20. Count: 9999 21. Range: Auto/Manual 22. Sampling rate: 3 times/second 23. Battery type: 3.7V 1500mAh lithium battery 24. Frequency (can only measure up to 100kz in AC voltage mode): 99.99Hz-999.9kHz 25. In oscilloscope mode, long press the MENU button to pop up the extended menu, press the left and right buttons to select the third page, press up and down to adjust the screen brightness, and set the brightness level to 30%-50%-80%-100% 26. Enter the third page extended menu to enter the storage mode, connect the oscilloscope to the computer with the Type-c data cable, click the USB disk, and open the Pic folder to view 27. The test pen can also measure the waveform. When measuring the waveform of an unknown signal, you can short press the AUTO button to automatically obtain the waveform, or manually set the predicted waveform voltage time base, cursor position and other parameters 28. 3.7V 1500mAh lithium battery charging, equipped with a Type-c data cable, the charging indicator light is red, and the full indicator light is not on 29. Weight: 157 grams 30. Dimensions: 14.3x7.05x2.16 cm

Specifications

SKU

TBD0606129901A

Category

Consumer Electronics › Test Equipment › Digital Multimeter

Weight

0.719 kg

Delivery

Standard delivery
