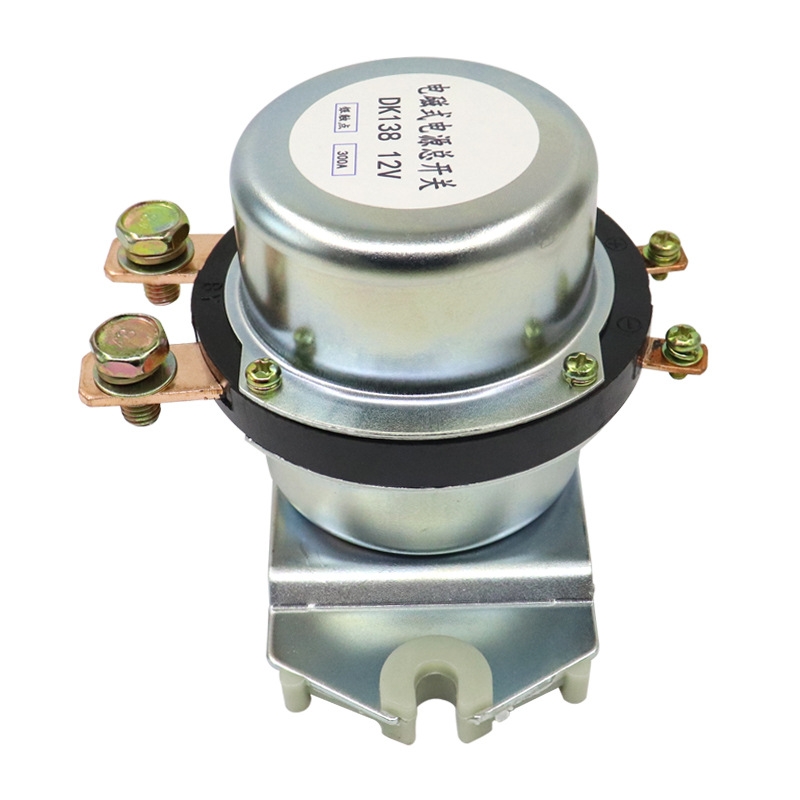

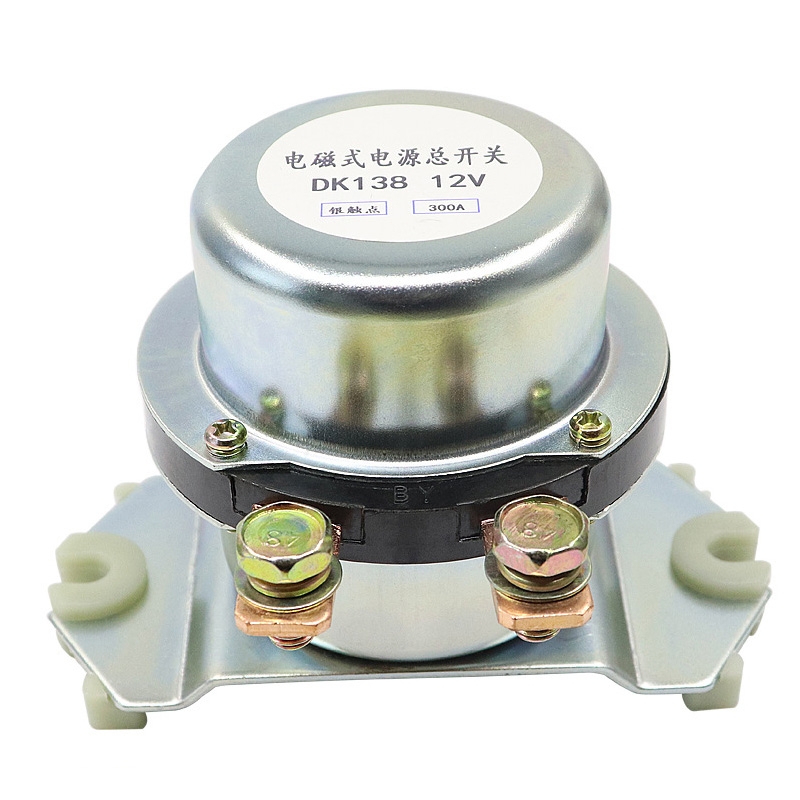

Automobile Electromagnetic Power Switch, Rated voltage: 12V (Silver)

Product Description

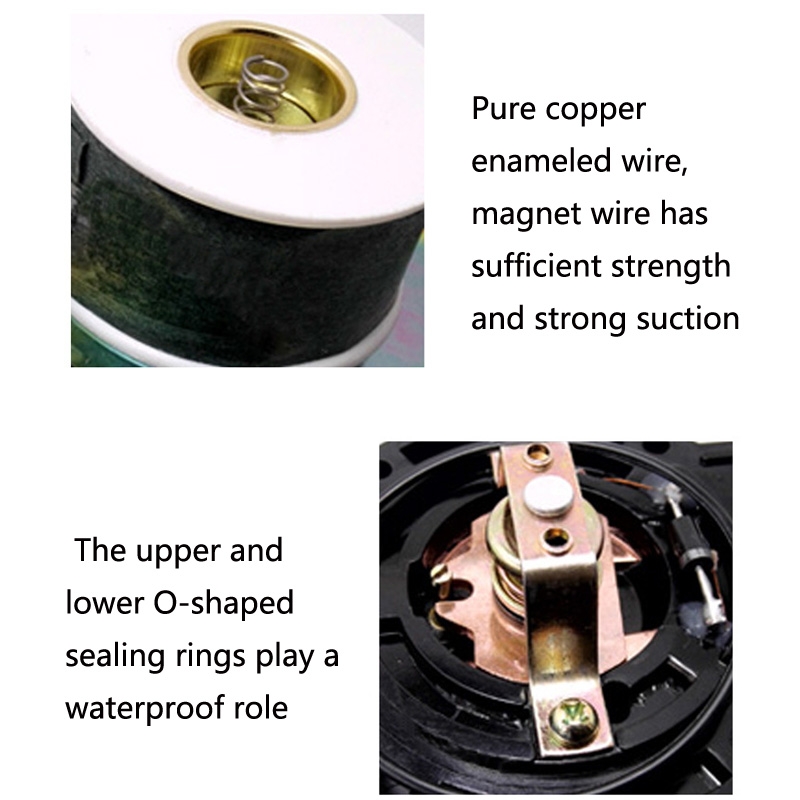

1. Long life, safe to use 2. Easy installation and fine workmanship 3. Pure copper enameled wire, magnet wire has sufficient strength and strong suction 4. The upper and lower O-shaped sealing rings play a waterproof role 5. Application: Automotive 6. Contact form: normally open 7. Contact switching current: 35MA 8. Contact load: 100 / 300A 9. Rated voltage: 12V / 24V 10. Rated current: 300A / 600A 11. Rated power: 3600W / 14400W 12. Working temperature: -25 to 50 degrees Celsius 13. Battery life: 50,000 times

Specifications

SKU

TBD0601735201

Category

In Car › Replacement Parts › Car Switches

Weight

0.104 kg

Delivery

Standard delivery
