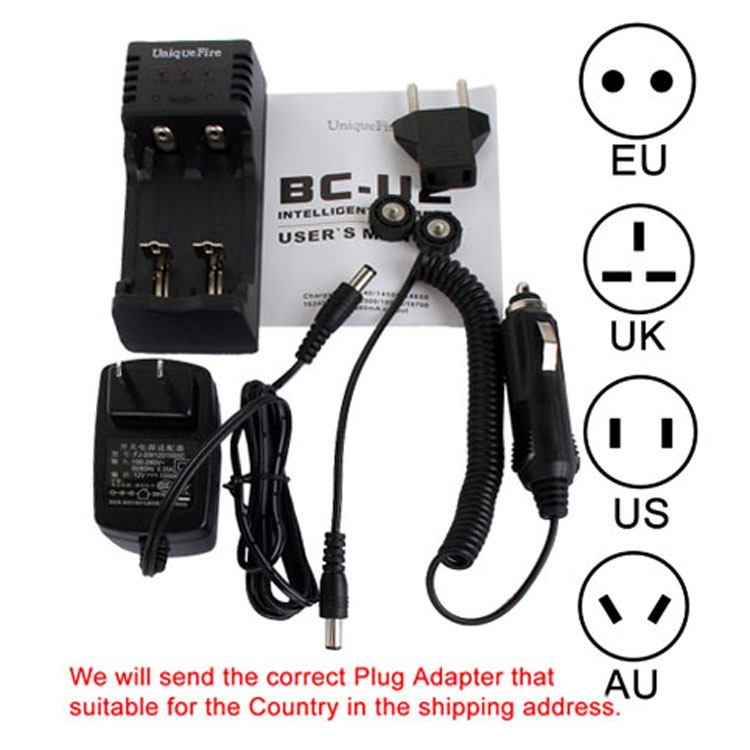

BC-U2 Universal Lithium Battery Charger with USB Output & Car Charger for 14500 / 14650 / 17670 / 18500 / 18650 / 18700 / 10440 / 16340(Black)

Product Description

1) Charging qualifications and structures 2) Operation Temperature: 0~40℃ 3) Input AC: 12V DC: 1000mA 4) 500mA CC Current: 500m A±5% 5) 1000 A CC Current: 1000m A±5% 6) Cut-Off Voltage: 4.2±0.05V 7) CV Cut-off Current: ＜100mA 8) Standby Current: ＜20.0m A 9) TC Current (Battery Volt 2.0~3.0V): 80±20m A 10) Auto Recharging Threshold Value Voltage: 3.9±0.15V 11) USB Discharging qualifications and structures 12) Operation Temperature: 0~40℃ 13) USB Interface Output Floating Voltage: 5.0V 14) Output Floating Voltage Ripple: ＜120 mV 15) Reactive Current: ＜10m A 16) Maximum Output Current: 500mA 17) Battery Output Cut-off Voltage: 2.80±0.15V 18) XTAR WP2II charger is apply to 14500/17670/18500/18650/18700 and 10440/16340 li-ion battery when use 2pcs spacers simultaneously but independently. 19) It built USB output function can supply electricity to those devices power below 5.0V/500mA 20) WP2II designed with undervoltage lockout,algorithm(TC.CC.CV)charging method,reverse-polarity protection circuit board,over/under voltage disconnecting technology and battery over discharging activating fucntion,it is a intelligent and your first choice safer and reliable li-ion battery charger. 21) USB interface output floating voltage: 5.0V 22) Maximum output current: 500mA 23) Size: 113x47x32mm 24) 0 Gear: USB 5.0V/500mA voltage output -1 Gear: charging current 500mA -2 Gear: charging current 1000mA

Specifications

SKU

S-LIB-0002

Category

Consumer Electronics › Battery Accessories › Charger & Converter

Weight

0.36 kg

Delivery

Standard delivery
