BETAFPV ExpressLRS Recovery Dongle Module(FTDI Module)

Product Description

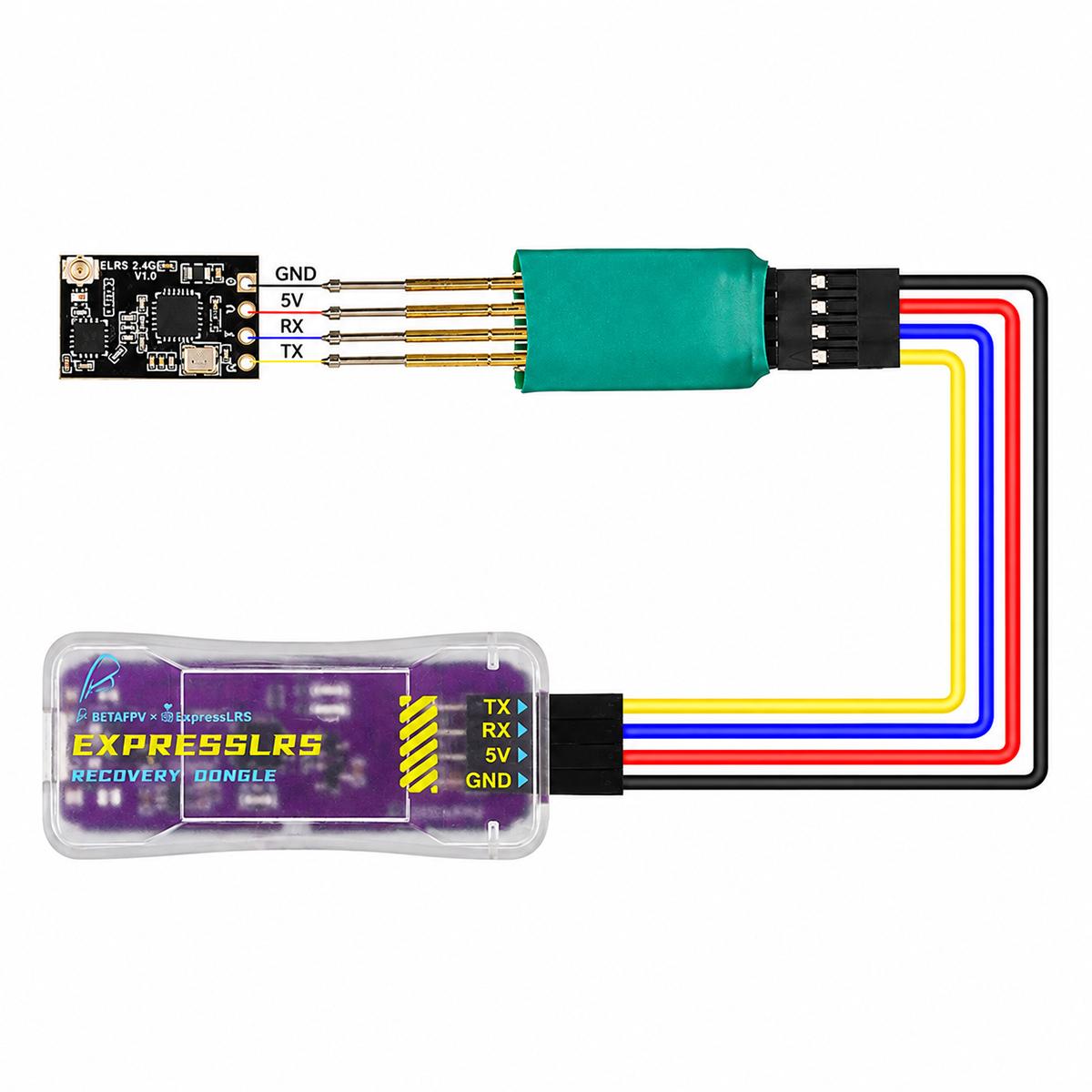

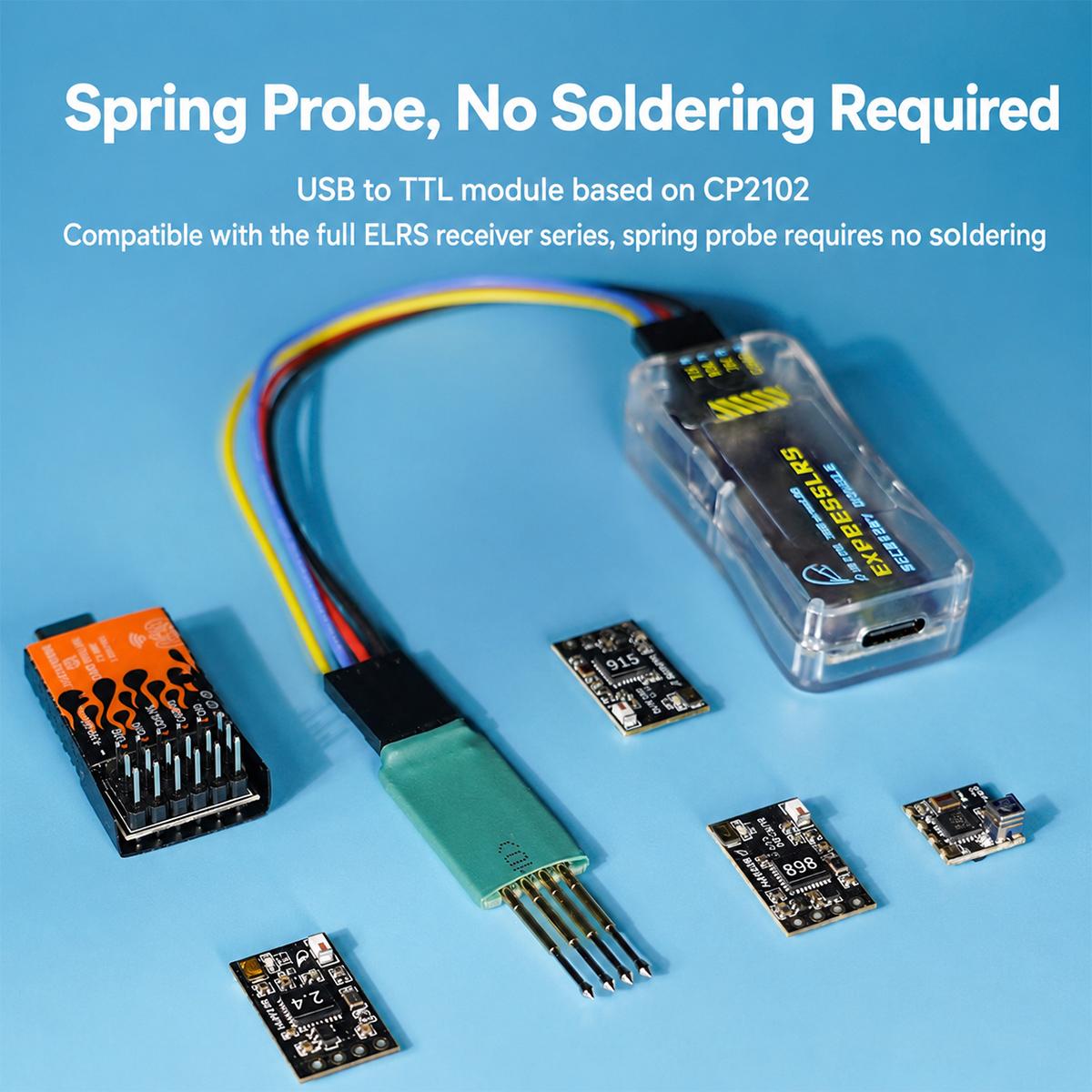

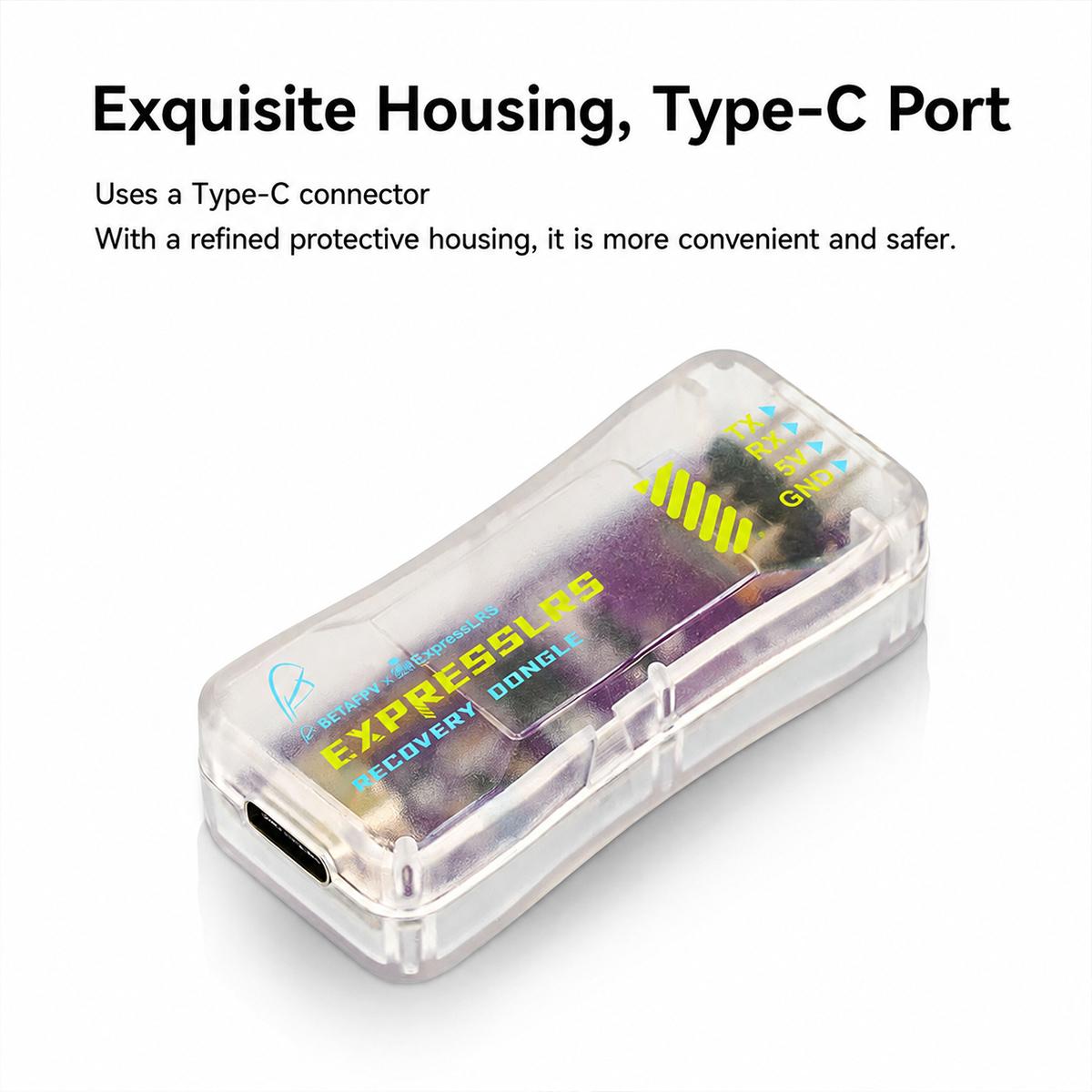

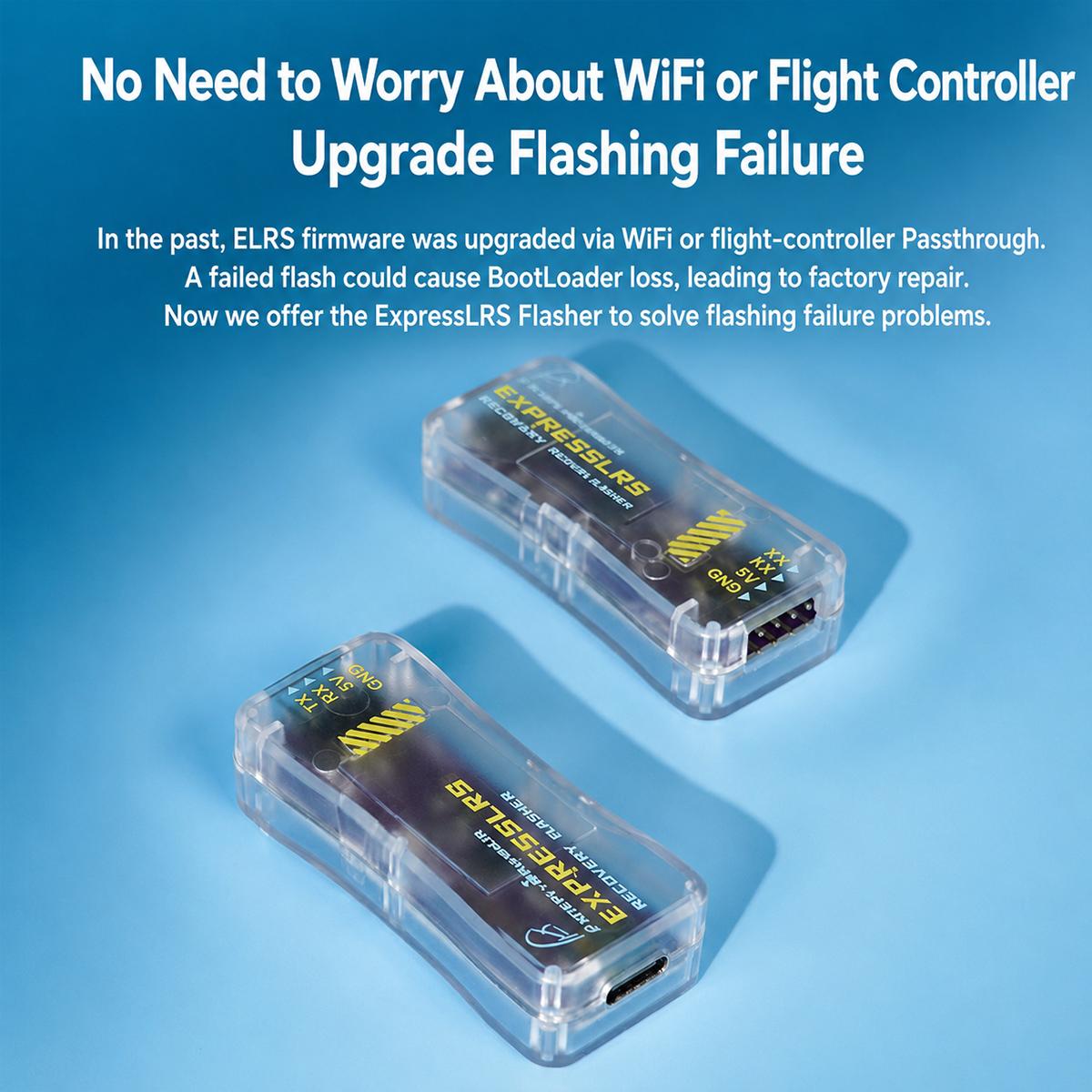

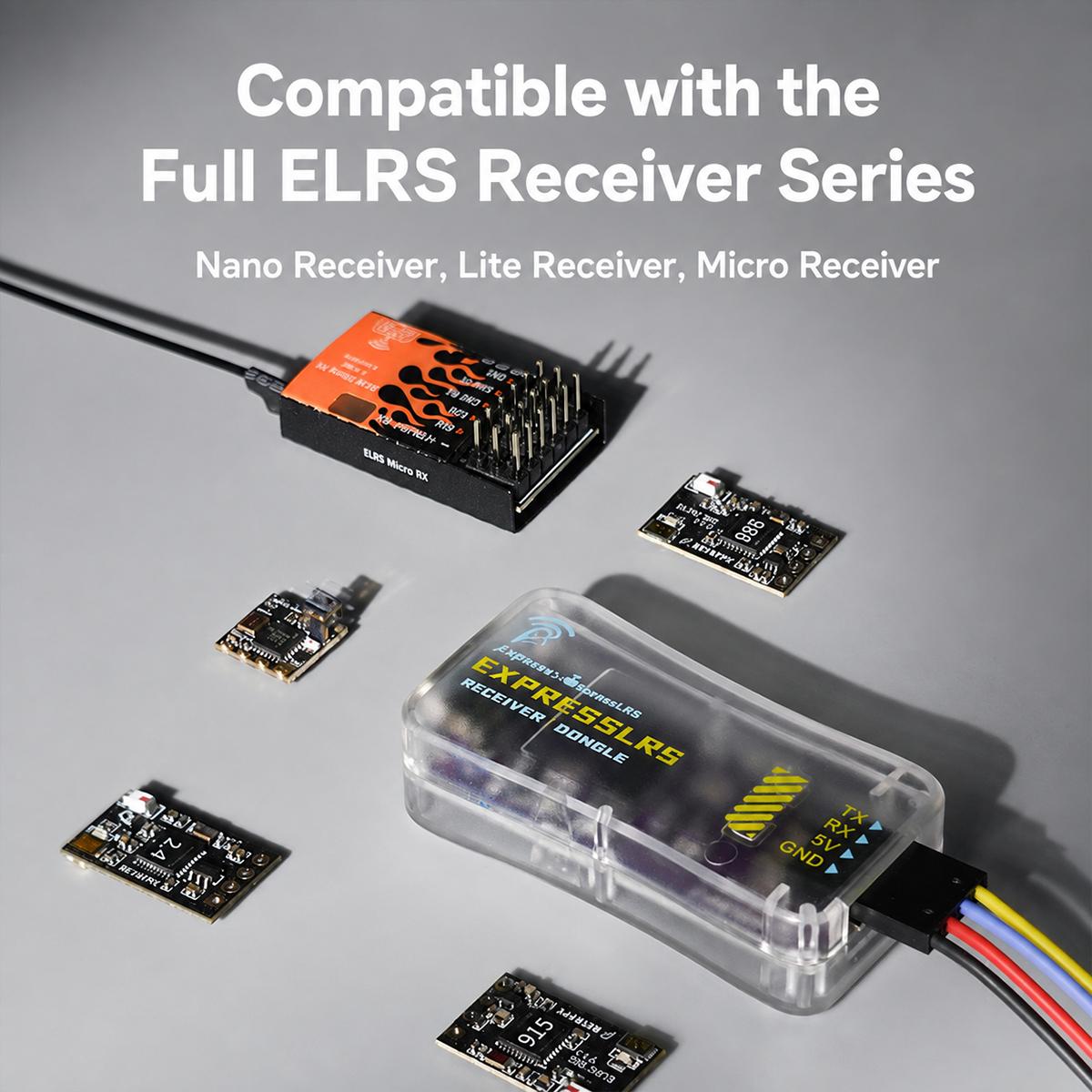

Features: 1. ELRS Receiver Recovery: Designed to unbrick and recover ExpressLRS receivers after failed firmware updates, including situations where the bootloader is missing or corrupted. 2. Solder-Free Connection: Equipped with spring probe pins for direct contact with compatible ELRS receivers, eliminating the need for soldering during recovery. 3. Durable Protective Case: The FTDI USB to TTL module is enclosed in a protective case, providing better durability and portability compared with exposed board designs. 4. Wide System Compatibility: Supports Windows, macOS and Linux systems, making it suitable for recovery and firmware maintenance across multiple computer platforms. 5. Type-C USB Connection: Uses a USB Type-C interface for convenient connection to a computer and reliable data communication during receiver recovery. 6. High-Speed Serial Communication: Supports serial baud rates of up to 921600bps and USB 1.1/2.0 for efficient data transfer and firmware recovery. Specification: 1. USB Interface: USB Type-C Male Connector 2. Operating Voltage: 5V 3. Logic Voltage: 5V 4. 3.3V Power Output Current: 400mA 5. Pin Output Method: 2 x 4P 2.54mm Pin Header 6. Serial Baud Rate: Up to 921600bps 7. USB Standard: USB 1.1 / USB 2.0 8. USB to Serial Chip: CP2102 9. Supported Systems: Windows XP, Windows 7, Windows 8 32-bit/64-bit, Windows 10/11 32-bit/64-bit, Linux, macOS

Specifications

SKU

EDA010129601A

Category

Game Accessories › DIY Parts & Components › Transmitter and Receiver

Weight

0.024 kg

Delivery

Standard delivery
