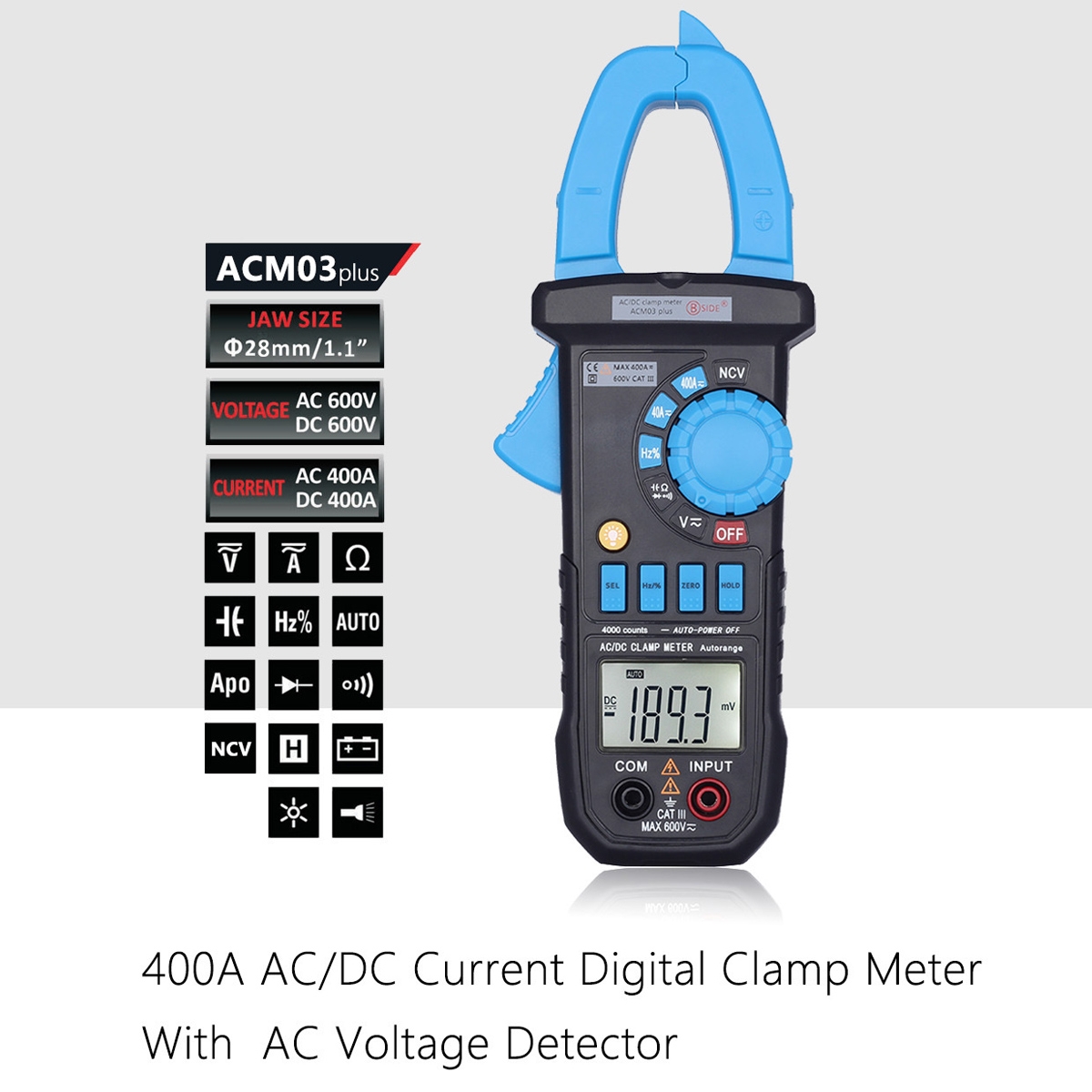

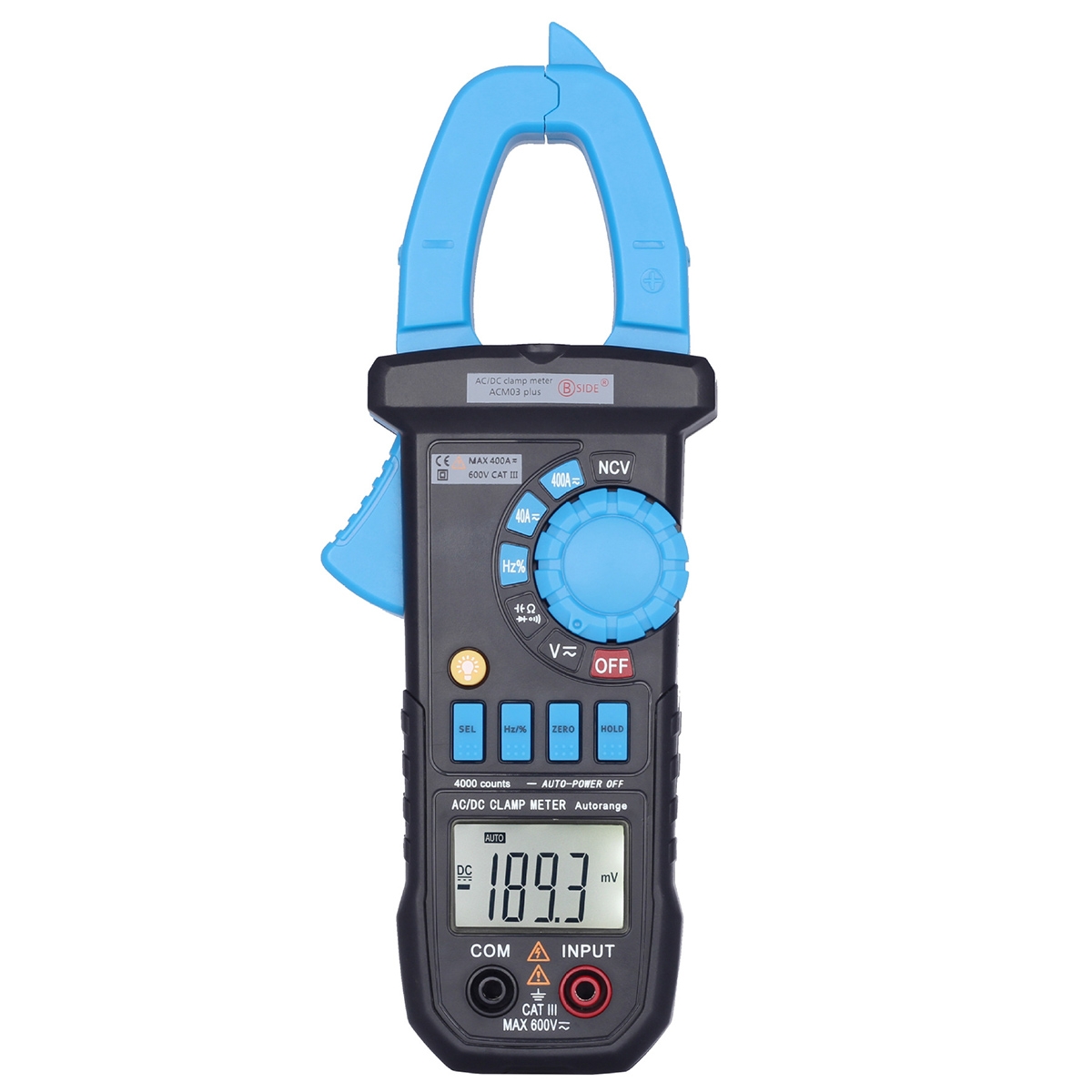

BSIDE ACM03 Plus 400A AC / DC Clamp Meter

Product Description

1. It is designed according to the relevant safety requirements of iec1010-1 and iec1010-2-032 2. Used to measure AC and DC current 3. Non-contact voltage detection (NCV) 4. AC/DC voltage, resistance, capacitance, frequency, diode and circuit, etc. 5. Auto/Manual range 6. Pass section test, duty cycle test 7. LCD display data 8. Clamp head lighting and backlight 9. Data retention. 10. Display 3999 word count 11. DC voltage: 400m/4V/40V/400V/600+-0.8% 12. AC voltage: 400mV+-0.8%, 4V/40V/400V/600V+-1.2% 13. Alternating current: 40A/400A+-3.0% 14. DC current: 40A/400A+-3.0% 15. Resistance: 400ohm/4kohm/40kohm/400kohm/4Mohm+-1.2%, 40Mohm+-2.0% 16. Capacitance: 40nF/400nF/4uF/40uF/100uF+-3.0% 17. Frequency: 50Hz/500Hz/5000Hz/50kHz/100kHz+-1.0% 18. Non-contact voltage detection (NCV): 90-1000V (50-500Hz) 19. Power supply: 3x1.5V, AAA battery (not included) 20 Product size: 21.5x7x2.7cm 21. Product weight: 300g

Specifications

SKU

HC5852

Category

Consumer Electronics › Test Equipment › Current & Voltage Tester

Weight

0.362 kg

Delivery

Standard delivery
