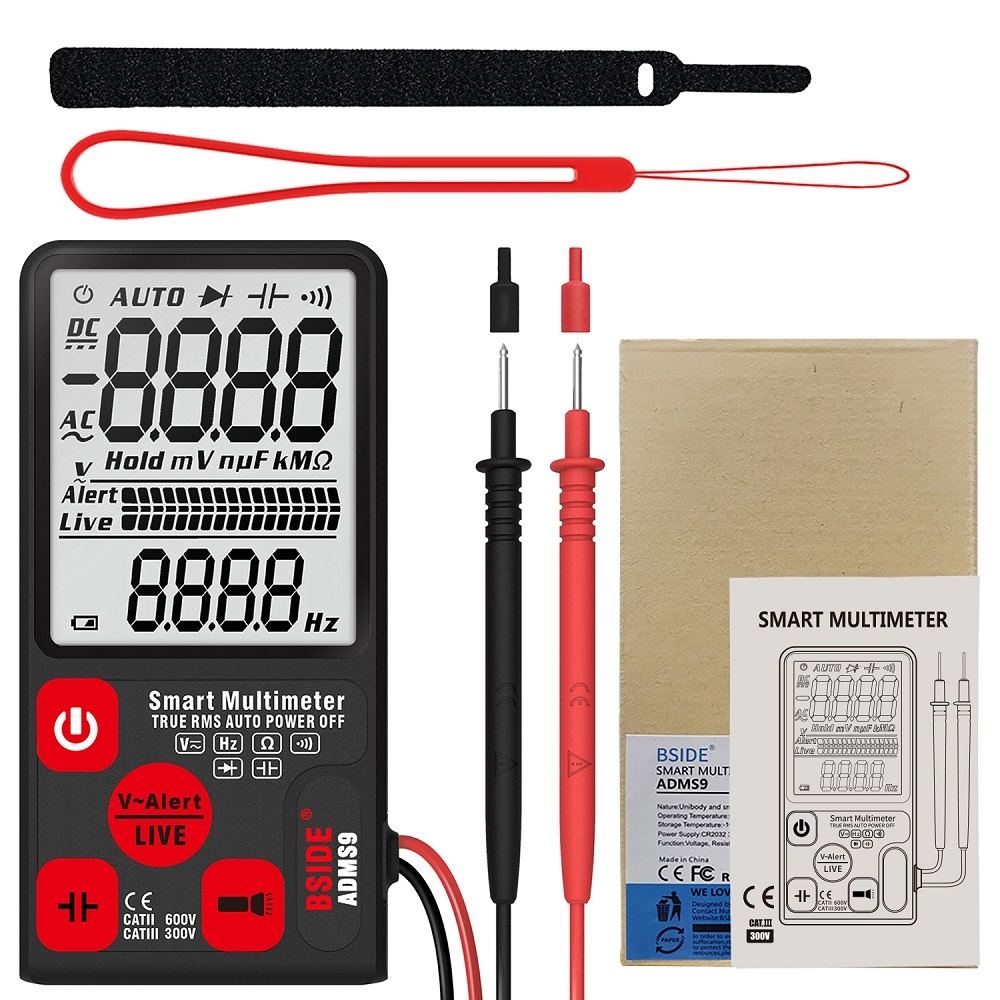

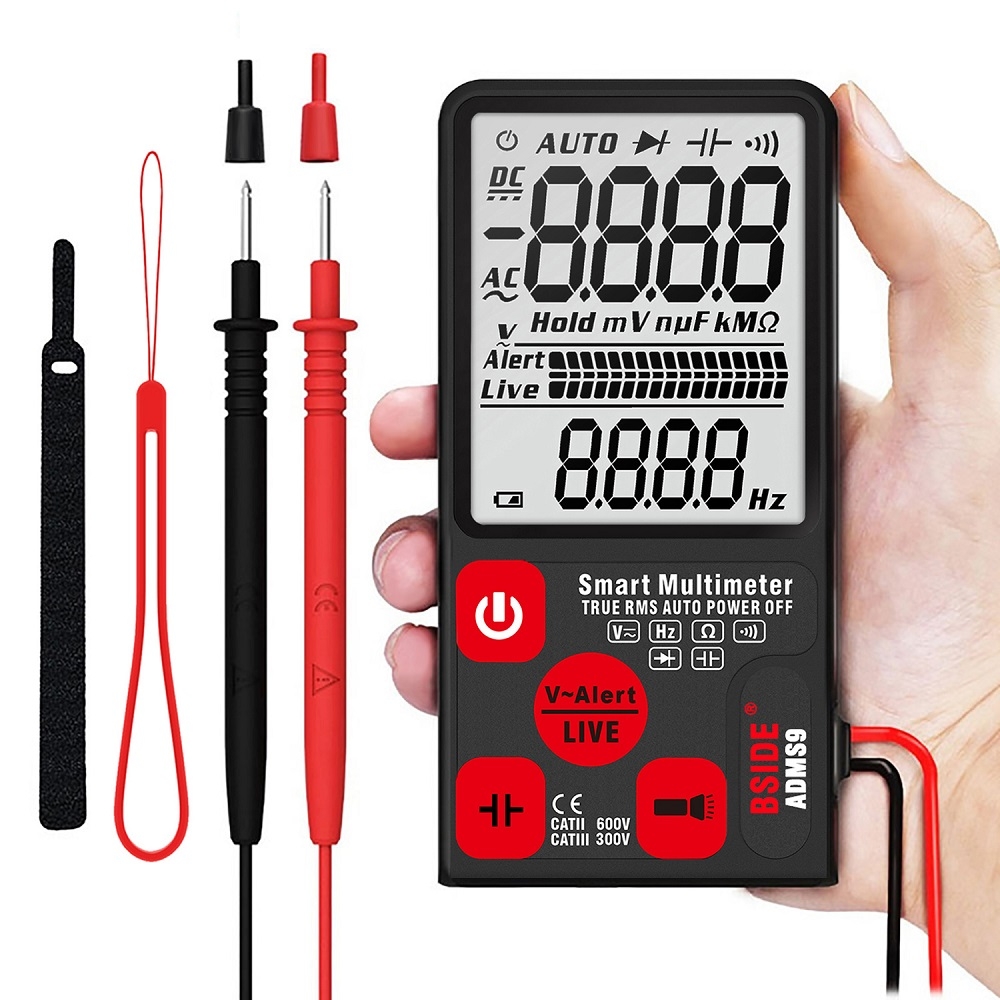

BSIDE ADMS9 Large-Screen Display Intelligent Automatic No Gear Shifting Ultra-Thin Digital Multimeter(Ordinary Screen)

Product Description

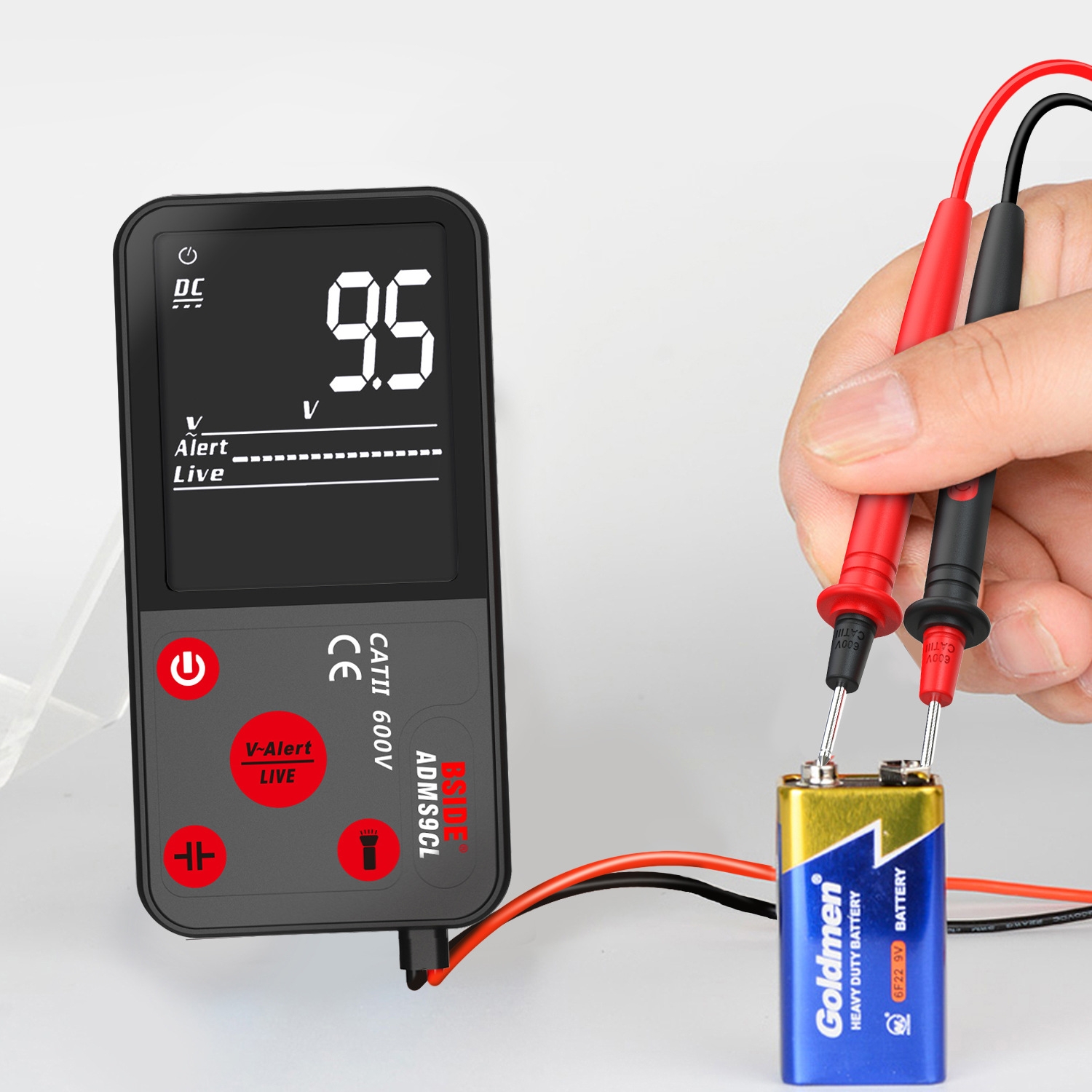

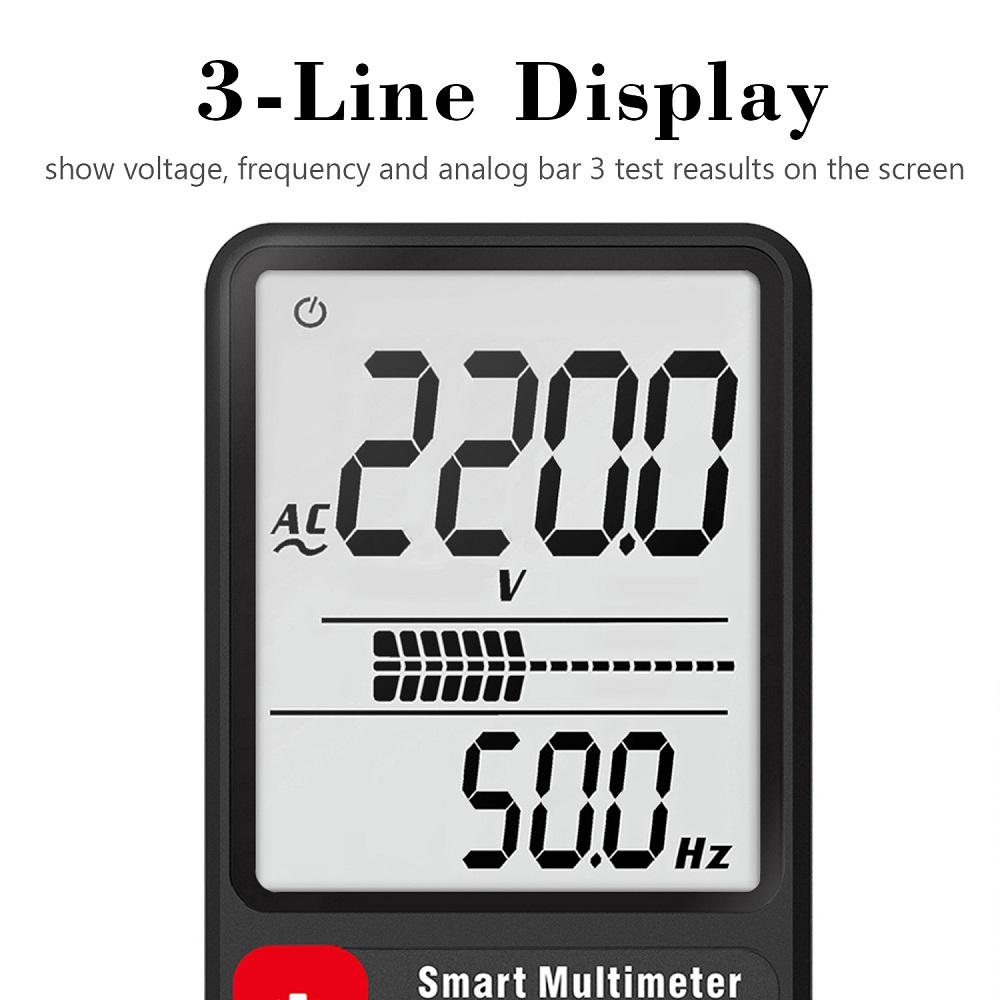

1. The large 3.5-inch screen can display 3 test results, such as voltage, frequency and analog bars. 2. It only takes 1 second to detect the capacitance value. 3. This 9999 count multimeter can measure capacitance, diode, continuity, Hz, AC/DC voltage, resistance, V alarm (non-contact voltage detection), live wire monitoring, etc. 4. BSIDE intelligent technology is specially designed for beginners, so that the multimeter can automatically identify the test parameters and select the required range. 5. Only 1.2 cm thick, lighter, and has a larger LCD screen 6. With a flashlight tail light can change the dark environment. The suspension hole design makes it lighter. 7. Display: 9999 count display 8. Screen: 3.5 inches 9. Meter thickness: 1.2cm 10. DC voltage: 600V +/- (0.8% + 3) 11. AC voltage: 600V +/- (1.2% + 5) 12. Resistance: 10Mohms+/- (1.2% + 3) 13. Capacitance: 6000uF+/- (4.5% + 10) 14. Frequency: 1000Hz +/- (1.0% + 5) 15. Diode: If it is less than 1.0V, it is an automatic identification diode 16. Alarm (non-contact voltage detection): alarm sound 17. On-site control: alarm signal sound, LCD display 18. Continuity: If the resistance is less than 30Ω, the positioner will sound 19. Power supply: 3V (CR2032) x 2 20. Dimensions: 136 x 67 x 12mm 21. Weight: 110 grams

Specifications

SKU

TBD0587030501A

Category

Consumer Electronics › Test Equipment › Digital Multimeter

Weight

0.201 kg

Delivery

Standard delivery
