Car AFS+ATC Dual-use Fuse Holder 60A+20A with Wrench

Product Description

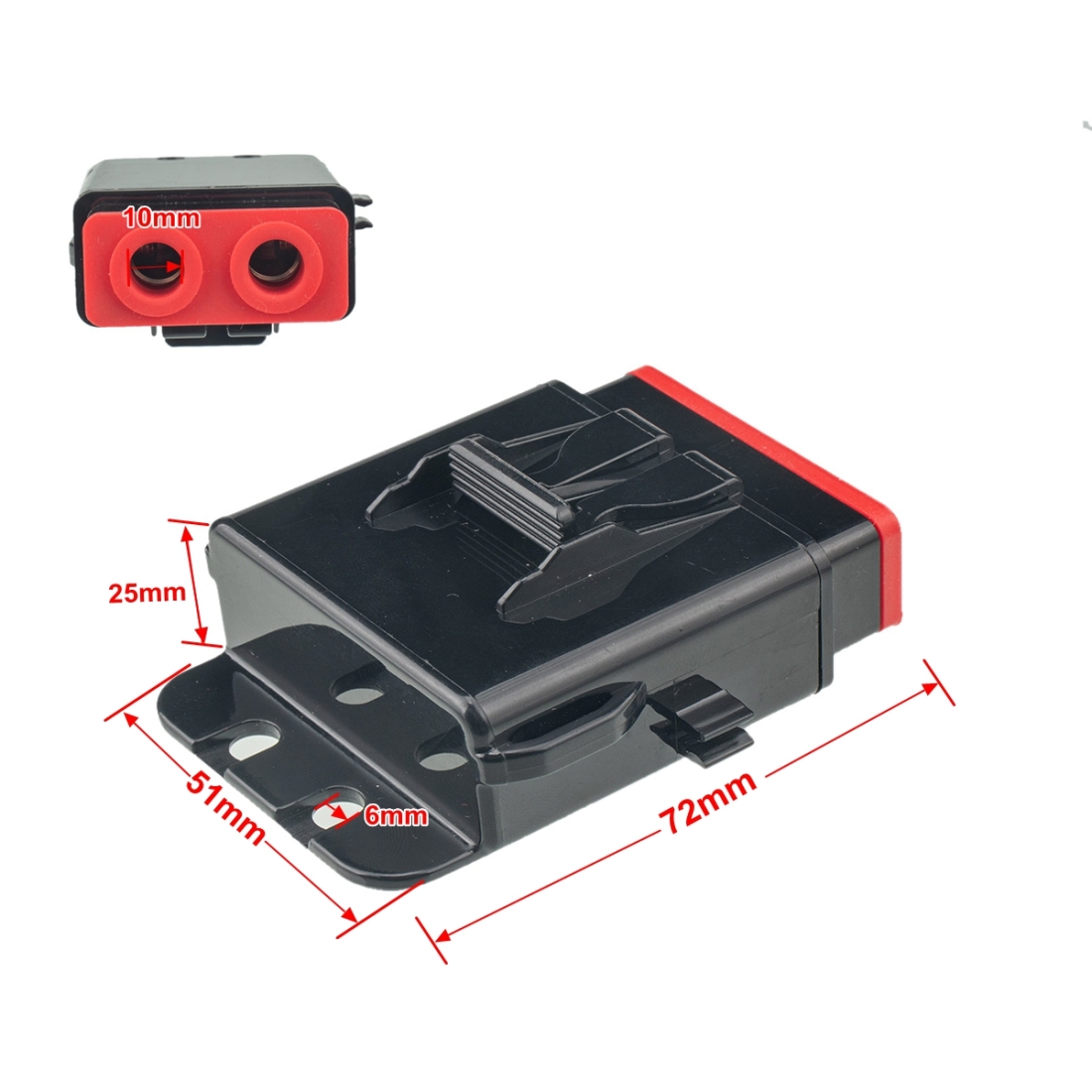

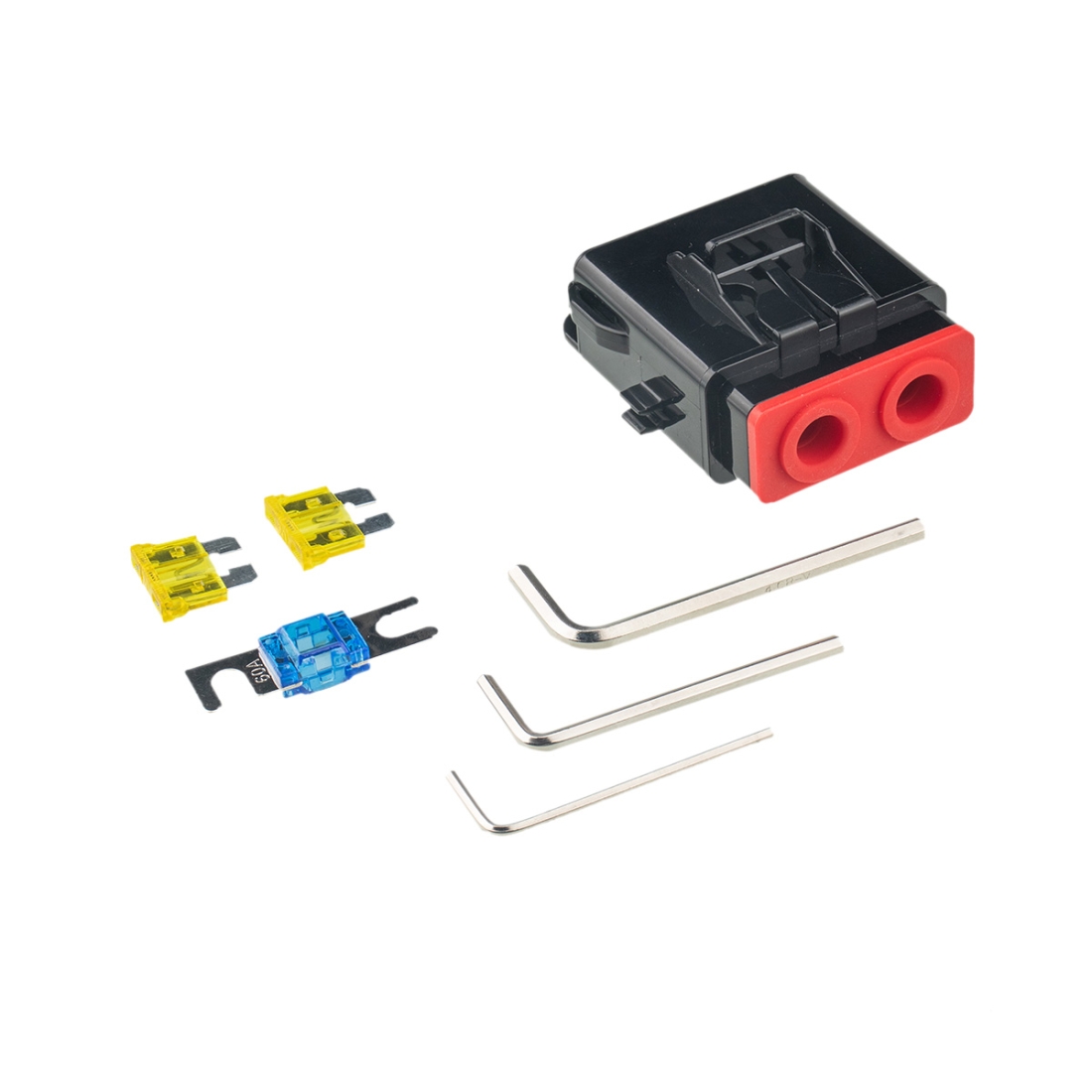

1. Material: zinc alloy 2. Wiring specifications: 4GA IN; 4GA OUT 3. Wiring aperture: 10mm 4. Aperture of fixing screw: 6mm 5. Wrench: M4 (2mm) wrench is used to disassemble ATC fuse; M6 (3mm) wrench is used to disassemble AFS fuse; M8 (4mm) wrench is used to lock the set screws on both sides of the wiring. 6. Fuse installation method: If you need to modify the AFS fuse: (1). Use an M4 wrench to remove the M4 set screws (4 in total) on the product and remove the ATC fuse (2). Use M6 spanner wrench to remove M6 screw (3). Install AFS fuse (4). Tighten M6 screws 7. Composition: ATC 20A x 2 (installed on the fuse holder by default) Fuse holder x 1 AFS 60A x 1 Wrench M4 x 1 Wrench M6 x 1 Wrench M8 x 1

Specifications

SKU

CRP0702

Category

In Car › Replacement Parts › Fuse

Weight

0.16 kg

Delivery

Standard delivery
