Car Auto RV Marine Boat 6-32V High Power Battery Isolator Disconnect Switch Cut

Product Description

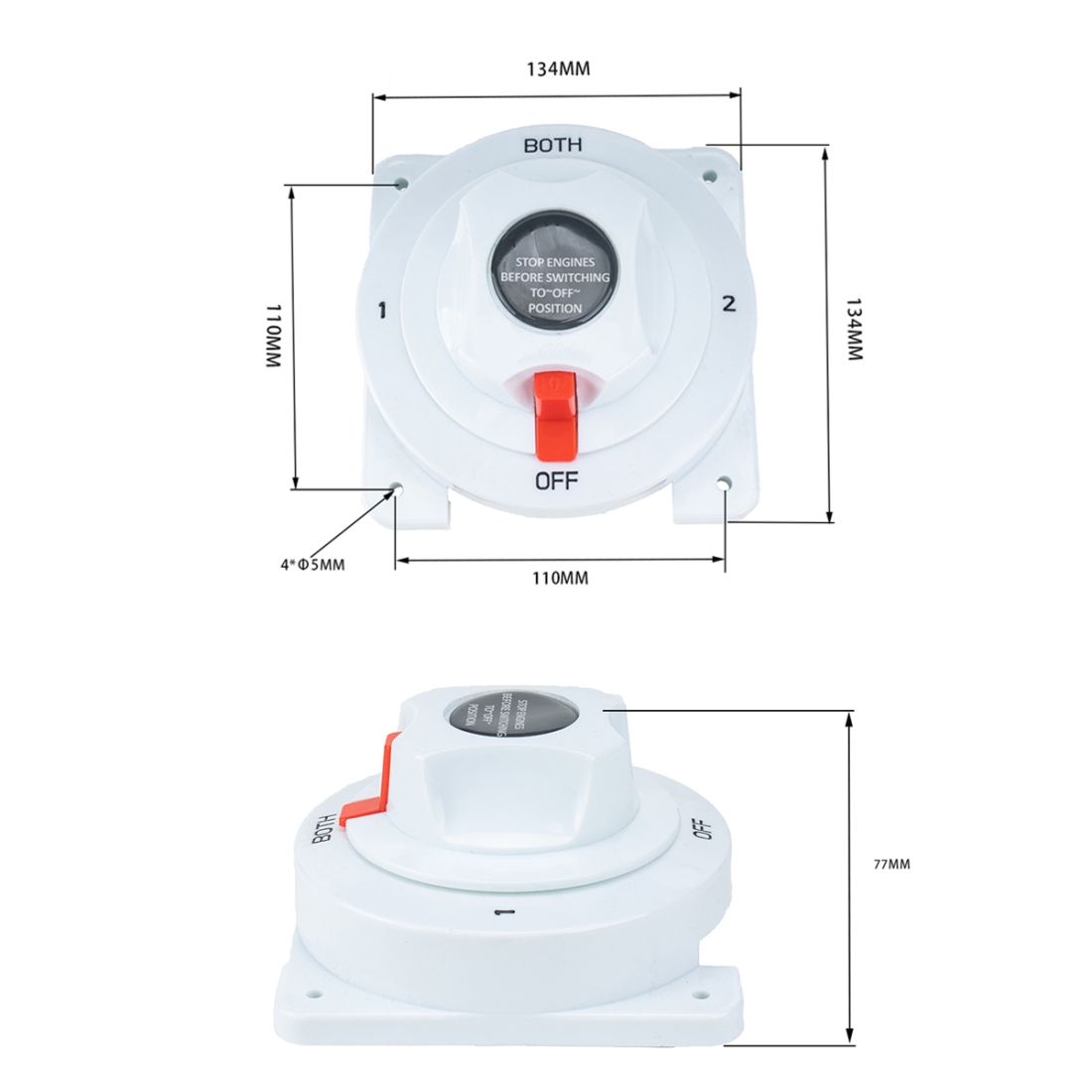

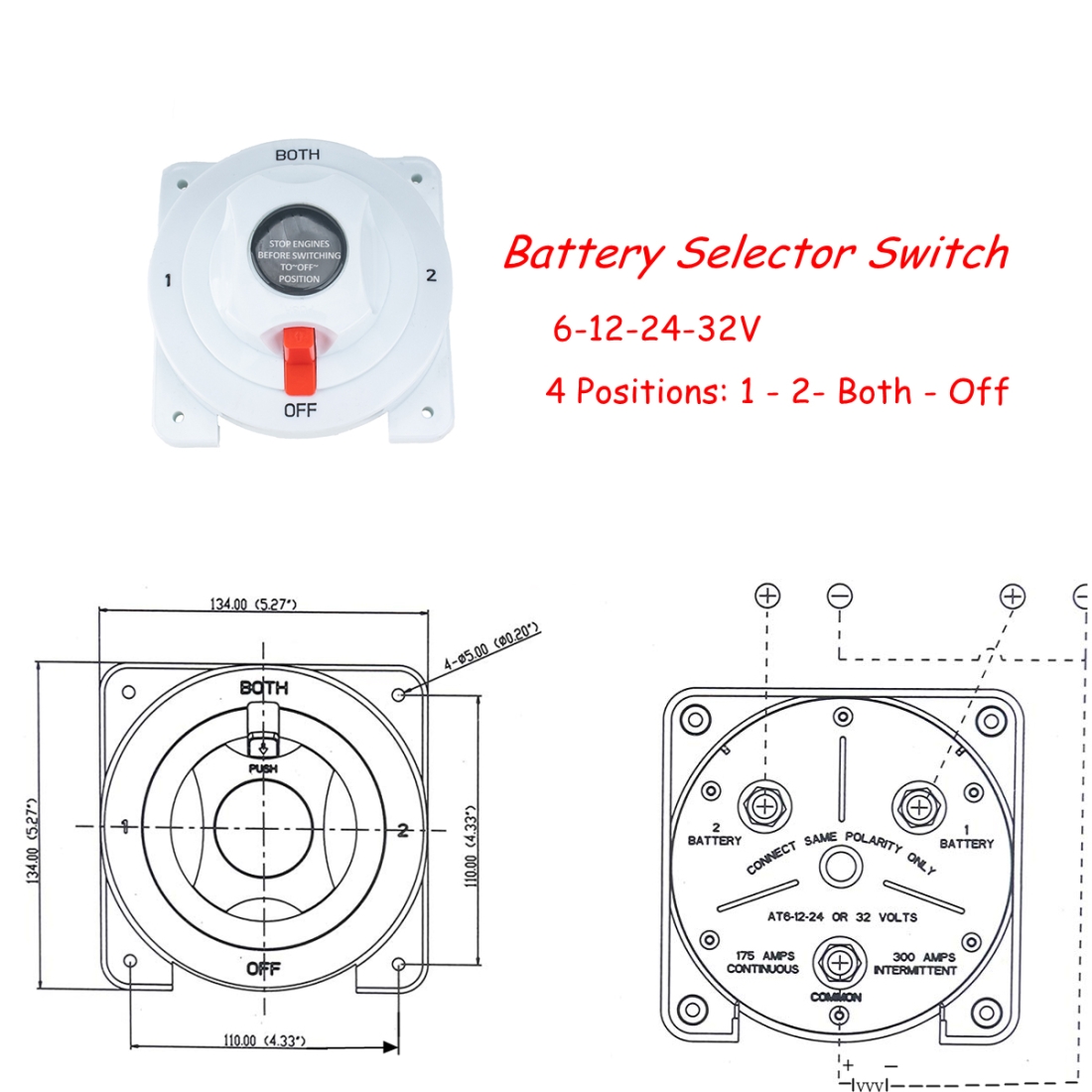

1. Small in size,fine appearance,sturdy and durable 2. Can be installed in any position; 3. It is rated at 175A continuous duty at DC-12V and rated at intermittent 300A. 4. 3 switch position can meet for different requirement. 5. Specification: Volt:6-12-24-32V Amp Draw:175A Max Amp Draw:300A Switch Position:3 Mounting Screw Diameter: 10mm 4 Positions: 1-2-Both-Off 6. 4-Positions Detail: OFF - Complete disconnect of both batteries or banks of batteries 1- Operation of No.1 battery only 2- Operation of No.2 battery only BOTH- Operation of both batteries and banks of batteries 7. Application: The selector switch will allow the use of one battery for engine starting and one battery for auxiliary electrical equipment.Batteries may be placed in parallel by switching to (Both) for emergency use. 8. 175A continuous duty at DC12V; 9. 300A intermittent duty at DC12V; 10. Suitable for 6V, 12V, 24V and 32V supply system of ship.

Specifications

SKU

CRP9404

Category

In Car › Replacement Parts › Car Switches

Weight

0.533 kg
