Car Auto RV Marine Boat Battery Isolator Disconnect Rotary Switch Cut with Terminals

Product Description

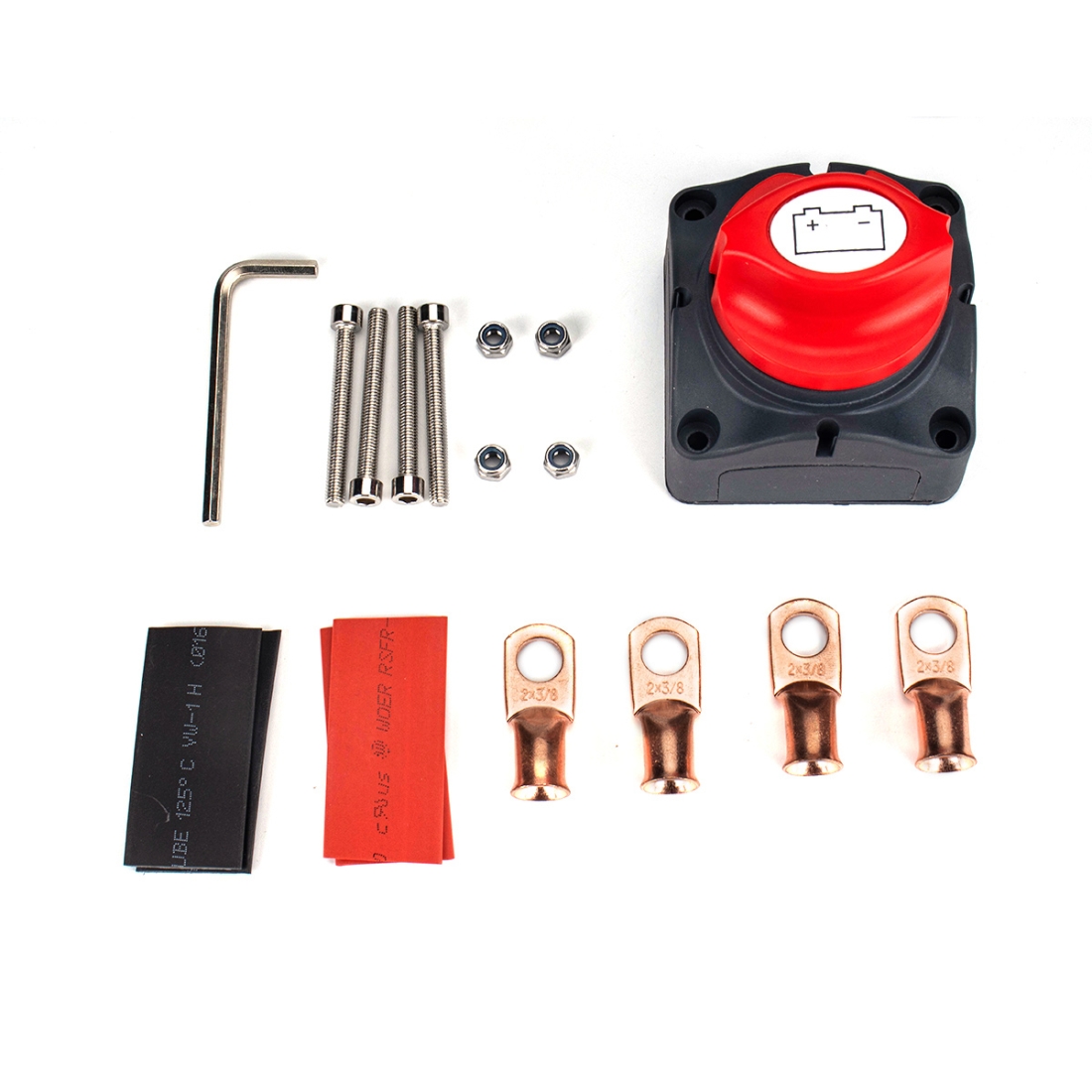

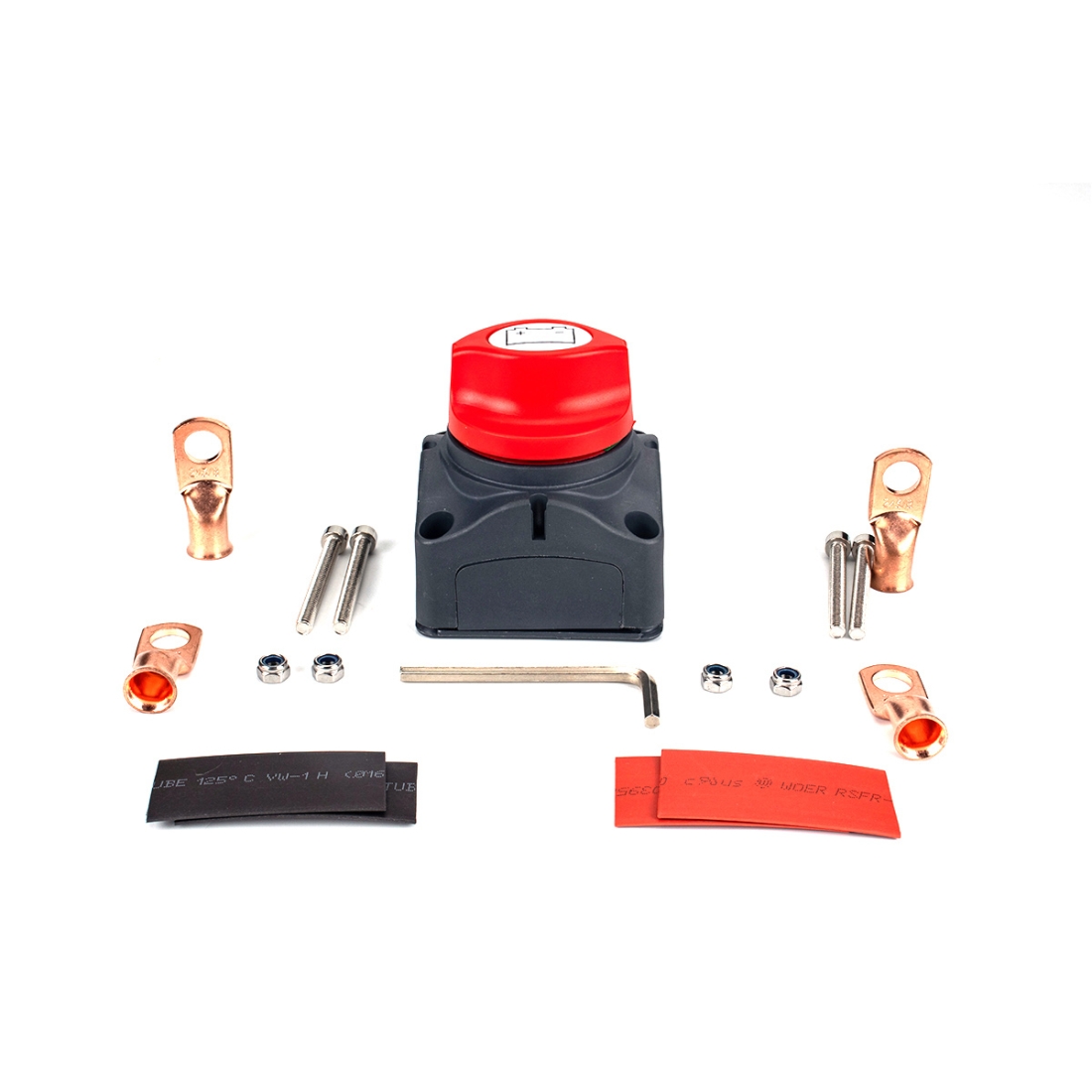

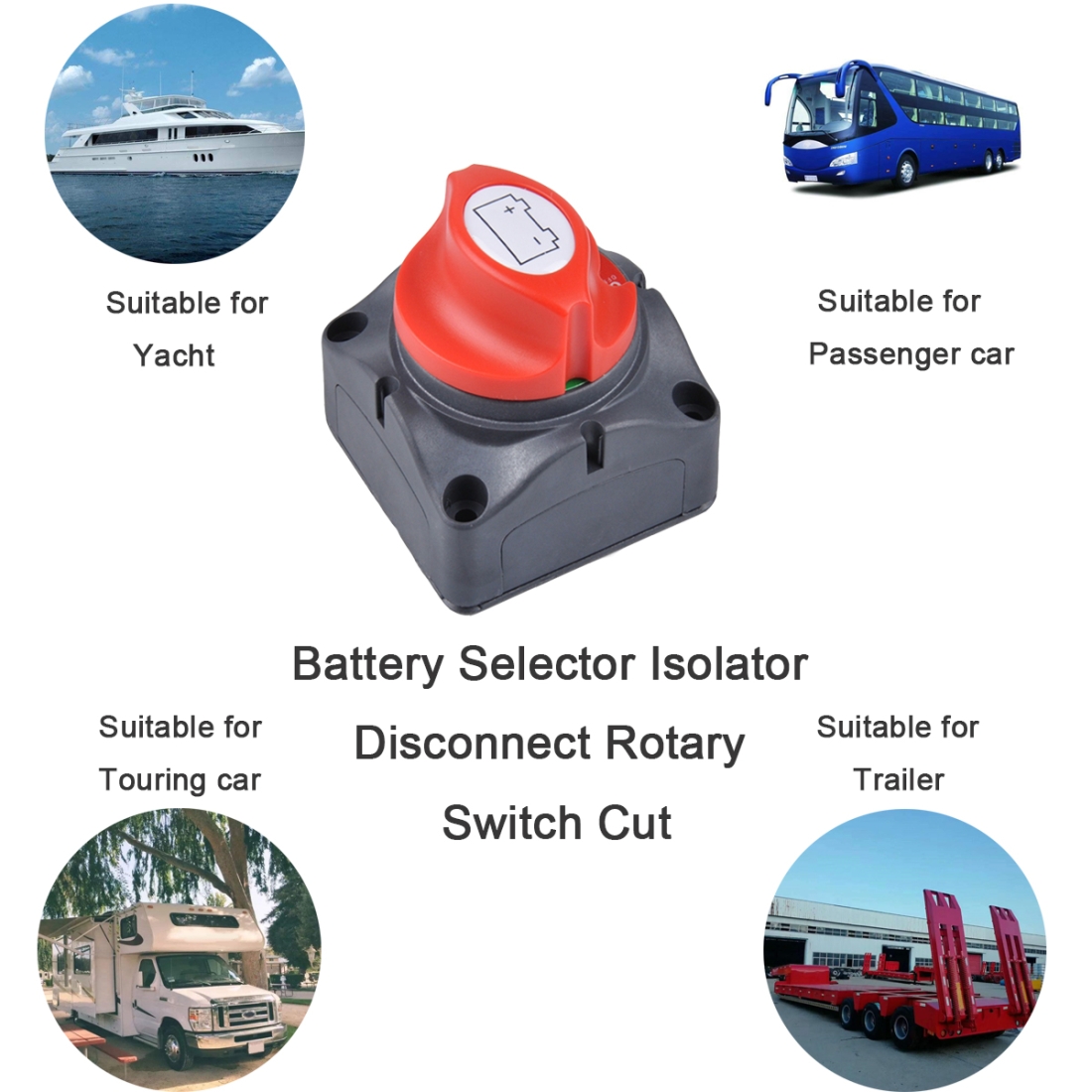

1. Product material: plastic + copper tin plating 2. Continuous current: 275Amps DC 3. Intermittent current: 350Amps DC 4. Starting current: 1250Amps DC 5. Rated current: 200Amps DC 6. Maximum voltage: 48V-60Volts DC 7. Dielectric strength: 1500VAC / 1min 8. Electrical life: 10000 times 9. Product operation: On / Off 10. Installation: back / surface 11. Terminal bolt size: 2 x 10 mm (10MM diameter copper legs) 12. Product use: large capacity battery or electrical switch 13. Easy installation, the four-side baffle on the lower part of the switch can be removed and installed 14. Scope of application: The high-current power switch is generally used in automobiles / yachts / motorhomes, etc., and can be used as an on / off key for various types of electrical equipment added inside and outside the car (such as flashing lights, chassis lights, fog lights, Ceiling lights, etc.) 15. Product composition: battery switch * 1, bolt * 4, nut * 4, terminal block * 4, heat shrinkable tube * 4, wrench * 1

Specifications

SKU

CRP9341

Category

In Car › Replacement Parts › Car Switches

Weight

0.348 kg

Delivery

Standard delivery
