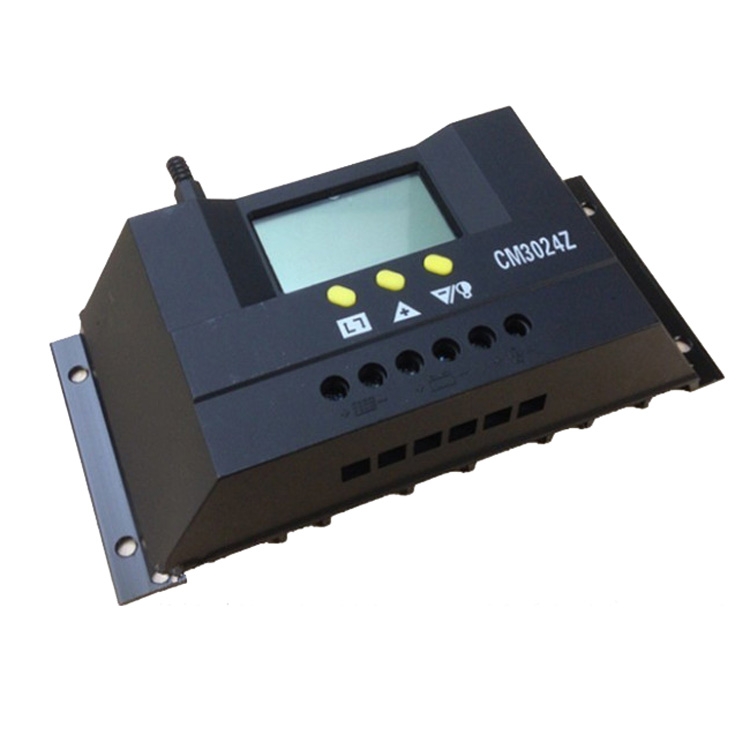

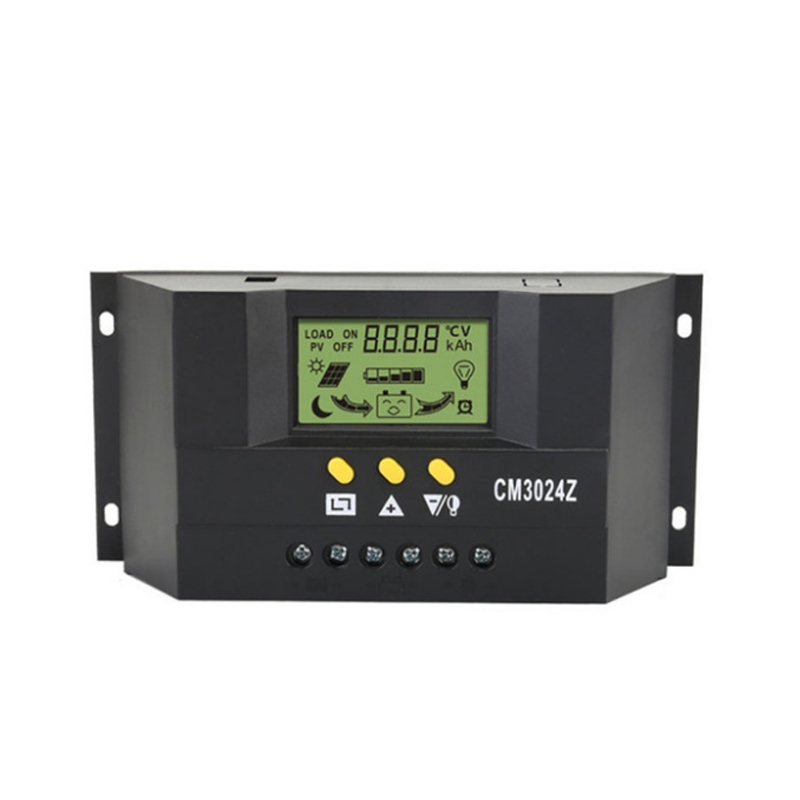

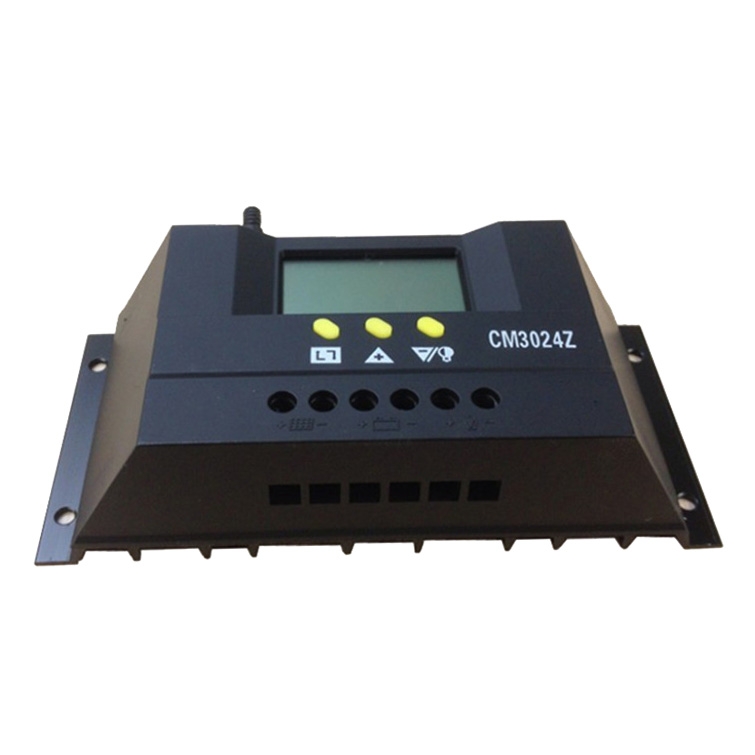

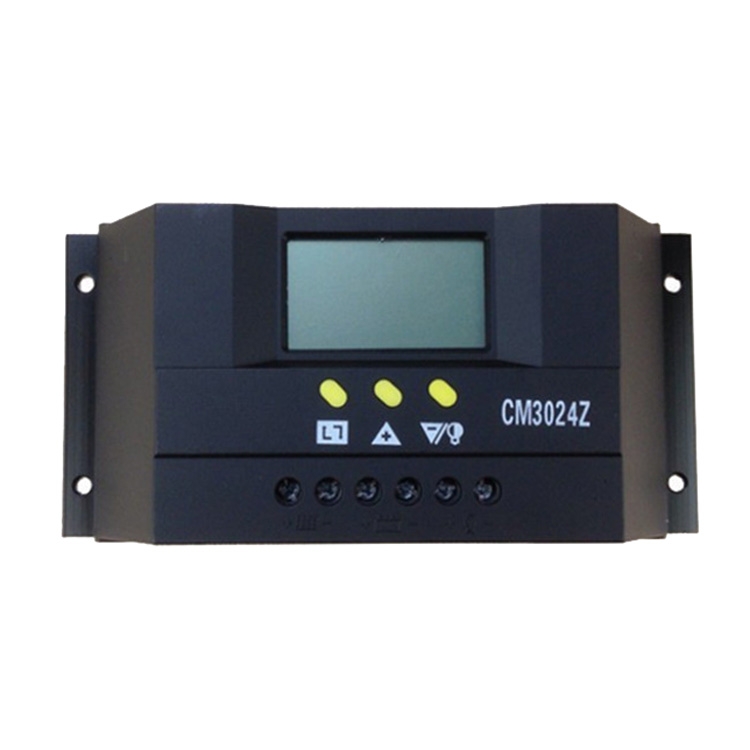

CM3024Z 12V24V 30A Solar Controller LCD Display Solar Charge Controller

Product Description

parameter: 1. Rated voltage: 12/24V lead-acid battery voltage 2. Maximum charge and discharge current: 30A 3. Solar panel input voltage range: maximum 18V-450W/36V-900W 4. Load working time setting: 1-24 hours adjustable 5. Charging mode: PWM 6. Overvoltage protection: 17V/34V 7. Fully disconnected: 13.7V/27.4V 8. Undervoltage disconnect: 10.5V/21V 9. Over-discharge recovery voltage: 12.2V/24.4V 10. Wiring specifications: less than or equal to No. 7 AWG (16 square millimeters) 11. Working environment temperature: -25-55 degrees Celsius Features: 1. Vivid LCD graphic symbols 2. Automatic recognition of system voltage level 3. Automatic temperature compensation 4. Settable load working mode 5. Battery undervoltage protection 6. Overload, short circuit protection 7. Simple key operation 8. Intelligent PWM charging method 9. Adjustable charge and discharge control parameters 10. Accumulation of charge and discharge ampere hours 11. Battery reverse discharge protection 12. Battery reverse connection protection

Specifications

SKU

TBD05577827

Category

Consumer Electronics › Solar Power › Others

Weight

0.365 kg

Delivery

Standard delivery
