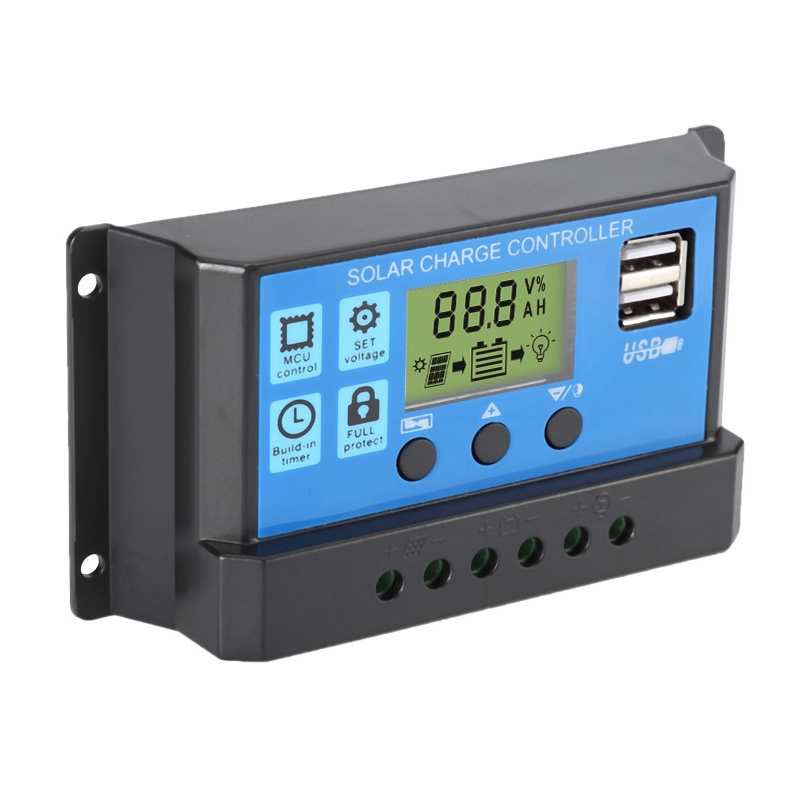

CMTD-2420 20A 12V/24V Solar Charge / Discharge Controller with LED Display & Dual USB Ports

Product Description

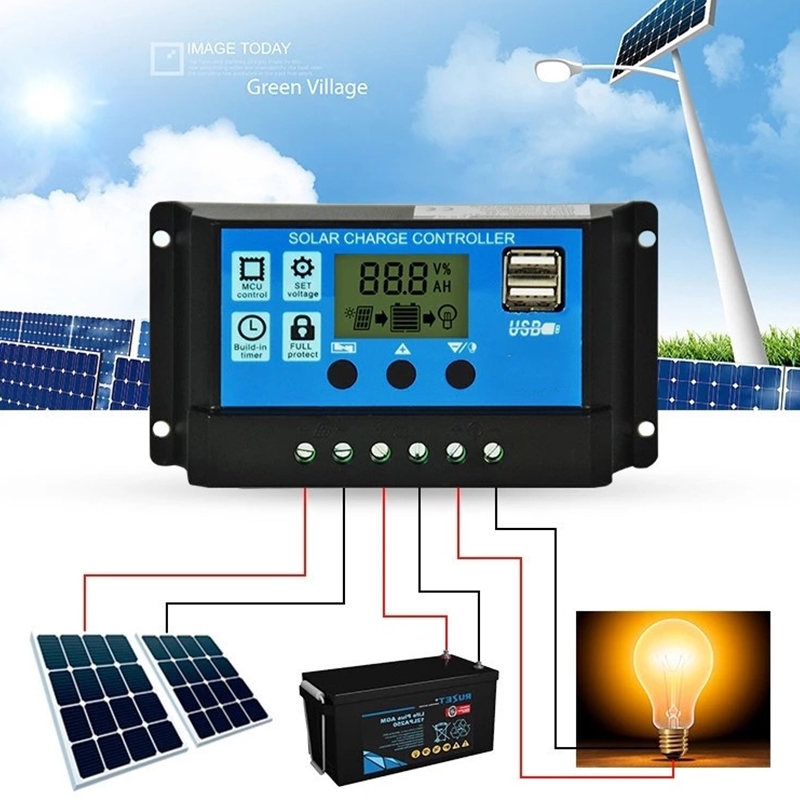

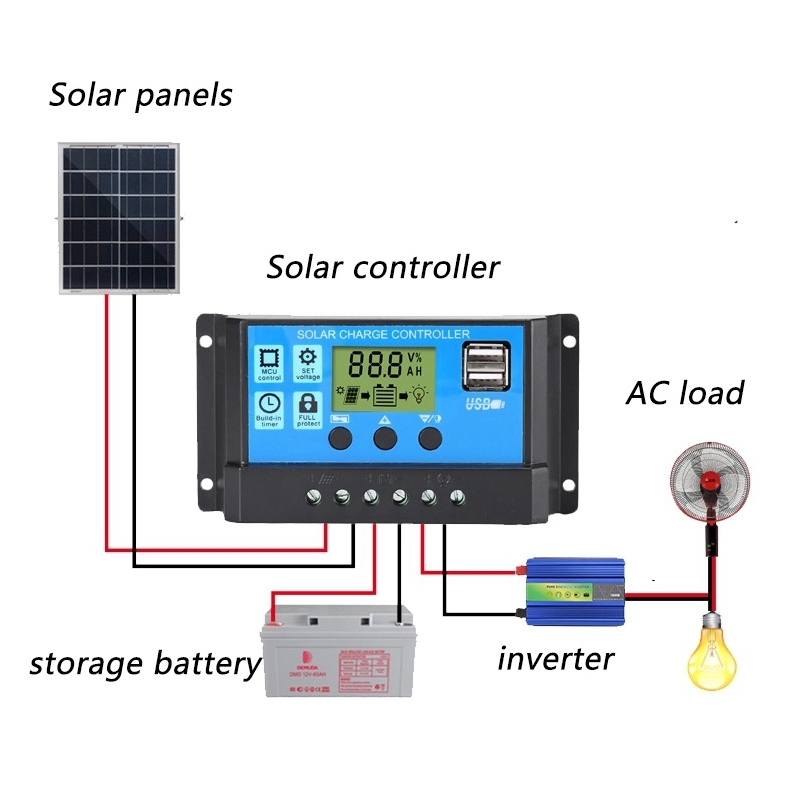

About the producct 1. Brand new and high quality 2. Connects to solar panel to charge battery 3. Identify voltage level automatically 4. Adjustable charge / discharge parameters 5. Low voltage / overheat / overload / short-circuit / reverse polarity protection 6. Settable operatings modes of load 7. Dual USB output 8. Suitable for 12/24V lamps 9. LED display for better viewing 10. Connect battery first then solar panel or loads Specifications 1. Max charge current: 20A 2. Max discharge current: 20A 3. Max solar panel input voltage: less or equal to 50V 4. Rate voltage: 12/24V auto work 5. Stop charging voltage: 14.7/29.4V 6. Low voltage recovery: 12.2/24.4V 7. Low voltage protection: 10.5/21V 8. USB output: 5V 2A 9. Operating temperature: -20 to 60 Celsius degree

Specifications

SKU

OG9998

Category

Consumer Electronics › Solar Power › Others

Weight

0.161 kg

Delivery

Standard delivery
