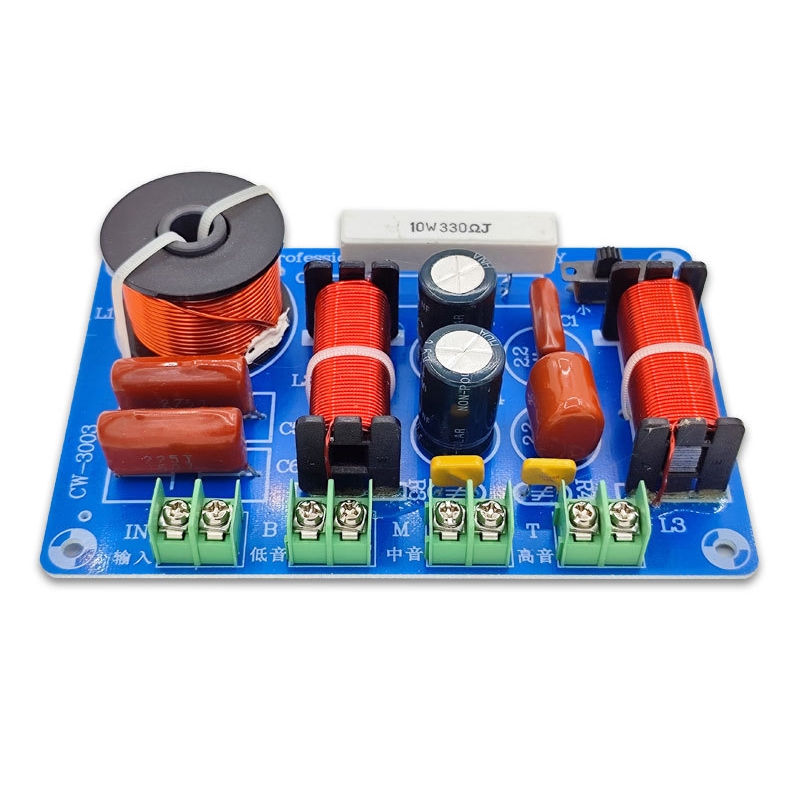

CW-3003 High Medium And Low 3-Way Audio Crossover Home Cinema Speaker Divider

Product Description

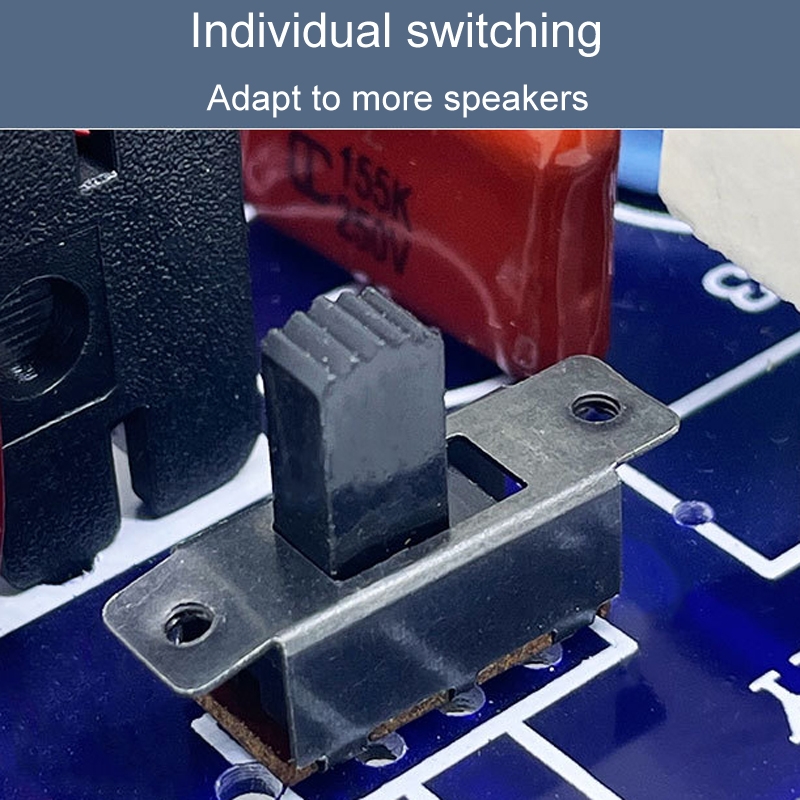

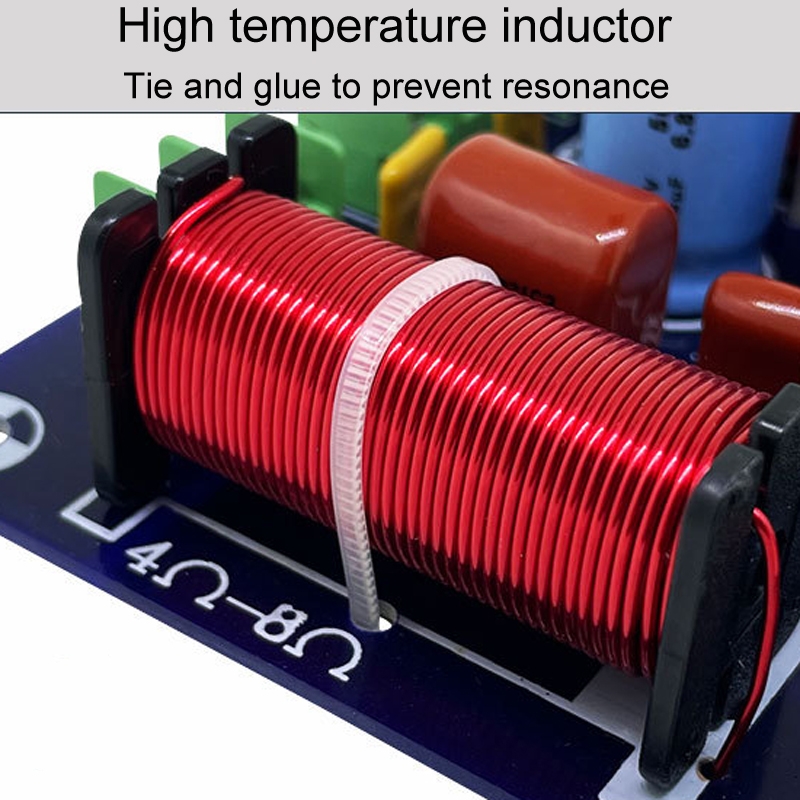

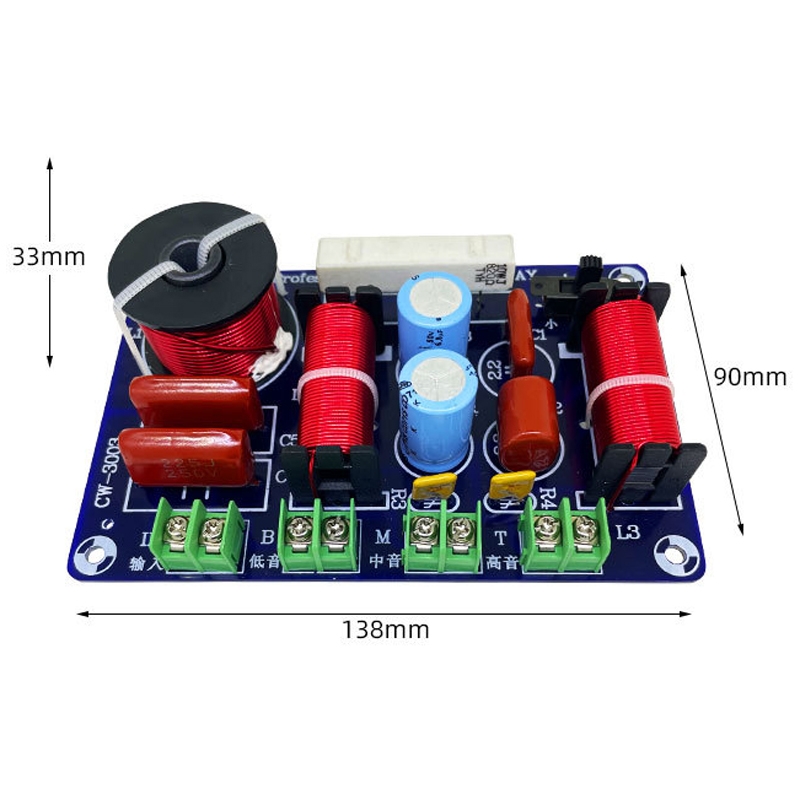

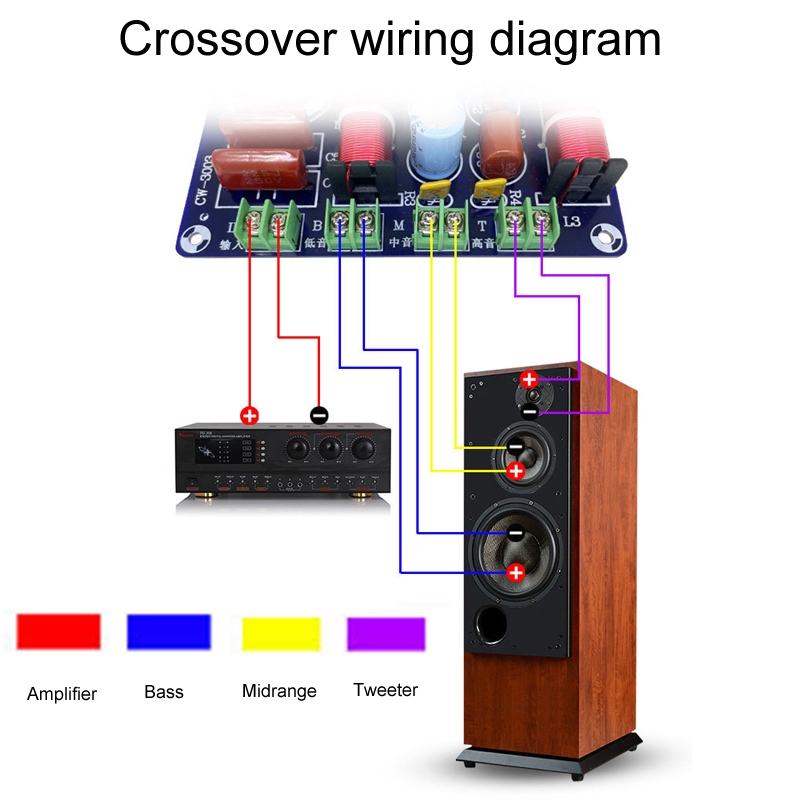

1. Scope of application: DIY modification and upgrading of home speakers 2. Filter characteristics: 1 high, 1 medium, 1 low three-way frequency 3. Power: 250W 4. Impedance: 4-8 ohm 5. Crossover point: bass/midrange 850Hz; treble/midrange 5200-5500Hz adjustable 6. This crossover adds the function of adjustable high audio point, which can meet more people needs and adapt to more speakers 7. Inductors using ties and high-temperature audio special glue fixed to prevent resonance 8. No welding wire terminals, easy to install and use 9. Size: 138 x 90 x 33mm 10. Weight: 195g

Specifications

SKU

TBD06051725

Category

Consumer Electronics › DIY Parts & Components › Audio Crossover

Weight

0.214 kg

Delivery

Standard delivery
