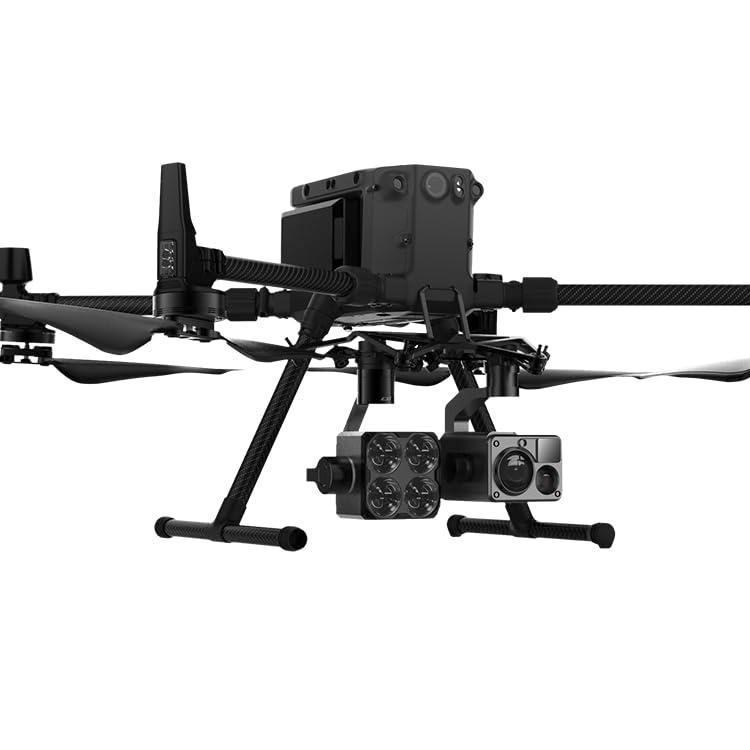

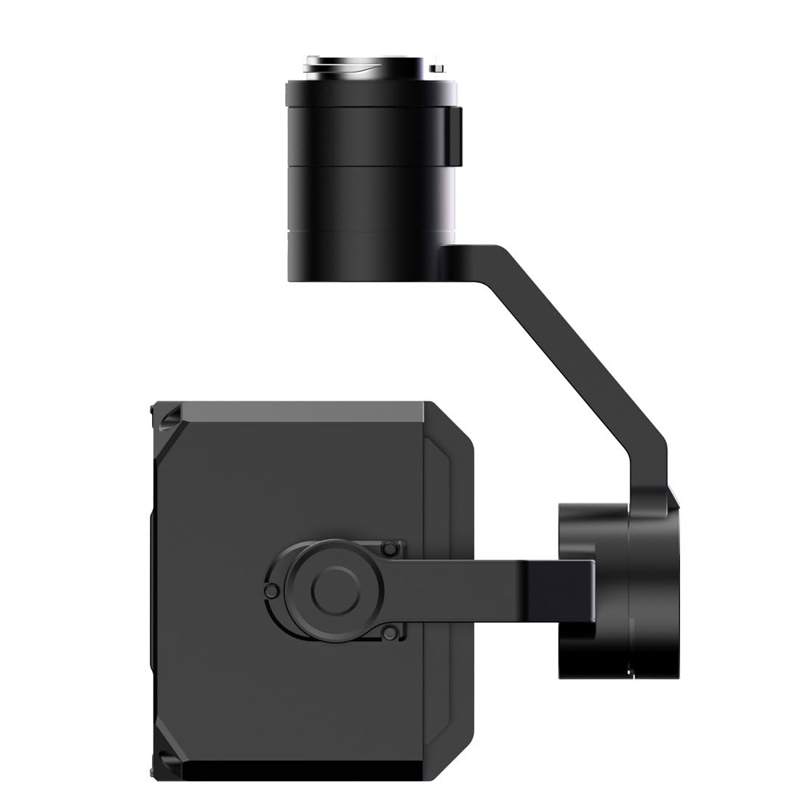

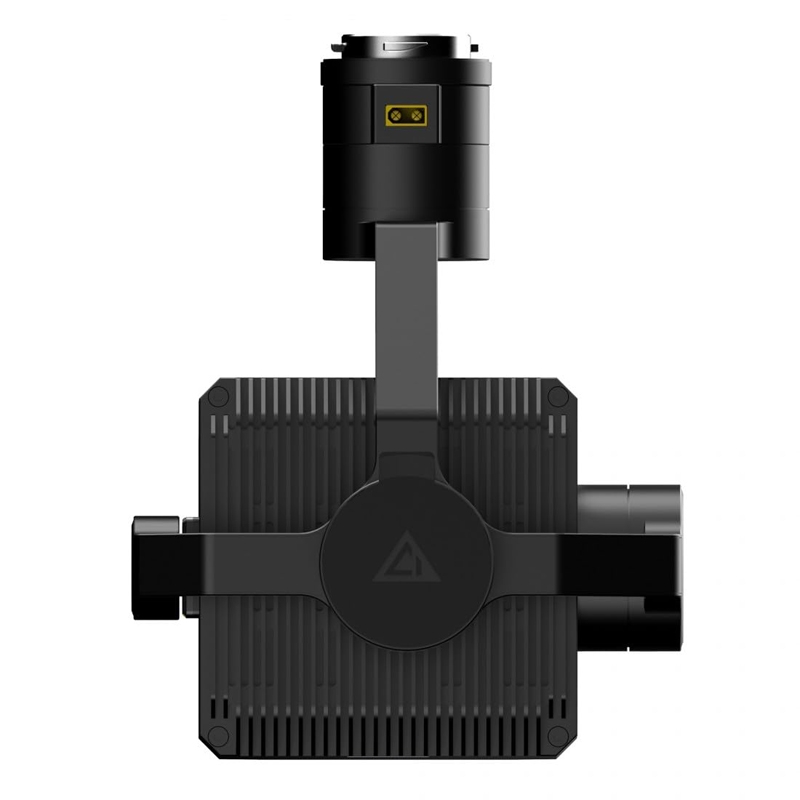

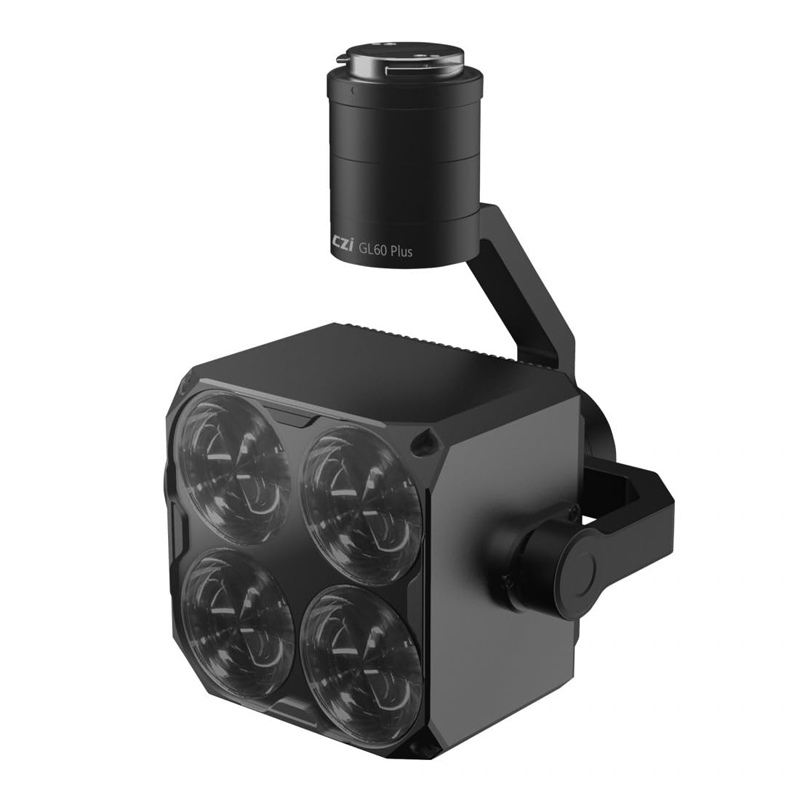

CZI GL60 Plus Gimbal Searchlight For DJI M200V2, M300RTK And Other Series Of Drones

Product Description

1. The GL60 Plus gimbal lamp uses 4 sets of optical imaging components, each of which is composed of 4 lenses, emitting a sharp beam of light with an angle of only 15 degrees, with consistent color and uniform brightness. At 120w, the central illumination value of the light spot at 100m is as high as 24lux; at an illumination height of 150m, the effective illumination area is as high as 1225 square meters, which brings the aerial illumination effect of drone night operations to a new height. 2. The overall ultra-lightweight design weighs only 750 grams, with a rated power of up to 120W. Through the DJI SkyPort V2.0 interface, it is compatible with DJI M200 V2, M300 RTK, and other series of drones, and can meet the needs of night inspections, warnings and expulsions, direction indications, power line inspections, search and rescue, and other night operations. Parameters: 1. Electrical interface: DJI SkyPort V2.0 2. Weight: 750g 3. Size: 126x131x167mm 4. FOV: 15 degrees 5. Power supply voltage: PSDK 17V+OSDK 24V PSDK 17V 6. Total power: 128W, 68W 7. LED power: 120W, 60W 8. Color temperature: 5000~6000K 9. Luminous flux: --13400lm+/-3% (power: 120W) --8000lm+/-3% (power: 60W) 10. Light efficiency: --111.67lm/W (power: 120W) --133.33lm/W (power: 60W) 11. Spot diameter: --13.2m (distance: 50m, 120W) --26.4m (distance: 100m, 120W) --39.5m (distance: 50m, 120W) --13.2m (distance: 50m, 60W) --26.4m (distance: 100m, 60W) --39.5m (distance: 150m, 60W) 12. Searchlight area: --136 square meters (distance: 50m, 120W) --544 square meters (distance: 100m, 120W) --1225 square meters (distance: 150m, 120W) --136 square meters (distance: 50m, 60W) --544 square meters (distance: 100m, 60W) --1225 square meters (distance: 150m, 60W) 13. Center illumination: --85Lux (power: 120W; distance: 50m) --23Lux (power: 120W; distance: 100m) --11Lux (power: 120W; distance: 150m) --45Lux (power: 60W; distance: 50m) --12Lux (power: 60W; distance: 100m) --6Lux (power: 60W; distance: 150m) 14. Function mode: --Constant light: 120W, 60W --Flash: 120W, 60W --Gimbal angle adjustment --Auto follow --Brightness adjustment 15. Gimbal rotation range: --Pitch: -99~+23 degrees --Horizontal: +/-99 degrees 16. Gimbal design range: --Pitch: -100~+24 degrees --Horizontal: +/-100 degrees --Roll: -90~+60 degrees 17. Working temperature: -20~+50 degrees Celsius

Specifications

SKU

TBD06053595

Category

DJI & Insta360 Accessories › Other DJI Accessories › Other

Weight

1.704 kg

Delivery

Standard delivery
