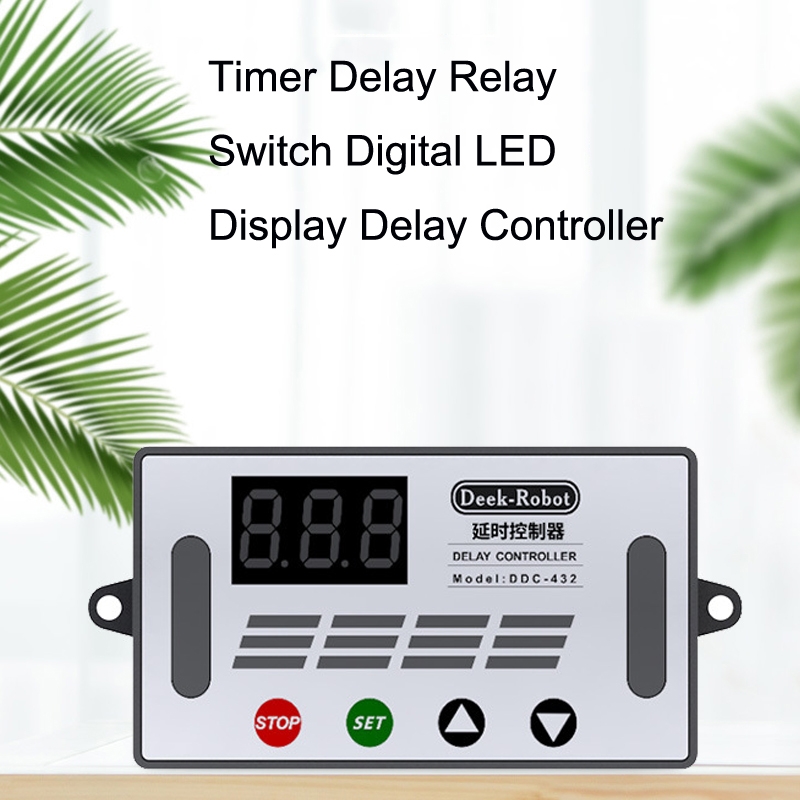

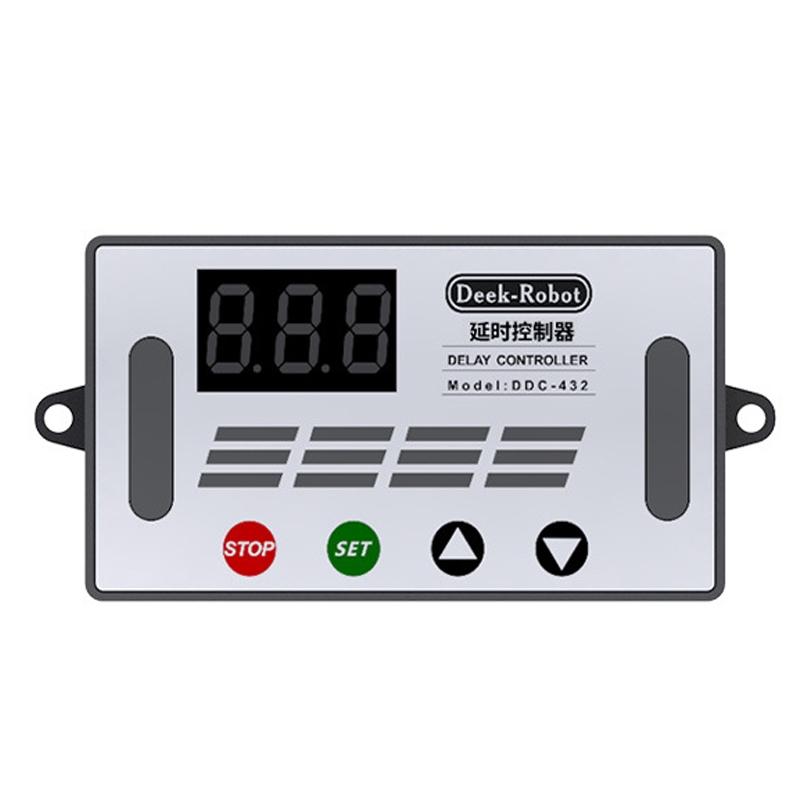

Deek-Robot DDC-432 Delay Relay Switch DC5V-30V Dual MOS Tube Digital Display Time Relay Controller

Product Description

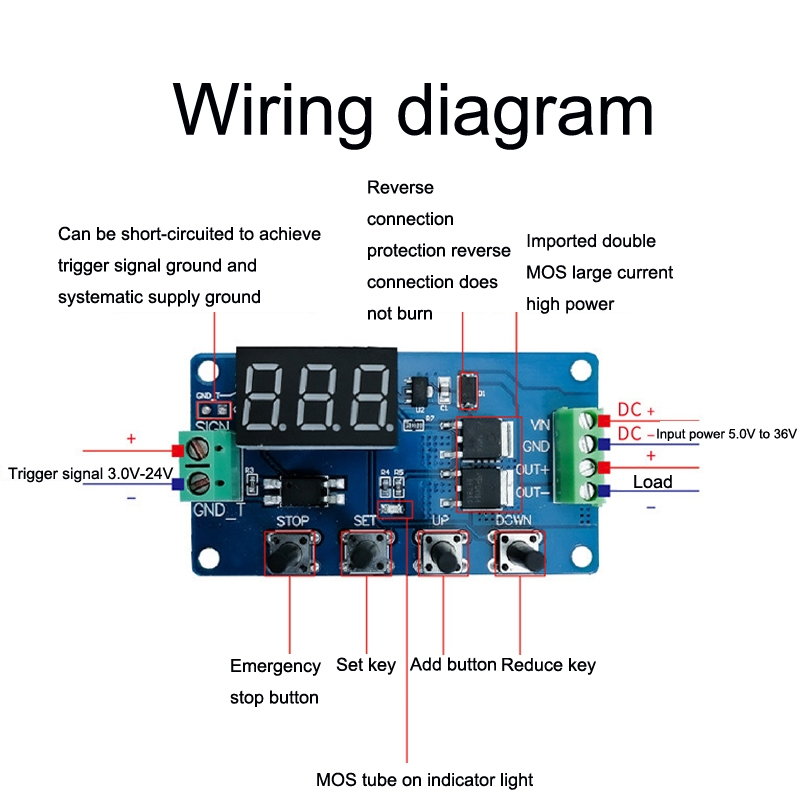

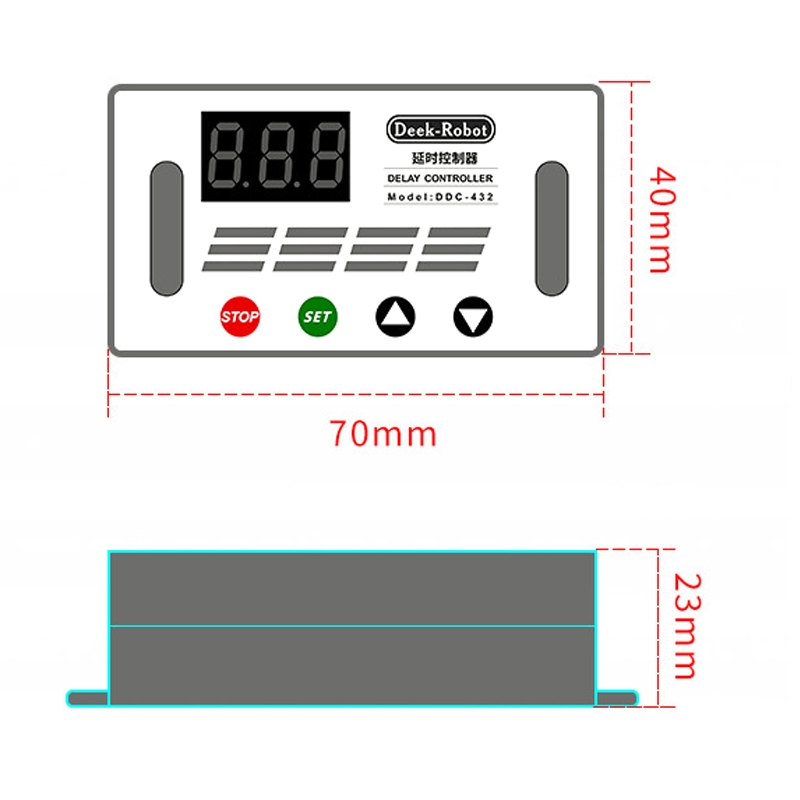

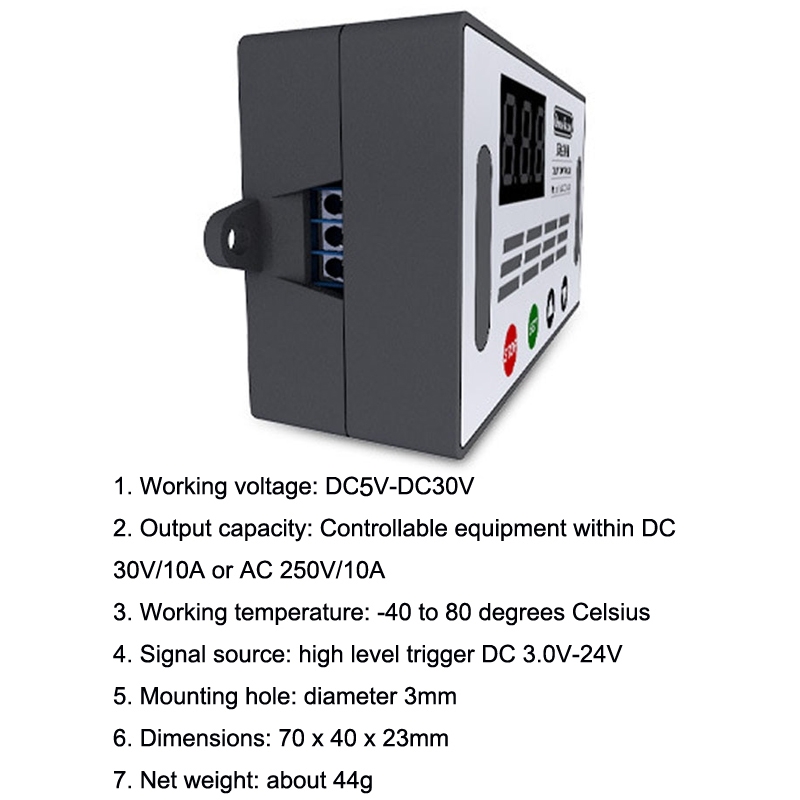

1. One-button emergency stop function (STOP button) is more convenient to use 2. Voltage input anti-reverse connection circuit, worry-free wiring 3. Setting parameters power off, power off memory function 4. Added sleep mode, automatically turn off the display if there is no operation within 5 minutes 5. Working voltage: DC5-30V 6. Output capacity: Controllable equipment within DC 30V/10A or AC 250V/10A 7. Working temperature: -40 to 85 degrees Celsius 8. Signal source: high level trigger DC 3.0V-24V 9. Mounting hole: diameter 3mm 10. Power consumption: 400W 11. Dimensions: 70 x 40 x 23mm 12. Net weight: about 44g

Specifications

SKU

TBD06035880

Category

Consumer Electronics › Arduino & SCM Supplies › Relay Module

Weight

0.084 kg

Delivery

Standard delivery
