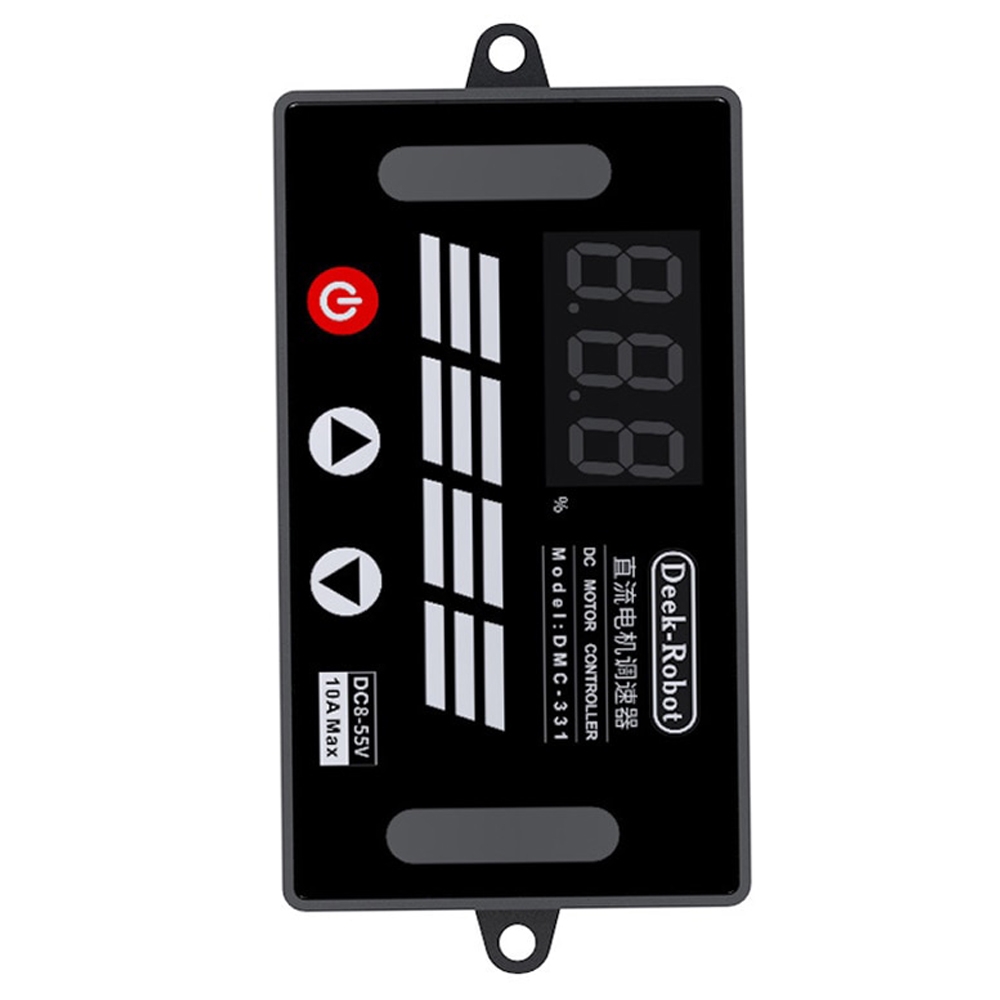

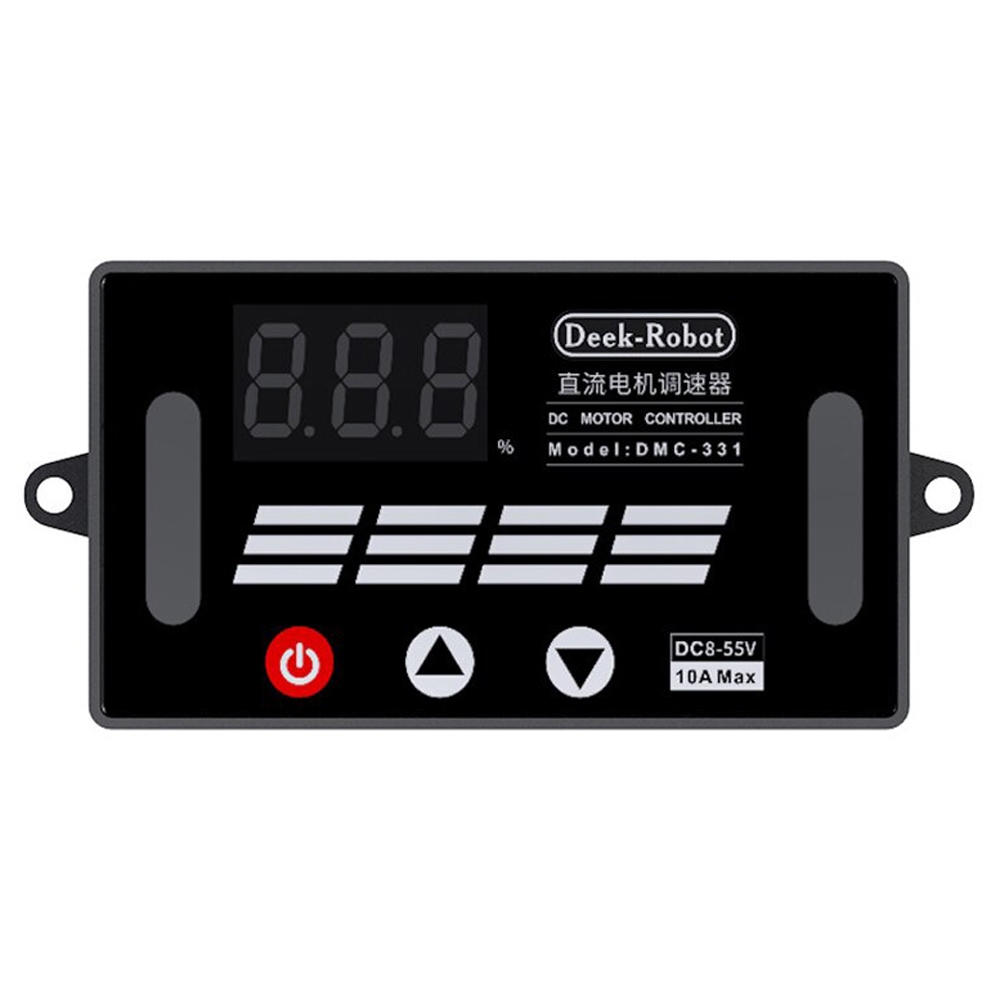

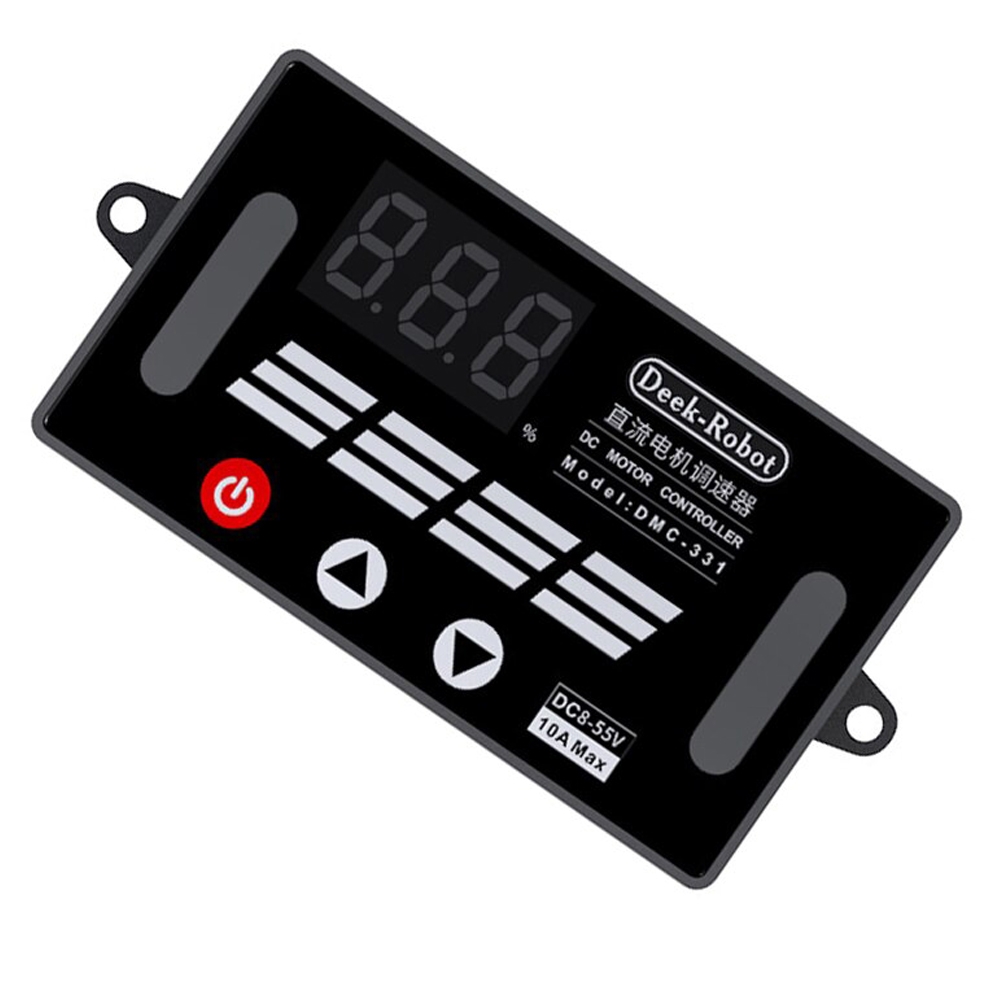

Deek-Robot DMC-331 PWM DC Motor Speed Controller Wide Voltage DC8-55V Speed Regulator

Product Description

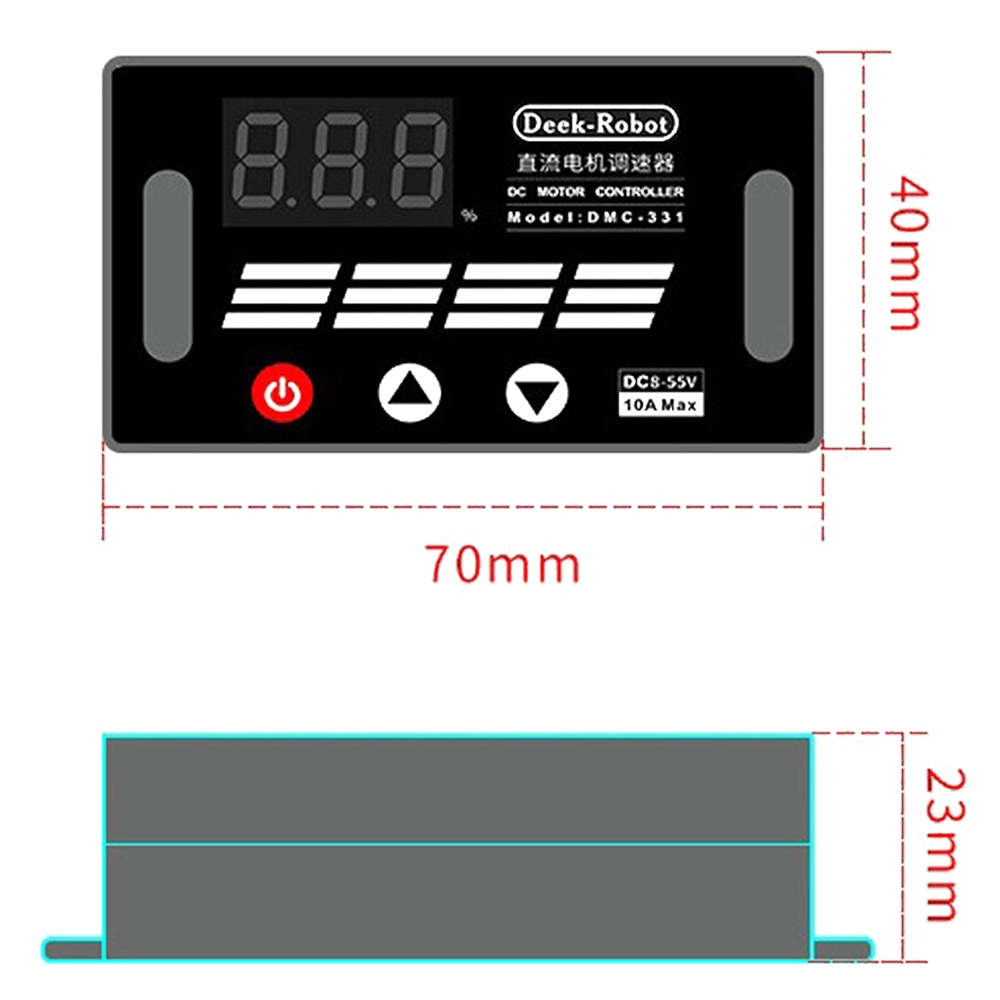

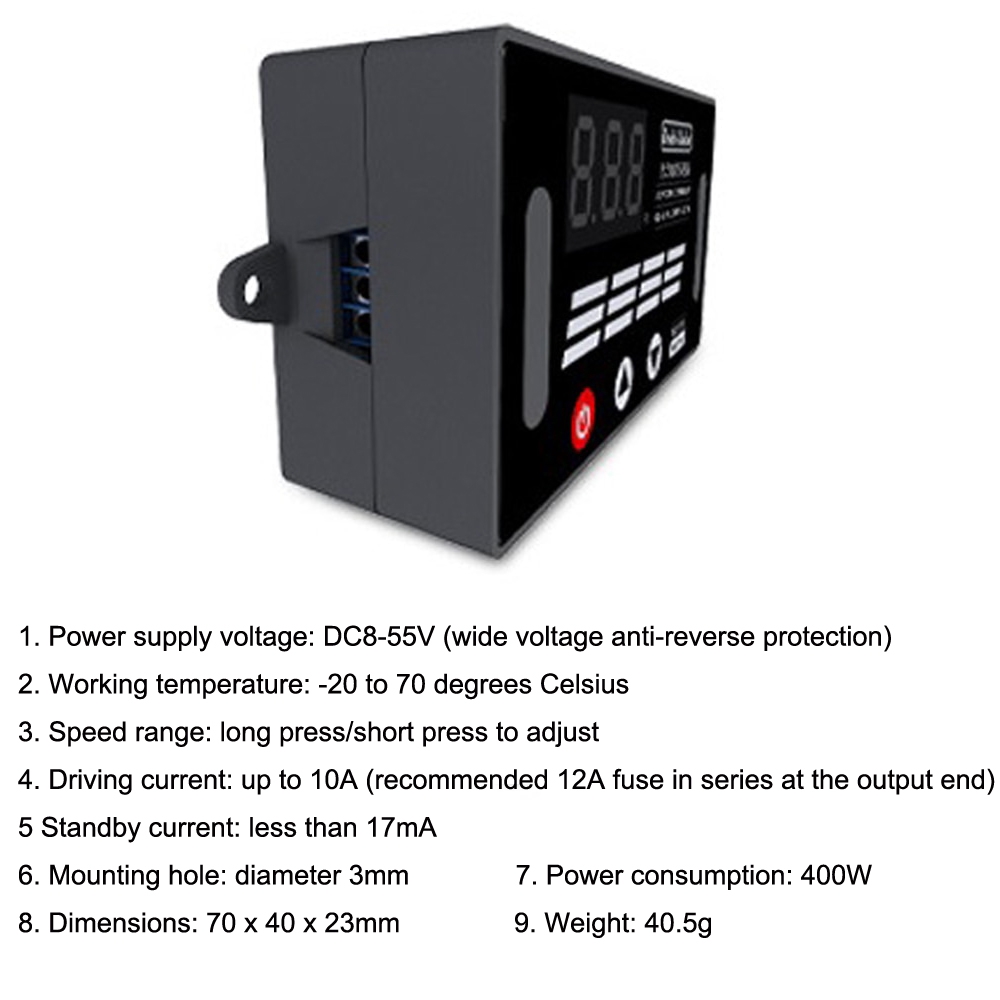

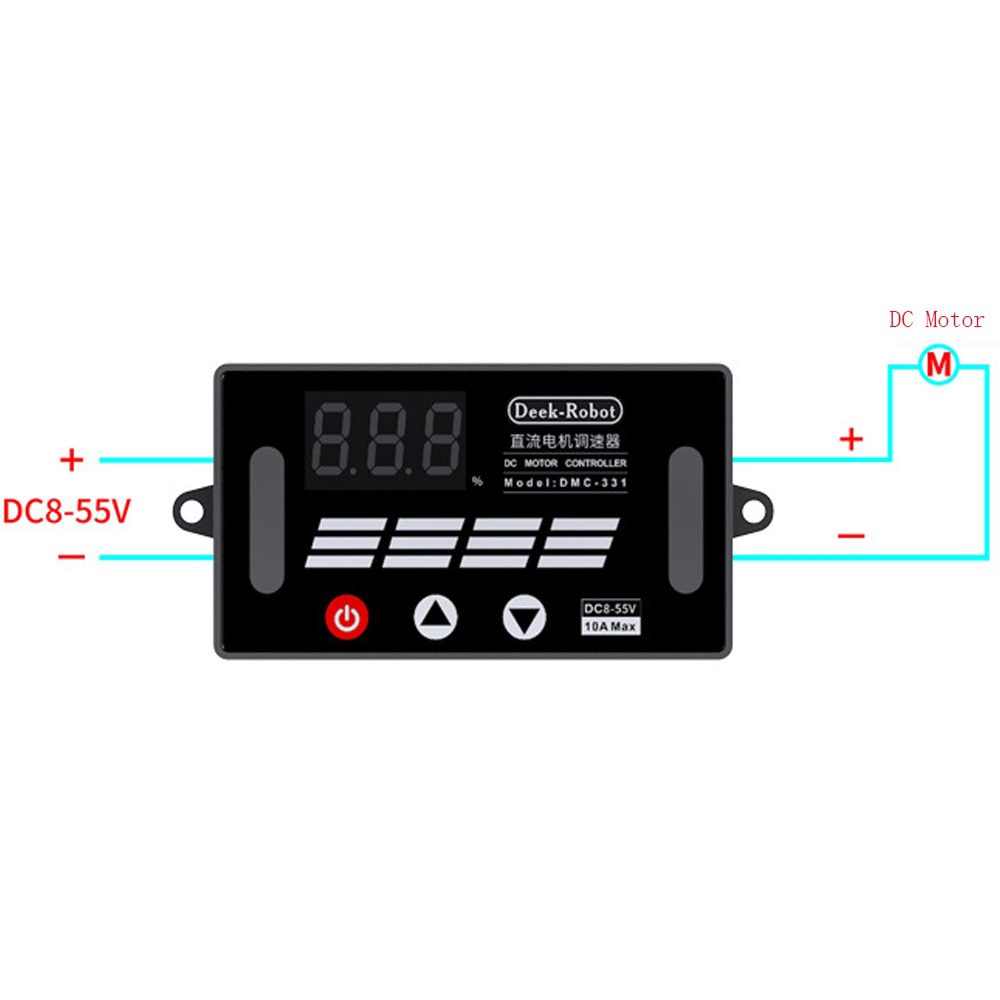

1. Small size, easy to operate 2. High current resistance, anti-reverse connection, safe wiring 3. Set parameters, power off, long-term memory 4. Support acceleration and deceleration functions can be set through the menu 5. Scope of application: motor 8. Power supply voltage: DC8-55V (wide voltage anti-reverse protection) 9. Working temperature: -20 to 70 degrees Celsius 10. Speed range: long press/short press to adjust 11. Driving current: up to 10A (recommended 12A fuse in series at the output end) 12. Standby current: less than 17mA 13. Mounting hole: diameter 3mm 14. Power consumption: 400W 15. Dimensions: 70 x 40 x 23mm 16. Weight: 40.5g

Specifications

SKU

TBD06035881

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.084 kg

Delivery

Standard delivery
