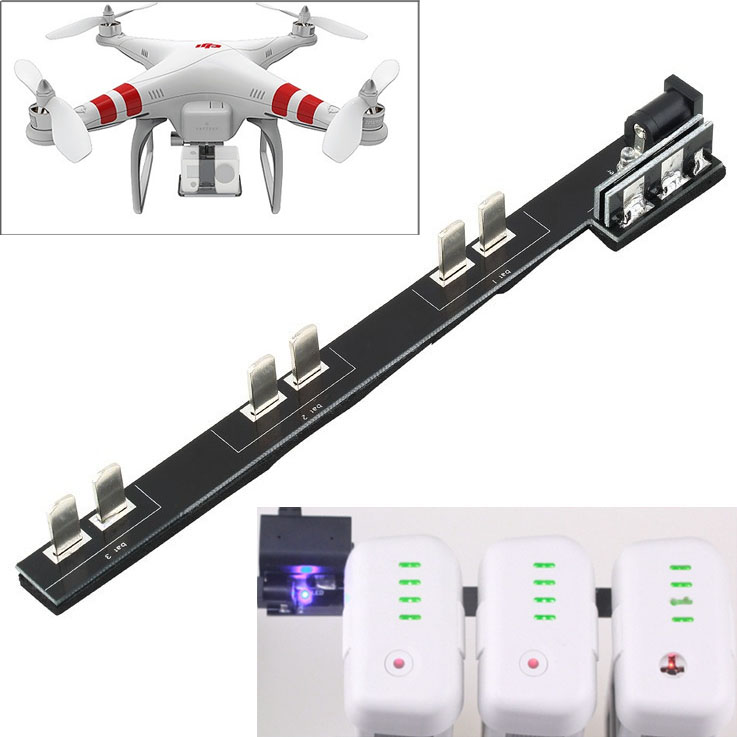

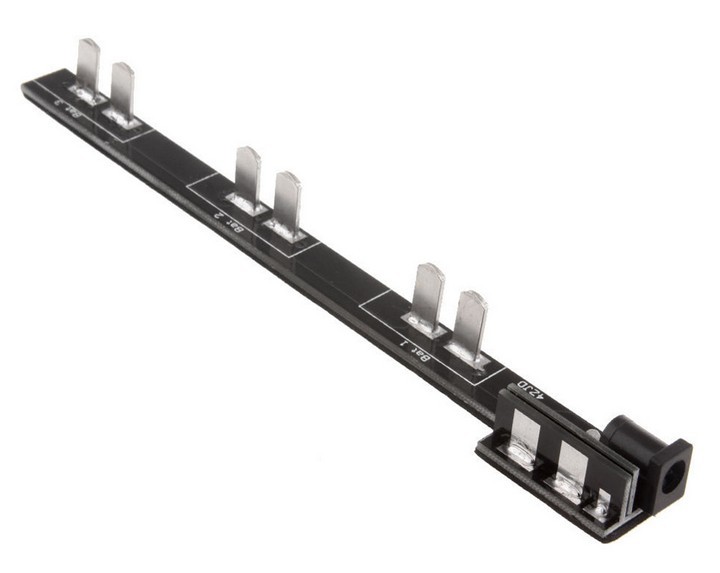

DJI Phantom 2 Vision+ / Phantom 2 Quadcopter Battery Parrallel Charging Board for Three Batteries(Black)

Product Description

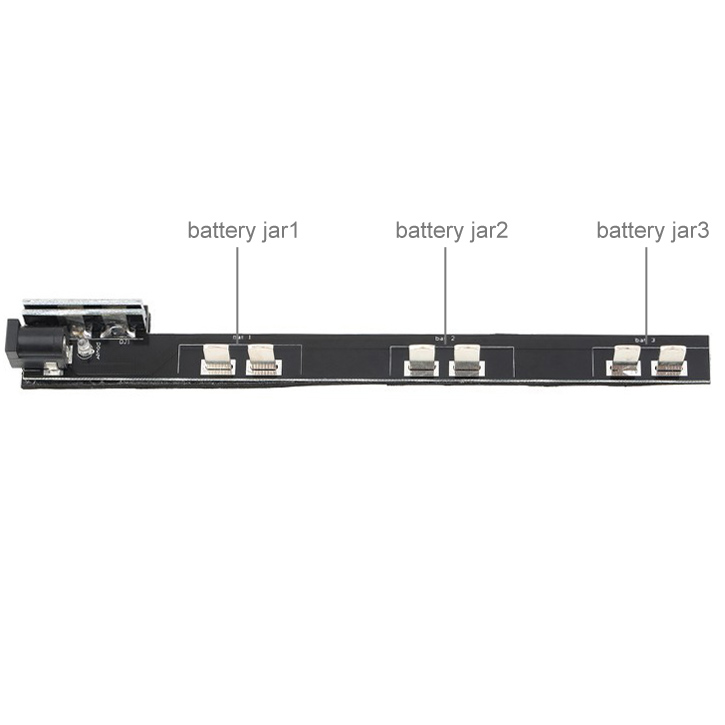

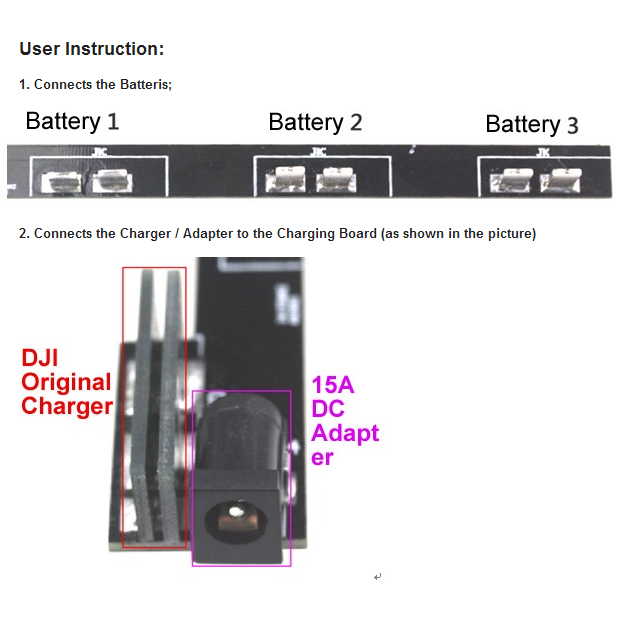

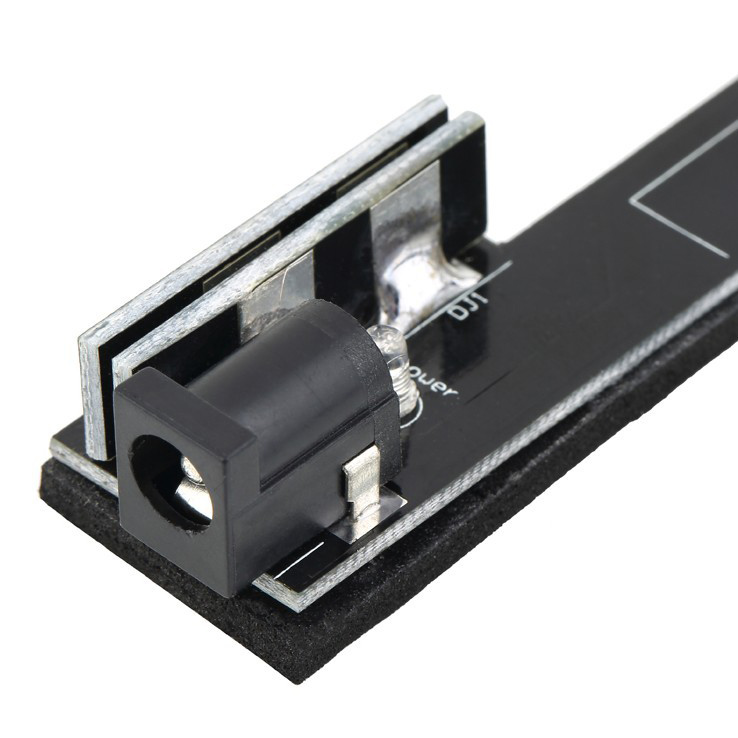

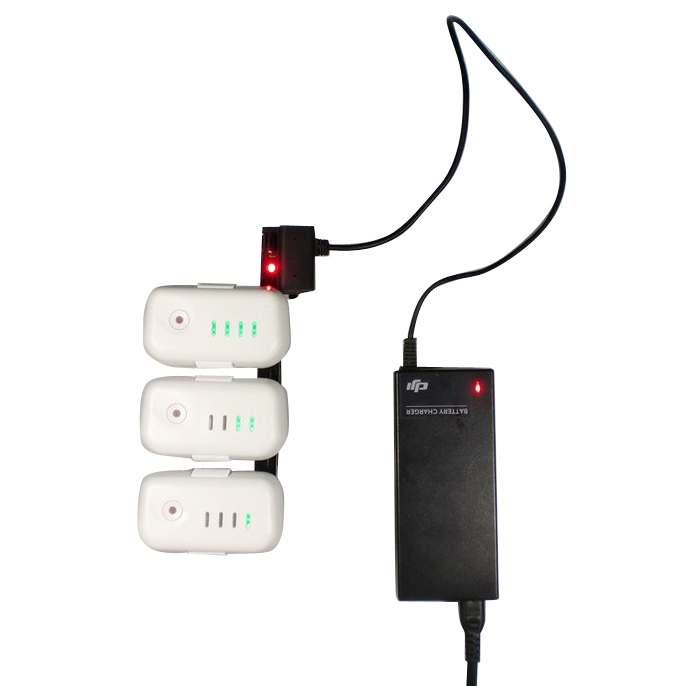

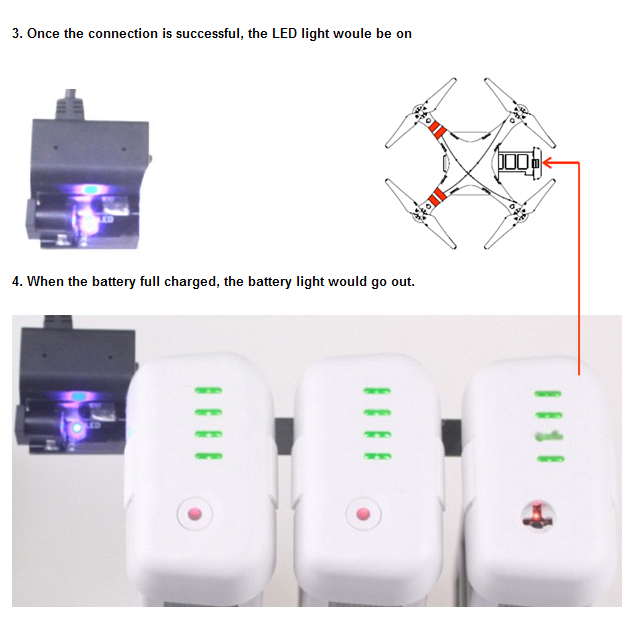

Main Features 1. Suitable for Phantom 2 vision+ / Phantom 2 three batteries charging at the same time 2. Support original adapter 3. Support the third party adapter 4. With safety protection function 5. Work with 15A power adapter 6. Note: Power adapter is NOT included. This product shall be used together with model S-CA-0093. Operation Steps 1. Connect the Batteries. 2. Connect the charger / adapter to the charging board. 3. If the connection is made successfully, the LED light would be on. 4. When battery is full charged, the battery light would go out. Notice 1. Never move the charging board during charging! If loose connection, please cut-off power and re-adjust battery until it works. Do not drop this board in fire or close to water! 2. For DJI original charger: Default charge battery one by one. If you want to charge 3 batteries together, please open battery switch one by one. (short press + long press, same to power on for Quadcopter) 3. For the third party charger: The voltage must be at least 12.6V, otherwise the battery won't be full filled. If your charger electric current >6A, DO NOT charge only one battery, it will lead to battery damaged! If your charger electric current <5A and need charge only one battery, put the battery on the first socket close to the LED Light. 4. Charging board LED light on means power is ready, Battery under charging: Battery light is on, Battery full charged: Battery light is off.

Specifications

SKU

S-CA-0092

Category

Mobile Parts › DJI Spare Parts › DJI Phantom Series

Weight

0.235 kg

Delivery

Standard delivery
