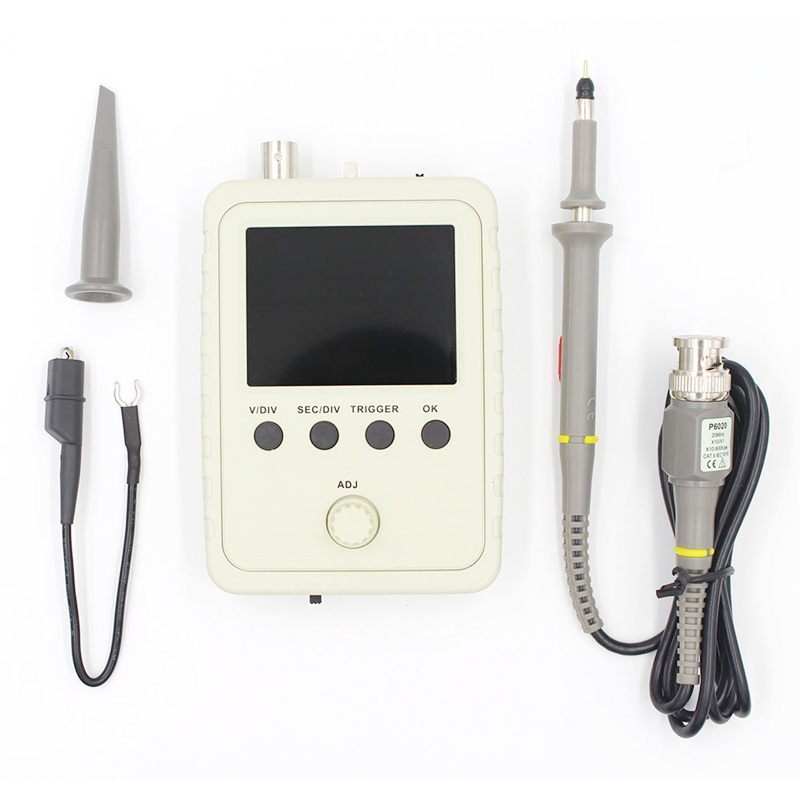

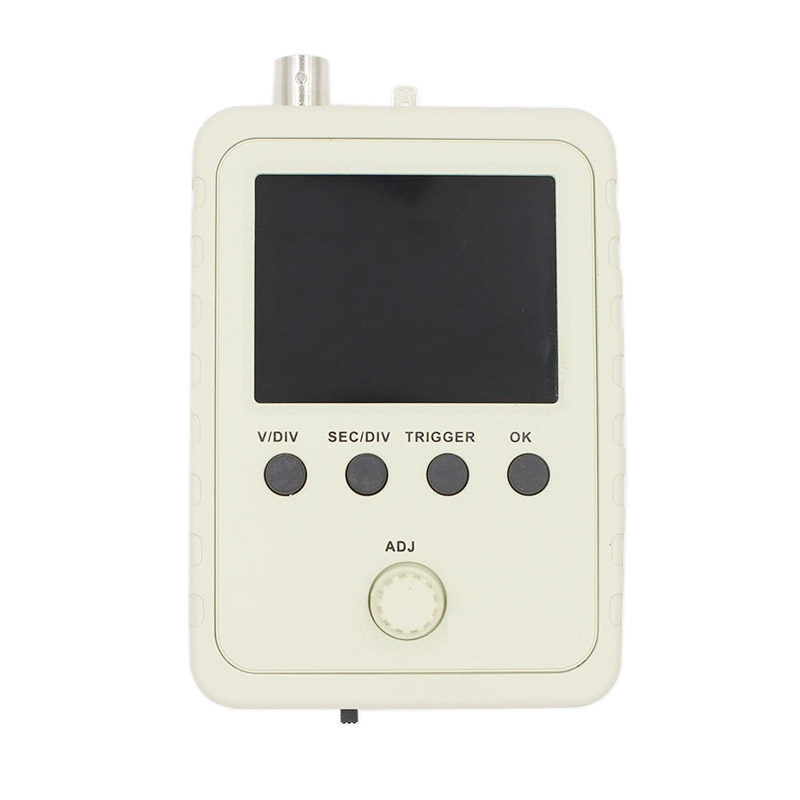

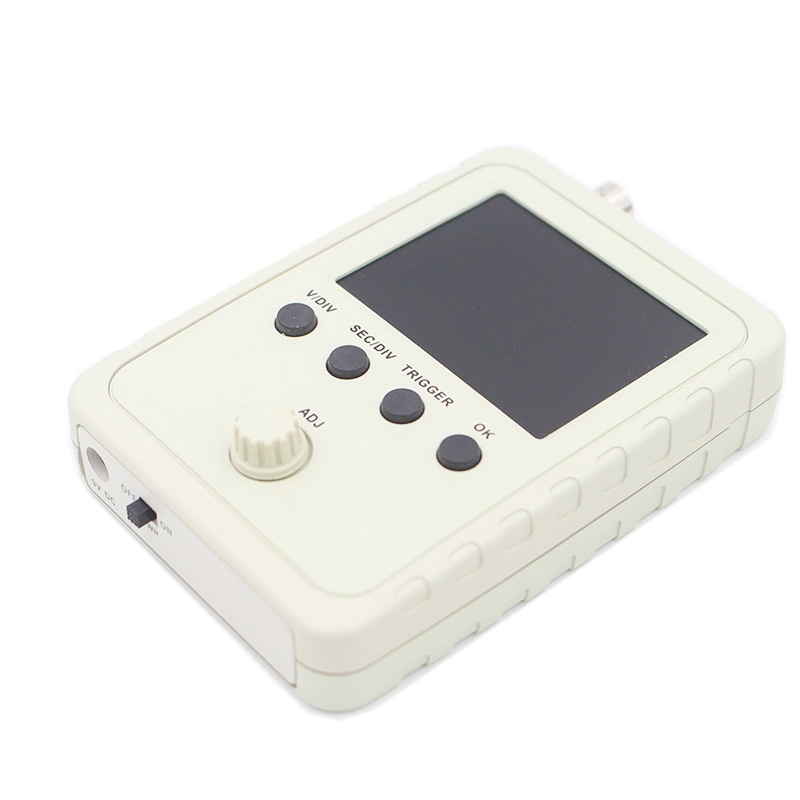

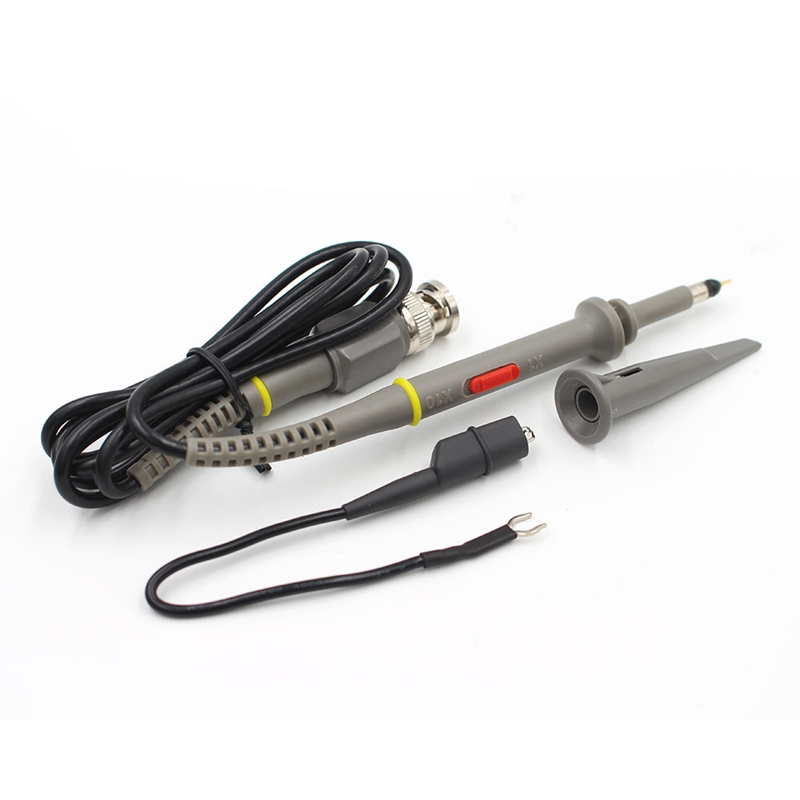

DSO150 Shell Oscilloscope Kit with BNC Probe

Product Description

1. Highest real-time sampling rate: 1Msps 2. Accuracy: 12Bit 3. Sampling buffer depth: 1024 bytes 4. Analog band width: 0-200KHz 5. Vertical sensitivity: 5mV / Div – 20V / Div (progressive in 1-2-5 way) 6. Adjustable vertical displacement with instructions 7. Input impedance: 1MΩ 8. Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) 9. Coupling methods include: DC / AC / GND 10. Horizontal time base range: 10μs / Div – 50s / Div (progressive in 1-2-5) 11. Trigger mode: With automatic, regular and single shot, easy to capture instantaneous waveform 12. Trigger on rising or falling edge 13. Trigger level position is adjustable, with indication 14. Observe waveform before trigger (negative delay) 15. Freeze waveform display at any time (HOLD function) 16. Signal source: Comes with 1KHz /3.3V square wave test 17. The parameters that can be displayed are: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, peak-to-peak value, and effective value. 18. Save / recall waveform, the waveform does not disappear after shutdown 19. Packing list: 20. 15001K (SMD components are soldered)

Specifications

SKU

TBD0532820

Category

Consumer Electronics › Test Equipment › Other Tester Tool

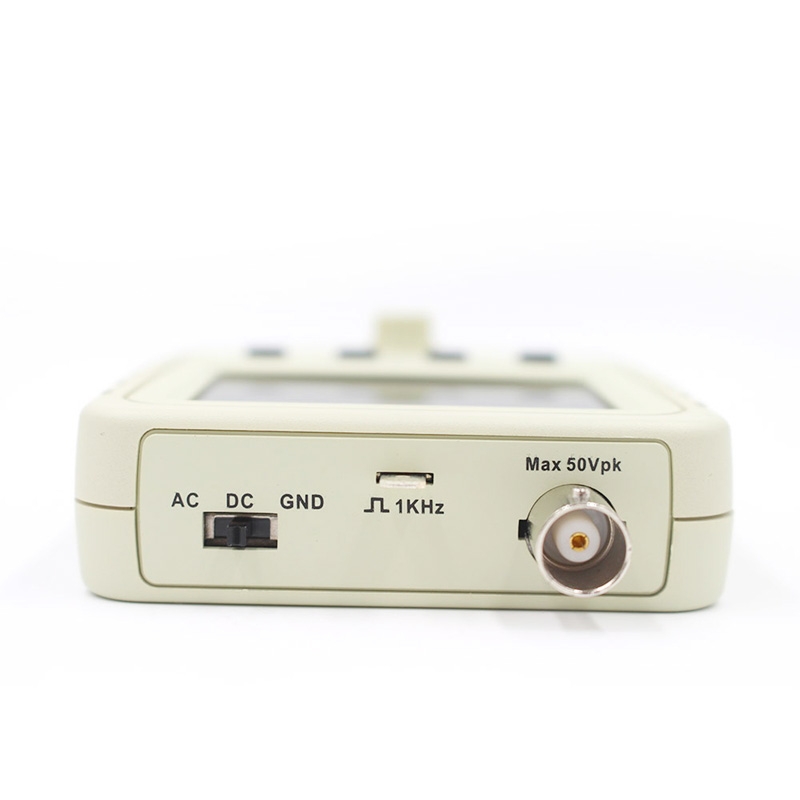

Weight

0.177 kg
