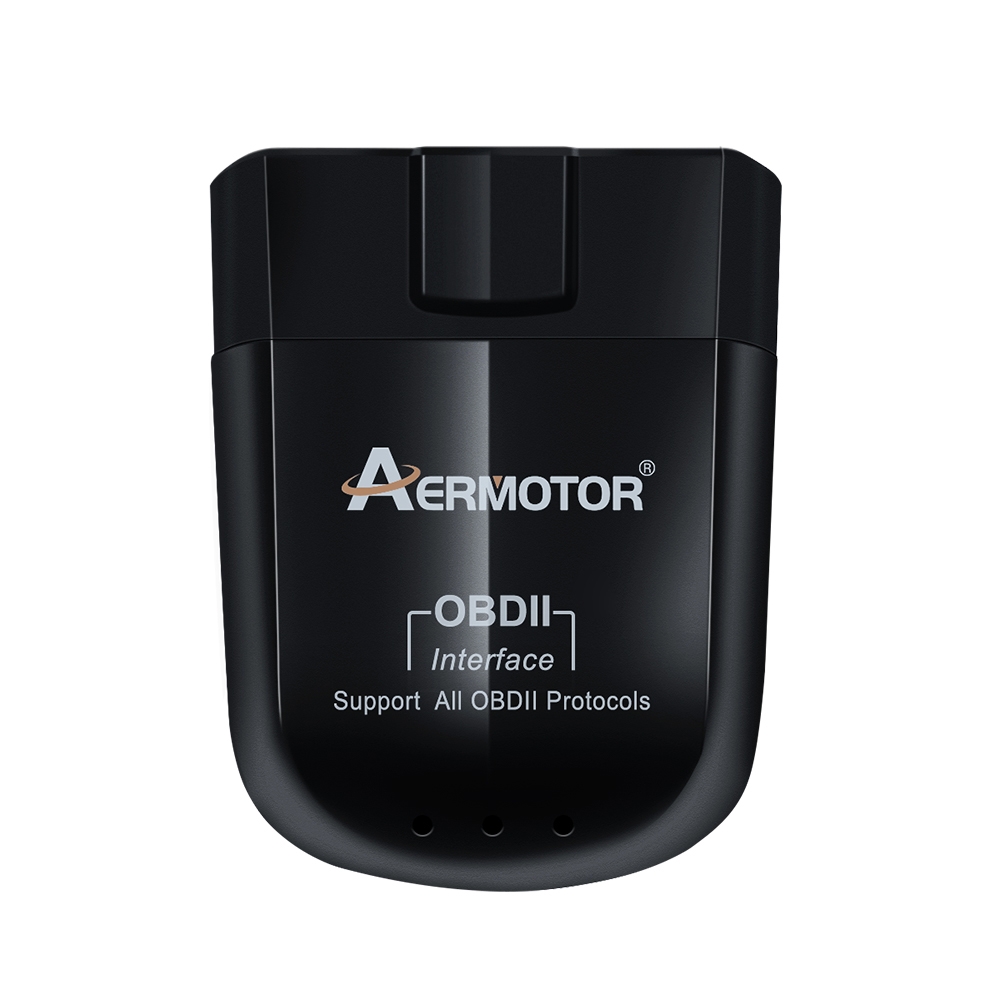

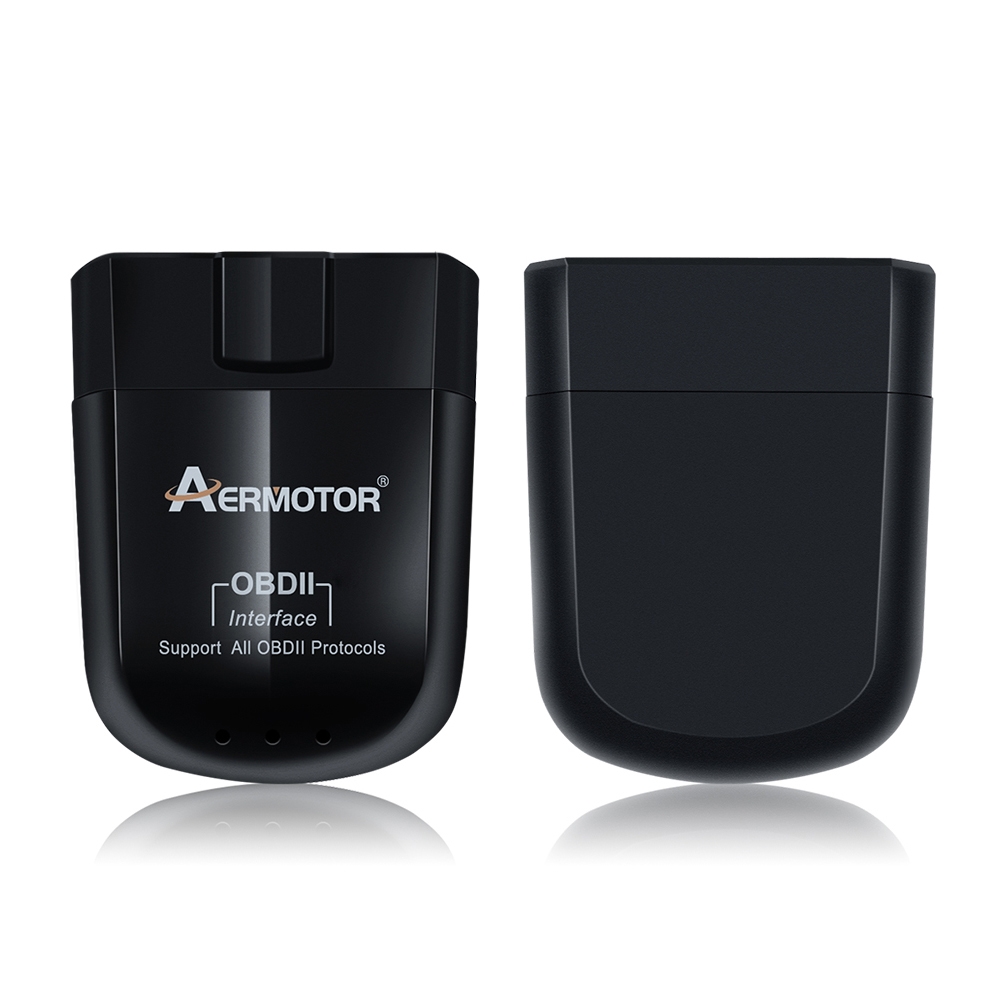

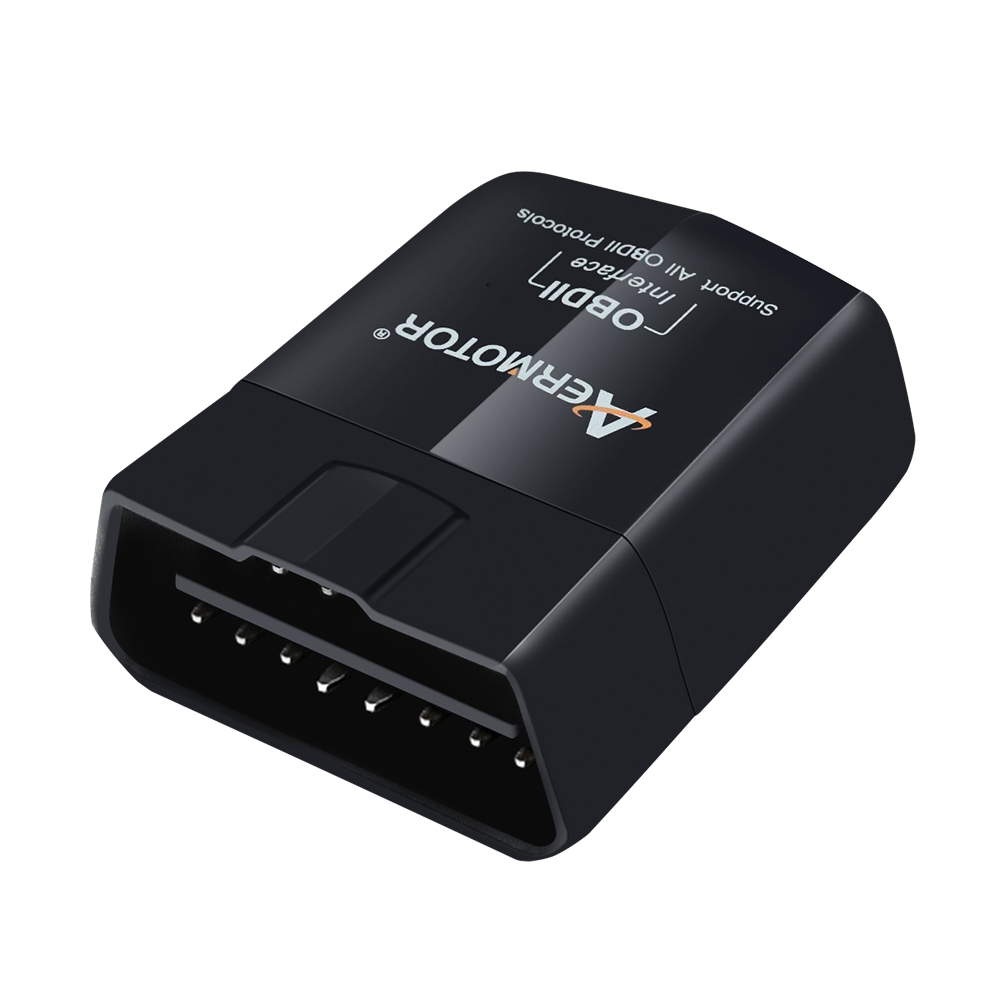

Dual Mode Bluetooth 5.1 ELM327 V1.5 OBD2 Car Fault Diagnostic Tool PIC18F25K80 Chip

Product Description

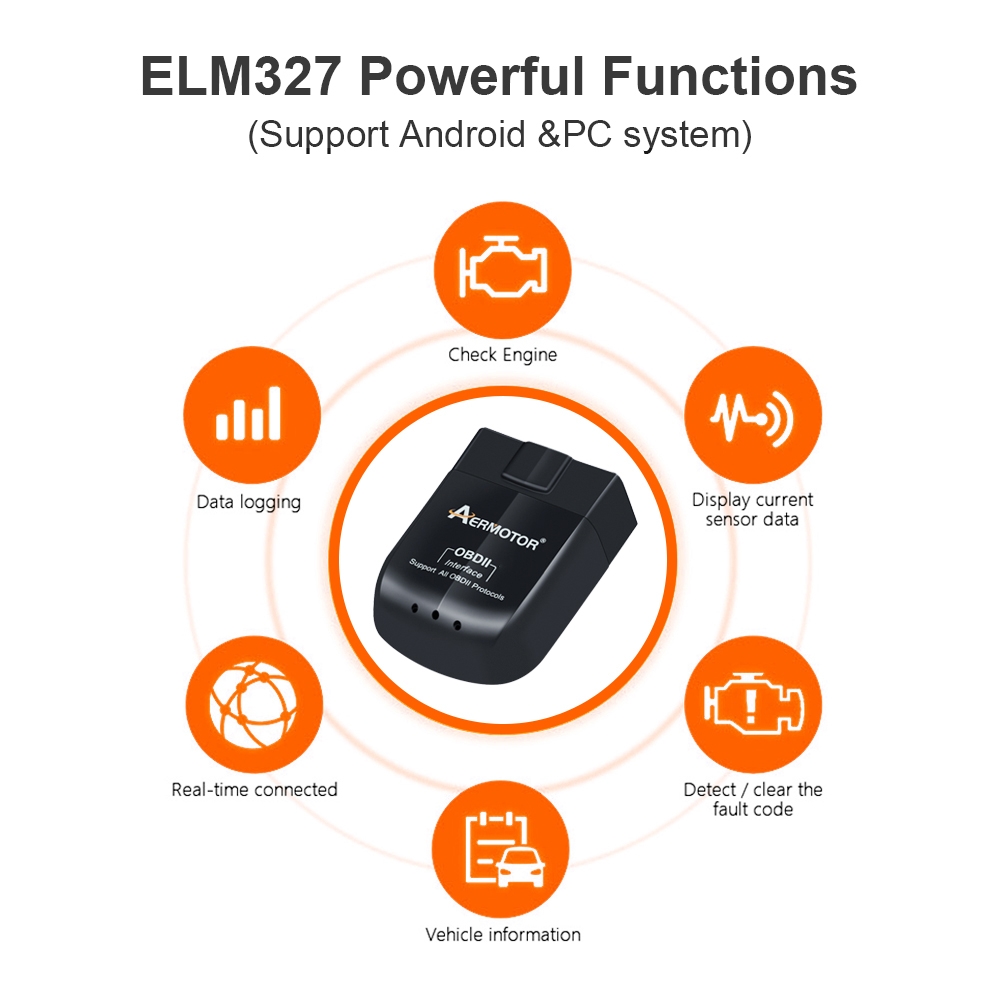

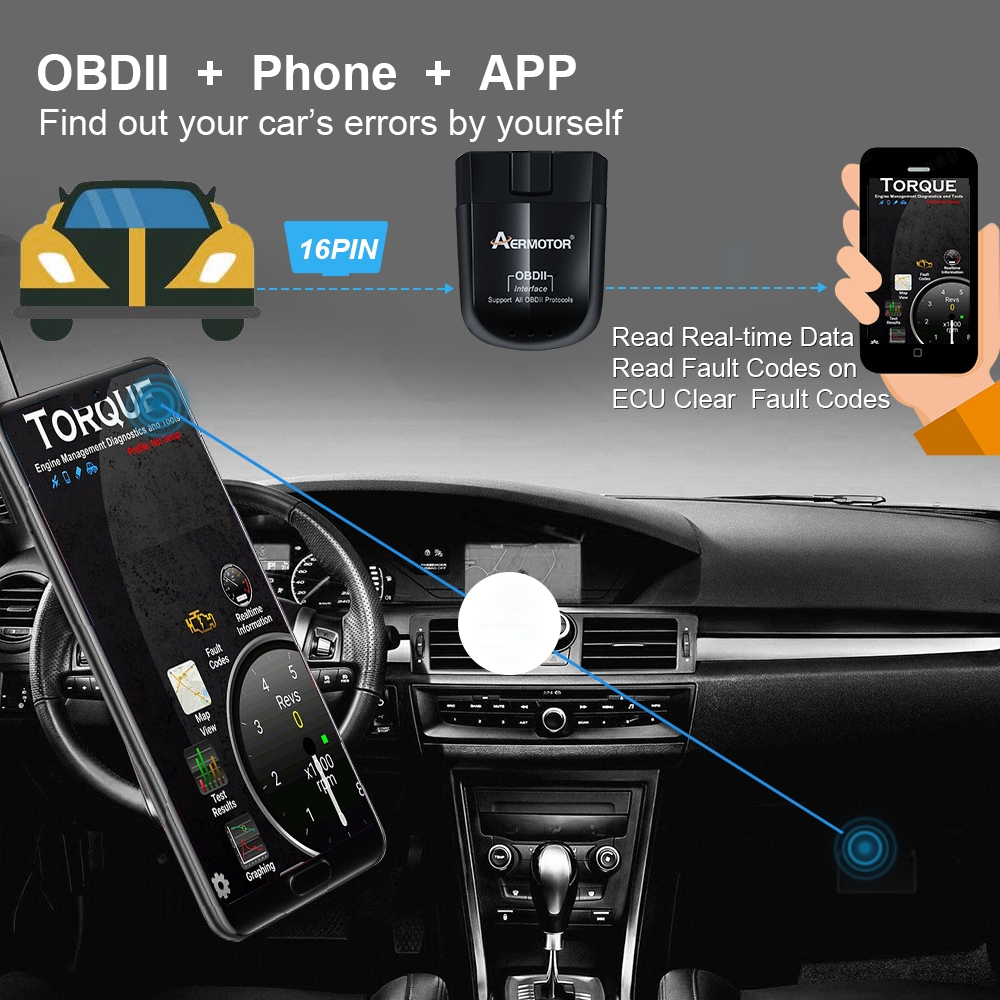

Functions 1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2. Clear trouble codes and turn off the MIL 3. Display current sensor data, including: 4. Engine RPM 5. Calculated Load Value 6. Coolant Temperature 7. Fuel System Status 8. Vehicle Speed 9. Short Term Fuel Trim 10. Long Term Fuel Trim 11. Intake Manifold Pressure 12. Timing Advance 13. Intake Air Temperature 14. Air Flow Rate 15. Absolute Throttle Position 16. Oxygen sensor voltages / associated short term fuel trims 17. Fuel System status 18. Fuel Pressure Specifications 1. Support system: Windows XP, Windows 7/8, Android, Symbian 2. Working voltage: 9~16V 3. Working current: 35mA 4. Standby current: 25mA 5. Operating temperature: -40~85degree Celsius 6. Working Humidity: less than 60% 7. Size: 45mm x 25mm x 65mm 8. Compatible software: - Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc. - Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc. - Symbian : OBDScope 10. Version: V1.5 11. Supported protocols: - SAE J1850 PWM (41.6Kbaud) - SAE J1850 VPW (10.4Kbaud) - ISO9141-2 (5 baud init, 10.4 Kbaud) - ISO14230-4 KWP (5 baud init, 10.4 Kbaud) - ISO14230-4 KWP (fast init, 10.4 Kbaud) - ISO15765-4 CAN (11bit ID, 500 Kbaud) - ISO15765-4 CAN (29bit ID, 500 Kbaud) - ISO15765-4 CAN (11bit ID, 250 Kbaud) - ISO15765-4 CAN (29bit ID, 250 Kbaud)

Specifications

SKU

CAR9854

Category

In Car › Diagnostic Scan Tools › Code Readers & Scan Tools

Weight

0.054 kg
