Earphone Nonitor Signal Amplifier, Dual XLR Input, Mono or Stereo Input or Switch Stereo Mixing

Product Description

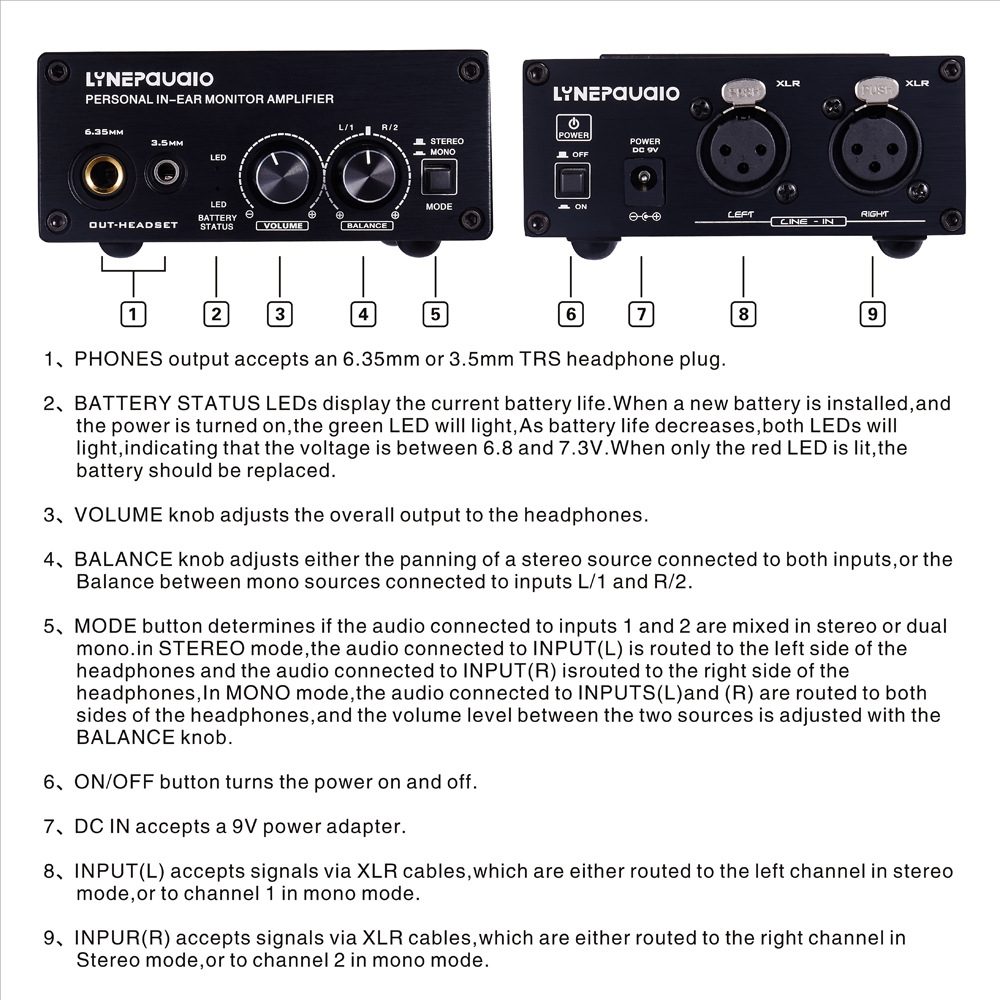

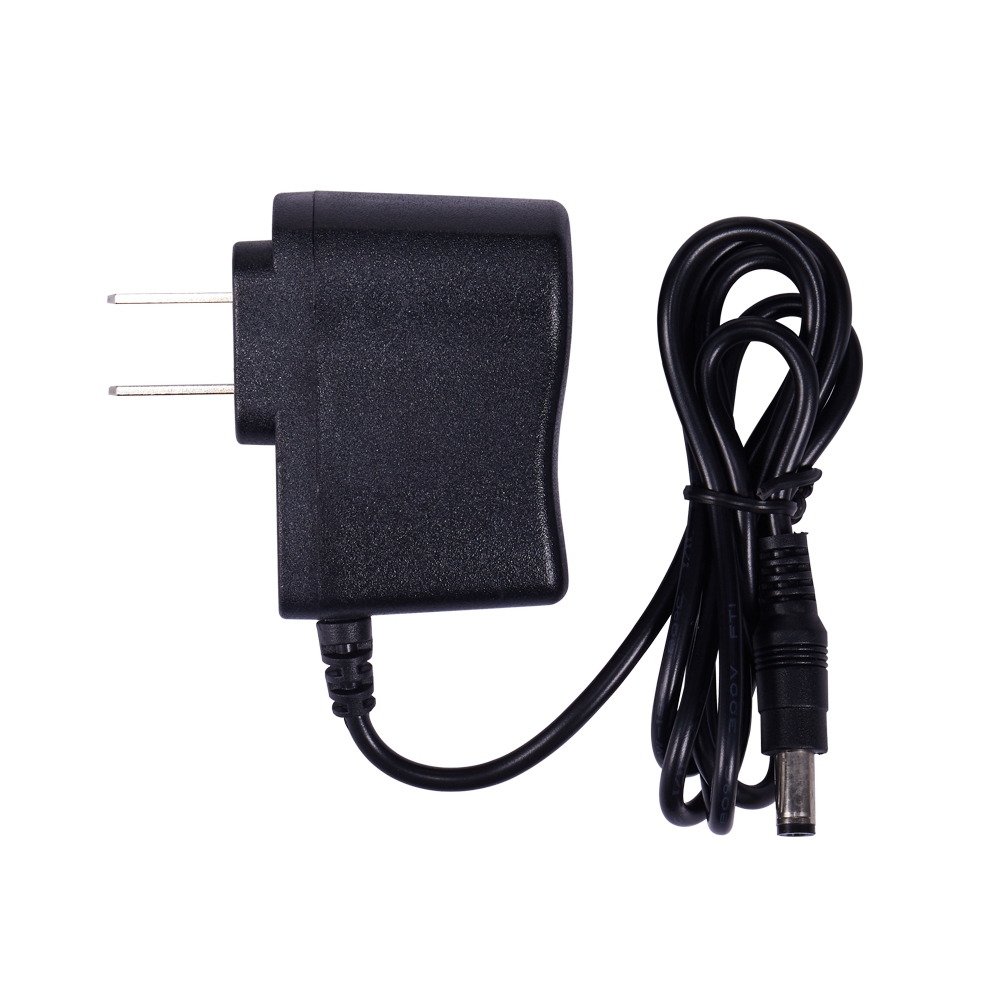

product description 【Product Details】 personal in-ear monitor amplifier， in-ear monitor amplifier for personal monitor applications， high power and "drummer proof" headphones output， dual XLR inputs allow for 2-channel mono or stereo operation， switchable stereo/mono operation with mix function， level and balance/mix controls， runs up to 12 hours on a 9V battery(not included)， battery control with dual LED indicators， operates on DC 9V power supply (included)， integrated current limit protects your ears and headphone。 【Product features】 Input：2 X XLR connector,balanced Output：6.35mm and 3.5mm TRS connector Input impedance：20K ohm Output impedance：10K ohm per channel Frequency response：20 Hz-80K Hz(+/-0.5 dB) THD + N：0.01% Signal-to-noise ratio：>90 dB(A-weighted) CMRR：>50 dB Crosstalk：>40dB System Data Normal input level：2 dBu Max input level：6 dBu Limit input level：7 dBu Max output level：9.5 dBu Indicators LEDs：power indicator(green)，battery control indicator(red) Voltage：Green LED lit：voltage>7.3V，Both green and red LED lit：voltage = 6.8-7.3V，Red LED lit：voltage

Specifications

SKU

SYA002131

Category

Consumer Electronics › Amplifier

Weight

0.484 kg

Delivery

Standard delivery
