EC080 4K HDMI Audio Extractor Full HD 1080P Video Splitter, Support Audio (5.1CH/2.1CH), TV (ARC), EU Plug / US Plug(Black)

Product Description

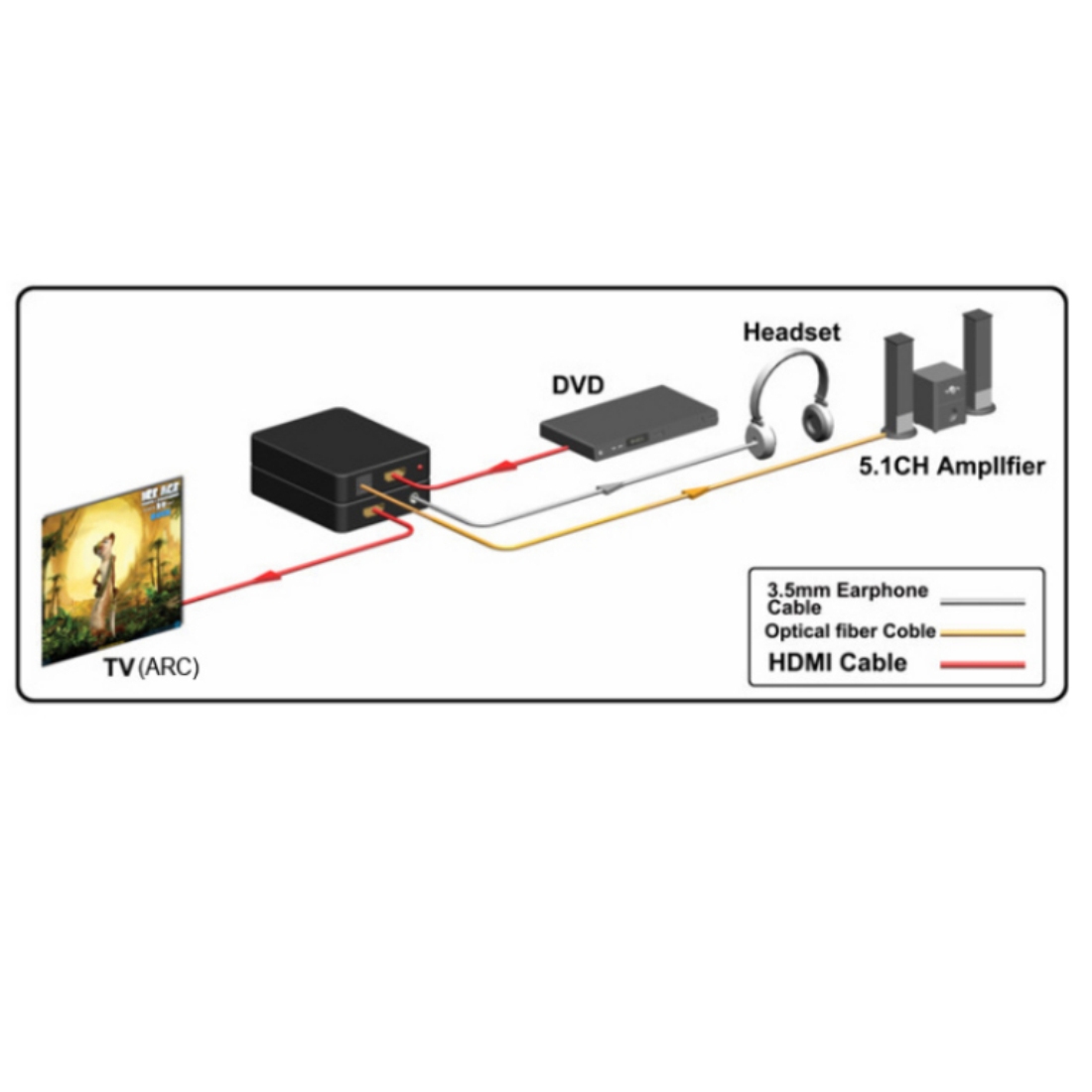

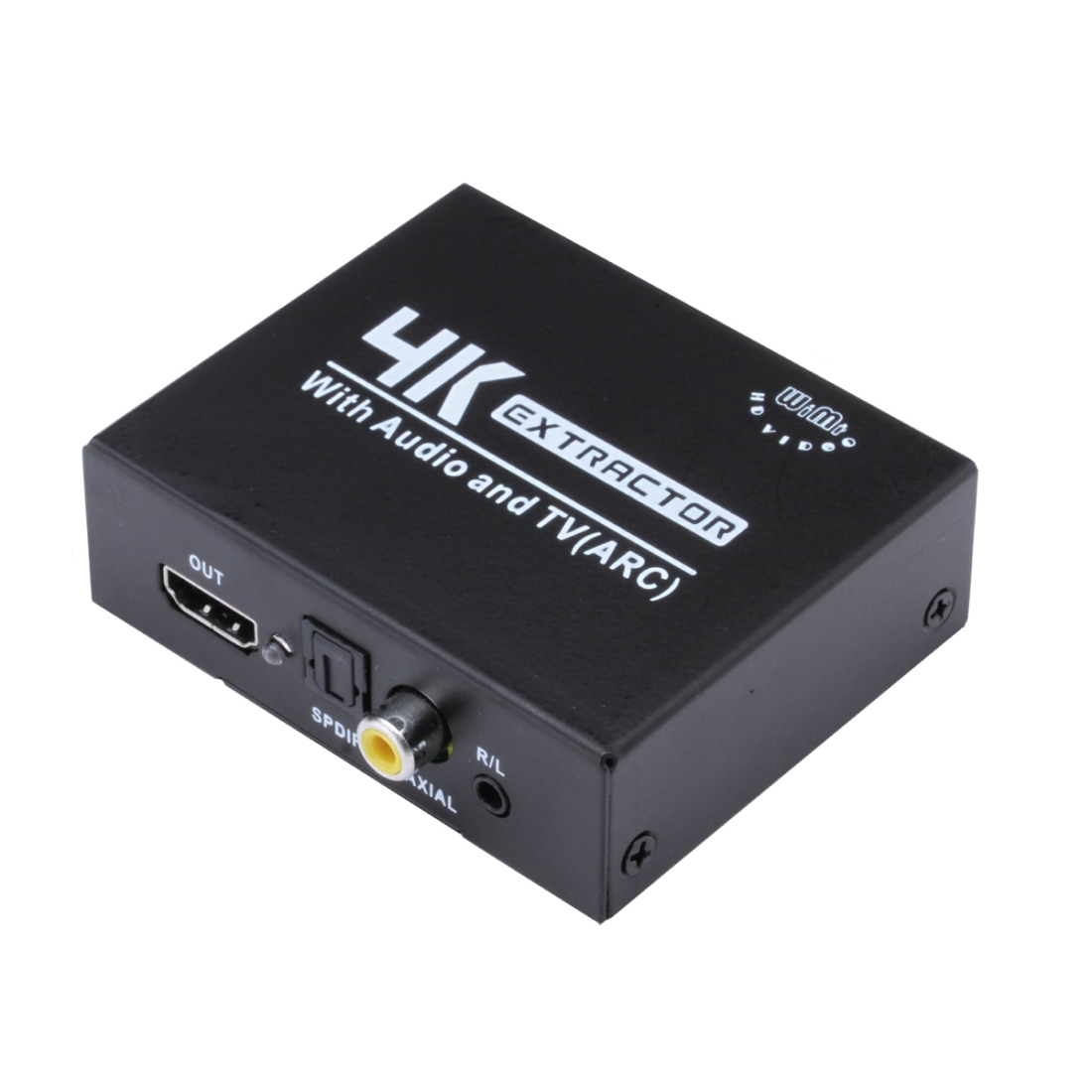

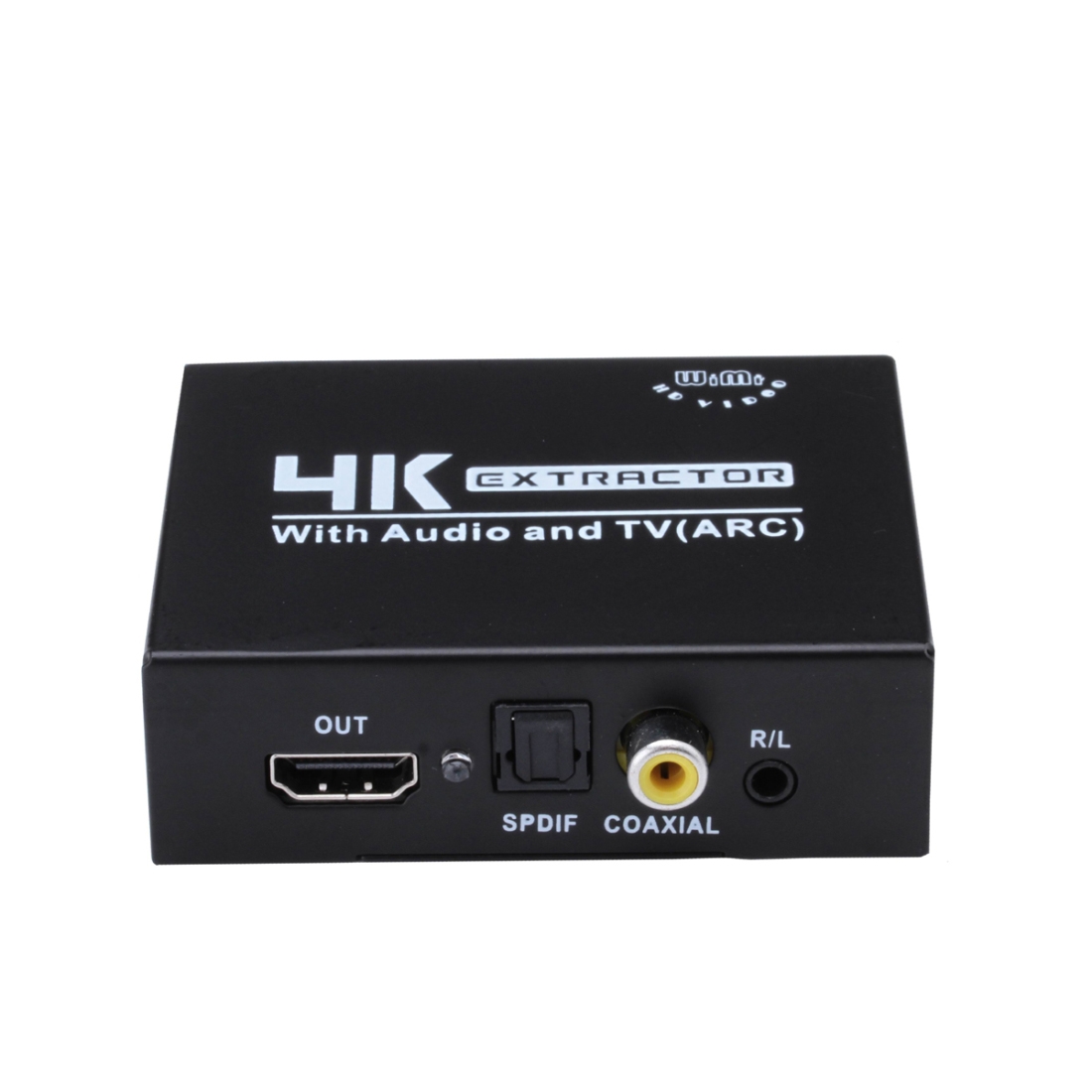

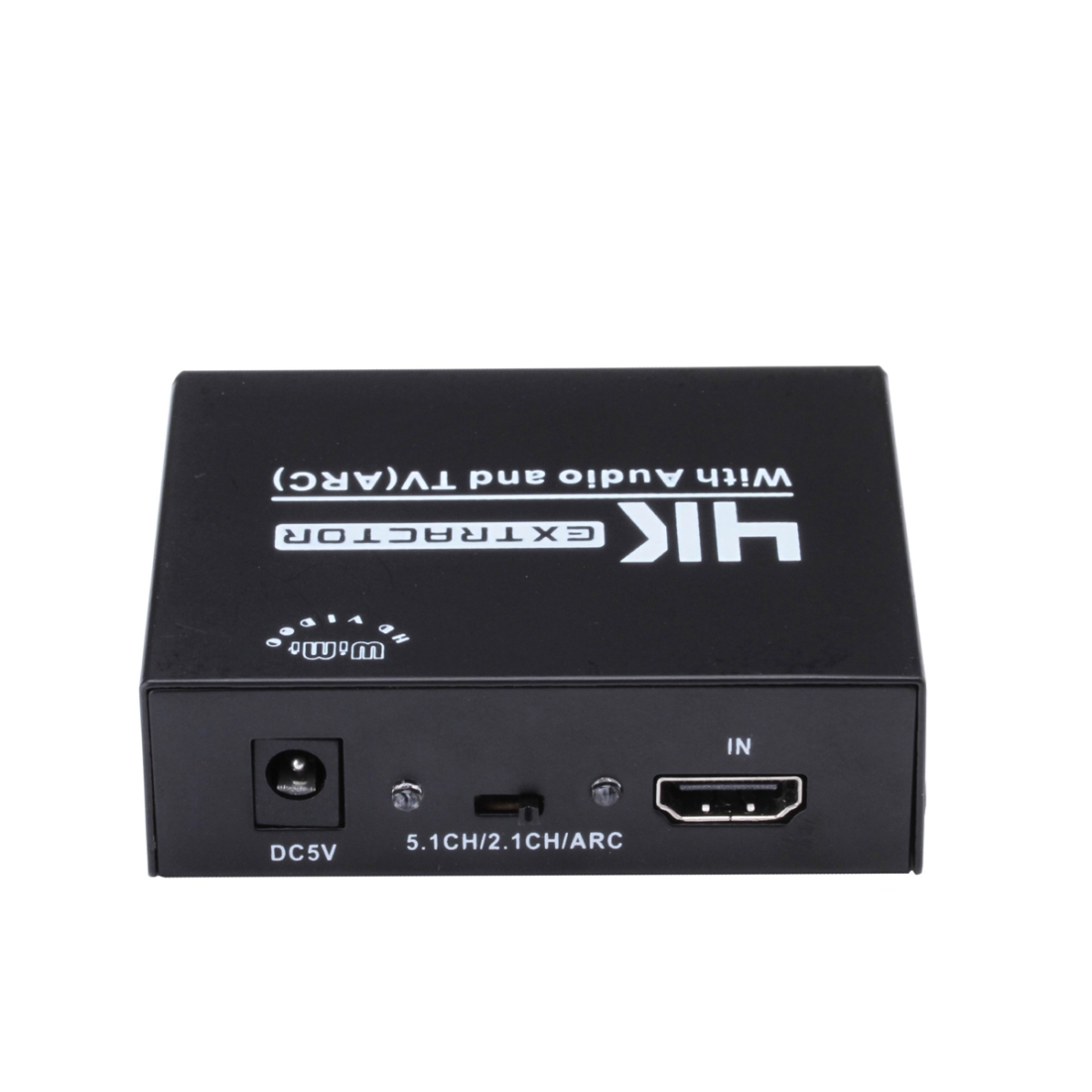

About the Product 1. 4K x 2K Digital to Analog HDMI Audio Extractor to HDMI SPDIF(Coaxial)+ R/L, HDMI Converter. 2. This 4K x 2K HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source. It can extract the digital audio signal. 3. Support audio TV(ARC). Embedded in HDMI source and convert it through 3.5mm analog audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio, including Dolby Digital 5.1CH and DTS 5.1CH. Features 1.HDMI resolution: 4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i 2.Input Port: 1 x HDMI IN, 1 x DC5V Power Port, 3 x EDID Audio(5.1CH/2.1CH/ARC) 3.Output Port: 1 x HDMI OUT, 1 x SPDIF(Optical), 1 x Coaxial, 1 x 3.5mm Jack 4.Support hot plug, plug and play, without installing any software. 5.Support HDMI 1.4V, HDCP 1.4 and DVI 1.0. 6.Support the optical sampling up to 48KHZ. 7.Support TV(ARC) 8.Supports Standard Audio, DSD Audio and HD(HBR) Audio.

Specifications

SKU

HDMI1580B

Category

Computer & Networking › HDMI Series › Splitter

Weight

0.309 kg

Delivery

Standard delivery
