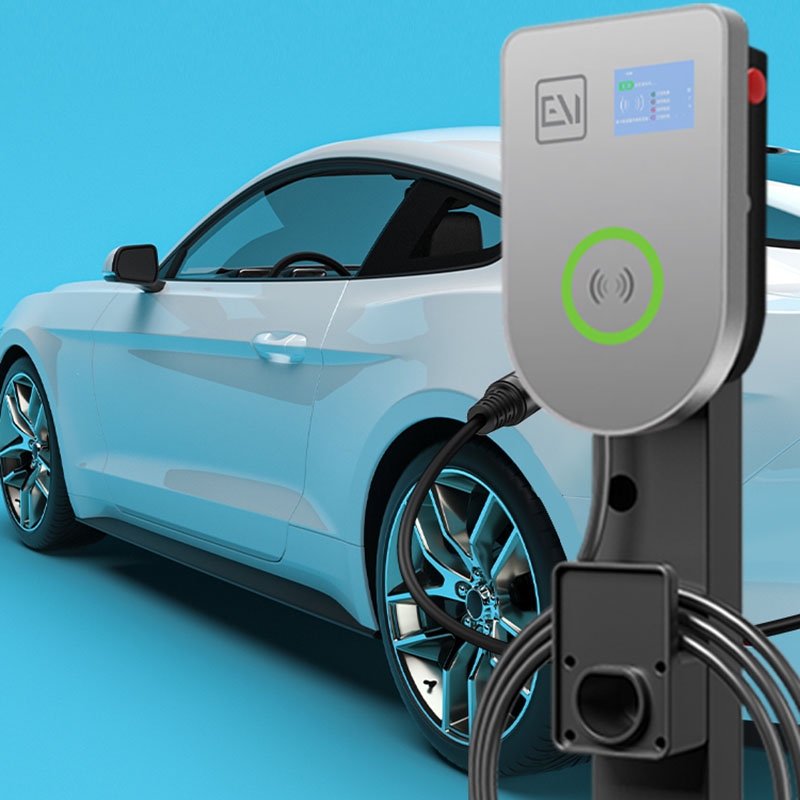

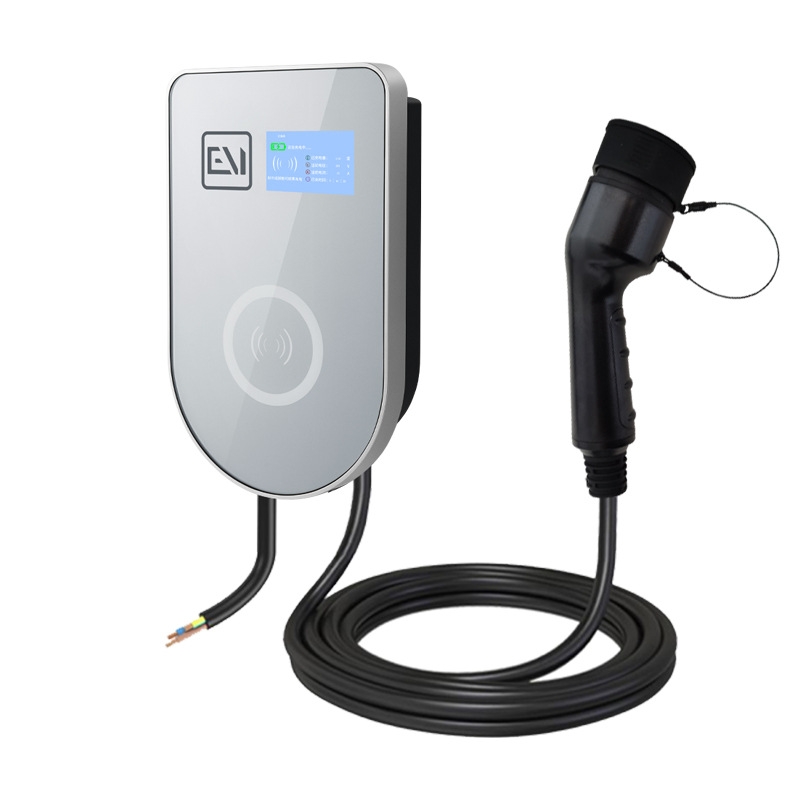

EV 32A Wall-Mounted B Style Swiping Card to Start New Energy Vehicle Charging Pile with Display, Plug:Type 2

Product Description

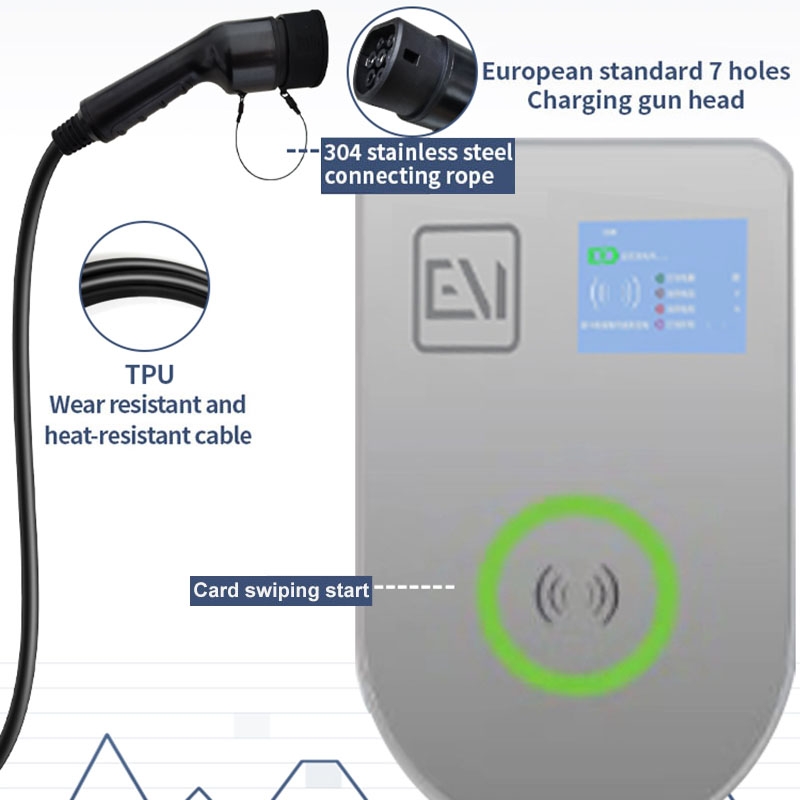

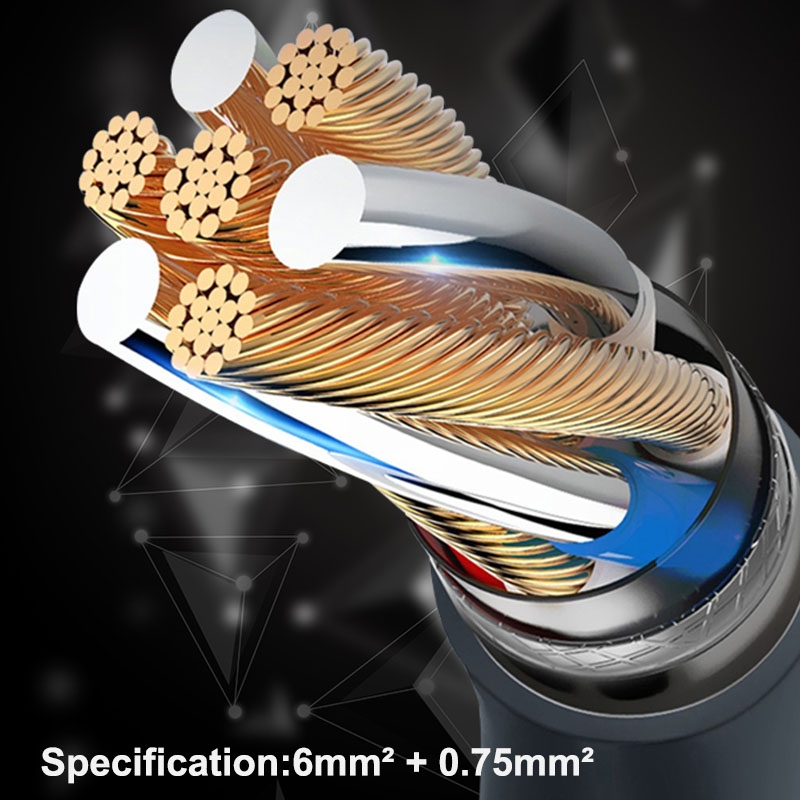

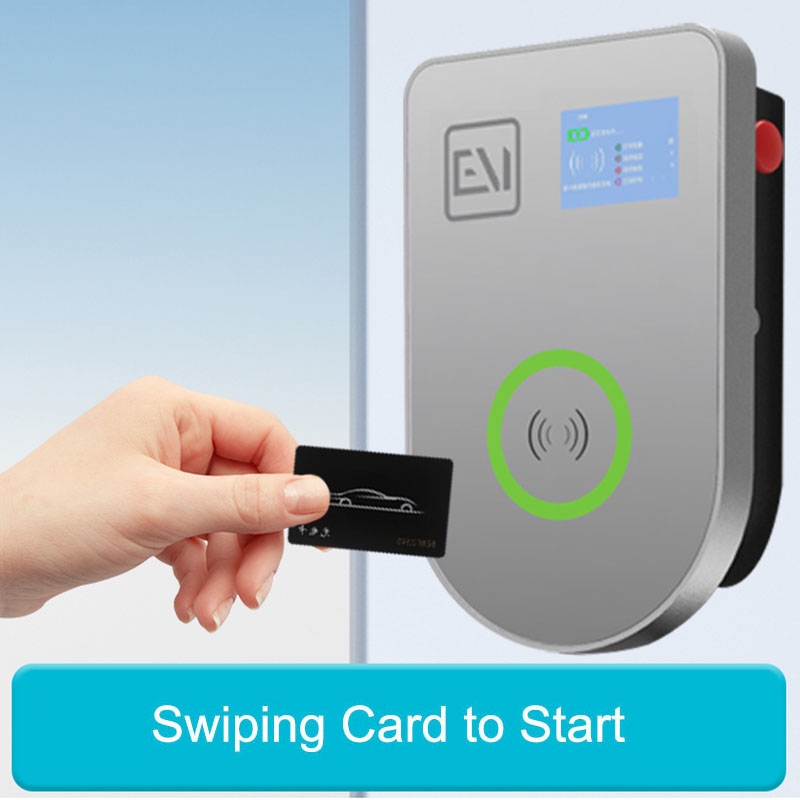

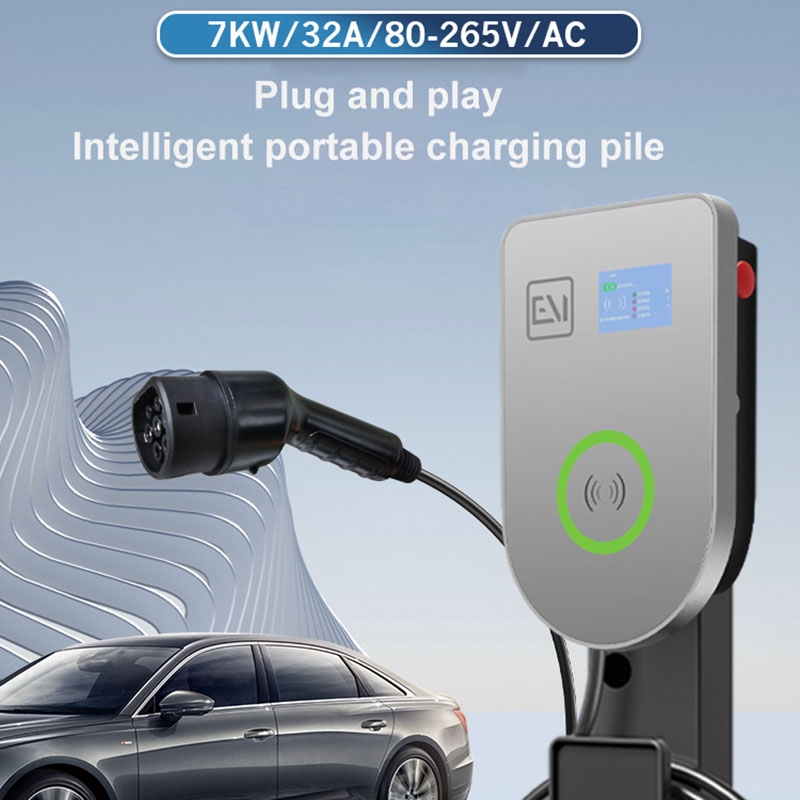

Parameters: 1. Current: 32A 2. Voltage range: 80V-265V 3. Maximum power: 7kw 4. Charging cable length: 5m 5. Product weight: 5KG 6. Product material: high flame retardant PC fuel + TPU + glass panel 7. Protection level: IP67 8. Rated output current: 32A 9. Rated output voltage: AC220V 10. Rated input voltage: AC220V 11. Rated input frequency: 50-60Hz 12. Working temperature: -30 - 120 degrees Celsius 13. Product size: 390x240x95mm Features: 1. Swipe the card to start charging, easy to operate 2. Built-in multiple circuit protections, anti-voltage protection, short circuit protection, over-temperature protection, over-current protection, etc., safe to use 3. Intelligent temperature control, stop charging when the temperature is higher than 85 degrees Celsius, and start charging when the temperature is lower than 60 degrees Celsius 4. Using PC shell material and glass panel, waterproof and dustproof, easy to wipe, good pressure resistance, not easy to aging, the outer material of the cable is TPU, wear-resistant and not deformed 5. The cable core is made of oxygen-free pure copper material, which reduces charging loss, is flame retardant and not easy to generate heat, and charges more stably 6. The charging head is ergonomically designed, comfortable to hold, easy to plug in and out 7. With LED display, you can intuitively see the charging status of the car

Specifications

SKU

EDA004450001

Category

In Car › EV Charger Electric › EV Charging Stations

Weight

5.504 kg

Delivery

Standard delivery
